Deposition mechanisms and characteristics of nano-modified multimodal Cr3C2–NiCr coatings sprayed by HVOF

  • Chenxi Shi , Shibin Liu , Irfan , Qinglin Gong , Huan Wang and Ming Hu EMAIL logo
Published/Copyright: August 26, 2022
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
REVIEWS ON ADVANCED MATERIALS SCIENCE
From the journal REVIEWS ON ADVANCED MATERIALS SCIENCE Volume 61 Issue 1

Abstract

Nano-modified multimodal and conventional Cr3C2–NiCr coatings were fabricated by high-velocity oxygen-fuel spraying deposited on CuCrZr substrates. Results showed that individual nano-modified multimodal Cr3C2–NiCr particles were composed of nano (25−180 nm), submicron (200 nm to 0.5 μm), and micron (2–4.5 μm) Cr3C2 grains, NiCr binder phases, and a tiny amount of rare earth oxide additives. The nano-modified multimodal Cr3C2–NiCr coatings maintained a unique structure: submicron Cr3C2 grains embedded in the voids formed by micron Cr3C2 grains, NiCr binder phases and nano Cr3C2 grains imbedded in the voids formed by submicron and micron Cr3C2 grains, and nano Cr3C2 grains are dispersed in NiCr metal binder phases. A few discontinuous elongated amorphous and nanocrystalline phases existed in them. The mechanical interlocking was the dominant bonding mechanism accompanied by local metallurgical bonds. Compared to the conventional coating, the multimodal coating was uniform and dense (porosity was 0.3 ± 0.12%) as well as not obvious lamellar structures, the adhesive strength was 75.32 ± 1.21 MPa, exhibiting a 65 pct increase, and the microhardness was increased by about 18%. The lower porosity and higher strength of nano-modified multimodal structure coating were mainly related to dispersion distribution and synergistic coupling effects of Cr3C2 hard grains with different scales.

Keywords: multimodal microstructure; HVOF; nano-modified; Cr3C2–NiCr coatings; characteristics; depositing mechanism

1 Introduction

Thermal spraying technology finds application in aerospace, automobile, textile, and mining industrial fields. The high-velocity oxygen-fuel (HVOF) deposition process, due to its high velocity and low temperature, is generally used to deposit metallic and cermet coatings [1]. The deposition of coating shows a minor structural change with a reasonable structural density during coating fabrication by the HVOF spraying technique [2]. With high impact velocities of the particles, the coatings of HVOF spraying demonstrate superior performances, such as low porosity, high density, hardness, and bonding strength [2].

The conventional Cr3C2–NiCr coatings have been employed to apply carbide cermet coating on industrial equipment due to its excellent resistance to wear, erosion, thermal shock, and high-temperature stability in the thermal spray community. Nowadays, researches on conventional Cr3C2–NiCr coatings have mainly focused on their properties, such as tribological properties [3,4,5] and corrosion resistance [6,7]. Other investigations have included studying manufacturing technologies of sprayed conventional Cr3C2–NiCr coatings [8,9,10,11,12]. The properties of these coatings have depended on primary factors including the variety of deposition methods (parameters) and the microstructure of coatings. However, the performances of conventional Cr3C2–NiCr coatings seemed to have certain limitations and were generally difficult to breakthrough.

Some researchers have showed that small additions of the Cr3C2–NiCr coating improved its properties [13,14,15,16]. Matthews et al. [17] have explored a novel method to improve the properties of Cr3C2–NiCr coatings. Besides, some studies have focused on the nanostructured Cr3C2–NiCr coatings [18,19]. In contrast, the nanostructured coatings were challenging to retain the nanostructural features of original powders due to too high spraying temperature and/or too long dwell times, causing the partial or total loss of the nanostructural character [20]. This needs to monitor in-flight particle temperature and velocity but increases the production cost. Due to fewer defects, the properties could be improved perfectly by introducing the fine fillers in the conventional coatings [21]. In recent years, some researchers have reported bimodal and multimodal structure carbide cermets coatings of the same type, such as WC-Co and TiC-Fe [22,23,24,25,26,27,28].

To overcome the problem of the property limitations of conventional Cr3C2–NiCr coatings and reduce processing costs, the nano-ceramic coating team of professor Wang You of the nano surface engineering laboratory of the Harbin University of Technology has developed a nano-modified multimodal structure Cr3C2–NiCr powder. There are limited studies on the microstructure, depositing mechanisms, and performance of nano-modified multimodal Cr3C2–NiCr coatings, and the potential of these coatings needs further research and development.

In this present study, the nano-modified multimodal and conventional Cr3C2–NiCr coatings prepared on CuCrZr by HVOF spraying have been investigated. The microstructure features, phase composition, and mechanical properties of both coatings have been comparatively studied. Finally, the depositing mechanisms of the multimodal Cr3C2–NiCr coatings have been researched in detail.

2 Experimental procedure

2.1 Materials

In the present work, two kinds of Cr3C2–NiCr powders were used as feedstock, namely, conventional Cr3C2–NiCr powders (Chongyi ZhangYuan Tungsten Co., Ltd.) and nano-modified multimodal Cr3C2–NiCr powders (Fujian Dilon Innovation Development Co., Ltd.), marked as CP and MP, respectively. The powder size exhibited dimensions and distributions of 15–45 μm. The obtained coatings were marked as CC and MC, respectively.

2.2 HVOF spraying process

The CuCrZr substrates were ultrasonically cleaned with acetone and sandblasted with Al2O3, then subsequently cleaned with pressurized air and preheated over 200°C before spraying. The CP and MP were deposited on CuCrZr substrates using an HVOF spraying system (HV-80-JP), and the average thickness of the coating was 200 μm. The optimized spraying parameters are summarized in Table 1.

Table 1

HVOF spraying parameters of as-sprayed Cr3C2–NiCr coatings

Parameters Value
Fuel type Kerosene
Fuel flow rate (l·min−1) 19–23
Oxygen flow rate (l·min−1) 40–53
Powder feed rate (g·min−1) 50–70
Carrier gas type N2
Carrier gas flow rate (l·min−1) 7
Stand-off distance (mm) 250–320
Number of cycles 10

2.3 Microstructural characterizations

Scanning electron microscopy (SEM; SU8020, HITACHI, Japan) was used to observe the morphology and microstructure of the powders, the original surfaces, and polished cross sections of the coatings, and the corresponding element distribution was analyzed by energy-dispersive spectroscopy (EDS; Super X, FEI, USA). The proportion of nano, submicro, and micro grains was obtained by selecting random 20 magnification of 5000× SEM microphotographs of powders, calculating the area of each size and taking the average value. The porosities of the coatings were evaluated by using Image-Pro® Plus v 6.0. In this case, at ten magnification of 500×, polished cross-sectional SEM microphotographs were taken randomly and the average value was calculated. For the investigations of the phases composition, the feedstock particles and the polished surfaces of coatings were characterized by the X-ray diffraction (XRD; UltimaIV, Rigaku, Japan) employing Cu-Kα radiation (λ = 1.5418 Å) at 40 kV, 40 mA and 0.02°/step, the scanning rate was 8°/min with the range of 20° ≤ 2θ ≤ 100°. The crystallographic structures of the nano-modified multimodal Cr3C2–NiCr coatings were further characterized by high-resolution transmission electron microscopy (TEM; Tecnai G2 F30, FEI, USA), and the TEM samples were prepared by the focused ion beam.

2.4 Mechanical properties evaluations

The resulting coatings were evaluated concerning their microhardness and adhesive strength. The cross-sectional microhardness of the coating was carried out using the microhardness tester (HVT-1000A, Shandong shancai Test Instrument, China) with an applied load of 300 g (HV0.3) and a hold time of 15 s. To obtain the stability of the data, the microhardness was based on the average value for random 12 points in different areas. The adhesive strength of the coating was tested by a universal tensile test machine, and the values were the average of three samples.

3 Results and discussion

3.1 Characterization of the feedstock powders

3.1.1 Powder morphology

The Cr3C2–NiCr feedstock powders were characterized with respect to their particles’ morphology and shape, microstructure, apparent density, composition and elements distribution, and phase analysis. Figure 1 illustrates the SEM micrographs of CP and MP.

Figure 1 SEM images of Cr3C2–NiCr powders: (a, b, c) CP; (d, e, f) MP.
Figure 1

SEM images of Cr3C2–NiCr powders: (a, b, c) CP; (d, e, f) MP.

It can be seen that CP exhibits highly spherical morphology (Figure 1a), indicating the good flow ability during the HVOF process, and MP exhibits irregularly crashed disk agglomerates (Figure 1d). This morphology is attributed to the continuous collisions of the ball and the particles inducing severe deformation during the mechanical milling. By viewing the powders at higher magnification, it is possible to observe that CP has relatively smooth surfaces (Figure 1b), the surface of MP is surrounded by fine grains, typical of an agglomerated and sintered powder (Figure 1e). Figure 1c and f present cross-sectional views of the feedstock powders. CP shows many voids (Figure 1c), and MP appears a homogenous and dense microstructure (Figure 1f), which modifies with the densification treatments. The structure in the interior of MP consists of micron and submicron carbide grains embedding into the metal binder phases. The agglomerated nano-sized grains fill in the voids of MP, which contribute to obtaining dense coatings, as illustrated in the rectangle ① in Figure 1f. The outer layer of MP is surrounded by a NiCr binder shell (rectangle ② contains primarily Ni and Cr analysis to be the metallic binder; Table 2) with a wall thickness of 0.5–1 μm, as illustrated in the rectangle ② in Figure 1f.

Table 2

Elemental composition of specific regions of Cr3C2–NiCr powders (wt%)

C Cr Ni REO Others
CP Coarse grains (like A) 7.44 91.27 0.96 0.00 0.33
14.87 83.98 0.92 0.00 0.23
11.34 87.26 1.03 0.00 0.37
Fine grains (like B) 10.78 88.16 1.02 0.00 0.04
11.19 85.34 3.39 0.00 0.08
14.57 81.51 3.72 0.00 0.20
MP Coarse grains (like C) 12.21 85.30 1.26 1.08 0.15
3.59 86.70 1.56 7.81 0.34
Coarse grains (like D) 3.96 77.19 3.32 15.34 0.19
14.95 81.39 1.48 2.09 0.09
Fine grains (like E) 12.76 85.14 1.23 0.68 0.19
9.38 85.47 1.55 3.28 0.32
Rectangle ② 1.60 16.65 77.39 4.16 0.20
3.77 49.52 43.85 2.59 0.27
6.55 59.47 26.12 7.68 0.18

Figure 2 presents the partial outside view of individual powder. As can be seen, the original crystal grains of individual CP particles consist of micro-size (2–4.5 μm) (Figure 2a), while the original crystal grains of individual MP particles are composed of 11.5 wt% nano grains (25−180 nm), 34.6 wt% sub-micro grains (200 nm to 0.5 μm), and 53.9 wt% micro grains (2–4.5 μm; Figure 2b).

Figure 2 SEM images of Cr3C2–NiCr powders: (a) CP and (b) MP.
Figure 2

SEM images of Cr3C2–NiCr powders: (a) CP and (b) MP.

According to the EDS results (Table 2), CP consists mainly of C, Cr, and Ni, and this is the same chemical composition as MP, but MP contains rare earth oxide additives. As is well known, the rare earth oxide additives possess an active chemical property and sizeable atomic radius [16]. Consequently, it is generally induced segregations on the surface of the grain and inhibits the grain heterogeneous growth. Moreover, adding REO also can accelerate the dissolution of the hard reinforcement particles, and then a refined microstructure can be formed [16].

The coarse grains (like A) and fine grains (like B) of CP (Figure 2a) contain higher levels of Cr and C; thus, both of the two regions are considered to be the carbides. For the MP (Figure 2b), the coarse grains (like C and D) and fine grains (like E) are greater contents of Cr although a minor amount of Ni exists, indicating the carbides. The formation of the structure can be explained that a large number of carbide particles are fractured and embedded into the metallic binder during the mechanical milling process. Thus, the metallic binder was present in the gaps between fractured carbide particles, giving the result that Ni is observed in the carbides. Similarly, most of the metallic binder is combined with fractured carbide particles. Clearly, the metallic binder was not a completely pure NiCr solid solution, and it contained some carbide particles [18].

Therefore, each MP particle was a multimodal agglomerate, which consisted of micron, submicron, and nano Cr3C2 grains, NiCr metal binder phases, and rare earth oxides. It formed a three-layer structure: the inner core was composed of micron and submicron carbide cermet embedded into the metal binder phases, the outer layer was a metal binder shell that surrounded the inner core, and the outermost layer adsorbed with different size submicron and nano Cr3C2 grains and rare earth oxides, which covered the metal binder shell.

3.1.2 Phase composition

Figure 3 shows the XRD spectra of the Cr3C2–NiCr powders and coatings. As can be observed, Cr3C2 and (Cr, Ni) crystalline phases were detected in CP and MP (Figure 3a), which showed a similar phase composition for these two powders. The diffraction intensities of REO additives existing in the crystallographic form were too weak to be detected in MP.

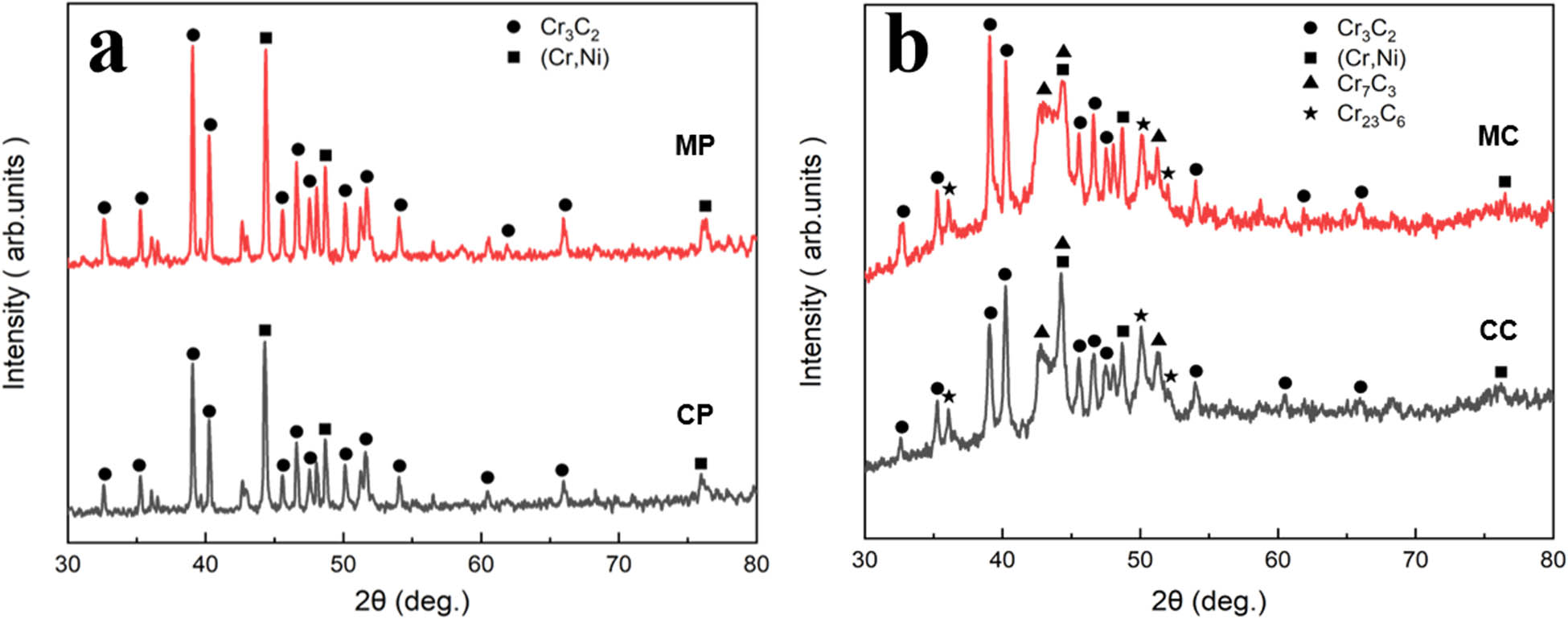

Figure 3 XRD patterns of Cr3C2–NiCr powders and coatings: (a) feedstock powders and (b) both the coatings.
Figure 3

XRD patterns of Cr3C2–NiCr powders and coatings: (a) feedstock powders and (b) both the coatings.

3.2 Characterization of the coatings

3.2.1 Phase composition

As shown in Figure 3b, the major diffraction spectra peaks of both the coatings could be associated with Cr3C2, Cr7C3, Cr23C6, and (Cr, Ni) phases. The ratio between the peak at 40.209° and the highest one at 39.022°, and the relative diffracted peak of Cr3C2 phase in MC (0.90) were significantly lower than for CC (1.25), which revealed various amounts of decarburization or interdiffusion of carbides in MC [29]. Meanwhile, the diffraction peaks at 42.183–44.835° for MC can be clearly observed broader than the related peaks for CC, indicating the presence of the nonequilibrium microstructure composed of partly amorphous and/or nanocrystalline phases [30]. This might be attributed to the fact that the dissolution of Cr and C could perform in the Ni phase at high temperatures, while it is difficult to crystallize due to the rapid solidification during the HVOF process. Furthermore, its initial nanometric grains of MC can be maintained even after the HVOF spraying due to the lower temperature and shorter residence time [31].

The new diffraction spectra of Cr7C3 and Cr23C6 were detected in the two Cr3C2–NiCr coatings due to the decarburization of Cr3C2, and the diffraction peak overlap at 2θ = 44.16°. When in-flight Cr3C2 particles were heated by jet flame or during coating formation, the following phase transformations or reactions could occur:

(1) 7 Cr 3 C 2 → 3 Cr 7 C 3 + 5 C ,

(2) 23 Cr 3 C 2 → 3 Cr 23 C 6 + 28 C ,

(3) 23 Cr 7 C 3 → 7 Cr 23 C 6 + 27 Cr ,

(4) C + O 2 → CO 2 or 2 C + O 2 → 2 CO .

Liquid–solid reactions occur within cermet particles when the ceramic particle, in the solid state, is partially dissolved in the surrounding liquid metal [32]. The NiCr binder phases could fully melt (melting point of 1,690 K) during the high-temperature flame of HVOF spraying. The metallic chromium (Cr) and carbonium (C) in the outer layer of chromium carbide (Cr3C2) particles are wetted by molten liquid NiCr, then dissolved, and rapidly diffused into the liquid nickel. These phenomena are following the Arrhenius law, and the reaction rate increases drastically with the particle superheat [32].

A certain part of the free carbon reacts with oxygen that entrained externally into the molten NiCr phases to form CO gas, and the other part continues to spread toward the surface of the liquid NiCr to react with oxygen in the atmosphere to form carbon oxide gases (CO or CO2) bleeding to the atmosphere. Therefore, metastable carbides (Cr7C3 and Cr23C6) may form at the interface of Cr3C2 and NiCr phases. Furthermore, dissolved carbon is lost as CO or CO2 gases [33], which promotes the formation of Cr7C3 and Cr23C6 phases.

3.2.2 Microstructure

Figure 4 observes closely packed particles and predominantly rough surfaces on the top coatings. Such structural features are the typical morphology of thermal spray coatings. The surface particles of MC were finer than CC, as illustrated in Figure 4a–c, those were quite similar to the initial powders. For the case of CC, the as-sprayed coatings were built-up by a certain amount of micron-sized grains (Figure 4b). For the case of MC, submicron Cr3C2 grains embedded in the voids formed by micron Cr3C2 grains, NiCr binder phases and nano Cr3C2 grains imbedded in the voids formed by submicron and micron Cr3C2 grains, and nano Cr3C2 grains are dispersed in NiCr metal binder phases, those formed the unique multimodal structure coatings (Figure 4d). A magnified region within the rectangle in Figure 4c displays a certain amount of near-globular shape micro grains that form the agglomerate. Such agglomerated reaction might be due to the higher surface-to-bulk ratio and chemical reactivity of the nano-sized particles that lead to a strong surface effect. In addition, partial nano-sized particles connected with each other to promote the formation of larger agglomerates during the Brownian movement. In addition, nano particles with high specific surface areas possessing strong surface tension may be another reason for the agglomerated reaction.

Figure 4 SEM images of Cr3C2–NiCr coatings top surface: (a) CC, (b) higher magnification view of CC, (c) MC, and (d) higher magnification view of MC.
Figure 4

SEM images of Cr3C2–NiCr coatings top surface: (a) CC, (b) higher magnification view of CC, (c) MC, and (d) higher magnification view of MC.

Table 3 lists EDS surface scanning information of Cr3C2–NiCr powders and coatings. EDS analysis revealed that both coatings contain small amounts of oxides (not detected peaks in the XRD pattern) and MC oxygen content higher than that of CC, which contains 5.59 (wt%) and 2.30 (wt%), respectively. The presence of oxides might be attributed to the fact that most spray experiments are performed in the atmosphere. On the one hand, the surfaces of the metallic matrix form the oxide regions by preheating, and powders impact the oxide layer existing on the metallic matrix surface. On the other hand, powders also are oxidized both in-flight or during deposition because oxygen in the atmosphere is entrained within the high-energy jet and reacts with the high-temperature particles in-flight. In addition, the oxygen working with HVOF equipment is always excessive, and the residue oxygen may also react with the hot in-flight particles [34].

Table 3

Elemental composition of Cr3C2–NiCr powders and coatings (wt%)

C O Cr Ni REO
CP 71.73 0.00 26.11 2.16 0.00
MP 68.87 0.00 24.09 5.39 1.65
CC 15.50 2.30 56.34 25.87 0.00
MC 11.96 5.59 59.95 21.06 1.44

Furthermore, EDS results of carbon content were investigated: 15.50 (wt%) and 11.96 (wt%) for CC and MC, respectively. Another problem related to carbide cermets coatings is linked to decarburize, especially for nano-sized coating. The degree of decarbonization of MC is higher than that of CC due to the larger surface area-to-mass ratio of the nano-sized particles, even under HVOF spraying conditions.

Figure 5 illustrates the secondary electron images of the cross-sectional microstructure of the two coatings. The low magnifications are exhibited to provide an overview of the cross-sectional coating microstructure (Figure 5a and b). The typical lamellar microstructures of thermal spray coatings exhibit in CC (Figure 5c); however, those are not obviously observed in MC (Figure 5d). The cross sections of both coatings can be observed as cracks and pores, especially in CC. It has been shown that the defects of sintering technology induce the existence of unfilled pores and cracks in Cr3C2–NiCr feedstock powders [35,36], and vapors and gases stagnate on the substrates to be sprayed. Moreover, the major defects of lamellar stacking are interlamellar pores [20], and unmelted or resolidified particles remaining in the coating structure may be another source of the pores. In addition, for cermets sprayed with gases that accelerate dissolution in in-flight particles, these gases are not fully released during the short residence times in the jet, thus trapping into the splat [37].

Figure 5 Cross-sectional SEM images of Cr3C2–NiCr coatings: (a and c) CC and (b and d) MC.
Figure 5

Cross-sectional SEM images of Cr3C2–NiCr coatings: (a and c) CC and (b and d) MC.

The initiation of the cracks may be attributed to the cracks in powders as mentioned earlier, living in coatings and the lack of melting of NiCr metallic binder, and reduced bonding interfaces, as illustrated in rectangle ① in Figure 5c. In other respects, the cracks are formed by thermal expansion coefficients mismatch between the Cr3C2 hard carbides and NiCr metallic binder following the nonequilibrium solidification process, as illustrated in rectangle ② in Figure 5c. In addition, the combination of cohesive failure around peripheral lamellae leads to delaminations between lamellar layers [20]. Finally, owing to the residual stresses generated within coating during manufacturing processes.

As can be seen, the coatings consist of different shading contrast zones of dark gray, medium gray mixture, and light gray, which can be distinguished by contrast lighter and darker in the coating microstructure (Figure 5). Figure 6a–e shows the elemental composition by EDS spectra at selected parts of the dark-gray, medium-gray mixture, and light-gray zones. The dark-gray area of CC contained C and Cr; thus, the dark-gray area was considered to be carbides. The light-gray area observed C, Cr, and Ni; thus, the light-gray area was neither pure carbides nor pure NiCr binder phase (Figure 6a and b). At the medium-gray mixture area for MC, some dark-gray nanometric particles dispersing into the light-gray area are observed (the rectangle ③ in Figure 5d). EDS spectra reveal a composition of C, O, Cr, Ni, and REO in this area (Figure 6e).

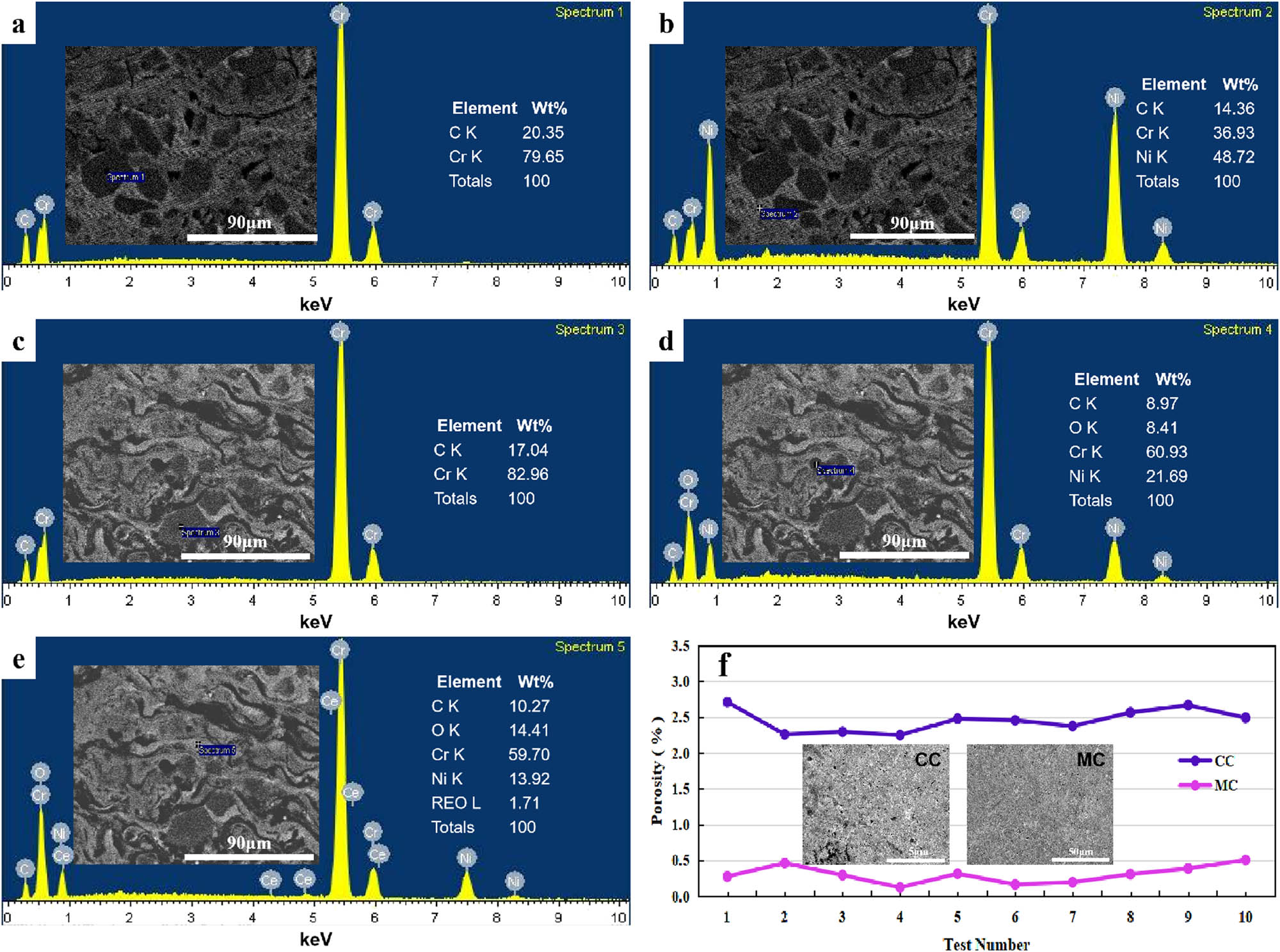

Figure 6 EDS spectra and porosity of the cross-sectional coatings: (a and b) EDS spectra of CC, (c–e) EDS spectra of MC, and (f) porosity.
Figure 6

EDS spectra and porosity of the cross-sectional coatings: (a and b) EDS spectra of CC, (c–e) EDS spectra of MC, and (f) porosity.

Meanwhile, submicron-sized and micron-sized Cr3C2 grains are distributed uniformly in the coatings, i.e., the multimodal distribution. Compared with CC, MC was observed in a higher uniform and higher dense microstructure. MC exhibits lower porosity (0.3 ± 0.12%) than that of CC (2.45 ± 0.15%; Figure 6f). Disparity in the coating microstructures is influenced by original powder morphology. This higher uniformity and density of MC depend on the structural characteristics of MP (i.e., homogenous and dense microstructures). The aforementioned process results in the complex microstructure, i.e., nonequilibrium phase, varying contrast scale, and different carbides content, of the multimodal coating.

For a further detailed analysis of the microstructural information of MC, the TEM bright-field image and corresponding selected area electron diffraction (SAED) patterns are shown in Figure 7. The single crystalline including Cr3C2, Cr23C6, and Cr7C3 crystals was observed with high magnification image and diffraction, which are marked as A, B, and C in Figure 7, respectively, which were consistent with the XRD results. The growth orientation of Cr3C2 crystal in SAED patterns was exactly consistent with the orientation facets [102] of the Cr3C2 crystalline structure, the growth orientation of Cr23C6 crystal in SAED patterns was exactly consistent with the orientation facets [11̅1̅] of the Cr23C6 single crystalline, and the growth orientation of Cr7C3 crystal in SAED patterns was exactly consistent with the Cr7C3 single-crystalline of zone axis [01̅3̅].

Figure 7 TEM micrograph and diffraction spot patterns of the cross-sectional MC. (a) Cr3C2, (b) Cr23C6, (c) Cr7C3, (d) amorphous phase, (e) multiple crystalline phase.
Figure 7

TEM micrograph and diffraction spot patterns of the cross-sectional MC. (a) Cr3C2, (b) Cr23C6, (c) Cr7C3, (d) amorphous phase, (e) multiple crystalline phase.

A few discontinuous elongated amorphous phases was clearly marked as D in Figure 7 and the diffraction pattern demonstrated diffuse rings. The elongated amorphous phases were randomly distributed in MC. The amorphous phase formation mainly are correlated to the nonequilibrium solidification processes of the NiCr binder. It is demonstrated that the multiple crystalline phases constituted of Cr3C2, Cr7C3, Cr23C6, and NiCr, which are marked E in Figure 7. Those multiple crystalline phases constituted multiple crystal forms with different dimensions, shapes, and orientations, thereby producing multiple types of diffraction spots and even diffraction rings. This reveals once again that carbide nanocrystalline grains with dimensions varying from 25 to 180 nm existed in the MC microstructure.

Figure 8 depicts the TEM bright field imaging and the EDS elemental mapping of the interface in Figure 7. According to EDS elemental mapping, the interface is mainly composed of REO, O, Cu, Ni, C, and Cr, and this is attributed to the interdiffusion of the coating and substrate. The observation of interfacial formations suggests that mechanical interlocking is the dominant bonding mechanism accompanied by local metallurgical bonds.

Figure 8 TEM micrograph and EDS elemental mapping for MC interface.
Figure 8

TEM micrograph and EDS elemental mapping for MC interface.

3.3 Mechanical properties of Cr3C2–NiCr coatings

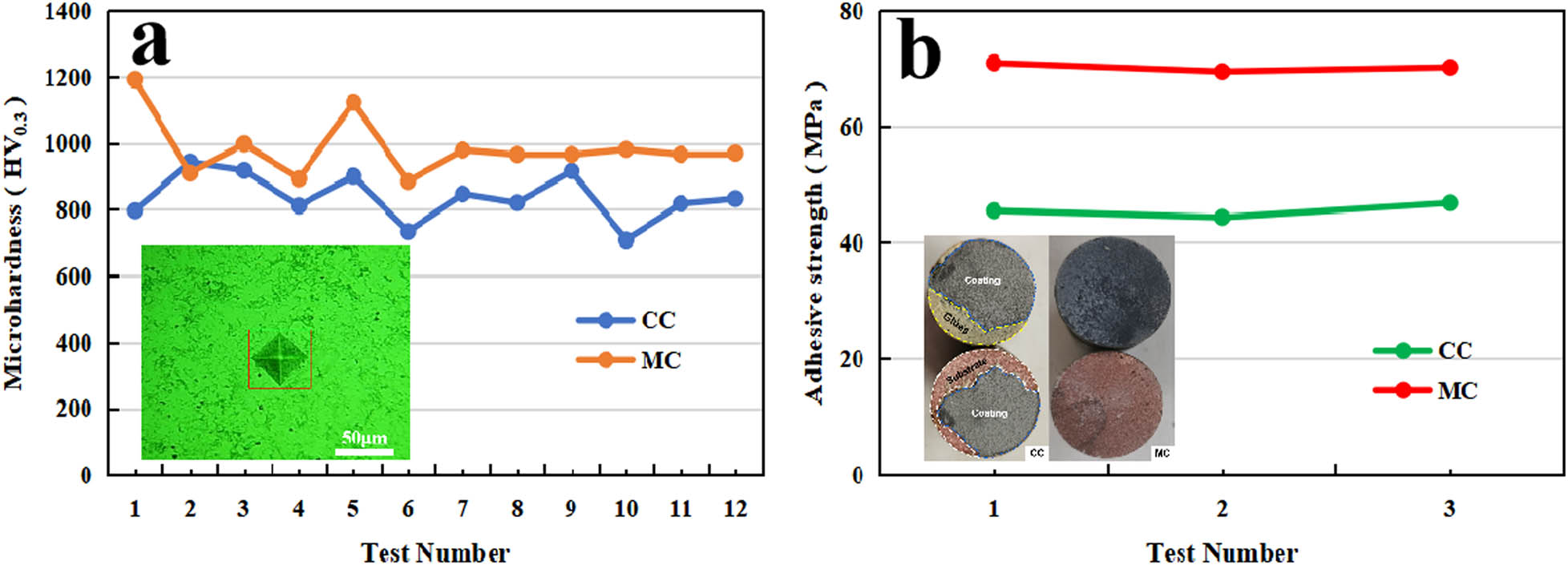

Figure 9 shows the average values of microhardness and adhesive strength for both CC and MC. As shown in Figure 9a, MC had higher Vickers microhardness (985.85 ± 89.36 HV0.3) compared with CC (837.19 ± 70.12 HV0.3), taken on the cross section. The adhesive strength of MC (75.32 ± 1.21 MPa) significantly improved compared to CC (45.59 ± 1.03 MPa) and exhibited a 65 pct increase (Figure 9b). The good values of microhardness and adhesive strength of the multimodal coatings might be attributed to dispersion distribution and synergistic coupling effects of carbide grains with different scales. Owing to the advantages of HVOF technology (i.e., high velocity and low temperature), more nano-scale carbide grains embedded into the multimodal structure coating during deposition. According to the Hall–Petch relationship, the smaller grains have resulted in coatings with the larger microhardness [38]. In addition, the sub-micro scale or micro scale carbide grains would tend to interrupt or change crack path propagation, which would enhance toughness of the multimodal coatings [20,39]. The crack arresting effect shows that the mechanical properties of multimodal coatings are better than the conventional ones. For the conventional coatings, the crack tends to propagate along splat boundaries due to the weak inter-splat adhesion. For the multimodal coatings, the inter-splat adhesion is generally better and the coating is rather homogeneous; thus, crack propagation is limited [32].

Figure 9 Microhardness and adhesive strength of the Cr3C2–NiCr coatings. (a) Microhardness, (b) adhesive strength.
Figure 9

Microhardness and adhesive strength of the Cr3C2–NiCr coatings. (a) Microhardness, (b) adhesive strength.

3.4 Depositing mechanism of nano-modified multimodal structure Cr3C2–NiCr coatings

For a better description of the mechanism of the multimodal structure coating formation, four stages are schematically shown in Figure 10:

In the study, a single nano-modified multimodal Cr3C2–NiCr particle is used as a starting material.

  1. In a solid state. As mentioned earlier, multimodal Cr3C2–NiCr particle is an agglomerated material, which consists of coarse (micron and submicron) and fine (nano) Cr3C2 grains and NiCr binder phases. It forms a three-layer structure: a multiscale chromium and nickel carbide cermet core with a metal binder shell, which was covered by submicron and nano chromium carbide particles and rare earth oxide additives (see Figure 10a).

  2. Molten. However, grains of three different sizes have different melting degrees when passing through the flame in the HVOF gun. The melting of the original particle exhibits a strong dependency on the spray temperature and the grain size distribution. In the case of the short dwell time in the HVOF jet and when the temperature is low enough (not significantly higher than the melting temperature of the original powder), the NiCr binder phases will fully melt. The nano Cr3C2 grains adhering to the surface will melt with relative ease, leading to dissolving rapidly in the binder phases. While the submicron and micron Cr3C2 grains in the inner core (melting point of 2200 K) will remain partially melted or unmelted, but softened by heating (see Figure 10b).

  3. Deformation. The particles in a molten state are flattened upon impact and due to quench and solidification, resulting in splats. While particles in the partly melted or unmelted state were plastic deformation at impact, and their consolidations were due to the shot peening effect of the new incoming particles [32] (see Figure 10c).

  4. Realignment. The particles realign after quenching on the substrate. The coating cross section exhibits a dense coating (see Figure 10d). The different sizes of Cr3C2 grains are uniformly distributed throughout the coating microstructure, half-melted or unmolten submicron Cr3C2 grains filled in the voids formed by only the heated and softened micron Cr3C2 grains, fully molten NiCr binder phases and nano Cr3C2 grains provide a strong and tough matrix in which the micron and submicron grains embed and be held in place [40], and nano Cr3C2 grains are dispersed in NiCr binder phases [27].

The final microstructure of the nano-modified Cr3C2–NiCr coating is characterized by a “multimodal structure,” which is similar to concrete construction, formed by nano-sized, submicron-sized, and micron-sized hard phases and metallic binder phases. The micron-sized and submicron-sized hard phases are analogous to gravel and sand in concrete, respectively, and the nano-sized hard phases and metallic binder phases act as “cement” [26].

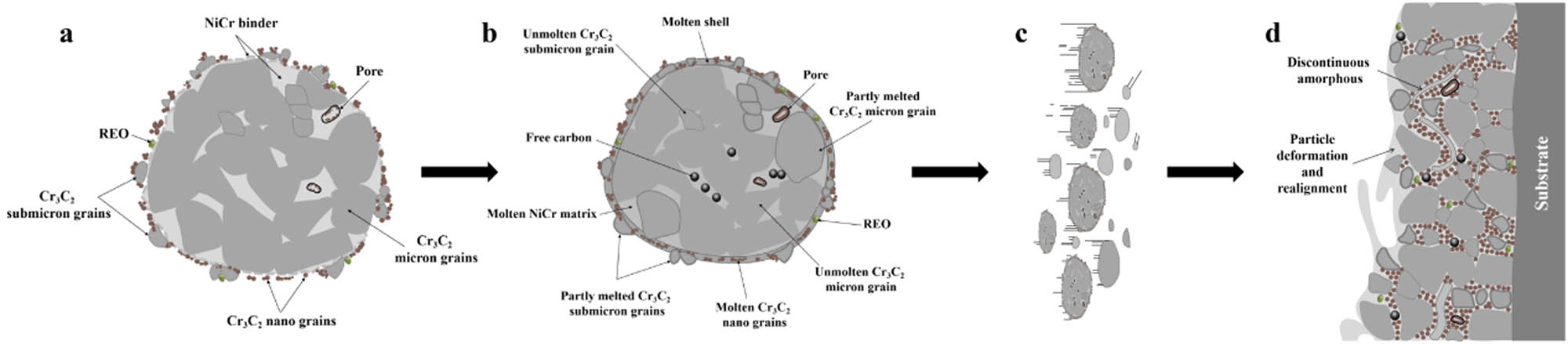

Figure 10 Schematic of the formation of the multimodal structure coatings: (a) original particle, (b) molten part of the particle, (c) particle deformation, and (d) cross section of the multimodal coatings.
Figure 10

Schematic of the formation of the multimodal structure coatings: (a) original particle, (b) molten part of the particle, (c) particle deformation, and (d) cross section of the multimodal coatings.

4 Conclusions

In conclusion, nano-modified multimodal and conventional structure Cr3C2–NiCr coatings were deposited on CuCrZr by HVOF thermal spraying. The microstructure and mechanical properties of both coatings were comparatively studied. Besides, the depositing mechanism of the nano-modified multimodal structure Cr3C2–NiCr coatings have been described in detail. The main conclusions are presented as follows:

  1. A single nano-modified multimodal Cr3C2–NiCr particle consisted of 11.5 wt% nano grains (25−180 nm), 34.6% sub-micro grains (200 nm to 0.5 μm), and 53.9% micro grains (2–4.5 μm). It forms a three-layer structure: a multimodal chromium and nickel carbide cermet core with a metal binder shell, which were covered by submicron and nano chromium carbide particles and rare earth oxide additives.

  2. The multimodal Cr3C2–NiCr coatings are formed by nano-sized, submicron-sized, and micron-sized hard grains and metallic binder phases. Submicron Cr3C2 grains embedded in the voids formed by micron Cr3C2 grains, NiCr binder phases, and nano Cr3C2 grains imbedded in the voids formed by submicron and micron Cr3C2 grains, and nano Cr3C2 grains are dispersed in NiCr metal binder phases. A few discontinuous elongated amorphous and nanocrystalline phases existed in them.

  3. Compared with the conventional Cr3C2–NiCr coating, the multimodal Cr3C2–NiCr coating is uniform and dense as well as not obvious lamellar structures, and the porosity is only 0.3 ± 0.12%.

  4. The microhardness increased from 837.19 ± 70.12 HV0.3 for the conventional Cr3C2–NiCr coating to 985.85 ± 89.36 HV0.3 for the multimodal Cr3C2–NiCr coating. The adhesive strength for MC (75.32 ± 1.21 MPa) significantly increased to 65%, compared with CC (45.59 ± 1.03 MPa).

  5. In consideration of the fact that the copper crystallizer, the core component of continuous casting equipment in the steel industry is mainly used as the working layers by electrolytic hard chromium coatings, which show poor performance, short life span, and serious environmental pollution and harmful effects on public health (hexavalent chromium). The nano-modified multimodal structure Cr3C2–NiCr coatings prepared on copper crystallizer by HVOF spraying, which have high spraying efficiency, high hardness and adhesive strength, low porosity, and low costs, are significantly attractive for the gains in copper crystallizer performance, superior lifetime, and the pollution reduction. Therefore, the multimodal Cr3C2–NiCr coatings would be the most important replacement for hard chromium electroplating coatings.

Acknowledgments

The authors are grateful to the valuable help from professor Wang You of the Harbin University of Technology of China, the support from Jiamusi University College of Materials Science and Engineering and Metal Wear Resistant Materials and Surface Technology Engineering Research Center in the Ministry of Education of China.

  1. Funding information: The work was supported by the National Natural Science Foundation of China (grant No. 51671096).

  2. Author contributions: Ming Hu contributed significantly to designed the conception of the study and conducted final approval of manuscript; Chenxi Shi performed the research, analyzed and interpreted the collected data, and wrote the manuscript; Shibin Liu and Qinglin Gong performed the experiment; Irfan and Huan Wang contributed to carrying out additional analyses with constructive discussions.

  3. Conflict of interest: We declare that we have no conflict of interest with other people or organizations.

  4. Data availability statement: The datasets generated during and/or analysed during the current study are available from the corresponding author on reasonable request.
