Crystal structure of 4-benzyl-1-oxo-N-phenethyl-1H-[1,4]oxazino [4,3-b]indazole-3-carboxamide, C26H21N3O3

  • Xian Wei , Ying Fen Li , You Lin Xu und Meng Lan Lv ORCID logo EMAIL logo
Veröffentlicht/Copyright: 18. Oktober 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 235 Heft 1

Abstract

C26H21N3O3, triclinic, P1̄ (no. 2), a = 9.149(4) Å, b = 9.249(4) Å, c = 13.508(7) Å, α = 91.995(9)°, β = 101.158(8)°, γ = 108.392(8)°, V = 1058.5(9) Å3, Z = 2, Rgt(F) = 0.0628, wRref(F2) = 0.1668, T = 296(2) K.

CCDC no.: 1957138

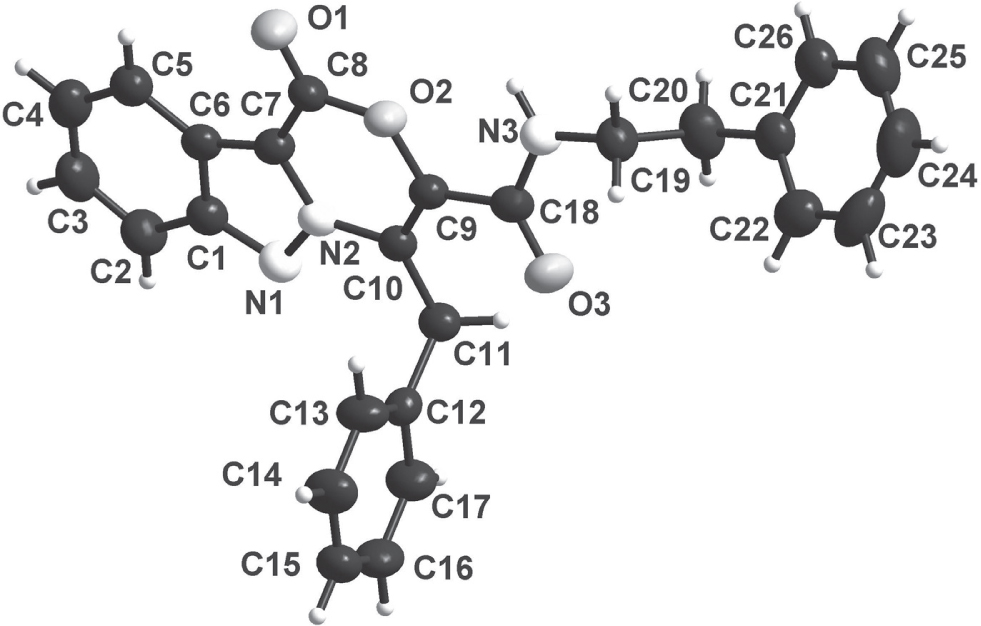

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block, colorless
Size:0.25 × 0.20 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.09 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25°, >99%
N(hkl)measured, N(hkl)unique, Rint:5368, 3680, 0.039
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2080
N(param)refined:289
Programs:Bruker programs [1], OLEX2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.7213(2)1.1665(2)0.49265(14)0.0591(6)
O20.5939(2)0.9772(2)0.37150(13)0.0473(5)
O30.3970(2)0.7031(2)0.16381(14)0.0608(6)
N11.0060(3)0.9896(3)0.30033(17)0.0474(6)
N20.8646(2)0.9801(3)0.31834(15)0.0412(6)
N30.3222(3)0.7654(3)0.30348(17)0.0522(7)
H30.35250.81190.36390.063*
C11.1092(3)1.1034(3)0.3709(2)0.0453(7)
C21.2741(4)1.1587(4)0.3855(2)0.0569(8)
H21.32641.12010.34410.068*
C31.3537(4)1.2698(4)0.4620(2)0.0617(9)
H3A1.46321.30790.47350.074*
C41.2764(4)1.3301(4)0.5249(2)0.0613(9)
H41.33611.40750.57630.074*
C51.1166(4)1.2779(4)0.5123(2)0.0531(8)
H51.06651.31780.55460.064*
C61.0297(3)1.1619(3)0.43338(19)0.0433(7)
C70.8717(3)1.0801(3)0.39731(19)0.0416(7)
C80.7304(3)1.0815(3)0.4261(2)0.0432(7)
C90.5918(3)0.8763(3)0.29253(18)0.0414(7)
C100.7235(3)0.8739(3)0.26328(18)0.0386(7)
C110.7345(3)0.7688(3)0.18098(19)0.0454(7)
H11A0.63960.67990.16690.054*
H11B0.82300.73350.20510.054*
C120.7548(3)0.8396(3)0.08279(19)0.0405(7)
C130.7047(4)0.9598(4)0.0557(2)0.0558(8)
H130.65741.00140.09900.067*
C140.7230(4)1.0207(4)−0.0347(2)0.0649(9)
H140.68771.1022−0.05200.078*
C150.7929(4)0.9614(4)−0.0986(2)0.0609(9)
H150.80611.0027−0.15930.073*
C160.8430(4)0.8420(4)−0.0732(2)0.0635(9)
H160.89030.8010−0.11680.076*
C170.8243(4)0.7808(4)0.0172(2)0.0567(8)
H170.85930.69880.03390.068*
C180.4291(3)0.7725(3)0.2473(2)0.0442(7)
C190.1570(3)0.6814(3)0.2650(2)0.0502(8)
H19A0.12960.69660.19400.060*
H19B0.09570.72430.30100.060*
C200.1100(4)0.5115(4)0.2743(3)0.0650(9)
H20A0.16780.46600.23690.078*
H20B0.13620.49410.34500.078*
C21−0.0636(4)0.4377(3)0.2334(2)0.0513(8)
C22−0.1261(4)0.4158(4)0.1306(2)0.0663(9)
H22−0.05840.43780.08580.080*
C23−0.2864(5)0.3622(4)0.0925(3)0.0823(12)
H23−0.32610.34860.02280.099*
C24−0.3870(5)0.3292(4)0.1575(4)0.0883(12)
H24−0.49550.29490.13240.106*
C25−0.3281(4)0.3464(4)0.2581(3)0.0762(11)
H25−0.39650.32090.30230.091*
C26−0.1680(4)0.4015(4)0.2964(2)0.0616(9)
H26−0.12980.41440.36630.074*

Source of material

In an equimolar ratio 1H-indazole-3-carboxylic acid (1.0 mmol), (2-isocyanoethyl)benzene (1.0 mmol) and 3-phenylpropiolaldehyde (1.0 mmol) were mixed and stirred overnight in 2,2,2-trifluoroethan-1-ol (3.0 mL) at room temperature. The reaction progress was monitored by TLC. When the reaction was completed, the solvent was removed under reduced pressure. Then the crude residue was subjected to DMF (3.0 mL) solution under microwave irradiation condition at 140 °C for 10 min. After the microwave vial was cooled to room temperature, the residue was purified by silica gel column chromatography using a gradient of ethyl acetate/hexane (0–100%) to afford the targeted product 4-benzyl-1-oxo-N-phenethyl-1H-[1,4]oxazino [4,3-b]indazole-3-carboxamide.

Experimental details

A suitable crystal was selected and mounted on a Bruker APEX-II CCD. The crystal was kept at 296 K during data collection. Using Olx2, [2] the structure was solved with the ShelX refinement package [3]. All hydrogen atoms were added using a riding model using the default parameters of the SHELX program.

Discussion

Indazoles are widely employed in drug discovery and typically exhibit a wide range of important biological activities. The Ugi three-component reaction (U-3CR), followed by various post-condensation transformations, is well known as a versatile and highly efficient synthetic strategy for the preparation of cyclic compounds [4], [5]. We previously reported the use of this strategy to achieve the construction of various indazole compounds [6].

The asymmetric unit of the title compound contains one molecule. The bond lengths and angles are in the normal ranges. In conclusion, we have developed a facile process for the synthesis of 4-benzyl-1-oxo-N-phenethyl-1H-[1,4]oxazino [4,3-b]indazole-3-carboxamide using a Ugi three-component reaction. This facile procedure can be readily used to synthesize a diverse range of compounds for high throughput screening in material chemistry.

Funding source: Natural Science Foundation of China

Award Identifier / Grant number: 21502033

Funding statement: This work was financially supported by the Natural Science Foundation of China (Grant No. 21502033), High School Science and Technology Talent Support Project of Guizhou Province, China (Grant No. QJH KY [2017]082), High-Level Talent Initial Funding of Guizhou Institute of Technology (Grant No. XJGC20150701).

References

1. Bruker. APEX3 , SAINT-Plus, XPREP. Bruker AXS Inc., Madison, WI, USA (2016).Suche in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

3. Sheldrick, G. M.: Crystal Structure Refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

4. Li, Y.; Meng, J. P.; Lei, J.; Chen, Z. Z.; Tang, D. Y.; Zhu, J.; Zhang, J.; Xu, Z. G.: Efficient synthesis of fused oxazepino-isoquinoline scaffolds via an Ugi, followed by an intramolecular cyclization. ACS Comb. Sci. 19 (2017) 324–330.10.1021/acscombsci.7b00002Suche in Google Scholar PubMed

5. Song, G. T.; Meng, J. P.; Zhu, J.: Crystal structure of 2-(8-bromo-2-phenylimidazo[1,2-α]pyridin-3-yl)-6,7-dimethyl-3-phenylquinoxaline, C29H21BrN4. Z. Kristallogr. NCS. 233 (2018) 575–577.10.1515/ncrs-2017-0335Suche in Google Scholar

6. Lv, M. L.: Crystal structure of 1-benzyl-3-((4-bromophenyl)amino)-4-(4-methoxyphenyl)-1H-pyrrole-2,5-dione, C24H19BrN2O3. Z. Kristallogr. NCS. 233 (2018) 71–72.10.1515/ncrs-2017-0156Suche in Google Scholar

Received: 2019-08-05
Accepted: 2019-10-02
Published Online: 2019-10-18
Published in Print: 2019-12-18

©2019 Xian Wei et al., published by De Gruyter, Berlin/Boston
