Crystal structure of dichlorido-octamethyl-bis(μ3-oxido)-bis(μ2-2-(phenylamino)ethanolato-κ2O:O)tetratin(IV), C24H44Cl2N2O4Sn4

  • Kong Mun Lo , See Mun Lee and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: October 9, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C24H44Cl2N2O4Sn4, orthorhombic, Pbca (no. 61), a = 13.9593(2) Å, b = 11.1227(2) Å, c = 21.6656(3) Å, V = 3363.91(9) Å3, Z = 4, Rgt(F) = 0.0252, wRref(F2) = 0.0642, T = 100(2) K.

CCDC no.: 1955109

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless prism
Size:0.16 × 0.12 × 0.06 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:25.0 mm−1
Diffractometer, scan mode:XtaLAB Synergy, ω
θmax, completeness:67.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:21693, 3006, 0.042
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2840
N(param)refined:170
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Sn10.53720(2)0.28294(2)0.47533(2)0.01347(9)
Sn20.46391(2)0.01011(2)0.42686(2)0.01254(9)
Cl10.59652(6)0.30565(8)0.58783(4)0.01838(18)
O10.51453(17)0.1109(2)0.49898(11)0.0165(5)
O20.47623(17)0.1953(2)0.39460(12)0.0180(5)
N10.5083(2)0.4455(3)0.34412(15)0.0203(7)
H1N0.480(3)0.510(2)0.360(2)0.024*
C10.4119(2)0.3840(3)0.49237(18)0.0188(7)
H1A0.35580.33150.48930.028*
H1B0.40680.44870.46180.028*
H1C0.41510.41880.53390.028*
C20.6758(2)0.3090(4)0.43797(17)0.0200(8)
H2A0.68900.24630.40740.030*
H2B0.72340.30470.47110.030*
H2C0.67910.38810.41810.030*
C30.3131(3)0.0038(4)0.42892(19)0.0243(9)
H3A0.29060.02020.47090.036*
H3B0.2914−0.07620.41610.036*
H3C0.28710.06450.40070.036*
C40.5720(3)−0.0579(4)0.36759(19)0.0238(8)
H4A0.6352−0.04160.38550.036*
H4B0.5673−0.01870.32720.036*
H4C0.5637−0.14490.36260.036*
C50.4829(3)0.2247(3)0.33104(18)0.0216(8)
H5A0.44480.16660.30670.026*
H5B0.55050.21830.31760.026*
C60.4466(3)0.3514(4)0.31875(18)0.0232(8)
H6A0.44100.36320.27360.028*
H6B0.38180.35980.33680.028*
C70.5856(3)0.4890(3)0.30925(18)0.0200(8)
C80.6262(3)0.6010(4)0.32490(18)0.0255(8)
H80.59950.64630.35790.031*
C90.7039(3)0.6458(4)0.2931(2)0.0334(10)
H90.73000.72180.30400.040*
C100.7444(3)0.5798(5)0.2449(2)0.0373(11)
H100.79840.60980.22310.045*
C110.7046(3)0.4702(5)0.2294(2)0.0342(11)
H110.73200.42460.19680.041*
C120.6259(3)0.4255(4)0.26014(18)0.0248(8)
H120.59880.35090.24780.030*

Source of material

All chemicals and solvents were used as purchased without purification. The melting point of the compound was measured on a Mel-Temp II digital melting point apparatus and was uncorrected. The IR spectrum was recorded on a Perkin-Elmer RX1 spectrophotometer in the range 4000 to 400 cm−1.

The dithiocarbamate salt, K[S2CN(Ph)CH2CH2OH], was prepared in situ (methanol) from the reaction of CS2 (Merck, 0.25 mmol) with 2-anilinoethanol (Merck, 0.25 mmol) and KOH (0.03 mL; 50% w/v); CS2 was added dropwise into the methanolic solution (10 mL). The resulting mixture solution was kept at 273 K for 0.5 h. Dimethyltin dichloride (0.25 mmol, 0.05 g) in methanol (10 mL) was added to the prepared salt. The resulting mixture was stirred and refluxed for 2 h. The filtrate was evaporated slowly until a white precipitate was formed. The precipitate was recrystallised from methanol and dimethylformamide. The title molecule was isolated as a side-product obtained from the slow evaporation of the solvent. Yield: 0.02 g (16%). M.pt: >573 K. IR (cm−1) 467 (w) ν(Sn—O), 1487 (m) ν(C—N), 1018 (s) ν(C—O).

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.95–0.99 Å) and refined as riding with Uiso(H) = 1.2–1.5Ueq(C). The N-bound H-atom was located in a difference Fourier map but was refined with a distance restraint of N—H = 0.88 ± 0.01 Å, and with Uiso(H) set to 1.2Ueq(N).

Comment

Diorganotin dichloride molecules are well-known to be subject to hydrolysis [5], [6] and it was in this context the crystals of the title tetra-tin oxido-cluster {[(Me2SnCl)(Me2Sn)(OCH2CH2N(H)Ph)]O}2, (I), was isolated. The difficulties associated with hydrolysis notwithstanding, recent work has highlighted the potential anti-tumour activity of related tetra-tin oxido clusters [7], [8], a well-documented attribute of organotin compounds [9]. Herein, the crystal and molecular structures of (I) are described.

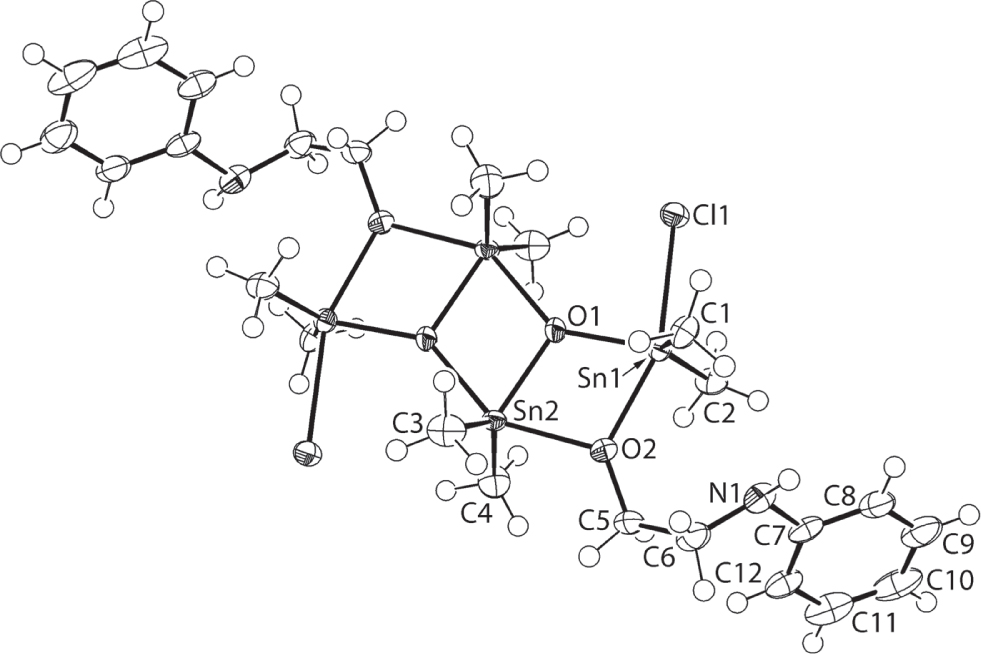

The molecular structure of (I) is shown in the figure (70% displacement ellipsoids; unlabelled atoms are related by the symmetry operation (i) 1 − x, −y, 1 − z); the entire molecule is generated by the application of a crystallographic centre of inversion. The molecule is constructed about a central Sn2O2 core, containing endocyclic Sn2 atoms. The μ3-O1 oxido atom of the core also binds to an exocyclic Sn1 atom. Further links between the Sn1 and Sn2 atoms are provided by a μ2-O2 alkoxide atom. The coordination geometry for the Sn1 atom is completed by two methyl groups and a chloride atom [Sn1—Cl1 = 2.5866(9) Å], while that of the Sn2 atom is completed by two methyl substituents. Within the core, the Sn2—O1, O1i bond lengths of 2.049(2) and 2.118(2) Å, respectively, and the O1—Sn2—O1i = 73.76(10)° and Sn2—O1—Sn2i = 106.24(10)° bond angles indicate the core has the shape of a distorted rhombus. The Sn1—O2 [2.176(3) Å] and Sn2—O2 [2.181(3) Å] bond lengths indicate the μ2-O(alkoxide) bridge is symmetric. Each of the penta-coordinate geometries is highly distorted. For the Sn1 atom, the donor set is defined by C2ClO2 atoms with the widest angle defined by the Cl1 and O2 atoms [Cl1–Sn1—O2 = 157.89(7)°] whereas for the Sn2 atom, the widest angle in the C2O3 geometry is defined by the O2 and O1i atoms [O2—Sn2—O1i = 146.31(9)°]. The next widest angles are subtended by the tin-bound methyl substituents [C1—Sn1—C2 = 138.66(15)° and C3—Sn2—C4 = 135.40(16)°]. The value of τ is a parameter that quantifies five-coordinate geometries, equalling 0.0 for an ideal square-pyramidal coordination geometry and 1.0 for an ideal trigonal-bipyramid [10]. In (I), τ = 0.32 for the Sn1 atom and τ = 0.18 for the Sn2 atom, each indicative of tendancies towards a square-pyramidal coordination geometry. The sequence of three edge-shared Sn2O2 rhombi have the shape of a kinked ladder.

The most prominent feature of the molecular packing is the formation of amine-N—H⋯Cl hydrogen bonds [N1—H1n⋯Cl1ii: H1n⋯Cl1ii = 2.57(3) Å, N1⋯Cl1ii = 3.461(3) Å with angle at H1n = 177(2)° for (ii) 1 − x, 1 − y, 1 − z]. These give rise to a linear supramolecular chain along the b-axis direction. The chains are linked into a supramolecular layer in the bc-plane by weak methylene-C—H⋯π(phenyl) interactions [C5—H5⋯Cg(C7–C12)iii: H5⋯Cg(C7—C12)iii = 2.79 Å, C5⋯Cg(C7—C12)iii = 3.766(4) Å with angle at H5 = 170° for (iii) 1 − x, −1/2 + y, 1/2 − z]. Layers stack along the a-axis without significant directional interactions between them.

Finally, the Hirshfeld surfaces and two-dimensional fingerprint (full and decomposed) plots were calculated on the entire tetra-tin oxido-cluster using Crystal Explorer 17 [11] and standard procedures [12]. This analysis points to the significance of H⋯H contacts which contribute 76.0% of all contacts to the Hirshfeld surface. The only other two contacts registered are C⋯H/H⋯C [12.7%] and Cl⋯H/H⋯Cl [10.9%].

Funding source: Sdn Bhd

Award Identifier / Grant number: STR-RCTR-RCCM-001-2019

Funding statement: Sunway University Sdn Bhd is thanked for financial support of this work through Grant no. STR-RCTR-RCCM-001-2019.

References

1. Agilent Technologies: CrysAlisPRO. Agilent Technologies, Santa Clara, CA, USA (2010).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Dakternieks, D.; Jurkschat, J.; van Dreumel, S.; Tiekink, E. R. T.: Molecular dynamics within diorganotin systems: solution and solid state studies of new mixed distannoxane dimers [tBu2(Cl)SnOSn(Cl)R2]2. Inorg. Chem. 36 (1997) 2023–2029.10.1021/ic9611608Search in Google Scholar PubMed

6. Lo, K. M.; Lee, S. M.; Tiekink, E. R. T.: Crystal structure of octa(4-chlorobenzyl)-dichlorido-bis(μ2-methanolato)-bis(μ3-oxo)-tetratin(IV), C58H54Cl10O4Sn4. Z. Kristallogr. NCS 235 (2019) 175–177.10.1515/ncrs-2019-0562Search in Google Scholar

7. Hong, M.; Yang, Y.; Li, C.; Xu, L.; Li, D.; Li, C.: Study of the effect of molecular structure and alkyl groups bound with tin(IV) on their cytotoxicity of organotin(IV) 2-phenyl-4-selenazole carboxylates. RSC Adv. 5 (2015) 102885–102894.10.1039/C5RA18445BSearch in Google Scholar

8. Casas, J. S.; Castiñeiras, A.; Couce, M. D.; Sánchez, A.; Sordo, J.; Vázquez-López, E.: New tin-oxometallates from the hydrolysis of SnEt22+ in the presence of 2,6-lutidine-α2,3-diol and different anions. Chem. Sel. 2 (2017) 1983–1991.10.1002/slct.201601877Search in Google Scholar

9. Gielen, M.; Tiekink, E. R. T.: Metallotherapeutic drugs and metal-based diagnostic agents: the use of metals in medicine. John Wiley & Sons Ltd: Chichester, England (2005) 421–439.10.1002/0470864052.ch22Search in Google Scholar

10. Addison, A. W.; Rao, T. N.; Reedijk, J.; van Rijn, J.; Verschoor, G. C.: Synthesis, structure, and spectroscopic properties of copper(II) compounds containing nitrogen–sulphur donor ligands; the crystal and molecular structure of aqua[1,7-bis(N-methylbenzimidazol-2′-yl)-2,6-dithiaheptane]- copper(II) perchlorate. J. Chem. Soc., Dalton Trans (1984) 1349–1356.10.1039/DT9840001349Search in Google Scholar

11. Turner, M. J.; McKinnon, J. J.; Wolff, S. K.; Grimwood, D. J.; Spackman, P. R.; Jayatilaka, D.; Spackman, M. A.: Crystal Explorer v17. The University of Western Australia, Australia (2017).Search in Google Scholar

12. Tan, S. L.; Jotani, M. M.; Tiekink, E. R. T.: Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. E75 (2019) 308–318.10.1107/S2056989019001129Search in Google Scholar PubMed PubMed Central

Received: 2019-08-05
Accepted: 2019-09-22
Published Online: 2019-10-09
Published in Print: 2019-12-18

©2019 Kong Mun Lo et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
