The crystal structure of (E)-4-((4-(diethylamino)benzylidene)amino)-N,N-diphenylaniline, C29H29N3

  • Yue Liu , Zhou-Hua Yang , Jian-Jun Ni and Zhaod-Di Liu EMAIL logo
Published/Copyright: September 17, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C29H29N3, triclinic, P1̄ (no. 2), a = 10.677(4) Å, b = 11.325(4) Å, c = 21.530(8) Å, α = 88.026(5)°, β = 75.646(5)°, γ = 71.504(4)°, V = 2389.0(15) Å3, Z = 4, Rgt(F) = 0.0663, wRref(F2) = 0.2002, T = 293(2) K.

CCDC no.: 1949288

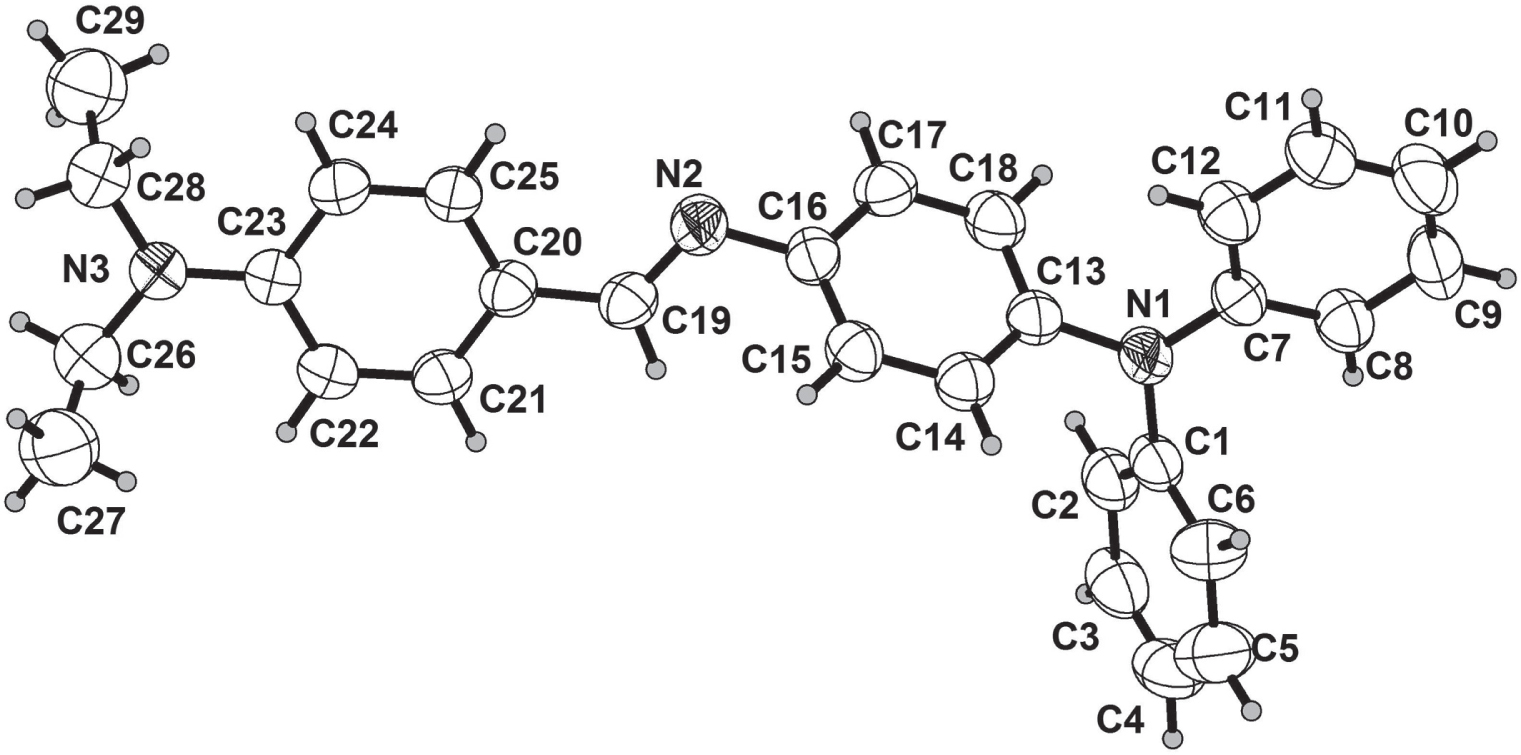

One of two crystallographically independent molecules of the title structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Black needle
Size:0.30 × 0.10 × 0.10 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.07 mm−1
Diffractometer, scan mode:Bruker SMART, φ and ω
θmax, completeness:25.0°, 99%
N(hkl)measured, N(hkl)unique, Rint:17204, 8351, 0.136
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4965
N(param)refined:581
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.0858(3)1.3253(2)0.23642(11)0.0568(6)
C2−0.0257(3)1.3344(3)0.21327(11)0.0659(7)
H2−0.05511.26540.21310.079*
C3−0.0944(3)1.4449(3)0.19034(12)0.0773(9)
H3−0.16961.45020.17460.093*
C4−0.0520(4)1.5462(3)0.19080(14)0.0889(10)
H4−0.09801.62060.17510.107*
C50.0581(4)1.5388(3)0.21428(17)0.0960(10)
H50.08611.60850.21490.115*
C60.1275(3)1.4289(3)0.23684(14)0.0787(8)
H60.20271.42420.25240.094*
C70.1808(2)1.1991(2)0.31988(10)0.0515(6)
C80.1000(3)1.2881(3)0.36818(12)0.0647(7)
H80.03021.35540.35980.078*
C90.1231(3)1.2769(3)0.42888(13)0.0812(9)
H90.06851.33730.46100.097*
C100.2247(4)1.1787(3)0.44250(15)0.0855(9)
H100.23961.17250.48340.103*
C110.3042(3)1.0897(3)0.39519(15)0.0780(8)
H110.37321.02220.40400.094*
C120.2822(3)1.0996(3)0.33455(12)0.0646(7)
H120.33661.03820.30290.078*
C130.2159(2)1.1067(2)0.21203(11)0.0539(6)
C140.3095(2)1.1167(2)0.15639(12)0.0584(6)
H140.33891.18630.15110.070*
C150.3590(2)1.0232(2)0.10872(12)0.0584(6)
H150.42071.03090.07110.070*
C160.3183(2)0.9183(2)0.11608(11)0.0533(6)
C170.2316(3)0.9060(2)0.17374(12)0.0611(7)
H170.20820.83330.18070.073*
C180.1796(3)0.9999(2)0.22080(12)0.0635(7)
H180.11960.99130.25880.076*
C190.3485(2)0.8595(2)0.01129(12)0.0561(6)
H190.30910.94450.00750.067*
C200.3887(2)0.7798(2)−0.04595(11)0.0544(6)
C210.3597(3)0.8327(2)−0.10230(12)0.0600(6)
H210.31610.9182−0.10180.072*
C220.3930(3)0.7635(2)−0.15826(12)0.0649(7)
H220.37010.8021−0.19450.078*
C230.4610(3)0.6356(2)−0.16165(12)0.0649(7)
C240.4921(3)0.5812(2)−0.10483(13)0.0725(8)
H240.53750.4962−0.10530.087*
C250.4559(3)0.6525(2)−0.04931(12)0.0660(7)
H250.47710.6144−0.01260.079*
C260.4371(4)0.6177(3)−0.27436(14)0.0891(9)
H26A0.42630.5514−0.29770.107*
H26B0.34810.6794−0.25870.107*
C270.5279(4)0.6747(3)−0.31668(17)0.1066(11)
H27A0.53810.7405−0.29340.160*
H27B0.49020.7084−0.35200.160*
H27C0.61530.6131−0.33260.160*
C280.5802(3)0.4315(3)−0.22361(14)0.0821(9)
H28A0.62980.4083−0.26800.098*
H28B0.64600.4178−0.19790.098*
C290.4929(4)0.3554(3)−0.20192(18)0.1034(11)
H29A0.45680.3677−0.15630.155*
H29B0.54480.2692−0.21250.155*
H29C0.41920.3788−0.22260.155*
C300.5116(3)0.2899(3)0.56125(12)0.0624(7)
C310.4147(3)0.3507(3)0.52904(14)0.0909(10)
H310.44040.35830.48490.109*
C320.2801(3)0.4001(4)0.56180(19)0.1088(12)
H320.21550.44150.53970.131*
C330.2403(3)0.3888(3)0.62673(17)0.0936(10)
H330.14900.42240.64860.112*
C340.3340(3)0.3289(3)0.65868(14)0.0791(8)
H340.30710.32120.70270.095*
C350.4707(3)0.2784(3)0.62644(12)0.0694(7)
H350.53460.23680.64890.083*
C360.7548(2)0.2454(3)0.55679(11)0.0572(7)
C370.7520(3)0.3548(3)0.58315(14)0.0804(9)
H370.68080.42760.58240.096*
C380.8554(4)0.3572(4)0.61108(16)0.1030(12)
H380.85320.43160.62900.124*
C390.9607(4)0.2504(5)0.61222(16)0.1033(12)
H391.02940.25180.63130.124*
C400.9640(3)0.1438(4)0.58559(16)0.0923(10)
H401.03590.07140.58600.111*
C410.8631(3)0.1401(3)0.55784(13)0.0747(8)
H410.86760.06530.53940.090*
C420.6871(2)0.1799(3)0.46658(11)0.0573(6)
C430.6324(2)0.0916(3)0.45444(11)0.0613(7)
H430.56860.07120.48720.074*
C440.6700(3)0.0323(3)0.39461(11)0.0604(7)
H440.6326−0.02830.38760.072*
C450.7635(2)0.0626(2)0.34501(10)0.0518(6)
C460.8215(3)0.1485(3)0.35790(12)0.0633(7)
H460.88770.16690.32560.076*
C470.7836(3)0.2079(3)0.41755(12)0.0680(7)
H470.82270.26700.42500.082*
C480.7295(3)−0.0331(2)0.25923(11)0.0539(6)
H480.6425−0.02400.28470.065*
C490.7677(2)−0.0916(2)0.19576(10)0.0501(6)
C500.6774(2)−0.1315(2)0.17253(11)0.0548(6)
H500.5911−0.12150.19900.066*
C510.7104(3)−0.1854(2)0.11165(11)0.0552(6)
H510.6469−0.21180.09820.066*
C520.8389(3)−0.2007(2)0.06994(10)0.0516(6)
C530.9305(3)−0.1596(2)0.09359(11)0.0565(6)
H531.0167−0.16830.06730.068*
C540.8953(2)−0.1069(2)0.15440(11)0.0555(6)
H540.9584−0.08080.16840.067*
C550.7805(3)−0.2984(2)−0.01588(12)0.0671(7)
H55A0.7985−0.2903−0.06200.080*
H55B0.6872−0.24750.00300.080*
C560.7961(3)−0.4314(3)−0.00145(17)0.0946(10)
H56A0.8877−0.4824−0.02100.142*
H56B0.7333−0.4576−0.01820.142*
H56C0.7772−0.43960.04420.142*
C571.0035(3)−0.2605(2)−0.03587(12)0.0679(7)
H57A1.0279−0.3291−0.06700.081*
H57B1.0736−0.2782−0.01240.081*
C580.9995(3)−0.1429(3)−0.07073(13)0.0781(8)
H58A0.9297−0.1245−0.09370.117*
H58B1.0863−0.1537−0.10040.117*
H58C0.9801−0.0754−0.04040.117*
N10.1570(2)1.20921(19)0.25841(9)0.0642(6)
N20.3626(2)0.82293(19)0.06678(10)0.0622(6)
N30.4965(3)0.5650(2)−0.21777(11)0.0933(9)
N40.6504(2)0.2397(2)0.52836(9)0.0714(7)
N50.8085(2)0.0066(2)0.28226(9)0.0588(5)
N60.8730(2)−0.2525(2)0.00897(9)0.0628(6)

Source of material

Reagents and solvents used were of commercially available quality. The ethanol solution of N,N-diphenylbenzene-1,4-diamine (0.26 g, 1 mmol) was added to a solution containing 4-(diethylamino)benzaldehyde (0.18 g, 1 mmol) in 5 mL of absolute ethanol and acetic acid (1 day) under heating and stirring. The mixture was then refluxed for 3 h. Afterwards the mixture was cooled to room temperature. It was pured by ethanol recrystallization in 82% yield as yellow solid. Then the resulting solution had to stand in air. On slow evaporation of the solvent, some black block crystals were obtained after 5 days. 1H NMR (400 MHz, (CD3)2CO) δ [ppm] 8.39 (d, J = 5.0 Hz, 1H), 7.75–7.65 (m, 2H), 7.30–7.22 (m, 4H), 7.20–7.11 (m, 2H), 7.07–6.93 (m, 8H), 6.82–6.69 (m, 2H), 3.46 (q, J = 7.1 Hz, 4H), 1.16 (t, J = 7.0 Hz, 6H). 13C NMR (100 MHz, (CD3)2CO) δ [ppm] 158.47, 150.13, 148.43, 148.07, 144.95, 130.55, 129.34, 125.31, 124.13, 123.64, 122.59, 121.98, 111.01, 44.18, 12.03. MALDI-TOF: ([M + H]+), 516.85. IR (KBr pellet, cm−1): 3447m, 3413s, 1596s, 1586m, 1525m, 1404w, 1317m, 1270m, 1317m, 1174s, 835m, 820m, 745m, 699s, 592m.

Experimental details

All H-atoms were placed in calculated positions and treated as riding: C—H = 0.93–0.97 Å, with Uiso(H) = 1.2 or 1.5 Ueq (parent C-atom).

Comment

Schiff bases bearing a bridged C=N structure have a wide range of applications in detection of metal ions, because they always have weak fluorescence signals for the C=N isomerization, but when the C=N group is coordinated with metal ions to form the complexes, the C=N isomerization is inhibited that results in much stronger fluorescence signals [4], [5], [6]. Among these compounds, the excellent electronic and optical properties of triphenylamine-based probes are studied widely for their butterfly-like structure, low ionization potential, high electron affinity and good UV light harvesting features [6], [7]. As part of an ongoing study concerning the optical properties of Schiff bases [8], the title compound is reported here.

The asymmetric unit of the title structure consists of two independent molecules of title molecule. In both independent molecules, the C=N bond adopts E or trans configurations. These core fragments of the title molecule are almost planar with torsion angles C20–N19–N2–C16 and C49–N48–N5–C45 of 178.7(2)° and −179.9(2)°, respectively, the dihedral angles between the mean planes of the phenyl rings are 55.3(2)° and 151.1(1)°, respectively. Geometric parameters are in general as expected [9].

Acknowledgements

This work was supported by the National Natural Science Foundation of China (no. 21701025), and the Distinguished Young Scholars Program of Higher Education of Anhui Province (No. gxyq2017039) and the Innovation Training Program for the College students (201810371039).

References

1. Bruker. SMART and SAINT. Bruker AXS Inc., Madison, WI, USA (2007).Search in Google Scholar

2. Sheldrick, G. M.: SADABS. University of Göttingen, Germany (1996).Search in Google Scholar

3. Sheldrick, G. M.: A short histry of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

4. Sivaraman, G.; Iniya, M.; Anand, T.; Kotla, N. G.; Sunnapu, O.; Singaravadivel, S.; Gulyani, A.; Chellappa, D.: Chemically diverse small molecule fluorescent chemosensors for copper ion. Coord. Chem. Rev. 357 (2018) 50–104.10.1016/j.ccr.2017.11.020Search in Google Scholar

5. Wu, Z.-L.; Shi, D.; Huang, L.; He, W.-Y.; Sun, X.-Y.; Liu, B.; Shen, J.-S.: Highly selective and sensitive turn-on fluorescent probes for sensing Hg2+ ions in mixed aqueous solution. Sens. Actuators, B 281 (2019) 311–319.10.1016/j.snb.2018.10.108Search in Google Scholar

6. Xia, Y.; Zhang, H.-H.; Zhu, X.-J.; Zhang, Q.; Fang, M.; Li, X.-W.; Zhou, H.-P.; Yang, X.-Y.; Zhang, X.-J.; Tian, Y.-P.: Two-photon fluorescent probe with enhanced absorption cross section for relay recognition of Zn2+/P2O74− and in vivo imaging. Spectrochim. Acta, Part A 204 (2018) 446–451.10.1016/j.saa.2018.06.065Search in Google Scholar PubMed

7. Anand, V.; Sadhasivam, B.; Dhamodharan, R.: Facile synthesis of triphenylamine and phenothiazine-based Schiff bases for aggregation-induced enhanced emission, white light generation, and highly selective and sensitive copper(II) sensing. New J. Chem. 42 (2018) 18979–18990.10.1039/C8NJ03316ASearch in Google Scholar

8. Xu, H.-J.; Liu, Z.-D.; Sheng, L.-Q.; Huang, D.-Q.; Zhang, H.; Song, C.-F.; Chen, M.-M.; Hua, W.-Y.: A ratiometric fluorescent sensor for Ag+ based on 8-hydroxyquinoline platform in aqueous media. Anal. Methods 5 (2013) 2929–2932.10.1039/c3ay40277kSearch in Google Scholar

9. Souza, T. E.; Rosa, I. M. L.; Legendre, A. O.; Paschoal, D.; Maia, L. J. Q.; Dos Santos, H. F.; Martins, F. T.; Doriguetto, A. C.: Non-centrosymmetric crystals of new N-benzylideneaniline derivatives as potential materials for non-linear optics. Acta Crystallogr. B71 (2015) 416–426.10.1107/S2052520615008859Search in Google Scholar
