Crystal structure of (E)-1-(4-(((E)-2-bromo-6-hydroxybenzylidene)amino)phenyl)ethan-1-one O-methyl oxime, C16H15BrN2O2

  • Jin-Xia Ma , Ping Wei , Qing-Lin Li , Tao Fu , Ji-Xing Zhao and Li Zhao EMAIL logo
Published/Copyright: August 23, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C16H15BrN2O2, monoclinic, P21 (no. 4), a = 10.9311(8) Å, b = 3.9554(3) Å, c = 16.5215(12) Å, β = 92.743(2)°, V = 713.52(9) Å3, Z = 2, Rgt(F) = 0.0335, wRref(F2) = 0.0655, T = 173(2) K.

CCDC no.: 1940969

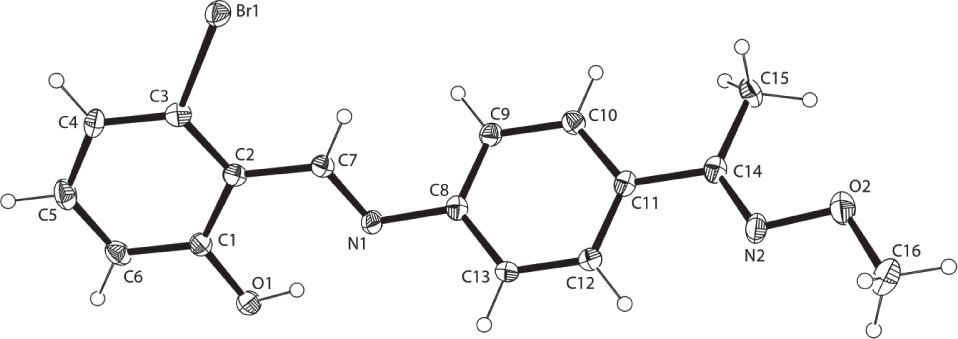

The crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block
Size:0.17 × 0.14 × 0.13 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.89 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω-scans
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:7892, 2622, 0.076
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2263
N(param)refined:194
Programs:Bruker programs [1], SHELX [2], OLEX2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br1−1.51230(4)−1.15197(17)−1.16170(3)0.03161(16)
N2−1.1824(4)−1.7579(12)−1.6462(3)0.0336(13)
O1−1.0669(3)−1.6696(19)−1.12664(18)0.0345(8)
H1−1.0855−1.7202−1.17500.052*
N1−1.1922(3)−1.664(2)−1.2640(2)0.0265(9)
C4−1.3537(4)−1.175(3)−1.0228(3)0.0302(12)
H4−1.4188−1.0609−0.99810.036*
C12−1.1362(4)−1.7190(17)−1.4818(3)0.0284(17)
H12−1.0730−1.6595−1.51670.034*
C8−1.2116(4)−1.7395(12)−1.3479(3)0.0238(14)
C5−1.2458(5)−1.2521(14)−0.9784(3)0.0348(17)
H5−1.2372−1.1873−0.92310.042*
C13−1.1188(4)−1.669(3)−1.3996(2)0.0280(11)
H13−1.0425−1.5845−1.37810.034*
C15−1.3762(4)−2.0781(16)−1.6366(3)0.0333(17)
H15A−1.3635−2.1507−1.69230.050*
H15B−1.4466−1.9247−1.63630.050*
H15C−1.3919−2.2763−1.60310.050*
C11−1.2453(5)−1.8563(14)−1.5146(3)0.0241(12)
C7−1.2805(4)−1.5265(12)−1.2269(3)0.0228(12)
H7−1.3556−1.4828−1.25640.027*
C9−1.3190(5)−1.8856(13)−1.3787(3)0.0254(12)
H9−1.3814−1.9464−1.34330.030*
O2−1.2111(4)−1.7967(10)−1.7298(2)0.0446(12)
C16−1.1181(5)−1.618(3)−1.7723(3)0.0479(17)
H16A−1.0371−1.7065−1.75540.072*
H16B−1.1219−1.3765−1.75940.072*
H16C−1.1324−1.6499−1.83080.072*
C3−1.3638(4)−1.2658(13)−1.1027(3)0.0266(13)
C10−1.3355(5)−1.9431(14)−1.4615(3)0.0262(13)
H10−1.4095−2.0433−1.48220.031*
C1−1.1624(5)−1.5079(14)−1.0941(3)0.0247(12)
C14−1.2650(5)−1.9002(14)−1.6036(3)0.0268(12)
C6−1.1516(5)−1.4201(15)−1.0130(3)0.0306(14)
H6−1.0794−1.4757−0.98140.037*
C2−1.2696(4)−1.4360(14)−1.1420(3)0.0239(12)

Source of material

2-Bromo-6-hydroxy-benzaldehyde (200.3 mg, 1 mmol) dissolved in ethanol solution (3 mL) was added to 1-(4-aminophenyl)ethanone O-methyl oxime (164.5 mg, 1 mmol) dissolved in ethanol solution (3 mL). The solution had been stirred at 328 K. Five hours later, the mixture was filtered at room temperature. The filtrate was allowed to stand for 9 days at room temperature by slow evaporation. Several block clear light yellow crystals were obtained (yield 62.2%, m.p. 372–379 K). Anal. calcd. for C16H15BrN2O2: C, 55.35%; H, 4.35%; N, 8.07%; Found: C, 55.89%; H, 4.93%; N, 7.34%.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Schiff base compounds and their derivatives have been playing an important role in the development of coordination chemistry [4], [5]. So far, we have synthesized a variety of Schiff base type compounds and their derivatives [6], [7], [8]. The Schiff base ligands form a stable N2O2 type complexes with transition metals through the nitrogen and oxygen atoms [9], [10], [11]. Particular attention has been paid to the synthesis and the application of Schiff base type metal complexes.

The current work reports the synthesis of title compound. The single crystal structure of the title compound was determined by X-ray crystallography. All bond lengths are in normal ranges [6], [7], [8]. There is a strong intramolecular O1—H1⋯N1 hydrogen bond interaction (d(N1⋯H1) = 1.846, d(O1—H1) = 0.84 and d(O1⋯N1) = 2.594) in the title structure (cf. the figure).

References

1. Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, WI, USA (2012).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

4. Cozzi, P. G.: Metal–Salen Schiff base complexes in catalysis: practical aspects. Chem. Soc. Rev. 33 (2004) 410–421.10.1039/B307853CSearch in Google Scholar PubMed

5. da Silva, C. M.; da Silva, D. L.; Modolo, L. V.; Alves, R. B.; de Resende, M. A.; Martins, C. V. B.; de Fátima, Â.: Schiff bases: A short review of their antimicrobial activities. J. Adv. Res. 2 (2011) 1–8.10.1016/j.jare.2010.05.004Search in Google Scholar

6. Fu, T.; Ma, J. X.; Li, Q. L.; Wei, P.; Zhao, J. X.; Zhao, L.: Crystal structure of (E)-1-(4-(((E)-3,5-dichloro-2-hydroxybenzylidene)amino) phenyl)ethan-1-one O-methyl oxime, C16H14Cl2N2O2. Z. Kristallogr. NCS 233 (2018) 979–980.10.1515/ncrs-2017-0405Search in Google Scholar

7. Zhao, J. X.; Zhao, L.; Li, P. P.; Wang, F.; An, Q. Q.: Crystal structure of (E)-1-(4-(((E)-5-bromo-2-hydroxybenzylidene) amino)phenyl) ethan-1-one O-methyl oxime, C16H15BrN2O2. Z. Kristallogr. NCS 232 (2017) 731–732.10.1515/ncrs-2016-0407Search in Google Scholar

8. Wei, P.; Li, Q. L.; Ma, J. X.; Fu, T.; Zhao, J. X.; Zhao, L.: Crystal structure of 1-{4-[(2-hydroxy-5-nitro benzylidene)amino]phenyl} ethanone O-methyl oxime, C16H15N3O4. Z. Kristallogr. NCS 234 (2019) 9–10.10.1515/ncrs-2017-0382Search in Google Scholar

9. Ma, J. X.; Li, Q. L.; Li, P. P.; Zhao, J. X.; Zhao, L.: Synthesis and crystal structure of bis{((E)-((4-((E)-1-(methoxyimino)ethyl)phenyl) imino)methyl)-2-naphtholato-κ2N,O}nickel(II), C40H34N4NiO4. Z. Kristallogr. NCS 233 (2018) 789–791.10.1515/ncrs-2017-0400Search in Google Scholar

10. Li, Q. L.; Li, P. P.; Ma, J. X.; Zhao, J. X.; Zhao, L.: Crystal structure of bis{2-((E)-((4-((E)-1-(methoxyimino)ethyl) phenyl)imino) methyl)phenolato-κ2N,O}zinc(II), C32H30N4O4Zn. Z. Kristallogr. NCS 233 (2018) 637–639.10.1515/ncrs-2017-0404Search in Google Scholar

11. Ma, J. X.; Li, Q. L.; Li, P. P.; Zhao, J. X.; Zhao, L.: Crystal structure of bis{5-methoxy-2-((E)-((4-((E)-1-(methoxyimino)ethyl)phenyl) imino)methyl)phenolato-κ2N,O}nickel(II), C34H34N4NiO6. Z. Kristallogr. NCS 233 (2018) 767–769.10.1515/ncrs-2017-0379Search in Google Scholar

Received: 2019-06-25
Accepted: 2019-08-18
Published Online: 2019-08-23
Published in Print: 2019-12-18

©2019 Jin-Xia Ma et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
