Crystal structure of iodido-triphenyl-(triphenylphosphine oxide)tin(IV), C36H30IOPSn

  • Kong Mun Lo , See Mun Lee and Edward R.T. Tiekink ORCID logo EMAIL logo
Published/Copyright: October 11, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C36H30IOPSn, monoclinic, P21 (no. 4), a = 9.7251(6) Å, b = 17.3609(11) Å, c = 10.0542(6) Å, β = 114.379(1)°, V = 1546.16(17) Å3, Z = 2, Rgt(F) = 0.0113, wRref(F2) = 0.0301, T = 296(2) K.

CCDC no.: 1953498

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow prism
Size:0.25 × 0.15 × 0.11 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.90 mm−1
Diffractometer, scan mode:Bruker SMART APEX, ω
θmax, completeness:28.3°, >99%
N(hkl)measured, N(hkl)unique, Rint:19627, 7642, 0.015
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 7603
N(param)refined:361
Programs:Bruker [1], SHELX [2], [3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
I1−0.18870(2)0.38832(2)0.05116(2)0.01789(4)
Sn0.06869(2)0.46646(2)0.26278(2)0.01190(3)
P10.41973(6)0.52683(3)0.57287(5)0.01174(9)
O10.28159(17)0.53146(8)0.43105(15)0.0159(3)
C1−0.0002(2)0.57881(11)0.1729(2)0.0134(4)
C20.1057(2)0.63274(12)0.1717(2)0.0172(4)
H20.2078770.6204640.2139080.021*
C30.0596(3)0.70497(12)0.1077(2)0.0189(4)
H30.1309910.7399770.1054470.023*
C4−0.0915(3)0.72471(12)0.0477(2)0.0184(4)
H4−0.1219050.7728980.0052510.022*
C5−0.1982(2)0.67209(13)0.0510(2)0.0188(4)
H5−0.2997450.6855550.0131310.023*
C6−0.1525(2)0.59922(12)0.1113(2)0.0157(4)
H6−0.2244760.5637360.1104070.019*
C70.2293(2)0.40758(11)0.2079(2)0.0137(4)
C80.2589(3)0.43316(12)0.0904(2)0.0201(4)
H80.2052080.4746200.0344700.024*
C90.3677(3)0.39717(14)0.0569(3)0.0263(5)
H90.3867850.414805−0.0212310.032*
C100.4484(3)0.33520(13)0.1386(3)0.0239(5)
H100.5220260.3116470.1160830.029*
C110.4189(2)0.30838(13)0.2541(2)0.0207(4)
H110.4721120.2664320.3087090.025*
C120.3097(2)0.34435(12)0.2881(2)0.0169(4)
H120.2899620.3259860.3653680.020*
C130.0288(2)0.43000(12)0.4461(2)0.0145(4)
C140.0249(2)0.48489(12)0.5459(2)0.0171(4)
H140.0352430.5368090.5292500.021*
C150.0055(2)0.46269(15)0.6704(2)0.0210(4)
H150.0014740.4998110.7353920.025*
C16−0.0077(2)0.38541(15)0.6973(2)0.0223(4)
H16−0.0185380.3705650.7813660.027*
C17−0.0049(3)0.32990(13)0.5983(2)0.0216(4)
H17−0.0146140.2780160.6157260.026*
C180.0126(3)0.35237(12)0.4730(2)0.0191(4)
H180.0135090.3152520.4066570.023*
C190.3874(2)0.57723(11)0.7135(2)0.0139(4)
C200.4537(2)0.55538(12)0.8599(2)0.0172(4)
H200.5189330.5134370.8888880.021*
C210.4219(3)0.59649(14)0.9625(2)0.0232(5)
H210.4637790.5811821.0598460.028*
C220.3271(3)0.66081(14)0.9197(3)0.0258(5)
H220.3070090.6886280.9886930.031*
C230.2636(3)0.68299(13)0.7753(3)0.0250(5)
H230.2007580.7258600.7472140.030*
C240.2928(3)0.64181(12)0.6717(3)0.0196(4)
H240.2494520.6570630.5743260.024*
C250.5760(2)0.57320(11)0.5535(2)0.0148(4)
C260.6857(3)0.61284(13)0.6683(3)0.0226(5)
H260.6810890.6144690.7587680.027*
C270.8024(3)0.65006(14)0.6487(3)0.0278(5)
H270.8757300.6766350.7257570.033*
C280.8090(3)0.64737(13)0.5136(3)0.0265(5)
H280.8861080.6728760.4995630.032*
C290.7012(3)0.60682(15)0.3994(3)0.0268(5)
H290.7072610.6045020.3095910.032*
C300.5847(3)0.56979(13)0.4182(2)0.0210(4)
H300.5123510.5427330.3412360.025*
C310.4753(2)0.42993(11)0.6328(2)0.0146(4)
C320.5937(2)0.39505(13)0.6113(2)0.0172(4)
H320.6531350.4239390.5773330.021*
C330.6229(3)0.31698(13)0.6407(2)0.0196(4)
H330.7006550.2934580.6247920.023*
C340.5357(3)0.27412(13)0.6940(2)0.0209(4)
H340.5558490.2219990.7139910.025*
C350.4189(2)0.30857(13)0.7176(2)0.0198(4)
H350.3611680.2796900.7535840.024*
C360.3885(2)0.38644(13)0.6871(2)0.0163(4)
H360.3103020.4096970.7028740.020*

Source of material

All chemicals and solvents were used as purchased without purification. The melting point was determined on a Mel-temp II digital melting point apparatus and was uncorrected. The IR spectrum was obtained on a Bruker Vertex 70v FTIR Spectrometer from 4000 to 400 cm−1.

Triphenyltin iodide was prepared from the reaction of triphenyltin chloride (Merck) with sodium iodide (Sigma-Aldrich) [5]. Triphenyltin iodide (0.48 g, 1 mmol) and triphenylphosphine oxide (Sigma-Aldrich; 0.27 g, 1 mmol) in chloroform (30 mL) were refluxed for 2 h. After filtration, the filtrate was evaporated slowly until yellow crystals were formed. The crystals were filtered, washed with a minimum amount of hexane and air-dried. Yield: 0.21 g (28%). M.pt: 370–372 K. IR (cm−1) 1590 (m) ν(C—C), 1116 (m) ν(P—O), 1070 (m) ν(C—O), 446 (w) ν(Sn—O).

Experimental details

The C-bound H atoms were geometrically placed (C—H = 0.95 Å) and refined as riding with Uiso(H) = 1.2Ueq(C). Owing to poor agreement, one reflection, i.e. (3 3 1), was omitted from the final cycles of refinement. The absolute structure was determined based on differences in the Friedel pairs included in the data set.

Comment

The crystal and molecular structures of the title compound, Ph3SnI⋅O=PPh3, (I), were determined as part of an on-going investigation of oxide adducts of organotin species, such as phosphineoxide [6], arsineoxide [7] and sulphoxide [8], [9]. A search of the crystallographic literature [10] reveals there are no reports of simple R3SnI⋅O=PR’3 adducts.

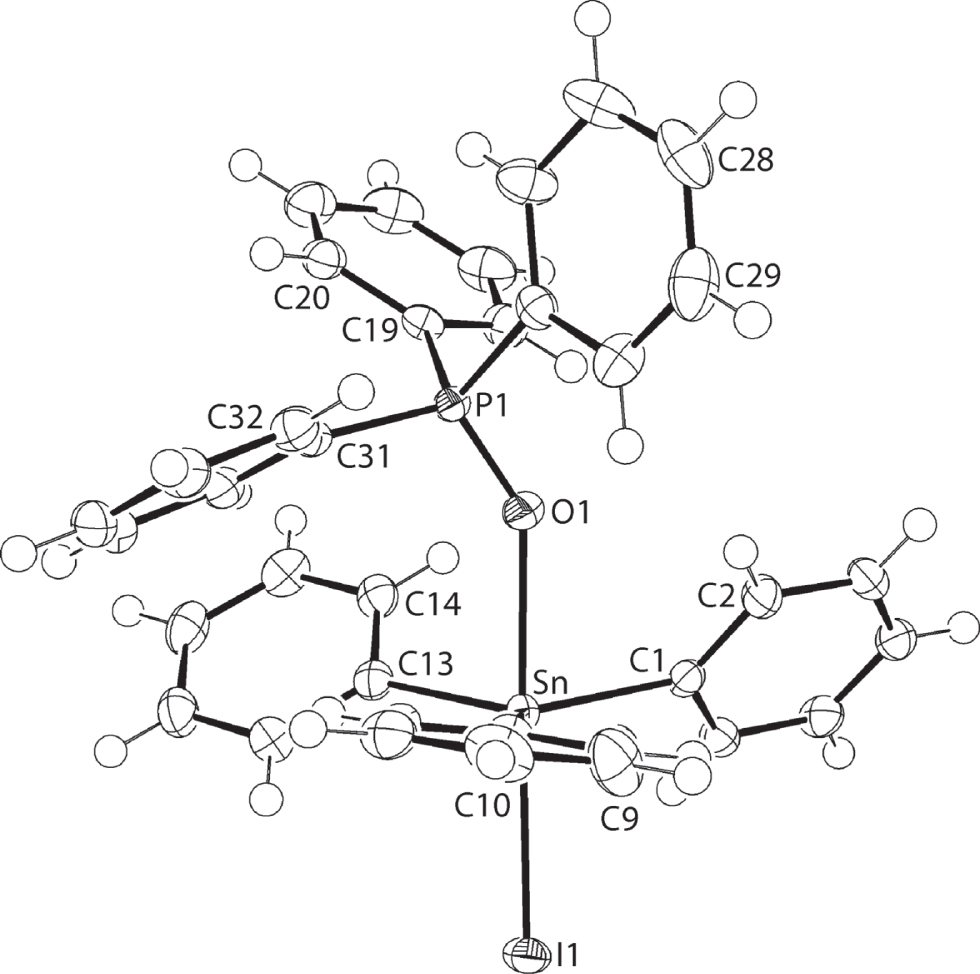

The molecular structure of (I) is shown in the figure (70% displacement ellipsoids). The tin atom exists within a C3IO donor set defined by the three ipso-carbon atoms of the phenyl substituents [range of Sn—C bond lengths: Sn—C7 = 2.122(2) Å to Sn—C1 2.138(2) Å], an iodide [Sn—I1 = 2.8699(2) Å] and the phosphineoxide-O1 atom [2.3517(15) Å]. The resultant penta-coordinated geometry is based on a trigonal bipyramid with electronegative substituents occupying axial positions; the I1—Sn—O1 axial angle is 178.43(4)°. The tin-bound organo substituents occupy equatorial positions with the range of C—Sn—C angles being 117.73(8)° for C1—Sn—C7, to 119.98(8)° for C1—Sn—C13. The Sn atom lies 0.1910(12) Å out of the C3 equatorial plane in the direction of the I1 atom. The P1—O1 bond length is 1.5044(15) Å and the Sn—O1—P1 angle is 146.39(9)°. When the molecule is viewed down the spine, the configuration of the two sets of phenyl rings is staggered, allowing for the bent Sn—O—P angle.

The molecular packing of (I) is largely devoid of directional interactions. The only notable interaction is an end-on Sn—I⋯π(phenyl) interaction [Sn—I1⋯Cg(C31—C36)i: I1⋯Cg(C31—C36)i = 3.8518(8) Å with angle at I1 = 154.14(2)° for symmetry operation (i) −1 + x, y, −1 + z]. The mode of association leads to the formation of a linear supramolecular chain along [1 0 1].

A further evaluation of the molecular packing was made by calculating the Hirshfeld surfaces and full and delineated two-dimensional fingerprint plots for (I) using Crystal Explorer 17 [11] and literature protocols [12]. The two most dominant surface contacts, comprising over 90% of all contacts, are H⋯H [64.4%] and C⋯H/H⋯C [23.1%]. The contacts involving iodide are I⋯H/H⋯I [6.9%] and I⋯C/C⋯I [2.0%], with the only remaining contacts being of the type C⋯C [0.7%].

The crystal structures of the chloride (II) [13] and bromide (III) [14] analogues of (I) are known. Crystals of the reported (I)–(III) are not isostructural. In (II), C—H⋯π(phenyl) and C—H⋯Cl contacts are noted. However, in (III), no directional interactions are apparent.

Acknowledgements

Sunway University Sdn Bhd is thanked for financial support of this work through Grant no. STR-RCTR-RCCM-001-2019.

References

1. Bruker. SADABS, APEX2 and SAINT. Bruker AXS Inc., Madison, WI, USA (2008).Search in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

5. Zobel, B.; Lim, A. E. K.; Dunn, K.; Dakternieks, D.: Easy general method for interhalide conversions in organotin compounds. Organometallics 18 (1999) 4889–4890.10.1021/om990528gSearch in Google Scholar

6. Lee, S. M.; Lo, K. M.; Tiekink, E. R. T.: Crystal structure of bromido-dimethyl-4-tolyl-(triphenylphosphine oxide)tin(IV), C27H28BrOPSn. Z. Kristallogr. NCS 235 (2019) 163–165.10.1515/ncrs-2019-0553Search in Google Scholar

7. Lo, K. M.; Lee, S. M.; Tiekink, E. R. T.: Crystal structure of dichlorido-bis(4-methylphenyl-κC)-bis(triphenylarsine oxide-κO)tin(IV), C50H44As2Cl2O2Sn. Z. Kristallogr. NCS 235 (2019) 183–185.10.1515/ncrs-2019-0564Search in Google Scholar

8. Amin, N. A. B. M.; Hussen, R. S. D.; Lee, S. M.; Halcovitch, N. R.; Jotani, M. M.; Tiekink, E. R. T.: trans-Di-chlorido-bis(dimethyl sulfoxide-κO)bis(4-fluorobenzyl-κC1)-tin(IV): crystal structure and Hirshfeld surface analysis. Acta Crystallogr. E73 (2017) 667–672.10.1107/S2056989017005072Search in Google Scholar

9. Lee, S. M.; Lo, K. M.; Tiekink, E. R. T.: Crystal structure of (dibenzyl sulphoxide-κO)bis(2-chlorobenzyl-κC1)-dichloridotin(IV), C28H26Cl4OSSn. Z. Kristallogr. NCS 234 (2019) 787–789.10.1515/ncrs-2019-0113Search in Google Scholar

10. Groom, C. R.; Bruno, I. J.; Lightfoot, M. P.; Ward, S. C.: The Cambridge Structural Database. Acta Crystallogr. B72 (2016) 171–179.10.1016/B978-0-12-409547-2.02529-4Search in Google Scholar

11. Turner, M. J.; McKinnon, J. J.; Wolff, S. K.; Grimwood, D. J.; Spackman, P. R.; Jayatilaka, D.; Spackman, M. A.: Crystal Explorer v17. The University of Western Australia, Australia (2017).Search in Google Scholar

12. Tan, S. L.; Jotani, M. M.; Tiekink, E. R. T.: Utilizing Hirshfeld surface calculations, non-covalent interaction (NCI) plots and the calculation of interaction energies in the analysis of molecular packing. Acta Crystallogr. E75 (2019) 308–318.10.1107/S2056989019001129Search in Google Scholar PubMed PubMed Central

13. Ng, S. W.; Kumar Das, V. G.: Structure of triphenyltin chloride-triphenylphosphine oxide (1/1) complex. Acta Crystallogr. C48 (1992) 1839–1841.10.1107/S0108270192001306Search in Google Scholar

14. Ng, S. W.: Bromotriphenyltin-triphenylphosphine oxide (1/1). Acta Crystallogr. C51 (1995) 2563–2565.10.1107/S0108270195007359Search in Google Scholar
