The crystal structure of tert-butyl (tert-butoxy(oxo)methyl)(5-bromo-2-fluorophenyl)carbamate, C16H21BrFNO4

  • Chun Ji ORCID logo EMAIL logo and Yu-Mei Qin
Published/Copyright: October 19, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C16H21BrFNO4, monoclinic, P21/n (no. 14), a = 9.0896(4) Å, b = 10.8609(4) Å, c = 18.5637(8) Å, β = 99.5050(10)°, V = 1807.47(13) Å3, Z = 4, Rgt(F) = 0.0382, wRref(F2) = 0.0900, T = 170 K.

CCDC no.: 1947033

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.15 × 0.12 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.30 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:27.5°, 98%
N(hkl)measured, N(hkl)unique, Rint:16818, 4042, 0.070
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2964
N(param)refined:214
Programs:Bruker [1], Olex2 [2], SHELX [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.08101(3)0.81476(3)0.58939(2)0.04502(11)
C10.3921(3)0.8979(2)0.42197(13)0.0292(5)
C20.3234(3)0.9940(2)0.45152(14)0.0355(6)
H20.3400621.0765080.4378090.043*
C30.2302(3)0.9693(2)0.50120(14)0.0341(6)
H30.1818231.0346840.5220260.041*
C40.2077(3)0.8490(2)0.52044(13)0.0300(6)
C50.2778(3)0.7528(2)0.49093(13)0.0279(5)
H50.2618730.6703640.5049140.034*
C60.3705(3)0.7771(2)0.44132(13)0.0255(5)
C70.6006(3)0.6850(2)0.41793(13)0.0255(5)
C80.8118(3)0.6303(2)0.35852(13)0.0274(5)
C90.8979(3)0.5643(3)0.42365(15)0.0410(7)
H9A0.8944270.6125860.4679170.062*
H9B1.0018890.5542210.4168350.062*
H9C0.8534010.4831380.4284970.062*
C100.8156(3)0.5585(3)0.28890(15)0.0436(7)
H10A0.7766120.4753920.2939080.065*
H10B0.9186780.5532250.2798760.065*
H10C0.7541000.6005040.2478650.065*
C110.8665(4)0.7603(2)0.35220(19)0.0516(8)
H11A0.8018290.8025930.3123440.077*
H11B0.9688920.7586090.3419940.077*
H11C0.8643580.8041680.3981400.077*
C120.3515(3)0.5923(2)0.36673(12)0.0249(5)
C130.3585(3)0.3850(2)0.31694(13)0.0274(5)
C140.3485(3)0.4322(2)0.23974(13)0.0380(6)
H14A0.2724670.4968230.2308190.057*
H14B0.3213980.3643890.2052820.057*
H14C0.4453280.4660180.2330360.057*
C150.4763(3)0.2860(2)0.33381(15)0.0366(6)
H15A0.5727080.3183840.3254910.055*
H15B0.4487320.2149230.3019320.055*
H15C0.4836840.2606630.3849490.055*
C160.2108(3)0.3409(2)0.33509(17)0.0422(7)
H16A0.2226080.3206470.3871700.063*
H16B0.1781930.2675110.3060850.063*
H16C0.1359200.4060580.3237500.063*
F10.48272(17)0.92160(13)0.37289(8)0.0397(4)
N10.4438(2)0.67936(17)0.40917(11)0.0274(4)
O10.22729(19)0.61699(14)0.33802(10)0.0335(4)
O20.41940(17)0.48426(13)0.36872(8)0.0259(4)
O30.65003(18)0.63117(15)0.36273(9)0.0317(4)
O40.67210(18)0.73847(15)0.46857(9)0.0303(4)

Source of material

5-Bromo-2-fluoroaniline (5 g, 26.31 mmol) was dissolved in THF (80 mL) at room temperature, followed by di-tert-butyl dicarbonate (17.23 g, 78.94 mmol) and dimethylaminopyridine (0.32 g, 2.63 mmol) in order. Then mixture reacted under stirring at room temperature for 12 hours. Subsequently, the mixture was poured into water and extracted with ethyl acetate. The organic phase was dehydrated with anhydrous sodium sulfate and concentrated at reduced pressure to afford a yellow solid. The crude mixture was purified by silica gel column chromatography, eluted with petroleum ether to give a white solid (6.45 g, yield 62.80%). 1H NMR (400 MHz, CDCl3) δ [ppm] 7.40 (ddd, J = 8.8, 4.3, 2.5 Hz, 1H), 7.33 (dd, J = 6.7, 2.5 Hz, 1H), 7.00 (t, J = 9.1 Hz, 1H), 1.43 (s, 18H). Crystals were grown in hexane at room temperature.

Experimental details

All hydrogen atoms were placed in geometrically calculated positions. The Uiso values of the hydrogen atoms were set to 1.5 Ueq(Cmethyl) and 1.2 Ueq (Caryl).

Comment

Some carbamates are of significant interest in medicine, organic synthesis and fine chemicals. They can participate in the synthesis of aniline derivatives as EP2 agonists useful in treating glaucoma [5]. At the same time, they can also be used for electrolyte solution of nonaqueous secondary batteries [6]. In addition, it can be chemoselectively and efficiently deprotected in high yields using a catalytic agent to afford the corresponding mono-BOC-protected amine [7], which is an intermediate for the preparation of antiviral agents [8], glycogen phosphorylase inhibitors [9] and antagonists of gonadotropin releasing hormone (GnRH) [10].

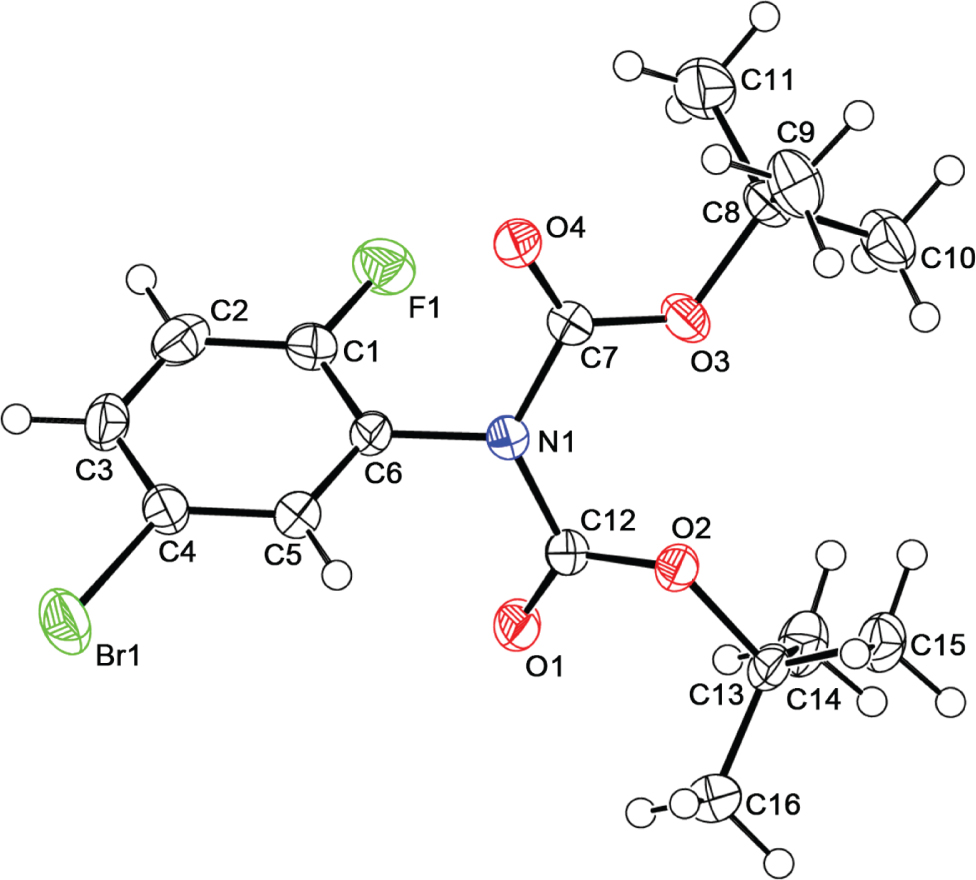

There is one molecule in the asymmetric unit (see the figure). The phenyl moiety connects the two tert-butoxycarbonyl groups via a nitrogen atom, respectively. All bond lengths and angles in the crystal structure are within the normal range [11]. The values of the selected torsion angles C(1)-C(6)-N(1)-C(7), C(1)-C(6)-N(1)-C(12), C(5)-C(6)-N(1)-C(7) and C(5)-C(6)-N(1)-C(12) are 57.15°, −117.80°, −123.31° and 61.74°, respectively. The crystal structure shows that the intermolecular packing is stabilized by weak hydrogen bonds and the van der Waals forces.

Acknowledgements

This work was supported by the Major Social Development Project of Guizhou Province (SY20143054).

References

1. BRUKER. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: A complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

3. Sheldrick, G. M.: SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Feutrill, J.; Leriche, C.; Middlemiss, D.: Preparation of aniline derivatives as EP2 agonists useful in treating glaucoma. PCT Int. Appl. (2013) WO 2013037705.Search in Google Scholar

6. Ishino, T.; Kodama, K.; Kinoshita, I.; Ishiji, Y.; Yawata, T.: Electrolyte solution for nonaqueous secondary batteries, and nonaqueous secondary battery. PCT Int. Appl. (2014) WO 2014156428.Search in Google Scholar

7. Zheng, J. L.; Yin, B. L.; Huang, W. M.; Li, X. P.; Yao, H. Q.; Liu, Z. G.; Zhang, J. C.; Jiang, S.: Efficient and selective cleavage of the t-butoxycarbonyl group from di-t-butylimidodicarbonate using catalytic bismuth(III) bromide in acetonitrile. Tetrahedron Lett. 50 (2009) 5094–5097.10.1016/j.tetlet.2009.06.104Search in Google Scholar

8. Pathak, A. K.; Ahmed, S. K.; Augelli-Szafran, C. E.; Maddry, J. A.: Preparation of benzo annulenes as antiviral agents. U.S. Pat. (2018) US 20180230084.Search in Google Scholar

9. Onda, K.; Shiraki, R.; Ogiyama, T.; Yokoyama, K.; Momose, K.; Katayama, N.; Orita, M.; Yamaguchi, T.; Furutani, M.; Hamada, N.: Design, synthesis, and pharmacological evaluation of N-bicyclo-5-chloro-1H-indole-2-carboxamide derivatives as potent glycogen phosphorylase inhibitors. Bioorg. Med. Chem. 16 (2008) 10001–10012.10.1016/j.bmc.2008.10.021Search in Google Scholar PubMed

10. Ohno, K.; Miyagi, T.; Ozawa, T.; Fushimi, N.: Preparation of fused pyrimidine heterocyclic derivatives as antagonists of gonadotropin releasing hormone (GnRH). PCT Int. Appl. (2007) WO 2007046392.Search in Google Scholar

11. Capuano, B.; Crosby, I. T.; Forsyth, C. M.; Khakham, Y.; Manallack, D. T.: Di-tert-butyl N-[2,6-bis-(methoxymethoxy)phenyl]iminodiacetate. Acta Crystallogr. E65 (2009) o819.10.1107/S1600536809009246Search in Google Scholar PubMed PubMed Central

Received: 2019-08-19
Accepted: 2019-10-08
Published Online: 2019-10-19
Published in Print: 2019-12-18
