Crystal structure of hexakis(μ2-azido-κ2N:N)-diazido-κ1N-tetrakis(phenanthroline-κ2N,N′)tetrazinc(II), C48H32N32Zn4

  • Yu-Quan Feng ORCID logo EMAIL logo , Zhi-Guo Zhong und Zi-Long Yue
Veröffentlicht/Copyright: 9. Oktober 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 235 Heft 1

Abstract

C48H32N32Zn4, triclinic, P1̄ (no. 2), a = 9.9928(14) Å, b = 10.1374(14) Å, c = 14.2362(19) Å, α = 71.710(2)°, β = 76.166(2)°, γ = 71.086(2)°, V = 1280.1(3) Å3, Z = 1, Rgt(F) = 0.0314, wRref(F2) = 0.0795, T = 296(2) K.

CCDC no.: 1951372

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.29 × 0.25 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.93 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:26.0°, 99%
N(hkl)measured, N(hkl)unique, Rint:8227, 4969, 0.021
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3848
N(param)refined:379
Programs:Bruker [1], Olex2 [2], SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.96883(3)0.48546(3)0.39409(2)0.03393(10)
Zn20.88633(3)0.73656(3)0.19268(2)0.03761(11)
N11.1150(2)0.5437(2)0.45028(17)0.0394(5)
N21.2159(3)0.5871(2)0.40522(19)0.0414(6)
N31.3122(3)0.6298(3)0.3629(3)0.0736(9)
N40.8220(2)0.6963(2)0.34560(17)0.0373(5)
N50.7053(3)0.7486(2)0.38436(18)0.0402(6)
N60.5956(3)0.7995(3)0.4215(2)0.0673(8)
N71.1003(2)0.2713(2)0.39573(16)0.0330(5)
N80.8249(2)0.3800(2)0.37051(17)0.0347(5)
N91.0572(2)0.5552(2)0.23774(18)0.0398(6)
N101.1254(3)0.4710(3)0.18963(19)0.0458(6)
N111.1915(4)0.3893(3)0.1455(2)0.0845(11)
N120.8074(3)0.6455(3)0.1233(2)0.0552(7)
N130.6897(3)0.6693(3)0.1126(2)0.0553(7)
N140.5763(4)0.6887(5)0.0986(3)0.1084(14)
N150.7298(2)0.9507(2)0.16269(17)0.0398(6)
N161.0149(2)0.8784(2)0.14230(16)0.0355(5)
C11.2365(3)0.2204(3)0.4061(2)0.0421(7)
H11.2821(3)0.2812(3)0.4151(2)0.0505(8)*
C21.3152(3)0.0802(3)0.4041(2)0.0489(8)
H21.4111(3)0.0483(3)0.4121(2)0.0587(9)*
C31.2506(3)−0.0093(3)0.3904(2)0.0464(7)
H31.3021(3)−0.1033(3)0.3886(2)0.0557(9)*
C41.1062(3)0.0401(3)0.37888(19)0.0368(6)
C51.0357(3)0.1840(3)0.38149(18)0.0310(6)
C60.8880(3)0.2409(3)0.36952(19)0.0316(6)
C70.8151(3)0.1526(3)0.3572(2)0.0391(6)
C80.8895(3)0.0064(3)0.3575(2)0.0452(7)
H80.8406(3)−0.0535(3)0.3511(2)0.0543(9)*
C91.0275(3)−0.0461(3)0.3669(2)0.0450(7)
H91.0735(3)−0.1414(3)0.3654(2)0.0539(9)*
C100.6716(3)0.2133(3)0.3461(2)0.0512(8)
H100.6186(3)0.1577(3)0.3388(2)0.0615(9)*
C110.6094(3)0.3530(4)0.3460(3)0.0557(8)
H110.5140(3)0.3948(4)0.3373(3)0.0668(10)*
C120.6888(3)0.4329(3)0.3588(2)0.0470(7)
H120.6445(3)0.5288(3)0.3593(2)0.0564(9)*
C130.5884(3)0.9844(3)0.1731(2)0.0498(8)
H130.5437(3)0.9103(3)0.1969(2)0.0597(9)*
C140.5045(3)1.1257(4)0.1500(3)0.0586(9)
H140.4055(3)1.1450(4)0.1576(3)0.0703(11)*
C150.5667(4)1.2352(4)0.1163(2)0.0561(9)
H150.5111(4)1.3303(4)0.1003(2)0.0674(10)*
C160.7156(3)1.2047(3)0.1058(2)0.0459(7)
C170.7924(3)1.0595(3)0.1297(2)0.0375(6)
C180.9458(3)1.0205(3)0.12060(19)0.0359(6)
C191.0153(3)1.1295(3)0.0917(2)0.0429(7)
C200.9337(4)1.2765(3)0.0690(2)0.0540(8)
H200.9801(4)1.3491(3)0.0497(2)0.0648(10)*
C210.7913(4)1.3119(3)0.0750(2)0.0579(9)
H210.7407(4)1.4088(3)0.0588(2)0.0695(11)*
C221.1637(3)1.0852(3)0.0869(2)0.0512(8)
H221.2150(3)1.1536(3)0.0687(2)0.0614(9)*
C231.2336(3)0.9424(4)0.1088(2)0.0511(8)
H231.3326(3)0.9124(4)0.1049(2)0.0614(9)*
C241.1549(3)0.8419(3)0.1369(2)0.0420(7)
H241.2034(3)0.7443(3)0.1527(2)0.0504(8)*

Source of material

The mixture of Zn(NO3)2 ⋅ 6H2O (0.20 g), 1,10-phenanthroline (C12H8N2, 0.16 g), NaN3 (0.10 g) and H2O (3.0 mL) was transferred into 50 mL Teflon-lined stainless steel vessels and heated at 160 °C for 5 days. After cooling to room temperature, the yellow block crystals were isolated, washed with distilled water and dried at room temperature.

Experimental details

H atoms were positioned geometrically and refined using a riding model, with C—H = 0.93 Å, with Uiso(H) = 1.2 times Ueq(C).

Comment

A large number of metal coordination compounds containing various metal cations and organic ligands have been obtained with different dimensional structures. Currently, linking metal cations and organic ligands to build coordination compounds has become a popular synthetic strategy [4]. Polydentate ligands, such as N3− and NCS−, can act as either bridging or chelating ligands to construct desired metal-organic coordination compounds [4], [5], [6]. As a part of an ongoing study [6], [7] we have synthesized a tetra-nuclear Zn2+ coordination compound formulated [Zn4(C12H8N2)4(N3)8](1) containing two kinds of ligands.

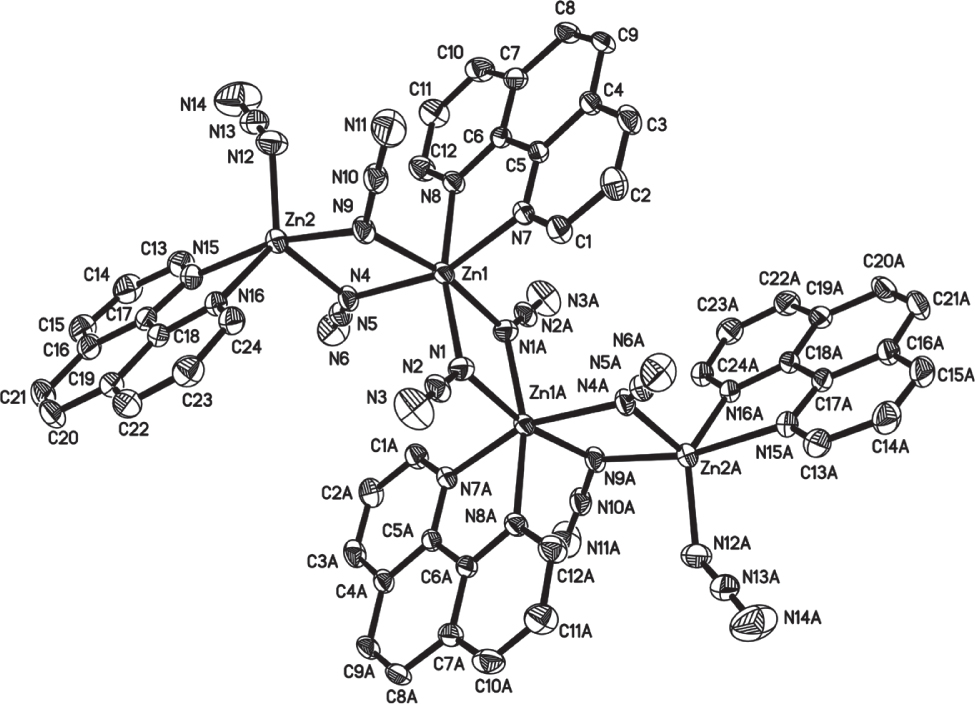

Single crystal X-ray diffraction indicated that 1 belongs to the triclinic system with the space group P1̄. The molecular structural unit of 1 contains four Zn2+ cations, four C12H8N2 ligands and eightN3− anions as shown in the figure. Within the title complex Zn1 is six-coordinated by six N atoms from one C12H8N2 ligand and four N atoms from four N3− ligands. Zn2 cation is five-coordinated by five N atoms from one C12H8N2 ligand and three N atoms from three N3− ligands. The bond distances Zn—N, N—N and the bond angles of N—Zn—N are in the ranges of 1.966(3)–2.209(2) Å, 1.129(3)–1.196(3) Å and 76.53(8)–168.68(9)°, respectively. These above mentioned bond distances and angles are all in their normal ranges. They can be compared with those previously reported compounds [8]. By means of such connected modes, a tetra-nuclear coordination compound was generated. The distances of Zn⋯Zn are 3.251 Å and 3.338 Å. It is worth noting that the eight N3− ligands exhibited two types of coordination fashions: six N3− ligands as bridged ligands linked to two Zn2+ cations (Zn1 and Zn2) and two N3− ligands as terminal ligands connected to Zn2. In addition, C—H⋯N hydrogen bonds are found in the packing structure of 1.

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21601095

Funding statement: This work was financially supported by the National Natural Science Foundation of China (no. 21601095).

References

1. Bruker. APEX2, SAINT v7.60A and SAINT v7.60A. Bruker AXS Inc., Madison, WI, USA (2008).Suche in Google Scholar

2. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

4. Gao, E.-Q.; Bai, S.-Q.; Wang, C.-F.; Yue, Y.-F.; Yan, C.-H.: Structural and magnetic properties of three one-dimensional azido-bridged copper(II) and manganese(II) coordination polymers. Inorg. Chem. 42 (2003) 8456–8464.10.1021/ic034618wSuche in Google Scholar PubMed

5. Yue, Y.-F.; Gao, E.-Q.; Bai, S.-Q.; He, Z.; Yan, C.-H.: High-dimensional azido-bridged cadmium(II) polymeric complexes with bis(bidentate) diazine ligands. CrystEngComm 6 (2004) 549–555.10.1039/b415732jSuche in Google Scholar

6. Zhang, W.; Feng, Y.-Q.: A novel dinuclear bismuth(III) coordination compound: bis(μ-pyridine-2,6-dicarboxylato)-κ4O2,N, O6:O6′;κ4O2:O2′,N,O6-bis[(azido-κN)(1,10-phenanthroline-κ2N,N′)bismuth(III)]tetrahydrate. Acta Crystallogr. C70 (2014) 562–565.10.1107/S2053229614009863Suche in Google Scholar PubMed

7. Feng, X.; Feng, Y.-Q.; Liu, L.; Wang, L.-Y.; Song, H.-L.; Ng, S.-W.: A series of Zn-4f heterometallic coordination polymers and a zinc complex containing a flexible mixed donor dicarboxylate ligand. Dalton Trans. 42 (2013) 7741–7754.10.1039/c3dt33002hSuche in Google Scholar PubMed

8. Sun, J.-Y.; Wang, X.-X.: Di-μ-1,1-azido-bis[azido(5,5′-dimethyl-2,2′-bipyridine-κ2N,N′)zinc(II)]. Acta Crystallogr. E63 (2007) m1138–m1139.10.1107/S160053680701286XSuche in Google Scholar

Received: 2019-07-06
Accepted: 2019-09-19
Published Online: 2019-10-09
Published in Print: 2019-12-18

©2019 Yu-Quan Feng et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
