Crystal structure of catena-poly[diaqua-bis(3,4,5,6-tetrabromo-carboxybenzoato-κ1O)-(μ2-4,4′-bipyridine-κ2N:N′)cobalt(II)], C26H14Br8CoN2O10

  • Yong-Shuang Li , Jia-Yang Luo , Man-Qiu He and Min-Le Han ORCID logo EMAIL logo
Published/Copyright: October 4, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C26H14Br8CoN2O10, orthorhombic, Pbcn (no. 60), a = 24.3935(3) Å, b = 11.4505(1) Å, c = 11.7004(1) Å, V = 3268.13(6) Å3, Z = 4, Rgt(F) = 0.0313, wRref(F2) = 0.0819, T = 293 K.

CCDC no.: 1953260

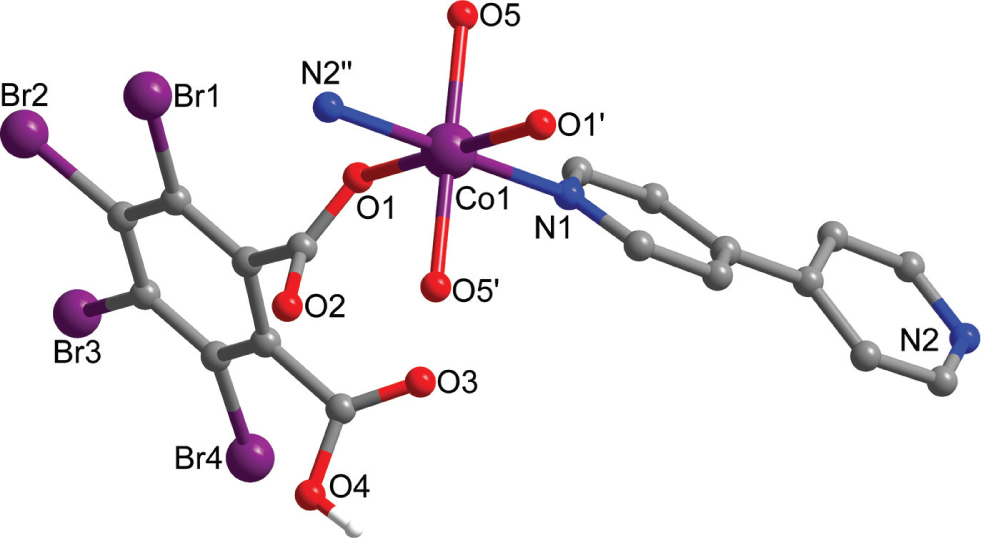

A part of the title crystal structure is shown in the figure (' = 1 − x, y, 1.5 − z; '' = x, 1 + y, z). Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Pink block
Size:0.20 × 0.19 × 0.17 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:16.1 mm−1
Diffractometer, scan mode:XtaLAB Pro, ω
θmax, completeness:66.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:9804, 2887, 0.033
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2688
N(param)refined:217
Programs:SHELX [1], [2], CrysAlisPRO [3]

Source of material

A mixture of 3,4,5,6-tetrabromo-phthalic acid (H2Br4ph, 19 mg, 0.04 mmol), 4,4′′-bipyridyl (31 mg, 0.02 mmol), and Co(ClO4)2 ⋅ 6H2O (29 mg, 0.08 mmol) were added to water

Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.67663(2)0.81863(4)0.77556(4)0.04235(15)
Br20.80868(2)0.79724(4)0.74510(4)0.03983(15)
Br30.86073(2)0.58826(5)0.58367(5)0.04598(15)
Br40.77724(2)0.41005(4)0.44627(4)0.03593(14)
C10.60882(15)0.6428(3)0.6292(3)0.0235(7)
C20.65170(14)0.4730(3)0.4791(3)0.0237(7)
C30.67066(14)0.6293(3)0.6207(3)0.0214(7)
C40.69230(14)0.5462(3)0.5456(3)0.0211(7)
C50.74888(15)0.5325(3)0.5362(3)0.0230(7)
C60.78415(15)0.6054(3)0.5965(3)0.0265(8)
C70.76308(15)0.6927(3)0.6669(3)0.0253(8)
C80.70604(15)0.7026(3)0.6804(3)0.0247(7)
C90.46030(16)0.3651(3)0.7000(4)0.0333(9)
H90.43210.40570.66450.040*
C100.45862(16)0.2441(3)0.6980(4)0.0338(9)
H100.42980.20560.66180.041*
C110.50000.1809(4)0.75000.0237(11)
C120.50000.0510(4)0.75000.0239(11)
C130.46980(19)−0.0134(3)0.6720(4)0.0404(10)
H130.44890.02470.61700.048*
C140.47057(18)−0.1336(3)0.6753(4)0.0381(10)
H140.4494−0.17410.62250.046*
Co10.50000.61512(6)0.75000.01751(19)
N10.50000.4266(4)0.75000.0220(9)
N20.5000−0.1951(3)0.75000.0243(9)
O10.58695(10)0.6146(2)0.7241(2)0.0218(5)
O20.58553(11)0.6785(3)0.5430(2)0.0436(8)
O30.61640(12)0.4166(3)0.5263(2)0.0418(7)
O40.65766(10)0.4816(2)0.3684(2)0.0279(6)
H40.63510.43970.33640.042*
O50.51672(11)0.6149(2)0.9226(2)0.0316(6)
H5A0.50530.67960.95320.047*
H5B0.55190.61690.93520.047*

(6 mL) in a 25 mL Teflon-lined autoclave. The mixture was heated at 393 K for 3 days and then slowly cooled down to room temperature. Light pink block crystals of the title compound were obtained.

Experimental details

The carbon bound hydrogen atoms were placed in calculated positions and refined using a riding model on attached atoms.

Comment

In the last two decades, a large number of cobalt(II)-based metal-organic frameworks (MOFs) and coordination polymers have been reported in the literature [3], [4], [5], [6], [7], [8]. Organic aromatic multicarboxylates, such as phthalic acid (1,2-benzenedicarboxylic acid) and its derivatives, as the mediators between the metal centers, can yield predetermined networks and have been widely utilized to construct coordination polymers [9], [10], [11], [12]. On the other hand, 4,4′-bipyridine (4,4′-bipy), as a nitrogen donor ligand, serves as a bridging ligand, which can act as bidentate ligand to coordinate to two metal ions [13], [14], [15], [16].

In the title complex, there are one half of a Co(II) ion, one coordinated water molecule, one HBr4ph ligands, and one half of 4,4′-bipy ligand in the asymmetric unit (figure). Co1 is six-coordinated with a distorted octahedral geometry by two O atoms from two HBr4ph and a pair of N atoms of two 4,4′-bipy ligands, located at the basal equatorial plane, and two coordinated water molecules from the axial positions with a O5-Co1-O5′ angle of 179.83(16)°. The Co—N bond lengths are 2.159(4) and 2.173(4) Å and the Co—O ones are in the range of 2.060(3) and 2.143(2) Å. Co(II) ions are linked by 4,4′-bipy ligands to form a 1-D polymer. In the title complex, there are three kinds of hydrogen bonds: (a) hydrogen bonding between water and carboxylate O atoms with d(O⋯O) = 2.62 Å; (b) hydrogen bonding between water and carboxylate O atoms with d(O⋯O) = 2.74 Å; (c) hydrogen bonding between carboxy O atoms and carboxylate O atoms with d(O⋯O) = 2.65 Å. An extended three-dimensional network of hydrogen bonds contributes to the stability of the structure.

Acknowledgements

This work was supported financially by the Natural Science Foundation of Henan province (no. 182300410238) and Henan tackle key problem of science and technology (no. 182102310620).

References

1. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

2. Sheldrick, G. M.: SHELXL – integrated space-group and crystal structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar

3. Agilent Technologies: CrysAlisPRO Software system, version 1.171.35.15. Agilent Technologies UK Ltd, Oxford, UK (2011).Search in Google Scholar

4. Han, M.-L.; Wu, H.-X.: Crystal structure of catena-(μ4-5-bromoisophthalato)-(μ2-1,6-bis(imidazol-1-yl)hexane)cobalt(II), Co(C8H3O4Br)(C12H18N4). Z. Kristallogr. NCS 226 (2011) 271–272.10.1524/ncrs.2011.0121Search in Google Scholar

5. Wu, Y.-P.; Zhou, W.; Zhao, J.; Dong, W.-W.; Lan, Y.-Q.; Li, D.-S.; Sun, C.; Bu, X.: Surfactant-assisted phase-selective synthesis of new cobalt MOFs and their efficient electrocatalytic hydrogen evolution reaction. Angew. Chem. Int. Ed. 56 (2017) 13001–13005.10.1002/anie.201707238Search in Google Scholar PubMed

6. Chang, X.-H.; Ma, L.-F.; Hui, G.; Wang, L.-Y.: Four low-dimensional cobalt(II) coordination polymers based on a new isophthalic acid derivative: syntheses, crystal structures, and properties. Cryst. Growth Des. 12 (2012) 3638–3646.10.1021/cg300461vSearch in Google Scholar

7. Li, D.-S.; Zhao, J.; Wu, Y.-P.; Liu, B.; Bai, L.; Zou, K.; Du, M.: Co5/Co8-Cluster-based coordination polymers showing high-connected self-penetrating networks: syntheses, crystal structures, and magentic properties. Inorg. Chem. 52 (2013) 8091–8098.10.1021/ic4007718Search in Google Scholar PubMed

8. Liu, S.-J.; Cao, C.; Yang, F.; Yu, M.-H.; Yao, S.-L.; Zheng, T.-F.; He, W.-W.; Zhao, H.-X.; Hu, T.-L.; Bu, X.-H.: High proton conduction in two CoII and MnII anionic metal-organic frameworks derived from 1,3,5-benzenetricarboxylic acid. Cryst. Growth Des. 16 (2016) 6776–6780.10.1021/acs.cgd.6b00776Search in Google Scholar

9. Han, M.-L.; Ling, X.-L.; Chang, X.-H.; Liu, G.-Z.; Du, D.-G.: Syntheses, structures and characteristics of two new Cu(II) coordination polymers based on 4-tert-butyl-phthalate and different bis(1,2,4-triazol-1-yl) Co-Ligands. Chin. J. Struct. Chem. 34 (2015) 543–550.Search in Google Scholar

10. Farnum, G. A.; Pochodylo, A. L.; LaDuca, R. L.: Tether length control of topology in cadmium 4-methyphthalate two-dimensional coordination polymers: an acentric buckled grid and a rare self-catenated layer. Cryst. Growth Des. 11 (2011) 678–683.10.1021/cg100972sSearch in Google Scholar

11. Han, M.-L.; Zhao, Y.; Li, D.-S.; Wu, Y.-P.; Ma, L.-F.: Bis(pyridyl)-based ligands driven NiII entangled metal-organic frameworks: from a new 1-D + 2-D → 3-D polythreading motifs to a rare 3-fold interpenetrating ths network. Inorg. Chem. Commun. 52 (2015) 1–4.10.1016/j.inoche.2014.12.004Search in Google Scholar

12. Liu, G.-Z.; Li, S.-H.; Li, X.-L.; Xin, L.-Y.; Wang, L.-Y.: Three series of MOFs featuring various metal(II)-carboxylate chains cross-linked by dipyridyl-typed coligands: synthesis, structure, and solvent-dependent luminescence. CrystEngComm 15 (2013) 4571–4580.10.1039/c3ce40109jSearch in Google Scholar

13. Zhou, P.; Yao, J. F.; Sheng, C. F.; Li, H.: A continuing tale of chirality: metal coordination extended axial chirality of 4,4′-bipy to 1D infinite chain under cooperation of a nucleotide ligand. CrystEngComm 15 (2013) 8430–8436.10.1039/c3ce40977eSearch in Google Scholar

14. Karmakar, A.; da Silva, M. F. C. G.; Pombeiro, A. J. L.: Zinc metal-organic frameworks: efficient catalysts for the diastereoselective Hery reaction and transesterification. Dalton Trans. 43 (2014) 7795–7810.10.1039/C4DT00219ASearch in Google Scholar

15. Han, M.-L.; Duan, Y.-P.; Li, D.-S.; Xu, G.-W.; Wu, Y.-P.; Zhao, J.: A series of divalent metal coordination polymers based on isomeric tetracarboxylic acids: synthesis, structures and magnetic properties. Dalton Trans. 43 (2014) 17519–17527.10.1039/C4DT01946FSearch in Google Scholar

16. Cui, J.; Lu, Z.; Li, Y.; Guo, Z.; Zheng, H.: Five novel coordination polymers based on a C-centered triangular flexible ligand. Cryst. Growth Des. 12 (2012) 1022–1031.10.1021/cg201552gSearch in Google Scholar

Received: 2019-07-25
Accepted: 2019-09-12
Published Online: 2019-10-04
Published in Print: 2019-12-18

©2019 Yong-Shuang Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
