Crystal structure of 2-(bis(2-hydroxyethyl)ammonio)ethane-1-sulfonate, C6H15NO5S

  • Baogang Wang and Xiaxia Man ORCID logo EMAIL logo
Published/Copyright: October 2, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C6H15NO5S, monoclinic, Cc (no. 9), a = 15.167(5) Å, b = 6.422(5) Å, c = 10.969(5) Å, β = 117.407(5)°, V = 948.5(9) Å3, Z = 4, Rgt(F) = 0.0278, wRref(F2) = 0.0755, T = 293(2) K.

CCDC no.: 1952899

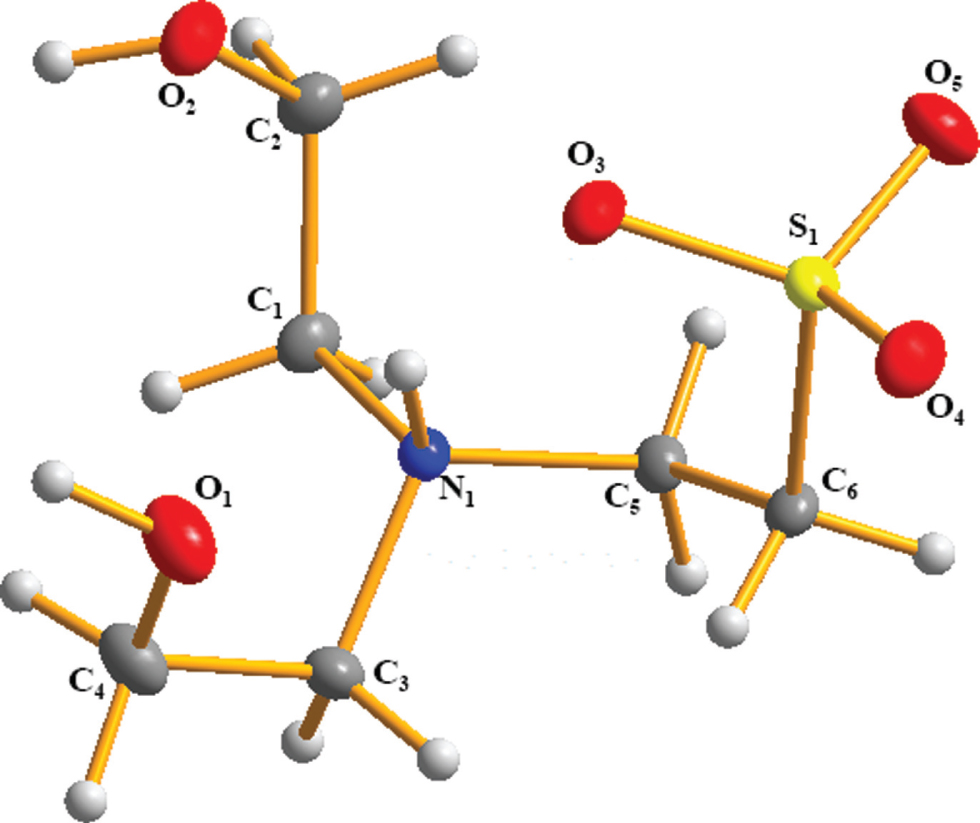

A part of the molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow block
Size:0.26 × 0.23 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.33 mm−1
Diffractometer, scan mode:CCD, φ and ω
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:3658, 1757, 0.016
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1667
N(param)refined:124
Programs:Bruker [1], SHELX [2], [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.9420(2)0.5922(4)0.7514(3)0.0362(6)
H1A0.87010.58260.70370.043*
H1B0.96630.48770.82330.043*
C20.9824(3)0.5475(5)0.6518(3)0.0421(7)
H2A1.05380.56750.69760.051*
H2B0.96920.40330.62280.051*
C30.8951(2)0.8925(5)0.8525(3)0.0365(6)
H3A0.92521.00090.92090.044*
H3B0.87180.78370.89200.044*
C40.8084(2)0.9816(6)0.7277(4)0.0481(8)
H4A0.77190.87080.66430.058*
H4B0.76361.05300.75450.058*
C51.0731(2)0.7966(4)0.9378(3)0.0313(6)
H5A1.11600.70760.91680.038*
H5B1.06750.73561.01490.038*
C61.1202(2)1.0105(4)0.9786(3)0.0334(6)
H6A1.17521.00401.07060.040*
H6B1.07171.10790.97970.040*
N10.97143(16)0.8041(3)0.8150(2)0.0270(5)
H10.97540.89670.74670.032*
O10.84571(19)1.1214(4)0.6648(3)0.0604(7)
O20.93950(19)0.6780(4)0.5350(2)0.0493(6)
O31.08107(16)1.0798(4)0.7281(2)0.0436(5)
O41.19202(19)1.3188(4)0.9014(2)0.0511(6)
O51.24777(17)0.9726(4)0.8840(3)0.0603(7)
S11.16424(4)1.10258(10)0.86372(4)0.03323(17)
H20.800(2)1.128(5)0.5742(14)0.050*
H30.8759(13)0.642(6)0.485(4)0.050*

Source of material

An ethanolic solution of 2-oxoethanesulfonic acid (10 mmol) was added to a solution of bis(2-hydroxyethyl)ammonium (10 mmol) in ethanol and the solution was refluxed for 6 hours. The reaction mixture was then cooled to room temperature and MgSO4 was added to remove some water. The MgSO4 was filtered off and the filtrate was dried overnight under reduced pressure. Crystals were grown through a slow evaporation of an ethanol solution at 298 K.

Experimental details

The Uiso values of the C-bound hydrogen atoms were set to 1.2Ueq(C). Hydrogen atoms of water molecules were located from electron density map. The absolute structure was established by refinement of the Flack parameter (−0.009(11) from 1458 selected quotients) using Parsons’ method [4]. A Flack parameter of 0.012(15) was obtained.

Comment

The research of coordination polymers (CPs) are significant and unparalleled for their diversified, designable and tailorable structures as well as unique chemical and physical properties [5], [6], [7]. Thus the design and synthesise of organic ligands is of great significance. Sulfur-rich compounds have been explored in various ways as ligands in coordination chemistry [8]. When the sulfo-groups are introduced to the system, they can coordinate with some metal ions directly in intriguing ways [9], [10]. Thus, it would be valuable to explore novel sulfo-based ligands.

The asymmetric unit contains one molecular unit of the title compound (see the figure). The bond distances and bond angles are in normal ranges. The N1—C5—C6—S1 torsion angle is −74.9(3)°. The bond lengths of C—C, C—N and C—O are in the range of 1.505(4)–1.518(4) Å, 1.500(3)–1.511(3) Å and 1.401(4)–1.414(4) Å, respectively. The bond length of C—S is 1.776(3) Å. In addition, there exist two O—H⋯O intermolecular hydrogen bonds between sulfo and hydroxyl groups: O1—H2⋯O4¢!‘ [H2⋯O4 = 1.880(17) Å, O1⋯O4 = 2.780(3) Å with angle at H2 = 168° for symmetry code: (¢!‘) = −0.5 + x, 0.5 − y, −0.5 + z] and O2—H3⋯O5¢¢ [H3⋯O5 = 1.89(2) Å, O2⋯O5 = 2.775(3) Å with angle at H3 = 172° for symmetry code: (¢¢) = −0.5 + x, −1.5 + y, −0.5 + z]. In the crystal, the O—H⋯O hydrogen bonds link together neighboring molecules to form two-dimensional network. Furthermore, there are two intramolecular NH⋯O hydrogen bonds (N1⋯O1: 2.759(3) Å and N1⋯O3: 2.876(3) Å; see the figure).

Acknowledgements

This work is supported by the project development plan of science and technology of Jilin Province.

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

2. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

4. Parsons, S.; Flack, H. D.; Wagner, T.: Use of intensity quotients and differences in absolute structure refinement. Acta Crystallogr. B69 (2013) 249–259.10.1107/S2052519213010014Search in Google Scholar PubMed PubMed Central

5. Huang, X.; Zhang, S.; Liu, L.; Yu, L.; Chen, G.; Xu, W.; Zhu, D.: Superconductivity in a copper(II)-based coordination polymer with perfect kagome structure. Angew. Chem. Int. Ed. 57 (2018) 146–150.10.1002/anie.201707568Search in Google Scholar PubMed

6. Shang, K.-X.; Sun, J.; Hu, D.-C.; Yao, X.-Q.; Zhi, L.-H.; Si, C.-D.; Liu, J.-C.: Six Ln (III) coordination polymers with a semirigid tetracarboxylic acid ligand: bifunctional luminescence sensing, NIR-luminescent emission, and magnetic properties. Cryst. Growth Des. 18 (2018) 2112–2120.10.1021/acs.cgd.7b01565Search in Google Scholar

7. Yang, Y.; Wang, K.-Z.; Yan, D.: Smart luminescent coordination polymers toward multimode logic gates: time-resolved, tribochromic and excitation-dependent fluorescence/phosphorescence emission. ACS Appl. Mater. Interfaces 9 (2017) 17399–17407.10.1021/acsami.7b00594Search in Google Scholar PubMed

8. He, J.; Zha, M.; Cui, J.; Zeller, M.; Hunter, A. D.; Yiu, S.-M.; Lee, S.-T.; Xu, Z.: Convenient detection of Pd(II) by a metal-organic framework with sulfur and olefin functions. J. Am. Chem. Soc. 135 (2013) 7807–7810.10.1021/ja401479jSearch in Google Scholar PubMed

9. Yang, E.-C.; Zhang, Y.-Y.; Liu, Z.-Y.; Zhao, X.-J.: Diverse self-assembly from predesigned conformationally flexible pentanuclear clusters observed in a ternary copper(II)-triazolate-sulfoisophthalate system: synthesis, structure, and magnetism. Inorg. Chem. 53 (2014) 327–335.10.1021/ic402280pSearch in Google Scholar PubMed

10. Ramaswamy, P.; Matsuda, R.; Kosaka, W.; Akiyama, G.; Jeon, H. J.; Kitagawa, S.: Highly proton conductive nanoporous coordination polymers with sulfonic acid groups on the pore surface. Chem. Commun. 50 (2014) 1144–1146.10.1039/C3CC47980CSearch in Google Scholar PubMed

Received: 2019-08-02
Accepted: 2019-09-11
Published Online: 2019-10-02
Published in Print: 2019-12-18

©2019 Baogang Wang et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
