The crystal structure of diaqua-bis(μ2-3-((3-acetyl-5-carboxyphenyl)oxidophosphoryl)-5-carboxybenzoato-κ2O:O′)bis(5,5′-dimethyl-2,2′-bipyridine-k2N,N′)zinc(II), C56H46N4O22P2Zn2

  • Yesheng Li , Huating Chen , Han Chen , Xingen Hu and Hongping Xiao ORCID logo EMAIL logo
Published/Copyright: October 9, 2019
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 235 Issue 1

Abstract

C56H46N4O22P2Zn2, monoclinic, P21/c (no. 14), a = 9.6537(4) Å, b = 31.1374(11) Å, c = 9.8927(4) Å, β = 112.709(2)°, V = 2743.13(19) Å3, Z = 2, Rgt(F) = 0.0341, wRref(F2) = 0.0934, T = 296(2) K.

CCDC no.: 1955108

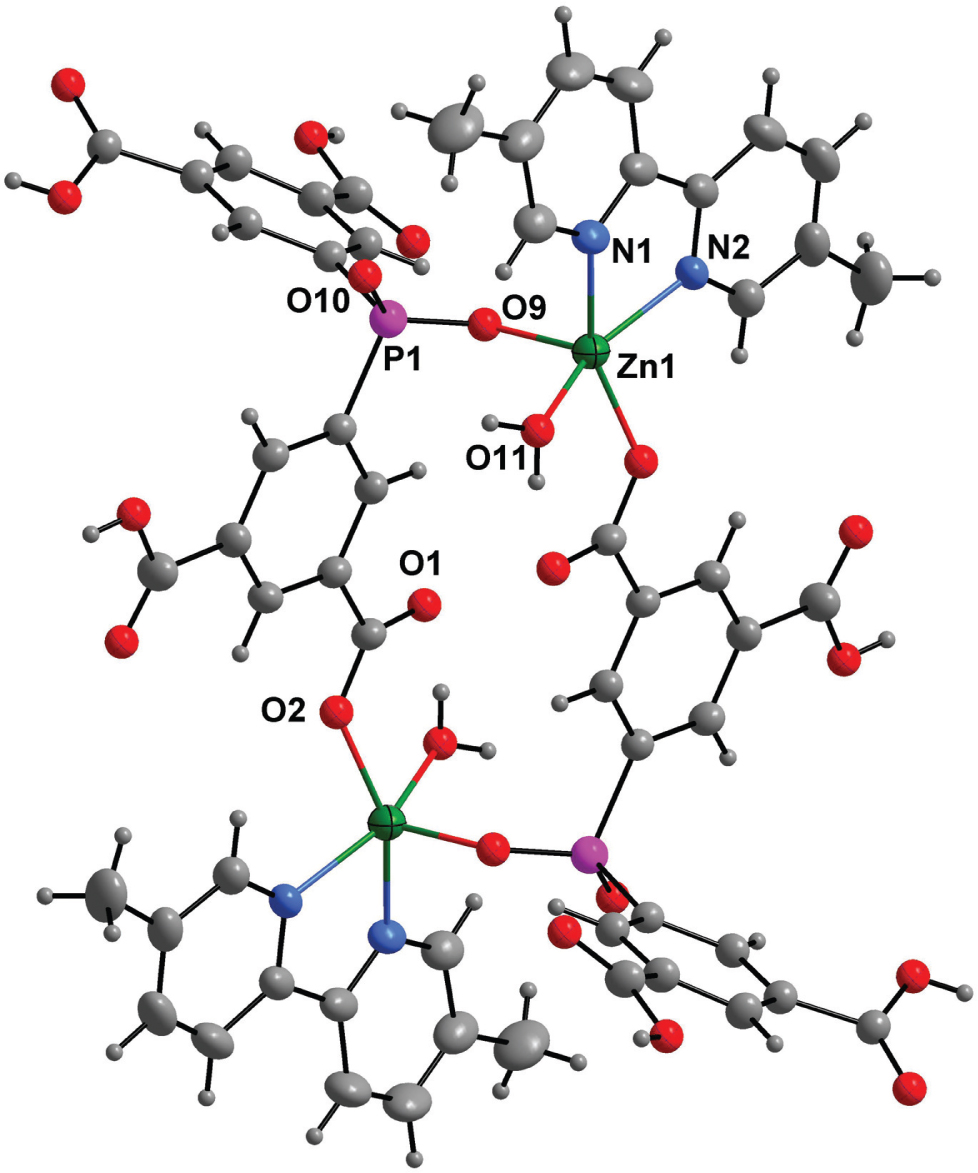

The dinuclear title structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless prism
Size:0.26 × 0.22 × 0.21 mm
Wavelength:Cu Kα radiation (1.54178 Å)
μ:2.39 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:65.5°, 97%
N(hkl)measured, N(hkl)unique, Rint:11995, 4601, 0.014
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4464
N(param)refined:393
Programs:Bruker [1], Diamond [2], SHELX [3], [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.56539(3)0.05904(2)0.41400(3)0.03230(11)
P10.55669(5)0.13201(2)0.18781(5)0.02594(13)
O10.62563(19)0.00431(6)−0.13473(19)0.0504(4)
O20.41927(18)0.00032(5)−0.33994(17)0.0436(4)
O30.0381(2)0.11430(8)−0.4553(2)0.0781(7)
O40.0456(2)0.16065(6)−0.2826(2)0.0573(5)
H4−0.0304320.169954−0.3476430.086*
O50.56429(16)0.27494(5)−0.09109(17)0.0404(4)
H50.5425230.298041−0.1339370.061*
O60.79124(19)0.30468(5)0.0047(2)0.0522(5)
O71.18952(17)0.18832(6)0.1758(2)0.0514(4)
H71.2714950.1769990.1942150.077*
O81.11941(18)0.12134(6)0.1963(2)0.0564(5)
O90.63644(16)0.09667(5)0.29121(15)0.0332(3)
O100.45649(15)0.16175(5)0.23122(16)0.0328(3)
O110.33616(18)0.05716(5)0.2936(2)0.0459(4)
H11A0.3284420.0377610.2306580.069*
H11B0.2766880.0777190.2530400.069*
N10.5413(2)0.10551(6)0.5605(2)0.0394(4)
N20.7580(2)0.04855(6)0.6040(2)0.0397(4)
C10.4490(2)0.10918(6)0.0100(2)0.0292(4)
C20.5065(2)0.07334(7)−0.0337(2)0.0317(4)
H20.5955610.0611520.0303970.038*
C30.4332(2)0.05536(6)−0.1716(2)0.0324(4)
C40.2998(2)0.07372(7)−0.2657(2)0.0359(5)
H4A0.2496850.061925−0.3581840.043*
C50.2402(2)0.10934(7)−0.2238(2)0.0358(5)
C60.3149(2)0.12736(7)−0.0851(2)0.0336(4)
H60.2754230.151311−0.0565350.040*
C70.4995(2)0.01679(7)−0.2173(2)0.0348(5)
C80.0982(3)0.12776(8)−0.3334(3)0.0470(6)
C90.6958(2)0.16556(6)0.1588(2)0.0280(4)
C100.6537(2)0.20610(7)0.0967(2)0.0305(4)
H100.5557630.2155530.0732520.037*
C110.7557(2)0.23263(7)0.0692(2)0.0319(4)
C120.9020(2)0.21843(7)0.1032(2)0.0352(5)
H120.9719570.2363590.0884880.042*
C130.9431(2)0.17740(7)0.1591(2)0.0342(4)
C140.8410(2)0.15118(7)0.1891(2)0.0326(4)
H140.8702870.1240490.2293230.039*
C150.7077(2)0.27465(7)−0.0061(2)0.0336(4)
C161.0931(2)0.15930(7)0.1801(3)0.0379(5)
C170.4295(3)0.13402(8)0.5280(3)0.0465(6)
H170.3434590.1293080.4443900.056*
C180.4343(3)0.17020(9)0.6115(3)0.0539(7)
C190.5634(4)0.17554(10)0.7349(3)0.0671(8)
H190.5733150.1995400.7938520.081*
C200.6776(4)0.14602(10)0.7723(3)0.0639(8)
H200.7632970.1496160.8571050.077*
C210.6642(3)0.11076(8)0.6824(2)0.0439(5)
C220.7803(3)0.07696(8)0.7127(2)0.0434(5)
C230.9044(3)0.07341(10)0.8433(3)0.0578(7)
H230.9198000.0931300.9183210.069*
C241.0051(3)0.04031(10)0.8609(3)0.0616(8)
H241.0889150.0378950.9479820.074*
C250.9825(3)0.01080(9)0.7505(3)0.0516(6)
C260.8561(3)0.01660(8)0.6233(3)0.0459(6)
H260.838569−0.0028250.5470350.055*
C270.3081(4)0.20210(10)0.5669(4)0.0733(9)
H27A0.3007540.2143930.6529230.110*
H27B0.2156120.1879140.5099810.110*
H27C0.3272210.2244220.5094410.110*
C281.0875(3)−0.02632(11)0.7644(4)0.0699(9)
H28A1.186138−0.0155410.7820630.105*
H28B1.051706−0.0427470.6754330.105*
H28C1.091485−0.0442890.8447120.105*

Source of material

A mixture of ZnSO4 ⋅ 7H2O (0.0386 g), tri(3,5-dicarboxylic phenyl)phosphine oxide (0.0249 g), 5,5′-methyl-2,2′-bipyridine (0.0153 g) and water (10 mL) was sealed in a 15 mL Teflon-lined steel autoclave and heated at 423 K for three days and then cooled to room temperature. Colorless block crystals were obtained (yield ca. 37% based on phosphine). The product is insoluble in water and common organic solvents. FT-IR (KBr, cm−1): 3450 w, 1714 s, 1692 m, 1597 m, 1544 m, 1509 m, 1409 s, 1331 m, 1279 s, 1234 m, 1129 m, 1059 m, 824 m, 753 m, 687 m.

Experimental details

The H atoms were positioned geometrically and allowed to ride on their parent atoms at distances of Csp2-H = 0.93 Å with Uiso(H) = 1.2Ueq(C), Csp3-H = 0.96 Å with Uiso(H) = 1.5Ueq(C) and O—H = 0.85 Å with Uiso(H) = 1.5Ueq(O), respectively.

Comment

The design and construction of coordination polymers are attracting interest due to their specific structures and potential applications [5], [6], [7]. In order to achieve these goals, it is necessary to select suitable ligands like phosphine oxides [8], [9], [10]. For example, in our previous works, a series of coordination complexes have been obtained by (polycarboxylic phenyl)hypophosphite ligand [11], [12], [13]. Herein, we reported a new binuclear complex [Zn2(H3L)2(bipy)2(H2O)2] (H3L = 3-((3-acetyl-5-carboxyphenyl)oxidophosphoryl)-5-carboxybenzoate, bipy = 5,5′-dimethyl-2,2′-bipyridine).

In the title complex, each Zn(II) is five-coordinated, with two N atoms from one bipy ligand, and three O atoms from carboxyl O2, phosphoryl O9 and aqua O11, respectively. The Zn1-N1 and Zn1-N2 bond lengths are 2.1230(18) Å and 2.0973(18) Å. The Zn—O bond lengths are in the range 1.9904(14) – 2.0698(16) Å, which are found within normal ranges bond distances in the reported Zn(II) complexes [11]. The O2—Zn1—N1i (symmetry code: −x + 1, −y, −z) and O11—Zn1—N2 bond angles are 156.39(7)° and 153.16(8)° and other angles are in the range 77.70(8)–104.10(7)°, forming a distorted square-pyramidal coordination configuration. Each H3L anion ligand functions as μ2-bridge to link two different Zn(II) ions, forming a binuclear structure.

It is worthy noting that the tri(3,5-dicarboxyphenyl)phosphine oxidem ligand changed into (3,5-dicarboxylic phenyl)(5-carboxylic-3-carboxyphenyl) hypophosphite ligand in the hydrothermal in-situ sythesis. Moreover, the stability of the solid state structure of the title complex is enhanced by O—H⋯O and C—H⋯O hydrogen bonding interactions. These hydrogen bonding interactions link neighbouring binuclear units into a three-dimensional architecture.

Funding source: National Natural Science Foundation of China

Award Identifier / Grant number: 21571144

Award Identifier / Grant number: 21573161

Funding statement: We gratefully acknowledge financial support provided by the National Natural Science Foundation of China (grant numbers 21571144 and 21573161).

References

1. BRUKER. SAINT, APEX2 and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Search in Google Scholar

2. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 4.0. Crystal Impact, Bonn, Germany (2015).Search in Google Scholar

3. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

4. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

5. Liu, B.; Liu, Q.; Xiao, H.; Zhang, W.; Tao, R.: Family of dumbbell Ni4Ln2 (Ln = Pr, Sm, Eu, Gd, Tb, Ho, Er) complexes: syntheses, structures, luminescent and magnetic properties. Dalton Trans. 42 (2013) 5047–5056.10.1039/c3dt32935fSearch in Google Scholar PubMed

6. Li, A.; Li, L.; Song, L.; Wang, Z. H.; Chen, Q.; Yang, T.; Zhou, X. H.; Xiao, H. P.; Yin, X. J.: Guest-induced reversible structural transitions and concomitant on/off luminescence switching of an Eu(III) metal-organic framework and its application in detectin picric acid. New J. Chem. 39 (2015) 2289–2295.10.1039/C4NJ01946FSearch in Google Scholar

7. Li, X. L.; Hu, M.; Yin, Z.; Zhu, C.; Liu, C. M.; Xiao, H. P.; Fang, S.: Enhanced single-ion magnetic and ferroelectric properties of mononuclear Dy(III) enantionmeric pairs through the coordination role of chiral ligands. Chem. Commun. 53 (2017) 3998–4001.10.1039/C7CC01042GSearch in Google Scholar PubMed

8. Humphrey, S. M.; Ounoulian, S. E.; Yoon, J. W.; Hwang, Y. K.; Wise, E. R.; Chang, J. S.: Hysteretic sorption of light gases by a porous metal-organic framework containing tris(para-carboxylated triphenylphosphine oxide. Chem. Commun. (2008) 2891–2893.10.1039/b802809eSearch in Google Scholar PubMed

9. Humphrey, S. M.; Allan, P. K.; Oungoulian, S. E.; Ironside, M. S.; Wise, E. R.: Metal-organophosphine and metal-organophosphonium frameworks with layered honeycomb-like structures. Dalton Trans. (2009) 2298–2305.10.1039/b820038fSearch in Google Scholar PubMed

10. Bohnsack, A. M.; Ibarra, I. A.; Hatfield, P. W.; Yoon, J. W.; Hwang, Y. K.; Chang, J. S.; Humphrey, S. M.: High capacity CO2 adsorption in a Mg(II)-based phosphine oxide coordination material. Chem. Commun. 47 (2011) 4899–4901.10.1039/c1cc10754bSearch in Google Scholar PubMed

11. Mo, J. P.; Hashemi, L.; He, J. L.; Feng, W. L.; Yin, Y.; Zhang, W. B.; Li, X. H.; Xiao, H. P.; Morsali, A.: Crystal structure, thermal stability and photoluminesence properties of five new Zn(II) coordination polymers constructed from mixed ligands: N-donor pridine ligands and bis(4-carboxylphenyl)phosphinic acid. J. Mol. Struct. 1180 (2019) 63–71.10.1016/j.molstruc.2018.11.007Search in Google Scholar

12. Mo, J. P.; Bigdeli, F.; Yin, Y.; Zhu, C. Q.; Zhu, M.; Li, Y. S.; Li, X. H.; Xiao, H. P.; Morsali, A.; Ramazan, A.: Five new Cd(II) coordination polymers constructed from 4,4′-(hydroxyphosphoryl)-dobenzoic acid and N-donor pridine ligands. Polyhedron 158 (2019) 144–153.10.1016/j.poly.2018.10.015Search in Google Scholar

13. Wu, L. F.; Wang, Z. X.; Xue, C. C.; Xiao, H. P.; Li, M. X.: Two 2D sliver complexes with a symmetric and noncentrosymmetric architecture controlled by the metal-ligand ratio. CrystEngComm 16 (2014) 5627–5632.10.1039/C4CE00008KSearch in Google Scholar

14. Li, L.; Wang, X.; Liang, J.; Huang, Y.-B.; Li, H.; Lin, Z.-J.; Cao, R.: Water-stable anionic metal–organic framework for highly selective separation of methane from natural gas and pyrolysis gas. ACS Appl. Mater. Interfaces 8 (2016) 9777–9781.10.1021/acsami.6b00706Search in Google Scholar PubMed

Received: 2019-07-19
Accepted: 2019-09-22
Published Online: 2019-10-09
Published in Print: 2019-12-18

©2019 Yesheng Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
