Crystal structure of 1,1′-((1E,1′E)-(((ethane-1,2-diylbis(oxy))bis(2,1-phenylene))bis(azanylylidene))bis(methanylylidene))bis(naphthalen-2-olato-κ3O,O′,N)zinc(II), C36H26N2O4Zn

  • Guo qiang Li , Rui ping Zhou , Xiao fang Luo , Hong Zhou und Qiang Xu EMAIL logo
Veröffentlicht/Copyright: 5. August 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 232 Heft 5

Abstract

C36H26N2O4Zn, monoclinic, C2/c (no. 15), a = 43.237(10) Å, b = 17.201(4) Å, c = 11.271(2) Å, β = 103.009(5)°, V = 8168(3) Å3, Z = 12, Rgt(F) = 0.0442, wRref(F2) = 0.1530, T = 100(2) K.

CCDC no.:: 1494369

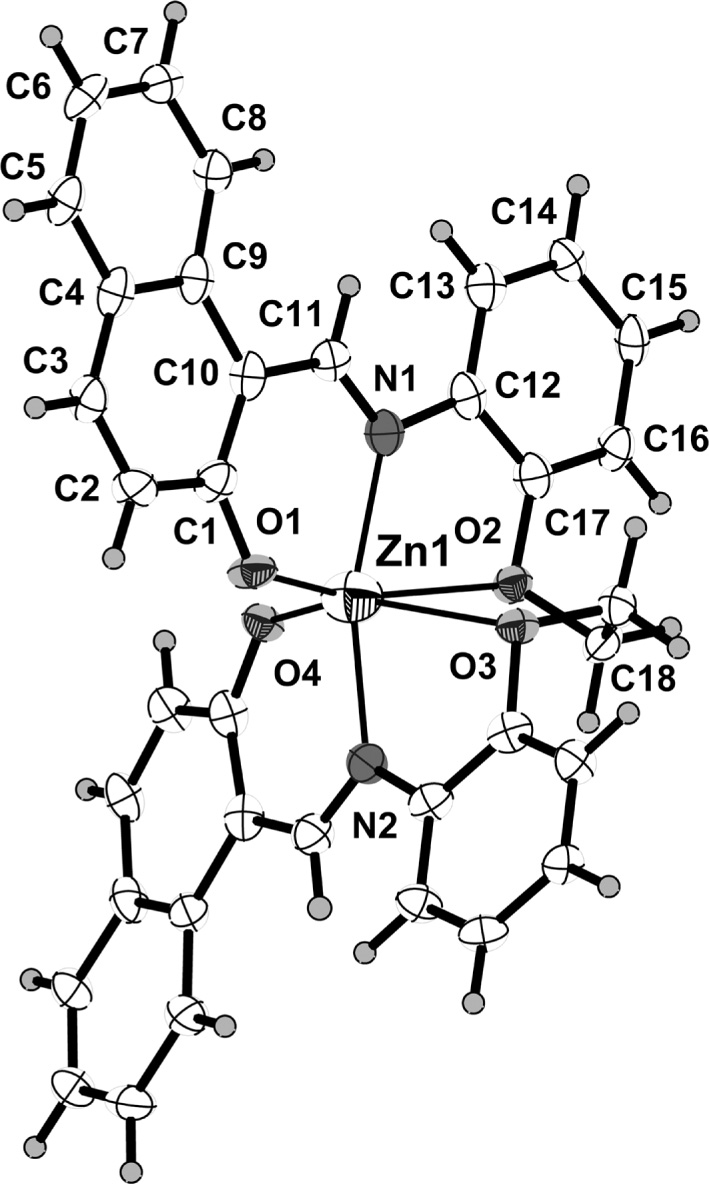

The crystal structure is shown in the figure. The radii of the ellipsoids are drawn with an arbitrary probability. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow block
Size:0.20 × 0.20 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:9.5 cm−1
Diffractometer, scan mode:Bruker APEXII, φ and ω-scans
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:28278, 7220, 0.055
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4975
N(param)refined:582
Programs:Bruker [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.326086(10)0.75276(3)0.19582(4)0.03364(16)
Zn20.50000.64801(4)0.25000.0460(2)
O40.32703(6)0.83457(17)0.0738(2)0.0429(7)
O20.30372(6)0.84088(15)0.3154(2)0.0357(6)
O50.48755(6)0.53334(16)0.3529(2)0.0389(7)
O10.33563(6)0.65285(17)0.1268(3)0.0493(8)
O30.33409(6)0.70345(16)0.4095(2)0.0368(7)
N20.37246(7)0.77719(19)0.2829(3)0.0310(7)
N10.27853(7)0.72479(18)0.1610(3)0.0276(7)
O60.50315(7)0.7127(2)0.1094(4)0.0850(13)
N30.45247(7)0.63266(18)0.1848(3)0.0344(8)
C40.27939(9)0.4828(2)−0.0741(3)0.0335(9)
C200.36676(9)0.6999(2)0.4562(3)0.0357(10)
C120.25723(9)0.7751(2)0.2050(3)0.0271(8)
C170.27090(9)0.8333(2)0.2864(3)0.0313(9)
C90.26383(9)0.5450(2)−0.0280(3)0.0285(8)
C130.22406(9)0.7716(2)0.1717(3)0.0314(9)
H130.21410.73270.11620.038*
C380.45439(8)0.5301(2)0.3330(3)0.0319(9)
C100.28304(9)0.6043(2)0.0478(3)0.0276(8)
C430.43624(9)0.5817(2)0.2497(3)0.0314(9)
C110.26688(9)0.6635(2)0.0977(3)0.0284(8)
H110.24450.65770.08320.034*
C360.35037(9)0.8790(2)0.0614(3)0.0366(9)
C450.44768(9)0.7265(2)0.0161(4)0.0392(10)
C540.42445(10)0.7656(2)−0.0809(4)0.0395(10)
C250.38669(9)0.7354(2)0.3903(3)0.0331(9)
C260.38994(9)0.8253(2)0.2372(3)0.0344(9)
H260.41150.82840.28010.041*
C10.31657(9)0.6011(2)0.0677(3)0.0361(9)
C210.37842(10)0.6581(2)0.5608(4)0.0446(11)
H210.36430.63480.60370.054*
C440.43629(9)0.6744(2)0.0948(4)0.0362(9)
H440.41390.66930.08000.043*
C50.26136(11)0.4244(2)−0.1450(4)0.0434(11)
H50.27200.3822−0.17270.052*
C160.25213(10)0.8856(2)0.3334(3)0.0392(10)
H160.26180.92480.38890.047*
C270.38154(9)0.8738(2)0.1325(3)0.0332(9)
C390.44050(10)0.4788(3)0.3987(4)0.0460(11)
H390.45350.44470.45520.055*
C30.31287(10)0.4815(2)−0.0488(4)0.0408(10)
H30.32320.4400−0.07990.049*
C460.48059(12)0.7414(3)0.0266(5)0.0616(14)
C150.21953(10)0.8806(2)0.2993(3)0.0414(10)
H150.20670.91600.33160.050*
C80.23043(9)0.5459(2)−0.0628(3)0.0337(9)
H80.21930.5874−0.03590.040*
C530.39141(11)0.7580(2)−0.0980(4)0.0455(11)
H530.38300.7242−0.04660.055*
C180.31827(10)0.8338(3)0.4434(3)0.0434(11)
H18A0.30670.86640.49140.052*
H18B0.34050.85230.45890.052*
C420.40346(9)0.5799(2)0.2382(3)0.0378(10)
H420.39040.61530.18450.045*
C490.43530(12)0.8156(3)−0.1625(4)0.0542(13)
C330.39838(11)0.9750(3)0.0023(4)0.0474(11)
C140.20548(9)0.8239(2)0.2182(3)0.0378(10)
H140.18300.82070.19420.045*
C70.21350(10)0.4890(2)−0.1343(4)0.0416(10)
H70.19100.4919−0.15620.050*
C410.38972(9)0.5277(3)0.3036(4)0.0441(11)
H410.36730.52700.29350.053*
C280.40658(9)0.9205(2)0.0985(4)0.0391(10)
C240.41929(10)0.7243(3)0.4342(4)0.0455(11)
H240.43370.74620.39090.055*
C190.31757(10)0.7504(3)0.4819(4)0.0439(11)
H19A0.32800.74520.56930.053*
H19B0.29530.73250.47020.053*
C400.40816(10)0.4763(3)0.3837(4)0.0488(12)
H400.39860.43980.42760.059*
C370.50182(9)0.4647(2)0.3175(4)0.0473(11)
H37A0.49150.41800.34250.057*
H37B0.52460.46320.35830.057*
C230.43095(11)0.6829(3)0.5378(4)0.0514(12)
H230.45320.67640.56530.062*
C20.33060(10)0.5369(2)0.0178(4)0.0419(10)
H20.35310.53360.03220.050*
C60.22914(11)0.4265(3)−0.1751(4)0.0482(12)
H60.21740.3864−0.22310.058*
C220.41076(11)0.6502(3)0.6031(4)0.0536(12)
H220.41910.62260.67630.064*
C470.48962(12)0.7918(3)−0.0609(6)0.0788(19)
H470.51160.8006−0.05620.095*
C520.37124(12)0.7985(3)−0.1874(4)0.0582(13)
H520.34900.7930−0.19560.070*
C510.38228(14)0.8474(3)−0.2669(4)0.0631(14)
H510.36780.8741−0.32960.076*
C500.41344(14)0.8563(3)−0.2537(4)0.0629(14)
H500.42120.8906−0.30650.075*
C340.36654(12)0.9824(3)−0.0581(4)0.0543(12)
H340.36091.0204−0.12030.065*
C350.34375(11)0.9380(3)−0.0316(4)0.0487(12)
H350.32250.9455−0.07550.058*
C480.46833(13)0.8271(3)−0.1492(5)0.0766(18)
H480.47560.8607−0.20420.092*
C310.45295(14)1.0100(4)0.0203(5)0.0792(18)
H310.46861.0406−0.00520.095*
C300.46182(12)0.9569(4)0.1145(5)0.0783(18)
H300.48360.95060.15330.094*
C290.43869(11)0.9128(3)0.1517(4)0.0580(13)
H290.44510.87620.21570.070*
C320.42222(13)1.0180(3)−0.0344(5)0.0657(15)
H320.41641.0538−0.09980.079*

Source of material

The educt 1,1′-((1E,1′E)-(((ethane-1,2-diylbis(oxy))bis(2,1-phenylene))bis(azanylylidene))bis(methanylylidene))bis(naphthalen-2-ol) (H2L) used in the present work was synthesized via a standard Schiff base condensation reaction of 2-hydroxy-1-naphthaldehyde (0.6887 g, 4 mmol) and bis(4-aminophenoxy)ethane (0.4886 g, 2 mmol) following a modified literature procedure [3]. All other reagents were commercially available and used without further purification. The title compound was prepared by a vapor diffusion method. To a yellow MeOH solution (15 mL) of H2L (0.552 g, 1 mmol) was added slowly a MeOH solution (10 mL) of Zn(CH3COO)2⋅2H2O (0.220 mg, 1 mmol), and the resulting solution was stirred for 30 min to afford a clear pale-gold colored solution. The solvent was evaporated in air to give a yellow powder, which was isolated by filtration, washed with cold MeOH, and dried under vacuum over P4O10. The yellow block-shaped crystals suitable for X-ray analysis were obtained from a acetone solution of the powdered solid after about 3 days.

Experimental details

All of the hydrogen atoms were placed in the calculated positions and all the non-hydrogen atoms were refined anisotropically.

Discussion

Schiff base is one of the oldest compound bearing the —N=CH— functional group, which can be readily synthesized by the condensation reaction of carbonyl-containing compounds with primary amines. For a long time, numerous chemists from different disciplines have redirected their efforts to Schiff-base complexes due to their potential application in photocatalysis [4], bioscience [5] and magnetic properties [6]. As part of our work, a novel zinc(II) complex with a Salen-type bisoxime ligand was synthesized and characterized by X-ray diffraction.

The title complex is a mononuclear structure. The central zinc(II) is hexa-coordinated by two nitrogen atoms (N(1), N(2)) and four oxygen atoms (O(1), O(2), O(3), O(4)), resulting a slightly distored-octahedral geometry. The equatorial plane is defined by two ether O atoms (O2 and O3) and two aromatic-oxide O atoms (O1 and O4; cf. the figure) with the Zn—O bond distance in the range of 1.968(3) Å to 2.410(3) Å, and the O—Zn—O bond angles around the Zn(II) atom vary from 70.11(13)° to 158.49(11)°. The axial positions are occupied by two imine nitrogen atoms with the N(1)-Zn(1)-N(2) bond angle is 163.15(12)°, and the bond length of Zn(1)-N(1), Zn(1)-N(2) are 2.063(3) Å and 2.067(3) Å, respectively.

All bond lengths and angles in the organic ligand system are in the expected ranges.

Acknowledgement

I acknowledge support for the publication fee by the Scientific Research Fund of Chongqing Municipal Education Commissionthe (KJ1601115), Chongqing University of Arts and Sciences (Z2015CH02), Chongqing University of Arts and Sciences (XSKY2016058) and Chongqing University of Arts and Sciences (XSKY2016067).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, 2009.Suche in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

Zhang, Q. L.; Zhang, Y. Q.; Zhu, B. X.: Crystal structure of Ag(I) schiff base complex. Chinese. J. Inorg. Chem. 27 (2011) 2191–2194.Suche in Google Scholar

Song, Q.; Ma, W. H.; Jia, M. K.; Johnson, D.; Huang, Y. P.: Degradation of organic pollutants in waters by a water-insoluble iron(III) Schiff base complex. Applied Catalysis A: General. 505 (2015) 70–76.10.1016/j.apcata.2015.07.028Suche in Google Scholar

Wang, H.; Gan, G. Q.; Qu, Y.; Chen, H.; Lin, Z. D.: Synthesis, charaterization and DNA interactions of 2,4-dihydroxybenzoylhydrazone coordinated to Cu(II). Chinese. J. Inorg. Chem. 28 (2012) 1217–1221.Suche in Google Scholar

Pait, M.; Bauza, A.; Frontera, A.; Colacio, E.; Ray, D.: A new family of Ni4 and Ni6 aggregates from the self-assembly of [Ni2] building units: role of carboxylate and carbonate bridges. Inorg. Chem. 54 (2015) 4709–4723.10.1021/acs.inorgchem.5b00039Suche in Google Scholar PubMed

Received: 2017-1-20
Accepted: 2017-7-18
Published Online: 2017-8-5
Published in Print: 2017-9-26

©2017 Guo qiang Li et al., published by De Gruyter, Berlin/Boston
