Crystal structure of catena-poly[(μ2-3-(1H-pyrazol-4-yl)-5-(pyridin-4-yl)-1,2,4-triazole-κ N:N′)-bis(benzoato-κO)zinc(II)], C24H18N6O4Zn

  • Wang Yu-Fang EMAIL logo and Jun-Hui Tai
Published/Copyright: August 5, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C24H18N6O4Zn, monoclinic, P21/c (no. 14), a = 13.7579(8) Å, b = 8.5684(6) Å, c = 19.7973(10) Å, β = 96.500(6)°, V = 2318.8(2) Å3, Z = 4, Rgt(F) = 0.0521, wRref(F2) = 0.1297, T = 288 K.

CCDC no.:: 1564498

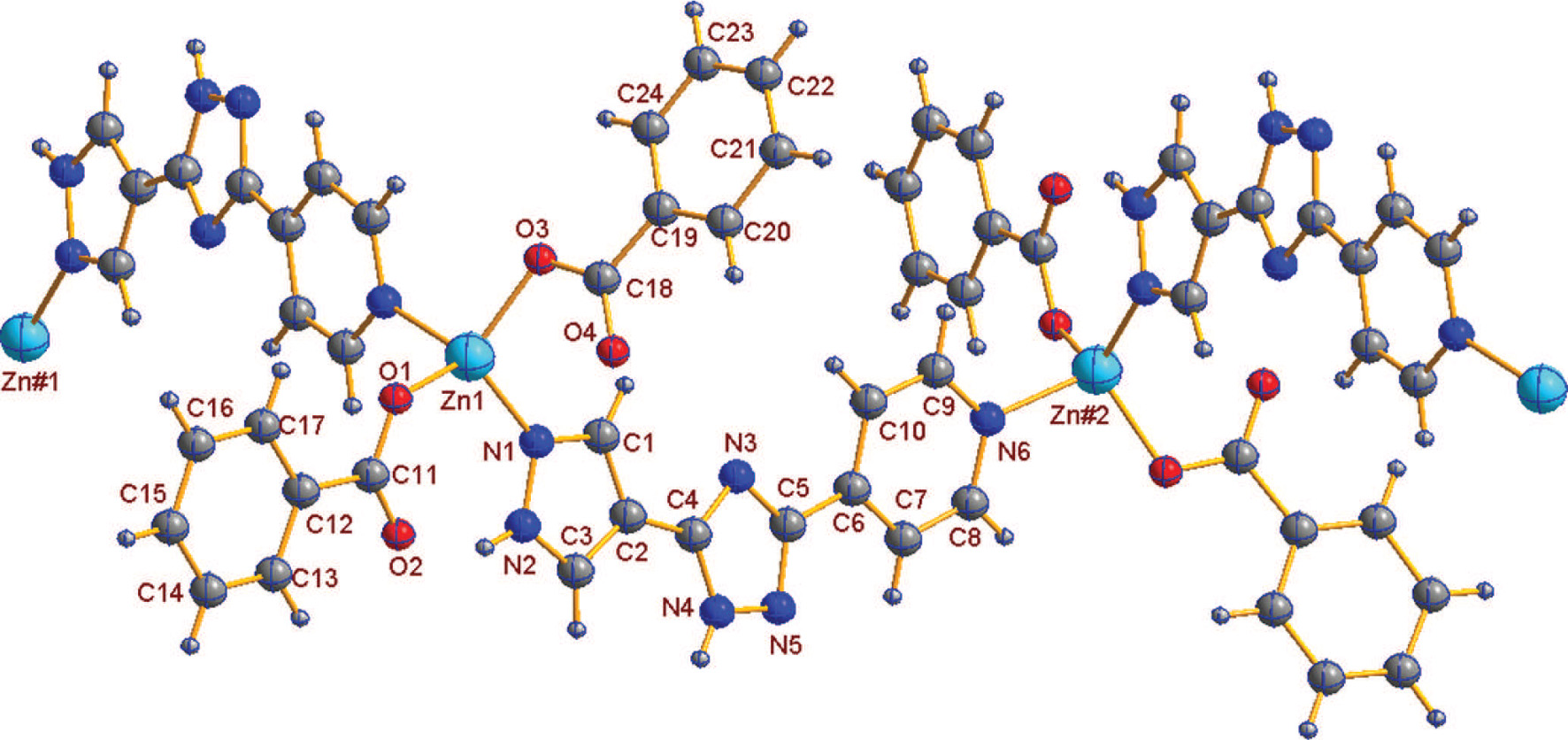

A part of the title crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.21 × 0.20 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:11.0 cm−1
Diffractometer, scan mode:SuperNova, ω-scans
2θmax, completeness:52°, >99%
N(hkl)measured, N(hkl)unique, Rint:12462, 4407, 0.036
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3181
N(param)refined:320
Programs:SHELX [1], CrysAlisPRO [2], OLEX2 [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Zn10.29353(3)0.81352(5)0.54562(2)0.04250(18)
O10.2647(2)0.9212(3)0.46001(11)0.0570(8)
O20.4133(2)0.9184(4)0.42777(14)0.0713(9)
O30.19285(19)0.6837(3)0.57744(14)0.0561(7)
O40.2301(2)0.5242(4)0.49667(12)0.0640(8)
N10.4245(2)0.7065(4)0.56499(14)0.0401(7)
N20.4952(2)0.7247(4)0.52355(14)0.0411(7)
H20.48980.78410.48830.049*
N30.6037(2)0.3936(4)0.70165(13)0.0391(7)
N40.7125(2)0.4162(4)0.63046(14)0.0383(7)
N50.7556(2)0.3225(4)0.68005(14)0.0406(7)
N60.7072(2)−0.0048(4)0.88695(13)0.0391(7)
C10.4632(3)0.6051(5)0.61251(17)0.0457(9)
H10.43100.56940.64840.055*
C20.5577(2)0.5600(4)0.60135(16)0.0360(8)
C30.5741(3)0.6400(4)0.54364(16)0.0399(9)
H30.63090.63580.52230.048*
C40.6229(2)0.4572(4)0.64315(15)0.0342(8)
C50.6870(2)0.3127(4)0.72188(15)0.0345(8)
C60.6980(2)0.2127(4)0.78195(16)0.0345(8)
C70.7833(3)0.1312(5)0.80180(17)0.0432(9)
H70.83890.14890.78020.052*
C80.7853(3)0.0239(5)0.85348(17)0.0448(9)
H80.8429−0.03110.86590.054*
C90.6268(3)0.0794(5)0.86986(17)0.0440(9)
H90.57330.06380.89390.053*
C100.6189(3)0.1871(5)0.81899(17)0.0427(9)
H100.56120.24330.80900.051*
C110.3279(3)0.9606(5)0.42129(17)0.0456(10)
C120.2926(3)1.0681(5)0.36351(17)0.0467(10)
C130.3576(3)1.1100(5)0.31745(17)0.0545(11)
H130.42031.06810.32180.065*
C140.3296(5)1.2126(6)0.2659(2)0.0718(15)
H140.37361.24060.23570.086*
C150.2384(5)1.2734(6)0.2587(3)0.0851(18)
H150.21971.34200.22320.102*
C160.1732(5)1.2340(7)0.3039(3)0.0882(17)
H160.11061.27680.29910.106*
C170.2010(4)1.1292(6)0.3571(2)0.0656(12)
H170.15721.10200.38760.079*
C180.1815(3)0.5569(5)0.54376(17)0.0436(9)
C190.1068(3)0.4465(5)0.56424(17)0.0437(9)
C200.0850(4)0.3140(6)0.5289(2)0.0732(14)
H200.11880.28740.49240.088*
C210.0085(4)0.2143(6)0.5484(4)0.0947(19)
H21−0.00850.12340.52430.114*
C22−0.0382(4)0.2548(8)0.6025(4)0.0885(17)
H22−0.08730.19050.61560.106*
C23−0.0155(4)0.3828(8)0.6368(3)0.0839(16)
H23−0.04800.40770.67410.101*
C240.0553(3)0.4797(6)0.6184(2)0.0607(12)
H240.06930.57100.64300.073*
H40.741(3)0.439(4)0.5961(18)0.048(11)*

Source of material

3-(1H-pyrazol-4-yl)-5-(pyridin-4-yl)-1,2,4-triazole (H2L) (21.2 mg, 0.10 mmol), benzoic acid (hbc) (36.6 mg, 0.30 mmol), Zn(NO3)2⋅6H2O (89.2 mg, 0.30 mmol) and KOH (5.6 mg, 0.10 mmol) were dissolved in H2O, and then sealed in a 25 mL teflon-lined stainless steel autoclave at 165 °C for 54 h, finally cooled to room temperature at a rate of 5 °C/h−1. Light yellow block-shaped crystals were obtained.

Experimental details

Hydrogen atoms were placed in calculated positions and were included in the refinement using the riding model approximation, with Uiso(H) = 1.2Ueq(C/N).

Discussion

Largely due to applications in gas storage and separation, luminescence, catalysis, magnetism and sensing, metal-organic framework/coordination polymer synthetic investigations have continued unabated over the past decade which drives the design and development of new metal-organic framework materials [4], [5], [6], [7], [8]. In that regard, the N-donor ligands and aromatic carboxylic acid are perhaps the most promising candidates, because they can interact with a metal surface by both π electrons and the lone-pair electrons at the nitrogen atom and oxygen atom. Hence, they provide access to diverse coordination polymer topologies [9], [10], [11], [12]. In light of the interesting structural diversity in previously reported zinc(II) Metal–Organic frameworks based on triazole-carboxylate [13, 14] , we set about attempts to prepare transition metal coordination polymers containing the easily prepared 3-(1H-pyrazol-4-yl)-5-(pyridin-4-yl)-1,2,4-triazole and the bezoate ligand (bc−). A perspective view of the molecular structure of [Zn(bc)2(H2L)]n is show in the figure.

The asymmetric unit consists of one Zn(II) ion, two bc− ligands and one H2L ligand. The Zn(II) ion is four-coordinated by one nitrogen atom N(1) of H2L ligand and two oxygen atoms [O(1), O(3)] from two different bc− ligands. The connection to the next unit is realized by the Zn-N coordination (Zn1-N6#1) of the next H2L ligand (cf. the figure). The bond lengths of Zn—N are 2.021(3) and 2.052(3) Å, and Zn—O are 1.930(3) and 1.937(3) Å, which are in the normal range [15]. It should be noted that these connections lead to a one-dimensional chain.

References

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Agilent Technologies: CrysAlisPRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd, Oxford, UK (2011).Search in Google Scholar

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Search in Google Scholar

Chen, Y.-Q.; Qu, Y.-K.; Li, G.-R.; Zhuang, Z.-Z.; Chang, Z.; Hu, T.-L.; Xu, J.; Bu, X.-H.: Zn(II)-benzotriazolate clusters based amide functionalized porous coordination polymers with high CO2 adsorption selectivity. Inorg. Chem. 53 (2014) 8842–8844.10.1021/ic500788zSearch in Google Scholar PubMed

Yao, R. X.; Cui, X.; Jia, X. X.; Zhang, F. Q.; Zhang, X. M.: A luminescent zinc(II) metal–organic framework (MOF) with conjugated π-electron ligand for high iodine capture and nitro-explosive detection. Inorg. Chem. 55 (2016) 9270–9275.10.1021/acs.inorgchem.6b01312Search in Google Scholar PubMed

Wang, G.-Y.; Yang, L.-L.; Li, Y.; Song, H.; Ruan, W.-J.; Chang, Z.; Bu, X.-H.: A luminescent 2D coordination polymer for selective sensing of nitrobenzene. Dalton Trans. 42 (2013) 12865–12868.10.1039/c3dt51450aSearch in Google Scholar PubMed

Zhang, X.-W.; Chi, Z.-G.; Zhang, Y.; Liu, S.; Xu, J.-R.: Recent advances in mechanochromic luminescent metal complexes. J. Mater. Chem. C. 1 (2013) 3376–3390.10.1039/c3tc30316kSearch in Google Scholar

Timokhin, I.; Pettinari, C.; Marchetti, F.; Pettinari, R.; Condello, F.; Galli, S.; Alegria, E. C. B. A.; Martins, L. M. D. R. S.; Pombeiro, A. J. L.: Novel coordination polymers with (pyrazolato)-based tectons: catalytic activity in the peroxidative oxidation of alcohols and cyclohexane. Cryst. Growth Des. 15 (2015) 2303–2317.10.1021/acs.cgd.5b00083Search in Google Scholar

Mihaly, J. J.; Zeller, M.; Genna, D. T.: Ion-directed synthesis of indium-derived 2,5-thiophenedicarboxylate metal–organic frameworks: tuning framework dimensionality. Cryst. Growth Des. 16 (2016) 1550–1558.10.1021/acs.cgd.5b01680Search in Google Scholar

Wang, K.; Chen, Z.-L.; Zou, H.-H.; Zhang, Z.; Sun, W.-Y.; Liang, F.-P.: Two types of Cu-Ln heterometallic coordination polymers with 2-hydroxyisophthalate: syntheses, structures, and magnetic Pproperties. Cryst. Growth Des. 15 (2015) 2883–2890.10.1021/acs.cgd.5b00327Search in Google Scholar

Li, Y. L.; Zhao, Y.; Kang, Y. S.; Liu, X. H.; Sun, W. Y.: Syntheses, structures, and sorption properties of metal–organic frameworks with 1,3,5-tris(1-imidazolyl)benzene and tricarboxylate ligands. Cryst. Growth Des. 16 (2016) 7112–7123.10.1021/acs.cgd.6b01352Search in Google Scholar

Liu, L.; Huang, C.; Xue, X.-N.; Li, M.; Hou, H.-W.; Fanm, Y.-T.: Ni(II) coordination polymers constructed from the flexible tetracarboxylic acid and different N-donor ligands: structural diversity and catalytic activity. Cryst. Growth Des. 15 (2015) 4507–4517.10.1021/acs.cgd.5b00757Search in Google Scholar

Ling, Y.; Chen, Z.-X.; Zheng, H.; Zhou, Y.-M.; Weng, L.-G.; Zhao, D.-Y.: Two novel zinc(II) metal–organic frameworks based on triazole-carboxylate shared paddle-wheel units: synthesis, structure, and gas adsorption. Cryst. Growth Des. 11 (2011) 2811–2816.10.1021/cg101569aSearch in Google Scholar

Yang, J.-X.; Qin, Y.-Y.; Cheng, J.-K.; Zhang, X.; Yao, Y.-G.: Construction of a series of Zn(II) compounds with different entangle motifs by varying flexible aliphatic dicarboxylic acids. Cryst. Growth Des. 15 (2015) 2223–2234.10.1021/cg501879wSearch in Google Scholar

Hill, M. D.; El-Hankari, S.; Chiacchia, M.; Tizzard, G. J.; Coles, S. J.; Bradshaw, D.; Kitchen, J. A.; Keene, T. D.: Additive effects in the formation of fluorescent zinc metal–organic frameworks with 5-hydroxyisophthalate. Cryst. Growth Des. 15 (2015) 1452–1459.10.1021/cg501808ySearch in Google Scholar

Received: 2017-2-27
Accepted: 2017-7-25
Published Online: 2017-8-5
Published in Print: 2017-9-26
