Crystal structure of 3-cyclohexyl-2-(cyclohexylimino)-2,3-dihydro-6,8-diiodo-4H-1,3-benzoxazin-4-one, C20H24I2N2O2

  • Zhi Hong EMAIL logo , Sha-sha Zhao , Hong Pan , Qian Jin , Xiao-qin Tang and Jun-li Liu
Published/Copyright: July 14, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C20H24I2N2O2, monoclinic, P21/c (no. 14), a = 17.5052(10) Å, b = 12.7846(7) Å, c = 9.4663(5) Å, β = 94.899(1)°, V = 2110.8(2) Å3, Z = 4, Rgt(F) = 0.0321, wRref(F2) = 0.0996, T = 291 K.

CCDC no.:: 1557557

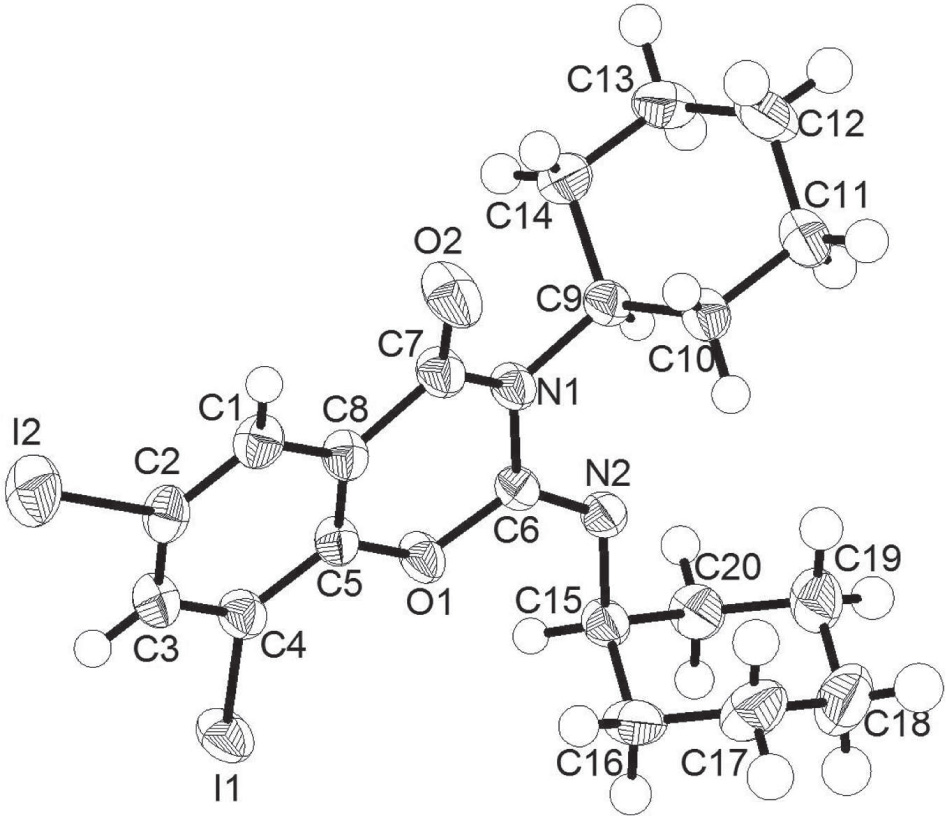

There is one molecule in the asymmetric unit of the title crystal structure, which is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.30 × 0.28 × 0.26 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:30.0 cm−1
Diffractometer, scan mode:Bruker APEXII, φ and ω-scans
2θmax, completeness:55°, >98%
N(hkl)measured, N(hkl)unique, Rint:18798, 4763, 0.025
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4119
N(param)refined:235
Programs:Bruker [1], SHELX [2], DIAMOND [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
I10.607746(15)0.08603(2)0.04186(3)0.04630(10)
I20.361425(15)0.18745(3)0.42753(4)0.05878(12)
O10.69760(14)0.0655(2)0.3435(3)0.0361(5)
O20.64463(17)0.1270(3)0.7404(3)0.0567(8)
N10.73514(16)0.0976(2)0.5860(3)0.0327(6)
N20.81591(16)0.0131(2)0.4407(3)0.0327(6)
C10.5264(2)0.1365(3)0.5172(4)0.0376(7)
H1A0.51110.14800.60760.045*
C20.47484(19)0.1443(3)0.4000(4)0.0380(8)
C30.4963(2)0.1273(3)0.2643(4)0.0383(7)
H3A0.46040.13320.18650.046*
C40.5717(2)0.1016(3)0.2451(4)0.0350(7)
C50.62399(19)0.0930(3)0.3637(4)0.0312(7)
C60.75238(18)0.0558(2)0.4556(3)0.0292(6)
C70.6610(2)0.1117(3)0.6199(4)0.0371(7)
C80.60234(19)0.1110(3)0.4978(4)0.0336(7)
C90.8012(2)0.1053(3)0.6961(4)0.0340(7)
H9A0.84760.10470.64490.041*
C100.8073(2)0.0119(3)0.7934(4)0.0411(8)
H10A0.8067−0.05190.73790.049*
H10B0.76390.01050.85050.049*
C110.8819(3)0.0188(3)0.8896(5)0.0533(10)
H11A0.8839−0.03830.95730.064*
H11B0.92510.01160.83270.064*
C120.8879(3)0.1215(4)0.9682(5)0.0582(12)
H12A0.93750.12551.02230.070*
H12B0.84870.12431.03460.070*
C130.8788(3)0.2146(3)0.8697(5)0.0495(10)
H13A0.92080.21610.80930.059*
H13B0.88060.27850.92500.059*
C140.8028(3)0.2088(3)0.7779(5)0.0461(9)
H14A0.79840.26720.71230.055*
H14B0.76020.21180.83710.055*
C150.83213(19)−0.0297(3)0.3025(4)0.0356(7)
H15A0.81200.01740.22660.043*
C160.7953(2)−0.1374(3)0.2820(5)0.0477(10)
H16A0.7405−0.13120.28840.057*
H16B0.8033−0.16310.18800.057*
C170.8279(3)−0.2153(3)0.3914(6)0.0597(12)
H17A0.8047−0.28330.37220.072*
H17B0.8158−0.19330.48490.072*
C180.9145(3)−0.2237(4)0.3881(7)0.0674(14)
H18A0.9348−0.27100.46210.081*
H18B0.9264−0.25230.29760.081*
C190.9520(2)−0.1175(4)0.4096(5)0.0518(10)
H19A0.9445−0.09220.50410.062*
H19B1.0067−0.12410.40220.062*
C200.9188(2)−0.0392(3)0.3011(4)0.0425(8)
H20A0.9312−0.06070.20740.051*
H20B0.94210.02870.32080.051*

Source of material

The title compound was obtained according to the literature-known method for the preparation of 3-cyclohexyl-2-cyclohexylimino-3,4-dihydro-4-oxo-2H-1,3-benzoxazine [4], [5], [6]. To obtain the title compound a mixture of 3,5-diiodo-2-hydroxybenzoic acid (3.90 g, 10 mmol) and N,N′-dicyclohexylcarbodiimide (2.06 g, 10 mmol) dissolved in dry THF (40 mL) was stirred at room temperature for 0.5 h, then it was refluxed for 2 h. Colorless powder precipitates during the cooling to room temperature. After filtration, the filtrate was evaporated to dryness giving a residue that crystallized from methanol. Yield 1.42 g (24.5%). Crystals were obtained by slow evaporation of mixed solution of dichloromethane and ethanol (volume 1:1) at room temperature.

Experimental details

Hydrogen atoms were placed geometrically and refined using a riding model with d(C–H) = 0.93–0.97 Å, Uiso(H) = 1.2 Ueq(C) for CH groups.

Discussion

The benzo[e]-1,3-oxazin-4-ones and their derivatives are reported to have pharmaceutically interesting properties, such as allosteric mitogen-activated kinase (MEK) inhibition [7], osteoclast differentiation and bone resorption inhibition [8], antimycobacterial activity [9] and antimycobacterial properties [10].

Bond lengths and angles are generally in the normal ranges. The C6, N2 and C15 atoms form a bond angle of 120.1°. The surprizing magnitude of this angle may have sterical reasons. Both cyclohexyl rings exhibit a slightly distorted chair conformation.

Acknowledgement

This work was supported by School Foundation of Taizhou University (grant no. 2015PY016) and Zhejiang Open Foundation of the Key Subjects of Applied Chemistry.

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, 2009.Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar

Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.2i. Crystal Impact, Bonn, Germany 2012.Search in Google Scholar

Steyn, P. S.; Holzapfel, C. W.: The synthesis of ochratoxins A and B metabolites of aspergillus ochraceus wilh. Tetrahedron 23 (1967) 4449–4461.10.1016/S0040-4020(01)88843-8Search in Google Scholar

Ried, W.; Oremek, G.; Pauli, R.: Synthesis of potentially biologically active 1,3-oxazinones. Arch. Pharm. 315 (1982) 324–330.10.1002/ardp.19823150408Search in Google Scholar

May, E. L.: 3,4-Dihydro-1,3-oxazines from dicyclohexylcarbodiimide. J. Med. Chem. 10 (1967) 505–506.10.1021/jm00315a055Search in Google Scholar PubMed

Sun, J.; Niu, Y.; Wang, C.; Zhang, H.; Xie, B.-Y.; Xu, F.-R.; Jin, H.-W.; Peng, Y.-H.; Liang, L.; Xu, P.: Discovery of 3-benzyl-1,3-benzoxazine-2,4-dione analogues as allosteric mitogen-activated kinase (MEK) inhibitors and anti-enterovirus 71(EV71) agents. Bioorgan. Med. Chem. 24 (2016) 3472–3482.10.1016/j.bmc.2016.05.055Search in Google Scholar PubMed

Chen, C.-L.; Liu, F.-L.; Lee, C.-C.; Chen, T.-C.; Ahmed Ali, A. A.; Sytwu, H.-K.; Chang, D.-M.; Huang, H.-S.: Modified salicylanilide and 3-phenyl-2H-benzo[e][1, 3]oxazine-2,4(3H)-dione derivatives as novel inhibitors of osteoclast differentiation and bone resorption. J. Med. Chem. 57 (2014) 8072–8085.10.1021/jm5007897Search in Google Scholar PubMed

Waisser, K.; Matyk, J.; Kunes, J.; Skala, P.; Kaustova, J.: Antimycobacterial activity of 3-pyridin-2-yl-2H-1,3-benzoxazine-2,4(3H)-diones. Folia Pharm. Univ. Carol. 38 (2010) 31–34.10.1002/chin.200324133Search in Google Scholar

Petrlikova, E.; Waisser, K.; Divisova, H.; Husakova, P.; Vrabcova, P.; Kunes, J.; Kolar, K.; Stolarikova, J.: Highly active antimycobacterial derivatives of benzoxazine. Bioorgan. Med. Chem. 18 (2010) 8178–8187.10.1016/j.bmc.2010.10.017Search in Google Scholar PubMed
