Crystal structure of diaqua-bis(5′-(pyridin-1-ium-4-yl)-1H-[3,3′-bi(1,2,4-triazol)]-2′-ide-κ2N,N′)cobalt(II) — bis(5-(pyridin-4-yl-κN)-1H,1′H-3,3′-bi(1,2,4-triazole))octamolybdate – water (2/1/8), C27H33CoMo4N21O19

  • Shan-Xiu Huang , Lan-He Zhang EMAIL logo , Ming-Jie Ma and Zhao Dan
Published/Copyright: August 5, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C27H33CoMo4N21O19, triclinic, P1̄ (no. 2), a = 12.1200(6) Å, b = 13.0412(6) Å, c = 15.7235(7) Å, α = 103.800(1)o, β = 98.427(1)o, γ = 110.278(1)o, V = 2191.08(18) Å3, Z = 2, Rgt(F)=0.030, wRref(F2)=0.073, T = 296 K.

CCDC no.:: 993517

Crystal data, data collection and structure refinement details are summarized in Table 1.

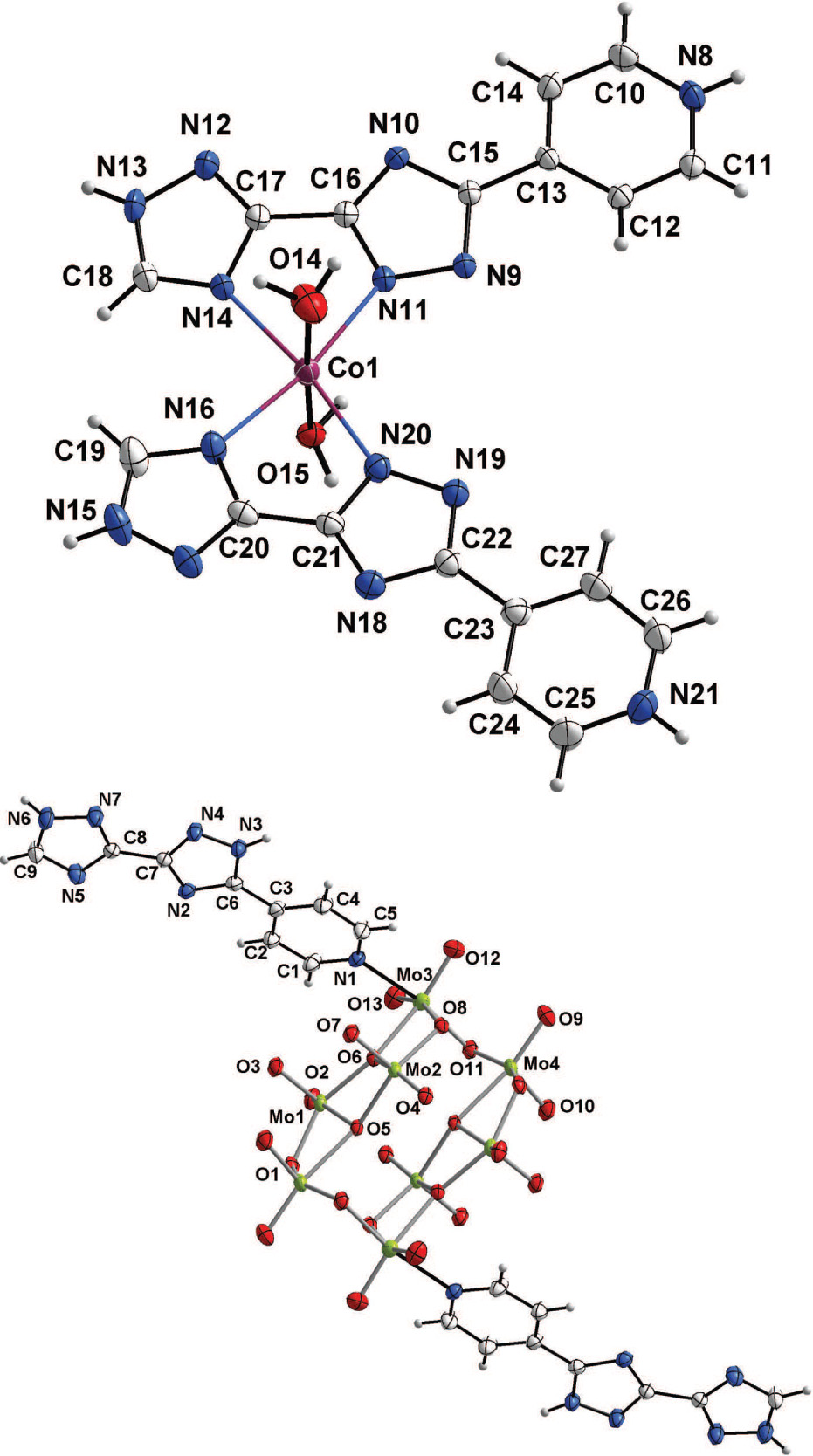

The cobalt complex in the asymetric unit is shown in figure (upper part) while the cocrystalized molybdate centered complex is displayed in the lower part of the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions as well as a list of atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless prism
Size:0.20 × 0.05 × 0.05 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:15.9 cm−1
Diffractometer, scan mode:Bruker APEXII, ω
2θmax, completeness:49.8°, 99%
N(hkl)measured, N(hkl)unique, Rint:27388, 10748, 0.033
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 8584
N(param)refined:649
Programs:Bruker [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Co1−0.67796(4)0.02436(4)0.41320(3)0.02403(10)
Mo11.03797(2)0.66876(2)0.90537(2)0.02005(6)
Mo20.84595(2)0.45650(2)0.95355(2)0.01796(6)
Mo30.83555(2)0.70172(2)1.07239(2)0.02431(7)
Mo40.90904(2)0.55173(2)1.19043(2)0.02235(7)
O11.14753(18)0.61545(18)0.84969(13)0.0244(5)
O21.1140(2)0.81634(18)0.94194(14)0.0297(5)
O30.93404(19)0.64048(19)0.80871(14)0.0293(5)
O41.16846(18)0.67690(17)1.03386(13)0.0230(5)
O50.99514(17)0.49154(16)0.91197(12)0.0192(4)
O60.92478(18)0.64038(17)0.97928(13)0.0209(4)
O70.73852(19)0.42333(19)0.85777(14)0.0284(5)
O80.78325(17)0.51461(17)1.04685(13)0.0225(4)
O90.7955(2)0.5549(2)1.24296(16)0.0368(6)
O101.0318(2)0.5889(2)1.27575(14)0.0333(5)
O110.94863(18)0.69795(17)1.16686(13)0.0243(5)
O120.7136(2)0.6942(2)1.11601(17)0.0410(6)
O130.9033(2)0.8410(2)1.07408(16)0.0391(6)
O14−0.7079(2)0.1787(2)0.43017(19)0.0463(7)
O15−0.63864(19)−0.12050(18)0.39936(14)0.0271(5)
O160.9871(3)0.9213(2)0.8498(2)0.0699(10)
O17−0.3812(2)0.2389(3)1.14195(18)0.0731(11)
O18−1.2994(3)−0.2761(3)0.3609(3)0.0936(14)
O19−0.9226(3)0.1541(3)0.3362(2)0.0797(11)
H15A−0.5623−0.10320.38460.096*
H15B−0.6361−0.14250.44410.096*
H19A−0.94450.12060.27390.096*
H16B1.03540.99740.88270.096*
H16A1.04220.89450.88360.096*
H17A−0.30700.29621.14430.096*
H17B−0.37800.22941.19580.096*
H18A−1.2850−0.25990.30030.096*
H14A−0.77590.18580.39240.096*
H14B−0.66400.24440.43370.096*
H19B−0.96250.15710.38250.096*
H18B−1.3428−0.35820.34840.096*
N10.7079(2)0.6637(2)0.93708(17)0.0271(6)
N20.5093(2)0.6232(2)0.60971(17)0.0249(6)
N30.3593(2)0.5232(2)0.65679(18)0.0304(6)
H30.32070.49300.69230.037*
N40.3086(2)0.5095(2)0.57087(17)0.0301(6)
N50.4692(2)0.6412(2)0.41903(18)0.0322(6)
C90.4057(3)0.6258(3)0.3371(2)0.0342(8)
H90.43800.65710.29450.041*
N70.2729(2)0.5281(3)0.39939(18)0.0367(7)
N80.0539(2)0.3918(2)0.46316(18)0.0296(6)
H80.13170.42720.47880.035*
N9−0.3892(2)0.1789(2)0.44382(16)0.0221(5)
N10−0.3932(2)0.1781(2)0.29967(16)0.0244(6)
N11−0.5053(2)0.1179(2)0.39380(16)0.0222(5)
N12−0.6366(2)0.0277(2)0.15060(18)0.0337(7)
N13−0.7534(3)−0.0529(2)0.12236(19)0.0382(7)
H13−0.7942−0.08470.06670.046*
N14−0.7130(2)−0.0123(2)0.26777(17)0.0292(6)
N15−1.0538(3)−0.1586(2)0.4071(2)0.0398(8)
H15−1.1305−0.19900.38550.048*
N16−0.8652(2)−0.0654(2)0.41141(18)0.0299(6)
N17−0.9959(2)−0.1211(2)0.4953(2)0.0335(7)
N18−0.7779(2)−0.0002(2)0.65792(18)0.0296(6)
N19−0.5896(2)0.0898(2)0.64045(18)0.0273(6)
N20−0.6696(2)0.0441(2)0.55730(17)0.0256(6)
N21−0.5251(3)0.1469(3)0.9780(2)0.0446(8)
H21−0.49820.16381.03540.054*
C10.7459(3)0.7213(3)0.8796(2)0.0308(7)
H10.82420.77830.89730.037*
C20.6742(3)0.6998(3)0.7958(2)0.0307(7)
H20.70430.74080.75750.037*
C30.5567(3)0.6165(3)0.7689(2)0.0262(7)
C40.5170(3)0.5575(3)0.8290(2)0.0348(8)
H40.43850.50130.81360.042*
C50.5948(3)0.5829(3)0.9111(2)0.0342(8)
H50.56750.54220.95030.041*
C60.4779(3)0.5901(3)0.6798(2)0.0252(7)
C70.4031(3)0.5707(3)0.5450(2)0.0239(6)
C80.3832(3)0.5801(3)0.4537(2)0.0232(6)
N60.2898(3)0.5593(3)0.32487(19)0.0389(7)
H60.23360.53910.27650.047*
C10−0.0046(3)0.3604(3)0.3762(2)0.0356(8)
H100.03880.37700.33360.043*
C11−0.0049(3)0.3700(3)0.5263(2)0.0273(7)
H110.03850.39270.58620.033*
C12−0.1290(3)0.3142(3)0.5032(2)0.0243(7)
H12−0.16980.30020.54760.029*
C13−0.1939(3)0.2787(2)0.4137(2)0.0210(6)
C14−0.1286(3)0.3039(3)0.3499(2)0.0321(8)
H14−0.16940.28230.28950.039*
C15−0.3252(3)0.2137(2)0.38557(19)0.0217(6)
C16−0.5038(3)0.1190(3)0.3088(2)0.0230(6)
C17−0.6166(3)0.0490(3)0.2393(2)0.0245(7)
C18−0.7954(3)−0.0755(3)0.1911(2)0.0360(8)
H18−0.8724−0.12870.18630.043*
C19−0.9764(3)−0.1249(3)0.3580(2)0.0397(9)
H19−0.9969−0.14060.29550.048*
C20−0.8828(3)−0.0656(3)0.4948(2)0.0274(7)
C21−0.7786(3)−0.0076(3)0.5721(2)0.0240(6)
C22−0.6579(3)0.0611(3)0.6980(2)0.0275(7)
C23−0.6100(3)0.0927(3)0.7958(2)0.0288(7)
C24−0.6853(3)0.0469(4)0.8474(2)0.0486(11)
H24−0.7661−0.00250.82030.058*
C25−0.6400(4)0.0750(4)0.9382(3)0.0571(13)
H25−0.69010.04360.97290.069*
C26−0.4519(3)0.1923(4)0.9308(3)0.0490(11)
H26−0.37210.24270.96010.059*
C27−0.4913(3)0.1666(3)0.8394(2)0.0428(9)
H27−0.43840.19880.80670.051*

Experimental details

The water H atoms were located in the difference fourier maps, and then refined with Uiso(H) = 1.2 Ueq(O). The remaining H atoms were placed in idealized positions with C⋯H and N⋯H bond lengths constrained to 0.93 and 0.86 Å, respectively, and Uiso(H) = 1.2 Ueq(carrier C or N atom).

Source of materials

All source materials (NaOH, CoSO4 and MoO3) were purchased from Sinopharm Chemical Reagent Co. Ltd.; 4-(5-(1H-1,2,4-triazol-1-ylmethyl)-1H-1,2,4-triazol-3-yl)pyridine (C9H7N7) was purchased from Jinan Camolai Trading Company. All chemicals of analytical grade were obtained from commercial sources and used without further purification. A mixture of C9H7N7 (1 mmol), CoSO4 (2 mmol), MoO3 (5 mmol), NaOH (20 mmol) and deionized water (20 mL) was placed in a 30-mL Teflon-lined stainless steel autoclave. Then the autoclave was sealed and heated to 170 °C under autogenously pressure for 72 h. After being slowly cooled to room temperature at a rate of 2 °C/h, colorless prismatic crystals were recovered by filtration, washed with distilled water and air dried.

Comment

In recent years, octamolybdate [Mo8O26]4− based polyoxometalates (POMs) are of interest for their structural diversity and coordination capability in high dimensional frameworks [3], [4], [5], [6], [7]. This family of compounds can be divided into eight types, α-, β-, γ-, δ-, ϵ-, ζ- and θ-isomers. The difference between them are the number of MoO4, MoO5, and MoO6 units contained in their structures. For example, the [α-Mo8O26] contains two MoO4 and six MoO6 units, the [β-Mo8O26] has eight MoO6 units, and the [γ-Mo8O26] includes two MoO5 and six MoO6 units. The MoO5 units in [γ-Mo8O26] allow additional N or O atoms to occupy the vacancies of the Mo atoms to form [γ-Mo8O26N2] and [γ-Mo8O28] units. The organic moieties play an important role in adjusting the structures of the inorganic-organic compounds. To enrich this family of compounds, we introduce a new type of N-donor ligand 4-(5-(1H-1,2,4-triazol-1-ylmethyl)-1,2,4-triazol-3-yl)pyridine (C9H7N7) in our experiment.

The asymmetric unit of the title structure contains one Co(C9H7N7)2(H2O)2 one half (γ-Mo8O26)(C9H7N7)2 and four water molecules. The title compound is an addition compound. The upper part of the figure shows the mononuclear cobalt(II) complex. The γ-Mo8O26 is composed of six MoO6 octahedra interlinked along edges and two MoO5 pentahedra each sharing two edges with two C9H7N7 ligands. Such an arrangement produces four kinds of O atoms: two μ4-O with Mo⋯O distances of 1.9550(19)–2.4202(19) Å, four μ3-O oxygen atoms with Mo⋯O distances of 1.871(2)–2.3693(19) Å, six μ2-O oxygen atoms with Mo⋯O distances of 1.749(2)–2.332(2) Å, and 14 terminal oxygen atoms with Mo⋯O distances of 1.689(2)–1.724(2) Å. It should be mentioned that two Mo atoms are five coordinate and thus allowing additional N or O atoms to occupy the vacancies of the Mo atoms, which is the characteristic of γ-octamolybdate. In the title compound isoquinoline molecules act as ligands, Mo3 coordinating Mo3 (Mo3⋯N = 2.273(2) Å) to build the (γ-Mo8O26)(C9H7N7)2 coordination moiety (cf. the figure) which are comparable to other reported γ-octamolybdates [8, 9] .

An interesting feature of this structure is that the organic ligands are found in two tautomeric forms. In the cobalt(II) complex the ylidic form is preferred as two nitrogen atoms of adjacent five membered rings coordinate the Co(II) metal (cf. the upper figure). In the octamolybdate moiety the coordination is done by two pyridinyl moieties (cf. the lower figure).

References

Bruker AXS Inc., APEX2, SAINT, SHELXTL, Madison, Wisconsin, USA, (2014).Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Kan, W.-Q.; Ma, J.-F.: Crystal structure of 3,3′-butylenebis(imidazole-1,1′-diium)bis[3,3′-butylenebis(imidazol-1-ium)]octamolybdate – water (1:2), [C10H16N4][(C10H15N4)Mo8O26] ⋅ 2H2O. Z. Kristallogr. -NCS 226 (2011) 497–498.10.1524/ncrs.2011.0220Search in Google Scholar

Yang, G.-R.; Zhai, W.-H.; Liu, B.-T.: Crystal structure of tris(4-carboxypyridinium) diaquasodium β-octamolybdate, [C6H6NO2]3[Na(H2O)2(Mo8O26)]. Z. Kristallogr. -NCS 227 (2012) 47–49.10.1524/ncrs.2012.0021Search in Google Scholar

Ben Khelifa, A.; Chekir-Mzali, J.; Ezzayani, K.; Freslon, S.; Belkhiria, M. S.: Intramolecular energy transfer studies of a new mixed isopolymolybdate [Eu(dmso)]8[Eu(μ2-NO3)]2(dmso)4(α-Mo8O26)0.5[Mo6O19]: Synthesis, characterization and europium(III) luminescence properties. Inorg. Chem. Commun. 70 (2016) 56–64.10.1016/j.inoche.2016.05.007Search in Google Scholar

Neves, P.; Amarante, T. R.; Valente, A. A.; Pillinger, M.; Goncalves, I. S.: Catalytic application of an octamolybdate salt (H3biim)4[β-Mo8O26] in olefin epoxidation (H2biim = 2,2′-biimidazole). Catal. Lett. 146 (2016) 841–850.10.1007/s10562-016-1702-0Search in Google Scholar

Sun, W.; Yu, J.; Pang, H.; Ma, H.; Zhao, C.: “Pinwheel” subunit-directed polyoxometalate-based hybrid compound [Cu(bimb)2]2[β-Mo8O26] with both helixes and chiral layers. New J. Chem. 40 (2016) 2944–2948.10.1039/C5NJ03183DSearch in Google Scholar

Fu, L.; Zhao, D.; Li, F.-F.; Zhang, R.; Wang, C.-P.; Zhang, D.-D.: Syntheses and characterizations of two new octamolybdate-based polyoxometalates decorated by isoquinoline ligands. Synth. React. Inorg. Met.-Org. Chem. 46 (2016) 370–375.10.1080/15533174.2014.988245Search in Google Scholar

Cindric, M.; Novak, T. K.; Kraljevic, S.; Kralj, M.; Kamenar, B.: Structural and antitumor activity study of γ-octamolybdates containing aminoacids and peptides. Inorg. Chim. Acta 359 (2006) 1673–1680.10.1016/j.ica.2005.10.061Search in Google Scholar

Received: 2017-3-4
Accepted: 2017-7-14
Published Online: 2017-8-5
Published in Print: 2017-9-26
