Crystal structure of (E)-1-(4-(((E)-5-bromo-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-methyl oxime, C16H15BrN2O2

  • Ji-Xing Zhao , Li Zhao EMAIL logo , Peng-Peng Li , Fei Wang and Qin-Qin An
Published/Copyright: August 8, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C16H15BrN2O2, monoclinic, P21/c (no. 14), a = 33.758(5) Å, b = 7.1117(16) Å, c = 6.2194(9) Å, β = 92.133(13)°, V = 1492.1(4) Å3, Z = 4, Rgt(F) = 0.0693, wRref(F2) = 0.2153, T = 278(4) K.

CCDC no.:: 1564491

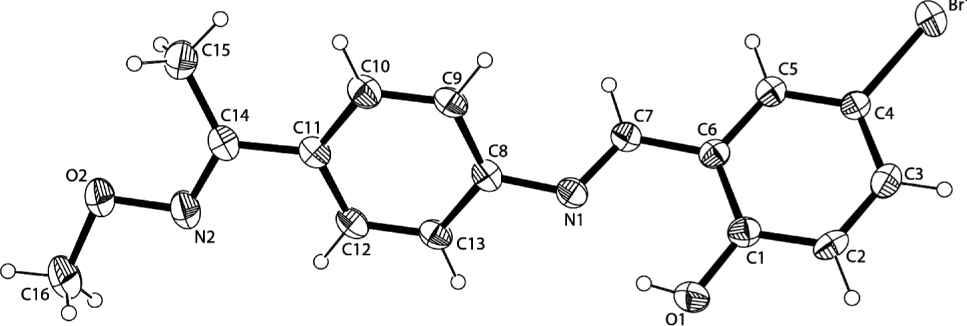

The structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Clear light brown block
Size:0.31 × 0.27 × 0.26 mm
Wavelength:Cu Kα radiation (1.54184 Å)
μ:3.81 mm−1
Diffractometer, scan mode:SuperNova, Dual, Eos diffractometer, ω
θmax:70.7°
N(hkl)measured, N(hkl)unique, Rint:4792, 2790, 0.033
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2296
N(param)refined:193
Programs:SHELX [18], CrysAlisPRO [19]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br10.46279(2)0.43180(11)0.17957(12)0.0605(3)
O10.32194(14)0.5708(7)0.7240(7)0.0575(11)
H10.30130.53890.66080.086*
O20.05409(13)0.4841(9)0.0988(9)0.0734(14)
N10.27678(13)0.4888(7)0.3901(7)0.0419(10)
N20.09310(15)0.4773(9)0.1846(10)0.0617(14)
C10.35282(17)0.5387(8)0.5967(9)0.0435(12)
C20.39104(19)0.5687(7)0.6813(9)0.0455(13)
H20.39480.61080.82220.055*
C30.42321(18)0.5366(8)0.5586(10)0.0488(13)
H30.44860.55890.61560.059*
C40.41794(16)0.4712(8)0.3505(9)0.0418(11)
C50.38047(16)0.4412(7)0.2619(9)0.0391(11)
H50.37730.39770.12130.047*
C60.34726(16)0.4761(7)0.3825(8)0.0383(11)
C70.30779(16)0.4581(7)0.2833(9)0.0412(11)
H70.30500.42360.13930.049*
C80.23878(15)0.4887(7)0.2919(9)0.0398(11)
C90.22995(17)0.5684(7)0.0888(9)0.0439(12)
H90.25020.61790.00890.053*
C100.19115(18)0.5734(8)0.0068(10)0.0477(13)
H100.18560.6267−0.12760.057*
C110.16042(16)0.4996(7)0.1239(9)0.0404(11)
C120.16946(17)0.4203(7)0.3248(10)0.0453(13)
H120.14930.36780.40330.054*
C130.20782(17)0.4188(7)0.4086(9)0.0430(12)
H130.21300.37010.54550.052*
C140.11869(17)0.5043(9)0.0416(10)0.0487(13)
C150.1080(2)0.5419(12)−0.1910(12)0.0682(19)
H15A0.09620.4315−0.25470.102*
H15B0.13150.5739−0.26540.102*
H15C0.08950.6445−0.20150.102*
C160.0286(2)0.4616(18)0.2777(16)0.098(3)
H16A0.00150.45320.22530.147*
H16B0.03150.56770.37230.147*
H16C0.03560.34870.35470.147*

Source of material

All chemicals were used without further purification. 4-amino acetophenone methoxy oxime was prepared by a method reported earlier [1], [2], [3]. To an ethanol solution (5 mL) of 5-bromosalicylic acid (201.0 mg, 1 mmol) was added an ethanol solution (5 mL) of 4-aminoacetophenone methoxy oxime (164.0 mg, 1 mmol). The solution was stirred at 328 K for 12 h. The residue was washed with ethanol and hexane, then place in the drying oven for 2 days to get a light brown powder (yield 78%, m.p. 412–413 K). Crystals were obtained by slow evaporation from a mixture of chloroform, acetone and methanol at room temperature. Elemental analysis: Anal. calcd. for C16H15BrN2O2: C, 55.35%; H, 4.35%; N, 8.07%; Found: C, 55.33%; H, 4.33%; N, 8.01%.

Experimenal details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Schiff base compounds and their derivatives have been playing an important role in the development of coordination chemistry [4], [5], [6], [7]. Oxime-type compounds are significant chelating ligands, and can coordinate with metal ions in the form of chelating ligands [8], [9], [10], [11]. These Salen-type ligands and their metal complexes could be utilized in obtaining luminescence materials [12], [13], [14], supramolecular constructing [15], [16], [17] and so on.

The crystal structure of the title compound is only built up by the C16H15BrN2O2 molecules, in which all bond lengths are in normal ranges. There is one intramolecular O1—H1⋯N1 hydrogen bond in the title compound. The title compound is stabilized by an intermolecular Br1⋯Br1 contact to form a dimer.

References

Zhao, L.; Dong, X. T.; Zhang, S. T.; Chen, Q.: Crystal structure of 1-(4-{[(E)-5-bromo-2-hydroxybenzylidene] amino}phenyl)ethanone oxime, C15H13BrN2O2. Z. Kristallogr. -NCS 227 (2014) 101–102.10.1524/ncrs.2012.0046Search in Google Scholar

Zhao, L.; Ng, S. W.: 1-(4-{[(E)-4-Methylbenzylidene] amino}phenyl)ethanone oxime. Acta Crystallogr. E66 (2010) o2474.10.1107/S1600536810034598Search in Google Scholar PubMed PubMed Central

Zhao, L.; Wang, F.; An, Q. Q.; Zhao, J. X.: Crystal structure of (E)-1-(4-(((E)-3,5-dichloro-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-ethyl oxime, C17H16Cl2N2O2. Z. Kristallogr. -NCS 231 (2016) 1045–1046.10.1515/ncrs-2016-0044Search in Google Scholar

Zaltariov, M. F.; Cazacu, M.; Vornicu, N.; Shova, S.; Racles, C.; Balan, M.; Turta, C.: A new diamine containing disiloxane moiety and some derived Schiff bases: synthesis, structural characterisation and antimicrobial activity. Supramol. Chem. 25 (2013) 490–502.10.1080/10610278.2013.794947Search in Google Scholar

Han, Y.; Sun, J. J.; Wang, G. L.; Yan, C. G.: Synthesis, crystal structure and complexing properties of calix[4]pyrrole 10α,20α-disubstituted Schiff bases and urea derivatives. J. Mol. Struct. 1083 (2015) 300–310.10.1016/j.molstruc.2014.12.001Search in Google Scholar

Sun, Y. X.; Liu, G. H.; Wang, J.; Liu, S. H.; Wang, G.: Crystal structure of bis(3-ethoxy-4-hydroxybenzaldehyde) O,O′-(butane-1,4-diyl)dioxime, C22H28N2O6. Z. Kristallogr. NCS. 227 (2012) 123–124.10.1524/ncrs.2012.0056Search in Google Scholar

Dong, W. K.; Feng, J. H.; Yang, X. Q.: Crystal structure of 4,4′-dibromo-2,2′-((1,3-propylene)dioxybis(nitrilomethylidyne))diphenol, C17H16Br2N2O4. Z. Kristallogr. NCS 221 (2006) 447–448.10.1524/ncrs.2006.0149Search in Google Scholar

Zhao, L.; Dong, X. T.; Cheng, Q.; Zhao, J. X.: Synthesis and crystal structure of a new oxime-type zinc(II) complex. Asian J. Chem. 25 (2013) 4646–4648.10.14233/ajchem.2013.14408Search in Google Scholar

Sun, Y. X.; Lu, R. E.; Li, X. R.; Zhao, Y. Y.; Li, C. Y.: A schiff base ligand containing oxime group and its Cu(II) complex: syntheses and supramolecular structures. Chin. J. Inorg. Chem. 31 (2015) 1055–1062.Search in Google Scholar

Sun, Y. X.; Zhao, Y. Y.; Li, C. Y.; Yu, B.; Guo, J. Q.; Li, J.: Supramolecular cobalt(II) and copper(II) complexes with Schiff base ligand: syntheses, characterizations and crystal structures. Chin. J. Inorg. Chem. 32 (2016) 913–920.Search in Google Scholar

Zhao, L.; Dong, X. T.; Sun, Y. X.; Cheng, Q.; Dong, X. Y.; Wang, L.: Synthesis, crystal structure and thermal Property of a 1D chain-like copper(II) complex. Chin. J. Inorg. Chem. 28 (2012) 2413–2418.Search in Google Scholar

Sun, Y. X.; Li, C. Y.; Yang, C. J.; Zhao, Y. Y.; Guo, J. Q.; Yu, B.: Two Cu(II) complexes with Schiff base ligands: Synthesis, crystal structure, spectroscopic properties, and substituent effect. Chin. J. Inorg. Chem. 32 (2016) 327–335.Search in Google Scholar

Wang, L.; Ma, J. C.; Dong, W. K.; Zhu, L. C.; Zhang, Y.: A novel self-assembled nickel(II)-cerium(III) heterotetranuclear dimer constructed from N2O2-type bisoxime and terephthalic acid: synthesis, structure, and photophysical properties. Z. Anorg. Allg. Chem. 642 (2016) 834–839.10.1002/zaac.201600125Search in Google Scholar

Dong, W. K.; Duan, J. G.; Guan, Y. H.; Shi, J. Y.; Zhao, C. Y.: Synthesis, crystal structure and spectroscopic behaviors of Co(II) and Cu(II) complexes with Salen-type bisoxime ligands. Inorg. Chim. Acta 362 (2009) 1129–1134.10.1016/j.ica.2008.05.028Search in Google Scholar

Wang, L.; Wu, J. J.; Zhang, Y.; Li, G.; Li, X.: Synthesis and crystal structure of 3,3′-Dimethyloxy-1,1′-[butane-1,4-diyldioxybis(nitrilomethylidyne)]dibenzene. Asian J. Chem. 25 (2013) 4115–4116.10.14233/ajchem.2013.13969Search in Google Scholar

Sun, Y. X.; Zhao, Y. Y.; Li, C. Y.; Yu, B.; Guo, J. Q.; Li, J.: Supramolecular cobalt(II) and copper(II) complexes with Schiff base ligand: syntheses characterizations and crystal structures. Chin. J. Inorg. Chem. 32 (2016) 913–920.Search in Google Scholar

Zhao, L.; Guo, H. X.; Sun, Y. X.; Meng, W. S.; Yang, C. J.; Zhang, X. Y.: Synthesis and supramolecular structure of 1-(4-{[(E)-3,5-Dibromo-2-hydroxybenzylidene]amino}phenyl)ethanone O-benzyloxime. Asian J. Chem. 25 (2013) 6366–6368.10.14233/ajchem.2013.14587Search in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Agilent Technologies: CrysAlisPRO Software system, version 1.171.35.15, Agilent Technologies UK Ltd, Oxford, UK, 2011.Search in Google Scholar

Received: 2017-3-15
Accepted: 2017-7-25
Published Online: 2017-8-8
Published in Print: 2017-9-26
