Crystal structure of 2-amino-4-(4-bromophenyl)-5-oxo-5,6,7,8-tetrahydro-4H-chromene-3-carbonitrile, C16H13BrN2O2

  • Yuanyuan Yu EMAIL logo
Published/Copyright: July 27, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C16H13BrN2O2, monoclinic, C2/c (no. 15), a = 13.9109(14) Å, b = 11.1819(6) Å, c = 19.533(3) Å, β = 109.162(14)°, V = 2870.0(5) Å3, Z = 8, Rgt(F) = 0.0413, wRref(F2) = 0.0957, T = 293(2) K.

CCDC no.: 1561268

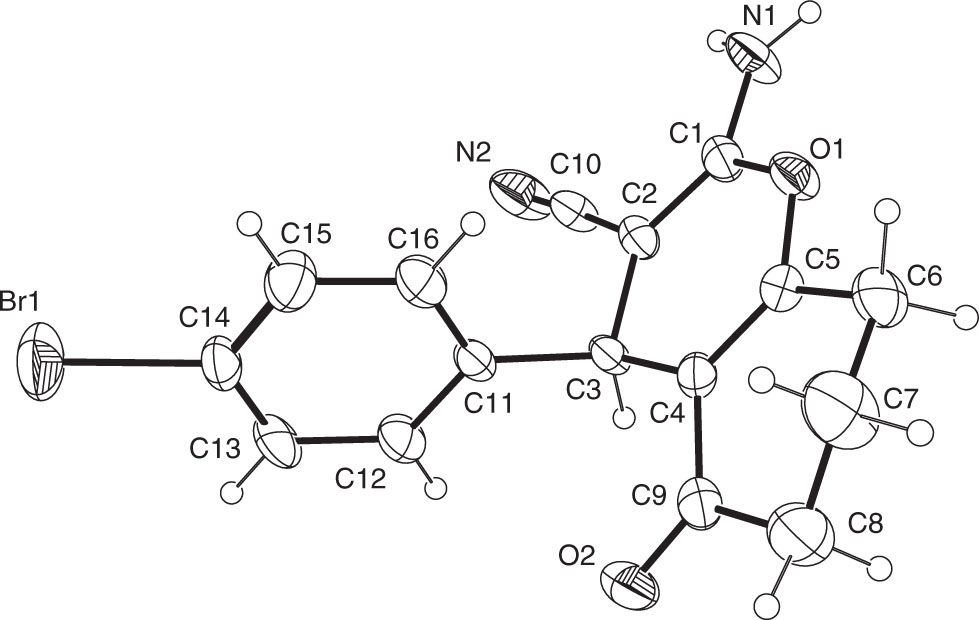

The crystal structure is shown in the figure. Table 1 contains details on crystal structure and measurement conditions. Table 2 lists the atoms with their coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.20 × 0.18 × 0.17 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:29 cm−1
Diffractometer, scan mode:Xcalibur, φ and ω
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:5247, 2537, 0.031
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1802
N(param)refined:190
Programs:CrysAlis programs [1], CrysAlisPro [2], SHELX [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.2808(3)1.1609(3)0.42823(18)0.0261(8)
C20.2678(2)1.0452(3)0.44229(18)0.0252(8)
C30.1642(2)0.9879(3)0.42818(18)0.0240(8)
H3A0.16140.95630.47430.029*
C40.0838(2)1.0817(3)0.40268(18)0.0237(8)
C50.1029(3)1.1944(3)0.38832(18)0.0266(8)
C60.0270(3)1.2903(3)0.3602(2)0.0387(10)
H6A0.04461.33630.32400.046*
H6B0.02741.34380.39940.046*
C7−0.0785(3)1.2371(3)0.3268(3)0.0567(13)
H7A−0.12901.30020.31790.068*
H7B−0.08381.20050.28070.068*
C8−0.0999(3)1.1443(3)0.3762(3)0.0522(12)
H8A−0.10461.18360.41930.063*
H8B−0.16511.10710.35160.063*
C9−0.0200(3)1.0495(3)0.39848(19)0.0309(8)
C100.3537(3)0.9710(3)0.4690(2)0.0315(9)
C110.1488(2)0.8837(3)0.37521(18)0.0235(8)
C120.1430(3)0.7690(3)0.3987(2)0.0329(9)
H12A0.14450.75600.44610.040*
C130.1348(3)0.6725(3)0.3530(2)0.0389(10)
H13A0.13100.59510.36920.047*
C140.1325(3)0.6926(3)0.2837(2)0.0321(9)
C150.1358(3)0.8055(3)0.2579(2)0.0390(10)
H15A0.13250.81800.21010.047*
C160.1442(3)0.9006(3)0.3047(2)0.0347(9)
H16A0.14680.97800.28790.042*
O10.20010(17)1.23635(18)0.39944(13)0.0310(6)
O2−0.03949(18)0.9499(2)0.41529(15)0.0429(7)
N10.3692(2)1.2193(2)0.44002(17)0.0390(8)
H1A0.42601.18210.45860.047*
H1B0.36901.29380.42900.047*
N20.4207(2)0.9057(3)0.4896(2)0.0496(9)
Br10.12798(3)0.55869(4)0.22300(3)0.0586(2)

Source of materials

The title compound was synthesized according to a reported procedure [4]. A mixture of 3,5-cyclohexanedione (10 mmol), 4-bromo-benzaldehyde (10 mmol), malononitrile (10 mmol) and 4-(dimethylamino)pyridine (DMAP) (1 mmol) in ethanol (100 mL) was refluxed for 2–3 h and then cooled to room temperature. After filtering, the precipitates were sequentially washed with ice-cooled water and ethanol and then dried under vacuum.

Experimental details

All H atoms were modelled at their calculated positions and refined via the riding model. The Uiso of H-atoms were constrained to 1.2 times Ueq of their bonding atoms.

Comment

The chemistry and diverse applications of organic heterocyclic derivatives have received much attention due to their pronounced biological activity [5], [6], [7], [8]. For example, pyrans are well known to exhibit anti-HIV PR inhibitors, anti breast cancer, anti-inflammatory, anti-protozoal, antitumor, antitubercular with antimycobacterial activity.

In the crystal structure of the title compound, the newly formed pyran ring is essentially planar and perpendicular to the bromophenyl ring.

The amino group donates two hydrogen bonds, to the cyano and oxo groups, repespectively, with the following parameters: D⋯A 3.122(4) Å and D—H⋯A 176.76° for N1…N2 and D⋯A 2.983(4) Å and D—H⋯A 146.52° for N1…O2; the former is involved in the formation of a centrosymmetric H-bonded dimer.

Acknowledgement

This work was supported by the Shaanxi Provincial Scientific Technology Research and Development Program (2016JM5027) and Scientific Research Foundation Program of Shaanxi Xueqian Normal University (2015YBKJ061).

References

Agilent. CrysAlis CCD and CrysAlis RED. Agilent Technologies, Yarnton, Oxfordshire, England (2012).Search in Google Scholar

Agilent. CrysAlisPRO. Agilent Technologies, Yarnton, Oxfordshire, England (2014).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar PubMed PubMed Central

Han, R.; Sun, Y.; Kang, C.; Sun, H.; Wei, W.: Amphiphilic dendritic nanomicelle-mediated co-delivery of 5-fluorouracil and doxorubicin for enhanced therapeutic efficacy. J. Drug Target 12 (2016) 1–9.10.1080/1061186X.2016.1207649Search in Google Scholar PubMed

AL-Yahya, A. A. I.; Asad, M.: Antiulcer activity of gum arabic and its interaction with antiulcer effect of ranitidine in rats. Biomed. Res. India 27 (2016) 1102–1106.Search in Google Scholar

Anacona, J. R.; Santaella, J. J.: In vitro antibacterial activity of metal complexes containing a cephaclor derivative ligand. Lat. Am. J. Pharm. 32 (2013) 101–106.Search in Google Scholar

Chen, Y.; Bian, Y.; Sun, Y.; Kang, C.; Yu, S.; Fu, T.; Li, W.; Pei, Y.; Sun, H.: Identification of 4-aminoquinoline core for the design of new cholinesterase inhibitors. PeerJ. 4 (2016) e2140.10.7717/peerj.2140Search in Google Scholar PubMed PubMed Central

Guo, X. K.; Sun, H. P.; Shen, S.; Sun, Y.; Xie, F. L.; Tao, L.; Guo, Q. L.; Jiang, C.; You, Q. D.: Synthesis and evaluation of gambogic acid derivatives as antitumor agents. Part III. Chem. Biodivers. 10 (2013) 73–85.10.1002/cbdv.201200126Search in Google Scholar PubMed

Received: 2017-3-3
Accepted: 2017-7-10
Published Online: 2017-7-27
Published in Print: 2017-9-26

©2017 Yuanyuan Yu, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
