Crystal structure of poly[(thiophene-3,4-dicarboxylato-κ1O)bis[1,2-bis(4-pyridyl)ethane-κ2N:N′]silver(I)] octahydrate, C30H42Ag2N4O12S

  • Xue-Guo Liu , Wei-Hong Yan , Hui-Tao Fan EMAIL logo and Teng-Teng Qin
Published/Copyright: July 6, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C30H42Ag2N4O12S, monoclinic, Pc (no. 7), a = 11.4150(3) Å, b = 17.3038(9) Å, c = 9.3802(5) Å, β = 104.701(4)°, V = 1792.15(14) Å3, Z = 2, Rgt(F) = 0.0320, wRref(F2) = 0.0638, T = 293(2) K.

CCDC no.:: 1525095

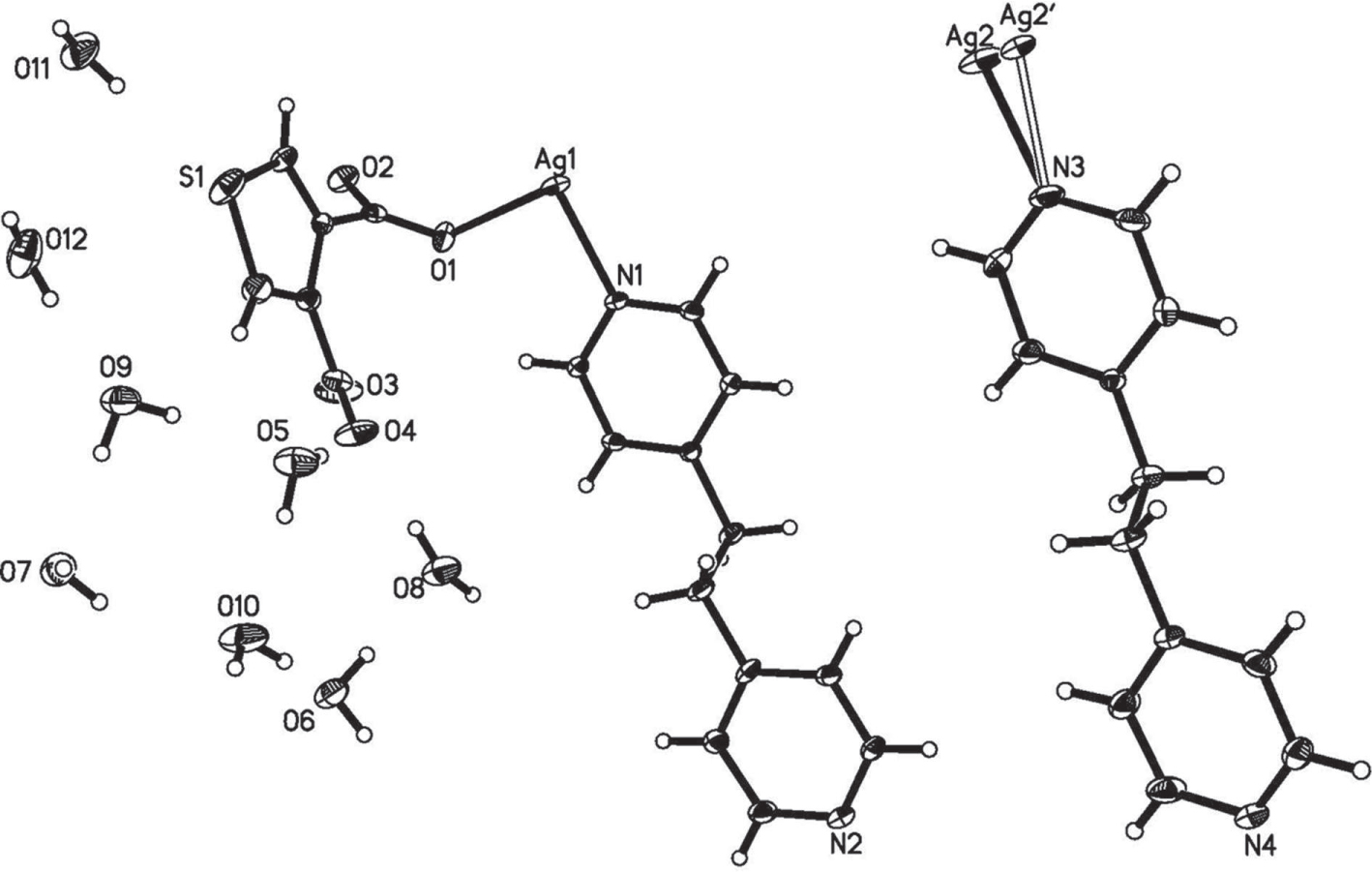

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless prism
Size:0.20 × 0.18 × 0.16 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:12.2 cm−1
Diffractometer, scan mode:Xcalibur Eos, φ and ω
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:6576, 4195, 0.020
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3760
N(param)refined:453
Programs:SHELX [1], CrysAlisPRO
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag10.07394(3)0.46122(2)0.12248(6)0.05222(13)
Ag2a0.3113(2)0.9996(8)0.3502(4)0.0695(15)
Ag2′b0.3075(6)1.0311(10)0.3366(9)0.0521(15)
C10.4893(5)0.9323(4)0.1988(7)0.0590(17)
H10.45050.88790.21900.071*
C20.5828(7)0.9246(3)0.1327(9)0.0545(14)
H20.60410.87570.10650.065*
C30.6456(5)0.9882(3)0.1045(6)0.0330(13)
C40.6045(5)1.0587(3)0.1416(7)0.0434(14)
H40.64231.10390.12340.052*
C50.5084(5)1.0629(4)0.2049(6)0.0541(16)
H50.48221.11130.22710.065*
C60.7504(5)0.9831(3)0.0382(6)0.0429(15)
H6A0.74741.0258−0.02970.051*
H6B0.74560.9353−0.01710.051*
C70.8713(5)0.9856(4)0.1579(7)0.0510(16)
H7A0.87361.03190.21690.061*
H7B0.87590.94130.22240.061*
C80.9781(5)0.9852(3)0.0933(6)0.0370(14)
C91.0230(5)0.9196(3)0.0469(7)0.0606(17)
H90.98940.87200.06070.073*
C101.1170(5)0.9224(4)−0.0198(8)0.0668(19)
H101.14410.8764−0.05180.080*
C111.1291(5)1.0511(4)0.0066(7)0.0546(17)
H111.16531.0978−0.00660.066*
C121.0356(5)1.0524(3)0.0737(7)0.0517(16)
H121.01111.09910.10600.062*
C130.2790(5)0.4019(3)−0.0059(6)0.0393(14)
H130.25770.35490.02850.047*
C140.3761(5)0.4045(3)−0.0701(6)0.0381(13)
H140.41880.3597−0.07840.046*
C150.4088(5)0.4731(3)−0.1210(6)0.0313(13)
C160.3427(6)0.5379(3)−0.1061(7)0.0450(16)
H160.36250.5858−0.13850.054*
C170.2481(6)0.5308(3)−0.0432(8)0.0452(17)
H170.20370.5750−0.03550.054*
C180.5164(5)0.4782(3)−0.1898(6)0.0398(14)
H18A0.51280.4358−0.25850.048*
H18B0.51200.5262−0.24430.048*
C190.6349(5)0.4748(3)−0.0722(7)0.0458(16)
H19A0.64270.4246−0.02470.055*
H19B0.63460.51380.00200.055*
C200.7432(5)0.4883(4)−0.1372(6)0.0401(16)
C210.8155(5)0.4293(4)−0.1607(7)0.0472(14)
H210.80210.3792−0.13260.057*
C220.9086(6)0.4442(4)−0.2262(8)0.0502(17)
H220.95690.4032−0.24080.060*
C230.8606(5)0.5716(4)−0.2476(7)0.0452(15)
H230.87370.6211−0.27930.054*
C240.7680(5)0.5610(4)−0.1804(7)0.0431(15)
H240.72210.6030−0.16430.052*
C250.1178(4)0.2745(3)0.3646(5)0.0331(11)
C260.0715(5)0.2916(3)0.4814(6)0.0454(13)
H26−0.01030.30060.47310.054*
C270.2887(5)0.2729(4)0.5569(7)0.0633(18)
H270.37000.26760.60610.076*
C280.2463(4)0.2640(3)0.4089(6)0.0399(12)
C290.0407(4)0.2720(3)0.2100(6)0.0369(12)
C300.3244(5)0.2400(3)0.3099(7)0.0505(14)
N10.2151(5)0.4654(3)0.0077(6)0.0388(14)
N20.9328(5)0.5149(4)−0.2699(6)0.0428(13)
N30.4515(5)1.0004(4)0.2355(7)0.0531(16)
N41.1705(5)0.9875(3)−0.0404(6)0.0456(14)
O10.0686(4)0.31415(18)0.1169(5)0.0548(8)
O2−0.0501(3)0.2281(2)0.1861(4)0.0556(10)
O30.2817(3)0.1943(3)0.2104(6)0.0893(16)
O40.4285(3)0.2673(3)0.3376(5)0.0811(14)
O50.5843(4)0.3153(3)0.6076(5)0.0812(14)
H5A0.54190.30460.52160.122*
H5B0.65590.29840.61820.122*
O60.7931(3)0.2026(3)0.3612(5)0.0710(13)
H6C0.84170.21040.30750.107*
H6D0.73160.22710.30710.107*
O70.7764(3)0.1832(3)0.9401(4)0.0712(12)
H7C0.79790.18490.85980.107*
H7D0.80880.22040.99520.107*
O80.5950(3)0.2794(3)0.1875(5)0.0823(14)
H8A0.54300.27570.23300.123*
H8B0.60260.27490.10010.123*
O90.5515(4)0.2484(3)0.8748(5)0.0793(14)
H9A0.62150.22800.89480.119*
H9B0.54920.26230.78630.119*
O100.8111(4)0.2424(3)0.6438(5)0.1015(18)
H10A0.81940.24430.55640.152*
H10B0.87590.25760.70380.152*
O110.0253(4)0.2399(3)0.8564(4)0.0950(17)
H11A0.03900.26240.93750.142*
H11B0.06400.25320.80290.142*
O120.3242(4)0.1822(3)0.9342(5)0.1005(19)
H12A0.38870.19460.91030.151*
H12B0.31720.20941.00690.151*
S10.17910(14)0.29462(12)0.64327(17)0.0768(6)

  1. aOccupancy: 0.72(3); bOccupancy: 0.28(3).

Source of materials

An excess of an aqueous NH3 solution was slowly added to a suspension of AgNO3 (0.0169 g, 0.1 mmol) in MeOH/H2O (6 mL, 5:1 v/v), and the mixture was stirred for 30 min. Thiophene-3,4-dicarboxylic acid (0.0086 g, 0.05 mmol), 1,2-bis(4-pyridyl)ethane (bpa) (0.0184 g, 0.1 mmol) were then slowly added, and stirring was continued for another 30 min. The resultant colorless solution was allowed to stand in the dark at room temperature for a week. Colorless prism crystals of the title complex were obtained.

Experimental details

Absorption corrections were applied by using multi-scan program. Hydrogen atoms attached to C and O of the title complex and water molecules were located in difference electron density maps, and treated as riding atoms. The Uiso values of the hydrogen atoms of water molecules were set to 1.5Ueq(O) and the Uiso values of all other hydrogen atoms were set to 1.2Ueq(C). Silver atom Ag2 is disordered over two closely separated positions (Ag2, Ag2′) in the ratio of 0.28:0.72. Flack parameter: 0.00(10).

Comment

In the past decades, the syntheses of silver (I) complexes have attracted great interest because the silver(I) exhibits diverse coordination geometries such as linear, trigonal, square-planar and octahedral ones [2], [3], [4], [5], [6]. In recent years, many MOFs with more than two polymeric substructures in the crystalline state have been reported, which usually occur in an interpenetrating fashion [7, 8] . However, examples of metal-organic frameworks involving more than one coordination polymer with different structural motifs in a single crystal structures are rare [9, 10] . With the aim of constructing unusual coordination architectures, we have engaged in the synthesis of coordination polymers based on a new thiophene-3,4-dicarboxylic acid with silver center.

Single crystal structure analysis reveals that the title complex consists of two crystallographically independent Ag(I), one thiophene-3,4-dicarboxylato ligand, two bpa ligands and eight water molecules. As shown in the Figure, the central Ag1 cation adopts T-shaped coordination with two nitrogen atoms from two bpa ligands [Ag1—N1 = 2.141(2) and Ag1—N2′ = 2.157(7) Å, N2′—Ag1—N1 = 167.32(3)° (′ = −1+x, 1−y, z+1/2′)] in the horizontal direction. The coordination sphere is completed by one oxygen of one deprotonated L2− [Ag1–O1 = 2.547(4) Å] in the axial direction. While the Ag2 adopts linear geometry [Ag2—N3 = 2.118(8) and Ag2—N4′′ = 2.146(7) Å, N3—Ag2—N4′′ = 177.71(3)° (′′ = −1+x, 2−y, z+1/2′)] being coordinated by two nitrogen atoms from two different bpa ligands. In the title complex, each bpa ligand as a bidentate ligand links Ag(I) centers to form infinite 1D chains. There are two kinds of Ag-bpa chains (herein designated as A and B). Within chain A, bpa ligands bridge crystallographically unique Ag1 centers into an infinite Ag-bpa chain, with the thiophene-3,4-dicarboxylic acid ligand dangling on the side. Chain B is exclusively constructed with Ag2 ions and bpa ligands. Interestingly, water molecules are located in the gaps between the two types of chains. Adjacent chains are linked through hydrogen bonding interactions, resulting in three-dimensional frameworks.

Acknowledgement

We gratefully acknowledge the financial support by Collaborative Innovation Center of Water Security for Water Source Region of Mid-line of South-to-North Diversion Project, Henan Province, and Key Laboratory of Ecological Security for Water Source Region of Mid-line of South-to-North Diversion Project of Henan Province, the National Natural Science Foundation of China (No. 21401112), the Science and Technology Research Key Project Department of Education in Henan Province (14A150026) and Nanyang Normal University Scientific Research Foundation Project (QN2016015).

References

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Oxford Diffraction Ltd. CrysAlisPRO, Abingdon, Oxfordshire, England (2006).Search in Google Scholar

Sun, D.; Yuan, S.; Wang, H.; Lu, H. F.; Feng, S. Y.; Sun, D. F.: Luminescence thermochromism of two entangled copper-iodide networks with a large temperaturedependent emission shift. Chem. Commun. 49 (2013) 6152–6154.10.1039/c3cc42741bSearch in Google Scholar PubMed

Sun, D.; Wei, Z. H.; Wang, D. F.; Zhang, N.; Huang, R. B.; Zheng, L. S.: Acetonitrile-templated assembly of a laminar silver(I) phthalate coordination polymer. Cryst. Growth Des. 11 (2011) 1427–1430.10.1021/cg101562pSearch in Google Scholar

Li, B.; Zang, S. Q.; Ji, C.; Du, C. X.; Hou, H. W.; Mak, T. C. W.: Syntheses, structures and properties of two unusual silver-organic coordination networks: 1D→1D tubular intertwinement and existence of an infinite winding water chain. Dalton Trans. 40 (2011) 788–792.10.1039/C0DT00949KSearch in Google Scholar

Li, B.; Ji, C.; Zang, S. Q.; Hou, H. W.; Mak, T. C. W.: Benzenepolycarboxylate-templated assembly of silver coordination polymers exhibiting argentophilic honeycomb layer and tubular motifs. Dalton Trans. 41 (2012) 9151–9153.10.1039/c2dt31160gSearch in Google Scholar PubMed

Chang, X. H.; Zhao, Y.; Han, M. L.; Ma, L. F.; Wang, L. Y.: Five Cd(II) coordination polymers based on 2,3′,5,5′-biphenyltetracarboxylic acid and N-donor coligands: syntheses, structures and fluorescent properties. CrystEngComm 16 (2014) 6417–6424.10.1039/C4CE00355ASearch in Google Scholar

Li, B.; Zang, S. Q.; Ji, C.; Hou, H. W.; Mak, T. C. W.: Syntheses, structures, and properties of silver-organic frameworks constructed with 1,1′-biphenyl-2,2′,6,6′-tetracarboxylic Acid. Cryst. Growth Des. 12 (2012) 1443–1451.10.1021/cg2015447Search in Google Scholar

Li, J. B.; Zang, S. Q.; Cao, L. H.; Mak, T. C. W.: Two isolated structural motifs in one crystal: One of which fills helical channels in another. Inorg. Chem. Commun. 14 (2011) 679–682.10.1016/j.inoche.2011.02.004Search in Google Scholar

Li, B.; Zang, S. Q.; Ji, C.; Liang, R.; Hou, H. W.; Wu, Y. J.; Mak, T. C. W.: Syntheses, structures and properties of silver-organic frameworks constructed with 1,2,3,4-benzenetetracarboxylic acid. Dalton Trans. 40 (2011) 10071–10081.10.1039/c1dt10830aSearch in Google Scholar PubMed

Received: 2016-12-30
Accepted: 2017-6-14
Published Online: 2017-7-6
Published in Print: 2017-9-26
