Crystal structure of bis(2-hydroxyethyl(phenyl)carbamodithioate)nickel(II), C18H20N2NiO2S4

  • Tomilola J. Ajayi and Werner E. Van Zyl EMAIL logo
Published/Copyright: August 3, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C18H20N2NiO2S4, monoclinic, P21/n (no. 14), a = 7.6548(1) Å, b = 6.8528(1) Å, c = 19.2214(4) Å, β = 93.776(1)°, V = 1006.10(3) Å3, Z = 2, Rgt(F) = 0.0189, wRref(F2) = 0.0461, T = 100(2) K.

CCDC no.:: 1562893

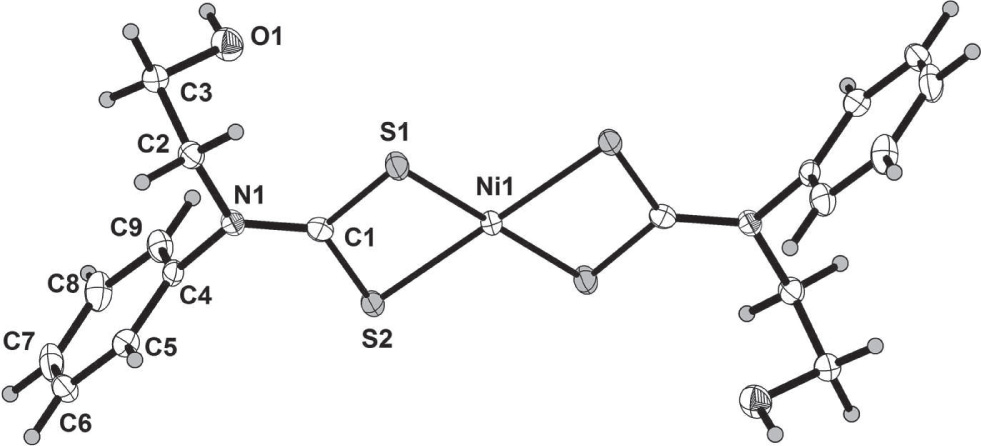

The structure of the title complex is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Yellow block
Size:0.31 × 0.24 × 0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:14.0 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
2θmax, completeness:50.6°, >99%
N(hkl)measured, N(hkl)unique, Rint:9405, 1824, 0.015
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1775
N(param)refined:125
Programs:Bruker programs [1], SHELX [2], ORTEP [3]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.2822(2)0.1377(2)0.08990(8)0.0141(3)
C20.0678(2)0.3867(2)0.11675(8)0.0161(3)
H2A0.1456210.4741220.0918570.019*
H2B0.0493750.4457530.1626980.019*
C3−0.1067(2)0.3682(3)0.07510(8)0.0184(4)
H3A−0.1890630.2895840.1011820.022*
H3B−0.1587400.4987660.0661390.022*
C40.0684(2)0.0601(2)0.17256(8)0.0147(3)
C50.0976(2)0.0816(3)0.24421(9)0.0181(3)
H50.1763190.1780260.2630910.022*
C60.0094(2)−0.0410(3)0.28789(9)0.0223(4)
H60.028410−0.0290680.3370450.027*
C7−0.1063(2)−0.1804(3)0.25979(10)0.0245(4)
H7−0.165351−0.2645090.2897640.029*
C8−0.1359(2)−0.1975(3)0.18808(10)0.0229(4)
H8−0.216725−0.2916270.1691350.027*
C9−0.0477(2)−0.0774(3)0.14382(9)0.0187(3)
H9−0.066859−0.0893560.0946690.022*
N10.15241(17)0.1943(2)0.12704(7)0.0140(3)
O1−0.07447(16)0.27501(19)0.01115(6)0.0224(3)
H1−0.1696270.236407−0.0083960.034*
S10.37801(5)0.27626(6)0.02821(2)0.01610(10)
S20.37971(5)−0.08952(6)0.09633(2)0.01537(10)
Ni10.5000000.0000000.0000000.01322(9)

Source of materials

In a Schlenk tube containing a tetrahydrofuran (THF) solution (30 mL) of N-(2-hydroxyethyl)aniline (0.91 mL, 7.28 mmol) was added potassium hydroxide (0.41 g, 7.31 mmol), followed by addition of carbon disulfide (0.44 mL, 7.28 mmol). The reactants were stirred at room temperature for 30 min until a clear orange solution was formed. From the solution, the equivalent of 1.97 mmol of ligand was removed and dissolved in 15 mL of water. NiCl2⋅6H2O (0.99 mmol) (molar equivalent 1:2) was dissolved in water (15 mL) and the two solutions were mixed and stirred for 1 h at room temperature. The product was filtered, washed with water and dried in vacuo. Yellow block crystals were obtained by a slow evaporation. Yield: 0.33 g (68%); m.p. 180–185 °C; 1H NMR (CDCl3) d (ppm) = 7.51–7.19 (m, 5H, —C6H5), 4.60 (t, 2H, —NCH2−), 4.15 (2H, m, —CH2—O), 3.41 (1H, s, —OH); 13C NMR (CDCl3) d (ppm) = 138.59, 129.38, 127.53, 124.36 (—C6H5), 65.85 (—NCH2−), 51.59 (—CH2—OH), 187.08 (—CS2);. Selected IR (cm−1): 1467 ν(C = N), 1189, 1001, 995, 980 (C = S).

Experimental details

Non-hydrogen atoms were initially refined isotropically and then by anisotropic refinement with full-matrix least squares method based on F2 using the SHELXL-2014 program [2] and molecular graphics were done using ORTEP-3 [3]. All hydrogen atoms were positioned geometrically, allowed to ride on their parent atoms and refined isotropically. The O—H, C—Haromatic and C—Hmethylene bond distances were restraint to 0.84 Å, 0.95 Å and 0.99 Å, respectively, with Uiso(H) = 1.2Ueq of parent atom.

Comment

Dithiocarbamate metal complexes have been extensively investigated for their industrial [4], agricultural and environmental [5], and biological [6] applications. Main group and transition metals are known to form complexes with dithiocarbamate ligands [7, 8] . Dithiocarbamate ligands can exist in different stable contributing resonance structures, which dictate the primary mode of bonding for different metals [9]. Dithiocarbamates are produced from the reaction between carbon disulfide and a secondary amine in the presence of a base [10]; the use of amino alcohols have by comparison rarely been used in the preparation of dithiocarbamates and its complexes [11, 12] .

The crystal structure of the title compound contains a 2-hydroxyethyl(phenyl)carbamodithioate ligand and one half of a Ni(II) in the asymmetric unit. The coordination environment around the metal centre is occupied by four S atoms from two symmetry related carbamodithioate ligands (cf. the figure) and is comparable to related compounds in literature [13]. The complex has a square planar geometry with S—Ni—S bond angles of 79.91(2)° and 180.0° and Ni—S bond distances of 2.1947(4) Å and 2.2084(4) Å. The conformation of the coordinated ligands is best described by the anilinyl and dithioyl planes defined by atoms N1—C4—C5—C6—C7—C8—C9 and C1—S1—S2, respectively. The two planes are almost orthogonal with a dihedral angle of 77°. Classical intermolecular O1—H1⋯S2 hydrogen bonding is observed between the hydroxyl groups and S2 atoms of neighbouring molecules with O—H⋯S angle of 160° and H1⋯S2 distance of 2.47 Å (symmetry code: −x, −y, −z). By linking neighbouring molecules in this manner, a chain, which extends along the crystallographic a axis is formed.

Acknowledgement

The authors thank the Eskom TESP programme for financial support and Mr Sizwe J. Zamisa for the crystallographic data.

References

Bruker. APEX2. Bruker AXS Inc., Madison, Wisconsin, USA (2011).Search in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Search in Google Scholar

Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Cryst. 45 (2012) 849–854.10.1107/S0021889812029111Search in Google Scholar

Say, R.; Birlik, E.; Erdemgil, Z.; Denizli, A.; Ersöz, A.: Removal of mercury species with dithiocarbamate-anchored polymer/organosmectite composites. J. Hazard. Mater. 150 (2008) 560–564.10.1016/j.jhazmat.2007.03.089Search in Google Scholar

Fu, F.; Zeng, H.; Cai, Q.; Qiu, R.; Yu, J.; Xiong Y.: Effective removal of coordinated copper from wastewater using a new dithiocarbamate-type supramolecular heavy metal precipitant. Chemosphere 69 (2007) 1783–1789.10.1016/j.chemosphere.2007.05.063Search in Google Scholar

Yoshikawa, Y.; Adachi, Y.; Sakurai, H.: A new type of orally active anti-diabetic Zn(II)-dithiocarbamate complex. Life Sci. 80 (2007) 759–766.10.1016/j.lfs.2006.11.003Search in Google Scholar

Heard, P. J.: Main group dithiocarbamate complexes. In: Progress in inorganic chemistry (Ed. Karlin, K. D.), pp. 71–561. John Wiley and Sons Inc., New Jersey, USA (2005).10.1002/0471725587.ch1Search in Google Scholar

Hogarth, G.: Transition metal dithiocarbamates. In: progress in inorganic chemistry (Ed. Karlin, K. D.), pp. 71–561. John Wiley and Sons Inc., New Jersey, USA (2005).10.1002/0471725587.ch2Search in Google Scholar

Siddiqi, K. S.; Nami, S. A. A.; Lutfullah; Chebude, Y.: Template synthesis of symmetrical transition metal dithiocarbamates. J. Braz. Chem. Soc. 17 (2006) 107–112.10.1590/S0103-50532006000100016Search in Google Scholar

Victoriano, L. I.: The reactivity of metal species towards thiuram sulfides: an alternative route to the syntheses of metal dithiocarbamates. Coord. Chem. Rev. 196 (2000) 383–398.10.1016/S0010-8545(99)00221-0Search in Google Scholar

Gölcü, A.: Transition metal complexes of propranolol dithiocarbamate: synthesis, characterization, analytical properties and biological activity. Trans. Met. Chem. 31 (2006) 405–412.10.1007/s11243-006-0009-1Search in Google Scholar

Delaunay, D.; Toupet, L.; Corre, M. L.: Reactivity of beta-amino alcohols with carbon disulfide study on the synthesis of 2-oxazolidinethiones and 2-thiazolidinethiones. J. Org. Chem. 60 (1995) 6604–6607.10.1021/jo00125a059Search in Google Scholar

Masnovi, J.; Duffy, N. V.; Fanwick, P. E.; Hepp, A. F.: Structural characterization and preliminary decomposition study of four unsymmetrically substituted nickel dithiocarbamate complexes. J. Coord. Chem. 69 (2016) 90–102.10.1080/00958972.2015.1107904Search in Google Scholar

Received: 2017-3-28
Accepted: 2017-7-18
Published Online: 2017-8-3
Published in Print: 2017-9-26
