Crystal structure of 3,3′-(butane-1,4-diylbis(azanylylidene))bis(1-phenylbut-1-en-1-olato)-κ4N,N′,O,O′]copper(II), C24H26N2O2Cu

  • Xiaofang Luo , Guoqiang Li , Ying Zuo , Qi Jiang and Qiang Xu EMAIL logo
Published/Copyright: July 21, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C24H26N2O2Cu, orthorhombic, C2221 (no. 20), a = 11.372(2) Å, b = 19.861(4) Å, c = 9.2904(19) Å, V = 2098.3(7) Å3, Z = 4, Rgt(F) = 0.0201, wRref(F2) = 0.0580, T = 296(2)K.

CCDC no.:: 1481414

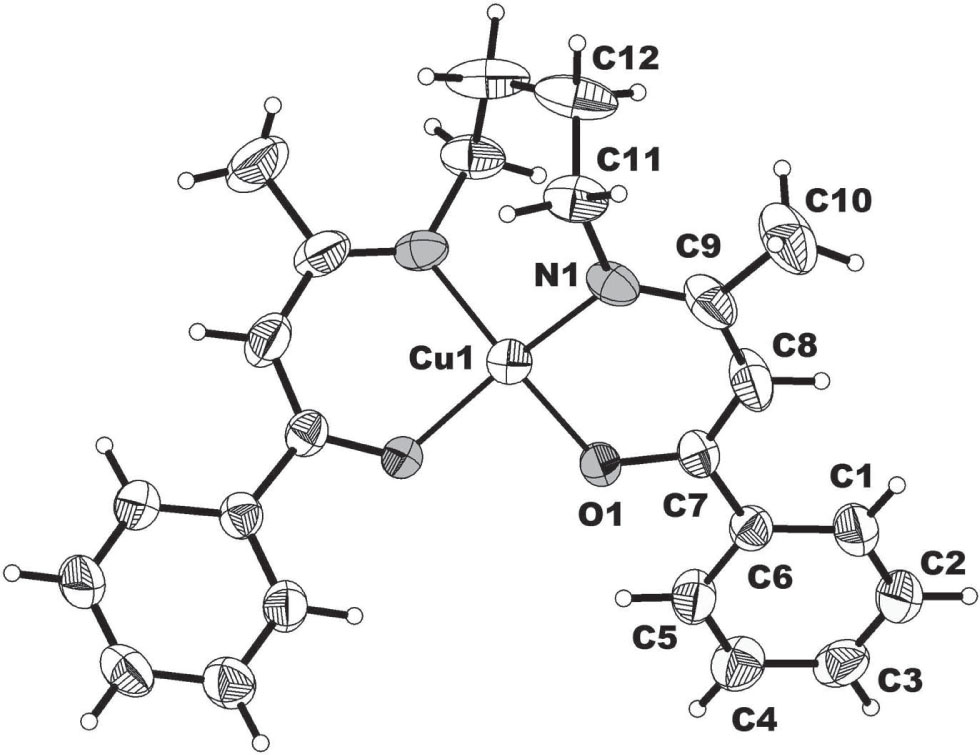

The crystal structure is shown in the figure. Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Brown block
Size:0.48 × 0.35 × 0.29 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:10.6 cm−1
Diffractometer, scan mode:Bruker APEXII, φ and ω-scans
2θmax, completeness:50°, >99%
N(hkl)measured, N(hkl)unique, Rint:5299, 1844, 0.030
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1795
N(param)refined:134
Programs:Bruker [1], SHELX [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cu10.00000.960575(11)0.75000.03736(13)
C10.39982(19)0.85574(11)0.5406(3)0.0643(6)
H10.44640.89070.57520.077*
C20.4488(2)0.80753(11)0.4523(3)0.0711(7)
H20.52790.81060.42770.085*
C30.3832(2)0.75528(11)0.4001(2)0.0571(6)
H30.41690.72320.33990.068*
C40.2670(2)0.75098(12)0.4380(3)0.0584(5)
H40.22150.71550.40390.070*
C50.21708(19)0.79920(11)0.5267(2)0.0521(5)
H50.13820.79540.55170.062*
C60.28160(16)0.85280(9)0.5788(2)0.0407(4)
C70.22109(16)0.90539(9)0.6675(2)0.0404(4)
C80.27924(19)0.96178(11)0.7139(3)0.0628(6)
H80.35910.96410.69260.075*
C90.2313(2)1.01710(11)0.7907(2)0.0584(6)
C100.3201(3)1.06844(14)0.8449(4)0.0881(9)
H10A0.30331.11160.80330.132*
H10B0.39791.05460.81780.132*
H10C0.31521.07150.94790.132*
C110.0744(2)1.08418(10)0.8908(2)0.0558(5)
H11A0.13011.09610.96560.067*
H11B0.00041.07290.93690.067*
C120.0560(3)1.14458(11)0.7927(3)0.0787(9)
H12A0.05791.18500.85120.094*
H12B0.12151.14700.72610.094*
N10.11859(15)1.02430(8)0.81222(19)0.0457(4)
O10.11051(10)0.89373(6)0.69193(15)0.0434(3)

Source of material

The N,N′-bis(benzoylacetone)butylenediimine (H2L) was synthesized via a modification of a previously reported procedure [3], other reagents were all purchased from Shanghai Aladdin Biochem technology Co. LTD (China) and used as received. A mixture of Cu(CH3COO)2⋅H2O (39.9 mg, 0.2 mmol) and (H2L) (74.8 mg, 0.2 mmol) in 25 mL acetonitrile/dichloromethane (4:1, v/v) was stirred at ambient temperature for 1 h to afford a clear brownish solution. The mixture was filtrated and the filtrate was shelved in a vibrationless, dark environment for four days, and the well-shaped brownish granular crystals were obtained in a yield of 68% (based on Cu).

Experimental details

All of the hydrogen atoms were placed in the calculated positions and were included in the refinement using the riding model approximation, with Uiso(H) set to 1.2Ueq(C) and 1.5Ueq(C).

Discussion

The Schiff bases derived from the condensation of aliphatic or aromatic diamines with β-diketone e.g. acetyl- or 1-benzoylacetone easily formed N2O2(bis-condensation) and N2O (mono-condensation) two common coordination set. Ligands in this class were studied due to their synthetic accessibility, rich coordination ability as well as in biological [4], clinical [5], electrophoretic [6], analytical [7] and magnetic [8].

The single-crystal analysis indicate that the title applications structure crystallizes in the non-centrosymmetric space group C2221. The Cu(II) center is tetracoordinated with imine and carbonyl group to form a seven-membered and two six-membered rings and exhibits a slightly distored square planar geometry, with all the Cu bond angles between 98.43(11)° and 146.04(8)°. The distances of Cu—O, Cu—N, C—N are 1.9060(13) Å, 1.9377(16) Å and 1.3935(2) Å, respectively. It’s worth noting that the sum of bond angles around Cu(II) centre is 379.38°, which demonstrated the poor coplanarity.

Acknowledgement

I acknowledge support for the publication fee by the Scientific Research Fund of Chongqing Municipal Education Commission the (KJ1601115), Chongqing University of Arts and Sciences (Z2015CH02), Chongqing University of Arts and Sciences (XSKY2016058) and Chongqing University of Arts and Sciences (XSKY2016067).

References

Bruker. APEX2, SAINT and SADABS. Brucker AXS Inc., Madison, Wisconsin, USA, (2009).Search in Google Scholar

Sheldrick, G. M.: SHELXL-97, Program for solution of crystal structures, University of Göttingen, Göttingen, Germany, (1997).Search in Google Scholar

Saleh, A. A.: Synthesis and spectroscopic studies of novel mononuclear complexes of cyclic and acyclic Schiff-base derivatives of tridentate and tetradentate coordination with some bivalent transition metal ions. J. Coord. Chem. 58 (2005) 255–270.10.1080/00958972512331334199Search in Google Scholar

Gurley, L.; Beloukhina, N.; Boudreau, K.; Klegeris, A.; McNeil, W. S.: The synthesis and characterization of a series of cobalt(II) β-ketoaminato complexes and their cytotoxic activity towards human tumor cell lines. J. Inorg. Biochem. 105 (2011) 858–866.10.1016/j.jinorgbio.2011.03.005Search in Google Scholar PubMed

Madeira, J. M.; Beloukhina, N.; Boudreau, K.; Boettcher, T. A.; Gurley, L.; Walker, D. G.; McNeil, W. S.; Klegeris, A.: Cobalt(II) β-ketoaminato complexes as novel inhibitors of neuroinflammation. Eur. J. Pharmacol. 676 (2012) 81–88.10.1016/j.ejphar.2011.11.038Search in Google Scholar PubMed

Nesterenko, P.; Levitin, I.; Chernoglazova, N.; Paskonova, E.; Penner, N.; Tsikalova, M.: Electrophoretic study of cationic cobalt(II) complexes with [N20] and [N202] Schiff base ligands. Inorg. Chim. Acta 280 (1998) 1295–1301.Search in Google Scholar

Pang, X.; Du, H. Z.; Chen, X. S.; Wang, X. H.; Jing, X. B.: Enolic schiff base aluminum complexes and their catalytic stereoselective polymerization of racemic lactide. Chem. Eur. J. 14 (2008) 3126–3136.10.1002/chem.200701473Search in Google Scholar PubMed

Sarkar, B.; Konar, S.; Gomez-Garcia, C. J.; Ghosh, A.: Rare example of μ-nitrito-1κ2O,O′:2KO coordinating mode in copper(II) nitrite complexes with monoanionic tridentate schiff base ligands: structure, magnetic, and electrochemical properties. Inorg. Chem. 47 (2008) 11611–11619.10.1021/ic8011519Search in Google Scholar PubMed

Received: 2017-1-16
Accepted: 2017-7-5
Published Online: 2017-7-21
Published in Print: 2017-9-26

©2017 Xiaofang Luo et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
