Crystal structure of bis(hydroxydi(pyridin-2-yl)methanolato-κ3N,N′,O)cobalt(III) perchlorate dihydrate, C22H22ClCoN4O10

  • Feng Liu , Weihua Li , Hui Lu and Jianhua Sun EMAIL logo
Published/Copyright: August 8, 2017
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 232 Issue 5

Abstract

C22H22ClCoN4O10, triclinic, P1̄ (no. 2), a = 8.4566(7) Å, b = 11.9163(7) Å, c = 12.4333(9) Å, α = 99.770(1)°, β = 103.490(1)°, γ = 90.290(1)°, V = 1199.38(15) Å3, Z = 2, Rgt(F) = 0.0295, wRref(F2) = 0.0774, T = 150 K.

CCDC no.:: 1565197

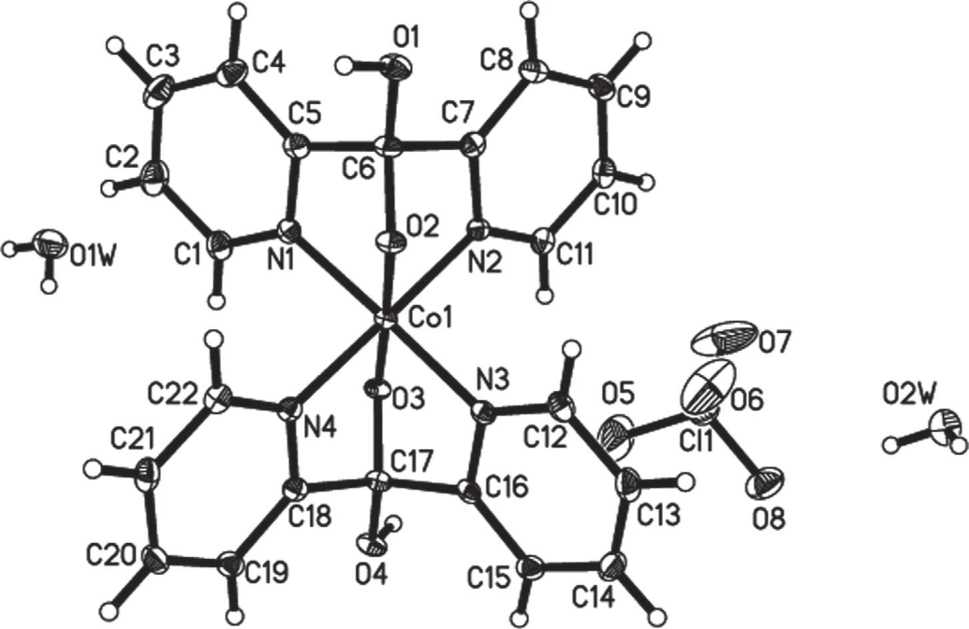

The asymmetric unit of the title crystal structure is shown in the figure. Tables 1 and 2 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Red block
Size:0.13 × 0.11 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:8.9 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
2θmax, completeness:52°, >99%
N(hkl)measured, N(hkl)unique, Rint:12848, 4716, 0.021
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4180
N(param)refined:345
Programs:SHELX [1], Bruker programs [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.3518(2)0.43507(16)0.14215(17)0.0159(4)
H10.41350.49140.19720.019*
C20.2622(3)0.46329(18)0.04288(18)0.0218(4)
H20.26370.53820.03090.026*
C30.1704(3)0.37881(19)−0.03834(17)0.0220(4)
H30.11040.3967−0.10560.026*
C40.1678(2)0.26707(18)−0.01933(16)0.0176(4)
H40.10560.2095−0.07260.021*
C50.2604(2)0.24436(16)0.08103(15)0.0127(4)
C60.2801(2)0.13023(16)0.12329(15)0.0125(4)
C70.1886(2)0.13771(15)0.21638(15)0.0121(4)
C80.0448(2)0.08184(16)0.21354(16)0.0145(4)
H8−0.01060.03280.14920.017*
C9−0.0159(2)0.10076(17)0.30997(17)0.0160(4)
H9−0.11230.06370.31120.019*
C100.0694(2)0.17556(16)0.40409(16)0.0149(4)
H100.03040.18890.46900.018*
C110.2128(2)0.23023(15)0.40077(16)0.0123(4)
H110.26900.28120.46340.015*
C120.6099(2)0.09871(16)0.42911(16)0.0140(4)
H120.55030.04000.37580.017*
C130.7068(2)0.07459(17)0.52777(17)0.0172(4)
H130.7134−0.00010.54040.021*
C140.7943(2)0.16238(18)0.60783(17)0.0183(4)
H140.85740.14740.67540.022*
C150.7863(2)0.27306(17)0.58572(16)0.0146(4)
H150.84510.33320.63740.018*
C160.6890(2)0.29130(16)0.48532(15)0.0111(4)
C170.6666(2)0.40385(15)0.44040(15)0.0114(4)
C180.7554(2)0.39252(15)0.34524(15)0.0114(4)
C190.8993(2)0.44627(16)0.34361(16)0.0144(4)
H190.95450.49940.40480.017*
C200.9597(2)0.41895(17)0.24793(17)0.0161(4)
H201.05770.45280.24510.019*
C210.8737(2)0.34116(17)0.15676(16)0.0160(4)
H210.91270.32280.09220.019*
C220.7287(2)0.29126(16)0.16338(16)0.0137(4)
H220.66970.23940.10260.016*
Cl10.35462(6)0.25888(4)0.71162(4)0.01958(12)
Co10.47303(3)0.26503(2)0.283712(19)0.00877(8)
N10.35016(18)0.32694(13)0.15925(13)0.0114(3)
N20.27125(18)0.21052(12)0.30839(13)0.0100(3)
N30.60113(18)0.20618(13)0.40965(13)0.0109(3)
N40.67287(18)0.31691(13)0.25644(13)0.0109(3)
O10.22439(16)0.03552(11)0.04157(11)0.0157(3)
H1A0.27030.0346−0.00980.024*
O20.44622(15)0.12907(11)0.17721(10)0.0117(3)
O30.49996(15)0.40353(10)0.38741(10)0.0109(3)
O40.72561(15)0.49792(11)0.52127(11)0.0133(3)
H4A0.65220.52350.54980.020*
O50.4120(3)0.35758(16)0.67894(18)0.0600(7)
O60.3879(3)0.16244(16)0.63732(15)0.0524(6)
O70.1861(2)0.2647(3)0.70504(17)0.0722(8)
O80.44206(19)0.25270(15)0.82571(13)0.0303(4)
O1W0.21733(19)0.81053(14)0.10506(13)0.0291(4)
H1WA0.21830.87590.08630.035*
H1WB0.31520.79160.12510.035*
O2W0.34963(17)0.03274(12)0.86945(12)0.0210(3)
H2WA0.37980.09600.85590.025*
H2WB0.4165−0.01690.85390.025*

Source of materials

A solution of Co(ClO4)2⋅6H2O (36.2 mg, 0.10 mmol) in 2 mL H2O was slowly added to a solution of bis(2-pyridyl)ketone (18.4 mg, 0.1 mmol) in 3 mL MeCN with stirring. The resulting mixture was placed in the dark, and red crystals were obtained after two weeks, in a yield of 46% (based on Co).

Experimental details

Hydrogen atoms potentially involved in hydrogen-bonding interactions were located by difference methods and their positional and isotropic displacement parameters were refined. Other H atoms were included in the refinement at calculated positions [C—Haromatic = 0.93 Å] and treated as riding models with Uiso(H) = 1.2Ueq(C).

Comment

The bis(2-pyridyl)ketone and its derivative di(pyridin-2-yl)methanediol (H2L), and the anionic HL− have been widely used as multidentate and chelating ligands to exhibit a variety of coordination modes [3], [4], [5], [6], [7], [8].

The title structure is made up of cations of [Co(HL)2], one perchlorate anion and two water molecules. The central metal Co(III) ion is sixfold coordinated by two oxygen atoms and four nitrogen atoms from two HL−. The cation of the title complex is similar in structure to a Fe(III) complex of tridentate HL− ligand [9]. In title complex, the bond lengths of Co—O are 1.8862(12) Å and 1.8908(12) Å, and the Co—N bond distances are in the range of 1.9141(16)–1.9309(15) Å, which are comparable to other Co(III) complexes [10, 11] . In the crystal structure, the cations are interlinked by hydrogen bonds and π–π interactions to form a 3D supramolecular structure.

Acknowledgement

This work was supported by the Natural Science Foundation of China (No. 21373103).

References

Sheldrick, G. M.: Ashort history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Bruker. SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA (2012).Search in Google Scholar

Ji, B.; Deng, D.; Wang, Z.; Liu, X.; Miao, S.: Structures of an infinite helical water chain and discrete lattice water in metal–organic framework structures. Struct. Chem. 19 (2008) 619–623.10.1007/s11224-008-9334-7Search in Google Scholar

Tong, M.-L.; Lee, H. K.; Zheng, S.-L.; Chen, X.-M.: Synthesis, crystal structures and luminescent properties of a new family of cubane complexes self-assembled by metal carboxylates and di-2-pyridyl ketone in gem-diol form. Chem. Lett. 28 (1999) 1087–1088.10.1246/cl.1999.1087Search in Google Scholar

Tong, M.-L.; Yang, G.; Chen, X.-M.; Ng, S. W.: Bis[di-2-pyridylmethanediolato(1-)-N,O,N′]cobalt(III) Perchlorate Trihydrate. Acta Crystallogr. C54 (1998) 217–219.10.1107/S0108270197013358Search in Google Scholar

Katsenis, A. D.; Inglis, R.; Slawin, A. M. Z.; Kessler, V. G.; Brechin, E. K.; Papaefstathiou, G. S.: Transforming the cube: a tetranuclear cobalt(II) cubane cluster and its transformation to a dimer of dimers. CrystEngComm 11 (2009) 2117–2120.10.1039/b907546cSearch in Google Scholar

Melen, R. L.; Rawson, J. M.; Eisler, D. J.: Structural studies of copper(II) complexes derived from di-2-pyridyl-ketone, (py)2CO. Polyhedron 47 (2012) 16–23.10.1016/j.poly.2012.08.009Search in Google Scholar

Pfrommer, J.; Lublow, M.; Azarpira, A.; Göbel, C.; Lücke, M.; Steigert, A.; Pogrzeba, M.; Menezes, P. W.; Fischer, A.; Schedel-Niedrig, T.; Driess, M.: A molecular approach to self-supported cobalt-substituted ZnO materials as remarkably stable electrocatalysts for water oxidation. Angew. Chem. Int. Ed. 53 (2014) 5183–5187.10.1002/anie.201400243Search in Google Scholar PubMed

Woltz, J.; Westcott, B. L.; Crundwell, G.; Zeller, M.; Hunter, A. D.; Sommerer, S. O.: Bis(di-2-pyridylmethanediol-κ2N,N′)iron(III) nitrate dihydrate. Acta Crystallogr. E58 (2002) m609–m610.10.1107/S1600536802017798Search in Google Scholar

Tong, M.-L.; Yang, G.; Chen, X.-M.; Ng, S. W.: Bis(di-2-pyridyl-1-hydroxymethoxy)cobalt(III) perchlorate trihydrate. Acta Crystallogr., C54 (1998) 217–219.10.1107/S0108270197013358Search in Google Scholar

Padhi, S. K.; Sahu, R.: Co(II/III) coordinated pyridine alcoholate ligand generated through metal assisted nucleophilic addition to a C=O function: temperature dependent synthesis of a mononuclear complex and a neutral cubane cluster. Polyhedron 27 (2008) 2662–2666.10.1016/j.poly.2008.05.024Search in Google Scholar

Received: 2017-4-4
Accepted: 2017-7-27
Published Online: 2017-8-8
Published in Print: 2017-9-26

©2017 Feng Liu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
