A single crystal study on tert-butyl-4-((4-(4-bromo-2-fluorophenylamino)-6-methoxyquinazolin-7-yloxy)methyl)piperidine-1-carboxylate, C26H30BrFN4O4

  • Kai Wang EMAIL logo und Qiang Chen
Veröffentlicht/Copyright: 14. Juli 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 232 Heft 5

Abstract

C26H30BrFN4O4, monoclinic, P21/c (no. 14), a = 10.9035(6) Å, b = 8.0936(6) Å, c = 29.429(2) Å, β = 98.136(2)°, V =2570.9(3) Å3, Z = 4, Rgt(F) = 0.0434, wRref(F2) = 0.0897, T = 173(2) K.

CCDC no.:: 1558751

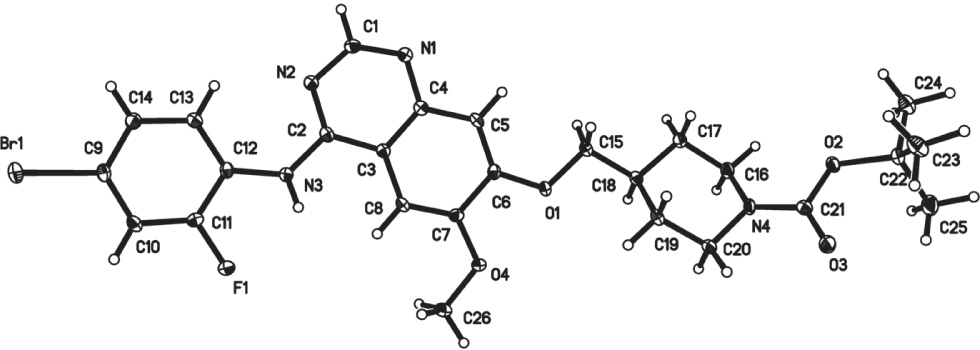

The crystal structure is shown in the figure. Table 1 contains details on crystal structure and measurement conditions. Table 2 lists the atoms with their coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless column
Size:0.19 × 0.11 × 0.08 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:16.5 cm−1
Diffractometer, scan mode:CAD4, ω-scans
2θmax, completeness:50.78°, >98%
N(hkl)measured, N(hkl)unique, Rint:18757, 4643, 0.078
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3190
N(param)refined:332
Programs:CAD4 [1], XCAD4 [2], SHELX [3], PLATON [4]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Br1−0.74155(3)0.56733(5)0.382867(12)0.03775(13)
C10.0090(3)0.3728(4)0.44747(10)0.0248(8)
H10.03260.43050.42200.030*
C2−0.1479(2)0.2825(4)0.48415(10)0.0199(7)
C3−0.0605(2)0.2049(4)0.51821(10)0.0176(7)
C40.0648(3)0.2267(4)0.51284(10)0.0201(7)
C50.1581(3)0.1568(4)0.54559(10)0.0216(7)
H50.24280.17280.54240.026*
C60.1280(2)0.0675(4)0.58140(10)0.0195(7)
C70.0001(3)0.0429(4)0.58647(10)0.0198(7)
C8−0.0900(3)0.1110(4)0.55562(10)0.0205(7)
H8−0.17440.09520.55920.025*
C9−0.5941(3)0.4738(4)0.41522(10)0.0221(8)
C10−0.6013(3)0.3723(4)0.45233(10)0.0234(8)
H10−0.67820.34740.46240.028*
C11−0.4914(3)0.3089(4)0.47392(10)0.0224(7)
C12−0.3756(2)0.3422(4)0.46127(10)0.0204(7)
C13−0.3735(3)0.4459(4)0.42347(10)0.0244(7)
H13−0.29660.47260.41360.029*
C14−0.4827(3)0.5104(4)0.40020(11)0.0246(8)
H14−0.48080.57920.37410.029*
C150.3381(2)0.0172(4)0.61442(10)0.0233(8)
H15A0.36030.13530.61880.028*
H15B0.3618−0.02020.58480.028*
C160.6061(3)−0.1935(4)0.69183(10)0.0251(8)
H16A0.5781−0.30930.68700.030*
H16B0.6970−0.19060.69210.030*
C170.5431(2)−0.0859(4)0.65289(10)0.0220(7)
H17A0.5612−0.12950.62310.026*
H17B0.57570.02820.65640.026*
C180.4032(2)−0.0847(4)0.65348(10)0.0199(7)
H180.3727−0.20100.64930.024*
C190.3761(3)−0.0244(4)0.70036(10)0.0223(8)
H19A0.40260.09220.70480.027*
H19B0.2857−0.02950.70130.027*
C200.4434(2)−0.1292(4)0.73915(10)0.0246(8)
H20A0.4302−0.08180.76910.030*
H20B0.4094−0.24280.73720.030*
C210.6592(3)−0.0862(4)0.77188(10)0.0217(7)
C220.8817(3)−0.0395(4)0.79543(10)0.0238(8)
C230.8677(3)0.1345(5)0.81255(12)0.0359(9)
H23A0.84440.20830.78640.054*
H23B0.94640.17120.82980.054*
H23C0.80310.13680.83260.054*
C240.9882(3)−0.0511(5)0.76730(11)0.0319(8)
H24A0.9942−0.16440.75610.048*
H24B1.0658−0.02100.78650.048*
H24C0.97310.02470.74110.048*
C250.8962(3)−0.1658(5)0.83382(12)0.0393(10)
H25A0.8292−0.15200.85250.059*
H25B0.9762−0.14980.85310.059*
H25C0.8925−0.27730.82070.059*
C26−0.1428(3)−0.0798(5)0.63013(12)0.0359(9)
H26A−0.18340.02560.63480.054*
H26B−0.1441−0.15010.65720.054*
H26C−0.1868−0.13530.60300.054*
F1−0.49413(14)0.2067(3)0.51079(6)0.0338(5)
N10.1000(2)0.3128(3)0.47649(8)0.0239(6)
N2−0.1146(2)0.3637(3)0.44897(8)0.0232(6)
N3−0.2727(2)0.2710(4)0.48780(9)0.0251(6)
H3A−0.289(3)0.221(4)0.5115(8)0.030*
N40.5760(2)−0.1341(3)0.73596(8)0.0234(6)
O10.20758(17)−0.0061(3)0.61485(7)0.0245(5)
O20.77538(17)−0.0854(3)0.76081(7)0.0248(5)
O30.63249(18)−0.0475(3)0.80921(7)0.0307(6)
O4−0.01761(17)−0.0503(3)0.62350(7)0.0264(5)

Source of material

The title compound is easily available by a known literature synthesis [5]. In a typical reaction 0.2 g of the title compound was dissolved in 6 mL methanol. Evaporation at room temperature yielded colourless crystals of tert-butyl 4-((4-(4-bromo-2-fluorophenylamino)-6-methoxyquinazolin-7-yloxy)methyl)piperidine-1-carboxylate.

Experimental details

The hydrogen atoms (except H3a) were placed on calculated positions with the program SHELXL (AFIX 43, 23, 13 or 137 option) [3].

Discussion

The title compound is a very important intermediate in the production process of Vandetanib. Vandetanib (trade name Caprelsa, Astra Zeneca) is an anti-cancer drug used for the treatment of certain tumours of the thyroid gland [6]. Its pharmacological property is that of a kinase inhibitor for a number of cell receptors, mainly the vascular endothelial growth factor receptor (VEGFR), the epidermal growth factor receptor (EGFR), and the RET-tyrosine kinase. The compound reported here, tert-butyl-4-((4-(4-bromo-2-fluorophenylamino)-6-methoxyquinazolin-7-yloxy)methyl)piperidine-1-carboxylate is the most important intermediate during production of Vandetanib.

Bond lengths and angles of the title compound are within normal ranges [7]. The crystal structure analysis of the title compound revealed that the 3 rings: piperidine ring (C16—C17—C18—C19—C20—N4), quinazoline ring (C2—N2—C1—N1—C4—C5—C6—C7—C8—C3) and 4-bromo-2-fluorophenyl ring (C9—C10—C11—C12—C13—C14), are not coplanar. The dihedral angle between the plane of the 4-bromo-2-fluorophenyl ring and the best plane of the piperidine ring is 33.9(2)°. The dihedral angle between the quinazolinyl moiety and the best plane of the piperidine ring is 32.7(2)°. In the crystal of the title compound, there are weak C—H⋯O, C—H⋯N and N—H⋯F intramolecular hydrogen bonds. There may be some π-π stacking interactions, as the centroid to centroid distance between the nearest rings is less than 5 Å.

Acknowledgement

We thank the Center of Testing and Analysis, Nanjing University.

References

Enraf-Nonius: CAD-4 Software. Enraf-Nonius, Delft, The Netherlands, (1985).Suche in Google Scholar

Harms, K.; Wocadlo, S.: XCAD4. University of Marburg, Germany, (1995).Suche in Google Scholar

Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Spek, A. L.: Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 36 (2003) 7–13.10.1107/S0021889802022112Suche in Google Scholar

Gant, T. G.; Sarshar, S.; Shahbaz, M.: Substituted quinazoline inhibitors of growth factor receptor tyrosine kinases. Patent: WO 2010/028254 A2.Suche in Google Scholar

Regalbuto, C.; Frasca, F.; Pellegriti, G.: Update on thyroid cancer treatment. Future Oncology 8 (2012) 1331–1348.10.2217/fon.12.123Suche in Google Scholar PubMed

Allen, F. H.; Kennard, O.; Watson, D. G.; Brammer, L.; Orpen, A. G.; Taylor, R.: Tables of bond lengths determined by X-ray and neutron diffraction. Part 1. Bond lengths in organic compounds. J. Chem. Soc. Perkin Trans. 2 (1987) S1–S19.10.1039/p298700000s1Suche in Google Scholar

Received: 2017-2-10
Accepted: 2017-6-27
Published Online: 2017-7-14
Published in Print: 2017-9-26
