Crystal structure of bis(tetraethylammonium) [1,1′-biphenyl]-2,2′-dicarboxylate trihydrate, C30H54N2O7

  • Di Cheng EMAIL logo und Yanbing Zai
Veröffentlicht/Copyright: 28. Juli 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 232 Heft 5

Abstract

C30H54N2O7, orthorhombic, P21212 (no. 18), a = 11.6240(9) Å, b = 12.9628(11) Å, c = 10.5166(9) Å, V = 1584.6(2) Å3, Z = 2, Rgt(F) = 0.038, wRref(F2) = 0.115, T = 296 K.

CCDC no.:: 1555754

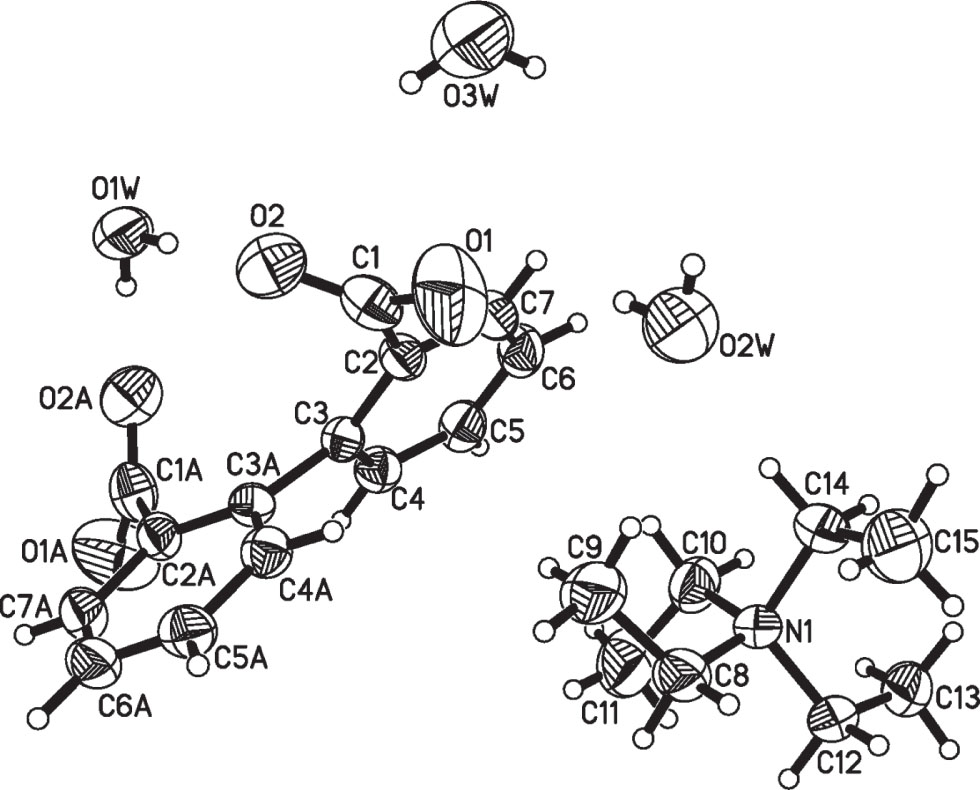

The crystal structure is shown in the figure. Table 1 and 2 contain details on crystal structure and measurement conditions as well as a list of atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.4 × 0.2 × 0.18 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.8 cm−1
Diffractometer, scan mode:Bruker APEXII, φ and ω-scans
2θmax, completeness:56.5°, 99%
N(hkl)measured, N(hkl)unique, Rint:4621, 2277, 0.012
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2013
N(param)refined:193
Programs:SHELXL [1], Bruker programs [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.21858(16)−0.00349(16)0.70986(19)0.0814(6)
O10.31512(12)−0.01609(19)0.6633(2)0.1581(8)
N10.22988(11)0.16342(10)0.15011(11)0.0618(4)
O1W0.00000.00000.95116(19)0.1295(9)
H1WA0.0579(9)−0.016(2)0.9057(13)0.194*
C20.13925(13)0.07349(12)0.64484(15)0.0595(4)
O20.18306(12)−0.04730(11)0.80602(13)0.0973(5)
O2W0.50000.00000.4943(2)0.1391(10)
H2WAa0.4488(9)0.0199(19)0.5472(12)0.209*
H2WBa0.5606(8)−0.014(2)0.5371(15)0.209*
C30.02521(12)0.05285(11)0.60990(13)0.0522(4)
O3W0.50000.00000.8577(3)0.1596(13)
H3WAa0.503(2)0.0471(8)0.8008(11)0.239*
H3WBa0.4301(7)−0.0200(15)0.862(3)0.239*
C4−0.03850(14)0.13321(12)0.55664(14)0.0613(4)
H4A−0.11420.12060.53270.074*
C50.00624(16)0.23024(13)0.53806(15)0.0706(5)
H5A−0.03910.28240.50380.085*
C60.11895(18)0.24928(13)0.57066(17)0.0781(6)
H6A0.15080.31420.55740.094*
C70.18365(16)0.17201(14)0.62277(17)0.0759(5)
H7A0.25980.18550.64420.091*
C80.2110(2)0.04930(14)0.16940(18)0.0848(6)
H8A0.13730.03080.13260.102*
H8B0.27000.01210.12300.102*
C90.2129(3)0.01390(19)0.30577(19)0.1109(8)
H9A0.2003−0.05920.30910.166*
H9B0.28630.02980.34280.166*
H9C0.15330.04850.35240.166*
C100.14116(16)0.22702(17)0.21944(18)0.0829(6)
H10A0.15040.21540.31000.100*
H10B0.15700.29930.20340.100*
C110.01779(19)0.2061(3)0.1850(2)0.1288(10)
H11C−0.03160.25020.23400.193*
H11B0.00640.21940.09610.193*
H11A−0.00020.13530.20300.193*
C120.22350(17)0.18183(15)0.00775(15)0.0751(5)
H12A0.28350.1417−0.03310.090*
H12B0.15020.1562−0.02290.090*
C130.23594(18)0.29290(16)−0.03295(18)0.0859(6)
H13A0.23090.2973−0.12390.129*
H13B0.17560.33330.00470.129*
H13C0.30920.3188−0.00550.129*
C140.34386(14)0.19695(16)0.20370(17)0.0776(5)
H14A0.35370.26990.18640.093*
H14B0.34150.18850.29530.093*
C150.4466(2)0.1409(2)0.1541(3)0.1273(10)
H15B0.51480.16760.19370.191*
H15A0.43940.06870.17290.191*
H15C0.45160.15030.06370.191*

  1. aOccupancy: 0.5.

Source of materials

The title compound was prepared by accident. Firstly, a synthesized aromatic acid, 2,2′-biphenyldicarboxylic acid (A.R.) and tetraethylammonium (25% aqueous solution, C. R.) were dissolved in small amount of H2O/EtOH (v/v, 2:1) with the molar ratio of 1:1:4 to evaporate under room temperature to prepare an inclusion compound. About after 14 days, colorless block crystals of the title compound appeared in the clean solution.

Experimental details

Positions of hydrogen atoms connected to carbon atoms were modelled at the ideal positions according to the riding model, whereas those of water molecules were refined with constrained bond distances and angles. Hydrogen Uiso values were set to 1.2 or 1.5 times Ueq of the parent atoms.

Discussion

2,2′-Biphenyldicarboxylic acid is a good hydrogen-bond unit because of its two carboxyl groups. Searching the related literatures, it can be seen that the corresponding dicarboxylates can be regarded as important motif in constructing MOFs [3], [4], [5], [6]. Here the crystal structure of the title structure is reported to enrich the related organic structures.

In the asymmetric unit of the title compound, there are one half of a 2,2′-biphenyldicarboxylate positioned around a twofold rotation axis parallel to the c axis, one and one half water molecules at the special positions and one tetraethylammonium cation. Observing the configuration of the anion, it can be seen that the interplanar angle between two phenyl rings is 48.1° and the dihedral angle between the carboxyl group and the related ring is 52.1°. The cation located in a general position shows the typical geometric parameters, which means that the nitrogen atom is tetrahedrally surrounded. With the help of water molecules, the anion can form 2D hydrogen bonded layers by different O—H⋯O hydrogen bonds. The tetraethylammonium cations are accomodated between the layers to obtain the typical sandwich-like crystal structure.

Acknowledgement

This work was financially supported by the first batch of traditional Chinese Medicine School inheritance studio program of State Administration of Traditional Chinese Medicine: Henan Shaw acupuncture Schools inheritance studio (The traditional Chinese medicine-2012-228).

References

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

Bruker. SADABS, APEX, SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA, 2007.Suche in Google Scholar

Huang, F. P.; Bian, H. D.; Yu, Q.; Tian, J. L.; Liang, H.; Yan, S. P.; Liao, D. Z.; Cheng, P.: Coordination assemblies of CoII/NiII/MnII/ZnII with 1, 1′-biphenyl-2, 2′-dicarboxylic acid and three positional isomeric ligands: structural diversity and properties. CrystEngComm 13 (2011) 6538–6548.10.1039/c1ce05562cSuche in Google Scholar

Guo, F.; Wang, F.; Yang, H.; Zhang, X.; Zhang, J.: Tuning structural topologies of three photoluminescent metal–organic frameworks via isomeric biphenyldicarboxylates.Inorg. Chem. 51 (2012) 9677–9682.10.1021/ic3008969Suche in Google Scholar

Jeong, K. S.; Go, Y. B.; Shin, S. M.; Lee, S. J.; Kim, J.; Yaghi, O. M.; Jeong, N.: Asymmetric catalytic reactions by NbO-type chiral metal–organic frameworks. Chem. Sci. 2 (2011) 877–882.10.1039/c0sc00582gSuche in Google Scholar

Zhou, Z.; Qin, W.: Extraction properties of phthalic acid and aromatic polycarboxylic acids using various solvents. J. Chem. Tech. Bio. 86 (2011) 492–496.10.1002/jctb.2486Suche in Google Scholar

Received: 2016-12-19
Accepted: 2017-6-14
Published Online: 2017-7-28
Published in Print: 2017-9-26

©2017 Di Cheng et al., published by De Gruyter, Berlin/Boston
