Crystal structure of poly[μ4-(4-(carboxylatomethyl)benzoato-κ4O:O′:O′′:O′′′)-(2-(4-(1H-imidazol-1-yl)phenyl)-1H-benzo[d]imidazole-κN)manganese(II)] [Mn(C9H6O4)(C16H12N4)]

  • Wei-Dong Yin und Gui-Lian Li EMAIL logo
Veröffentlicht/Copyright: 5. Juli 2017
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 232 Heft 5

Abstract

C25H18N4O4Mn, orthorhombic, P212121, a = 7.9366(11) Å, b = 10.2389(15) Å, c = 26.313(4) Å, V = 2138.3(5) Å3, Z = 4, Rgt(F) = 0.0385, wRref(F2) = 0.0832, T = 296(2) K.

CCDC no.:: 1556626

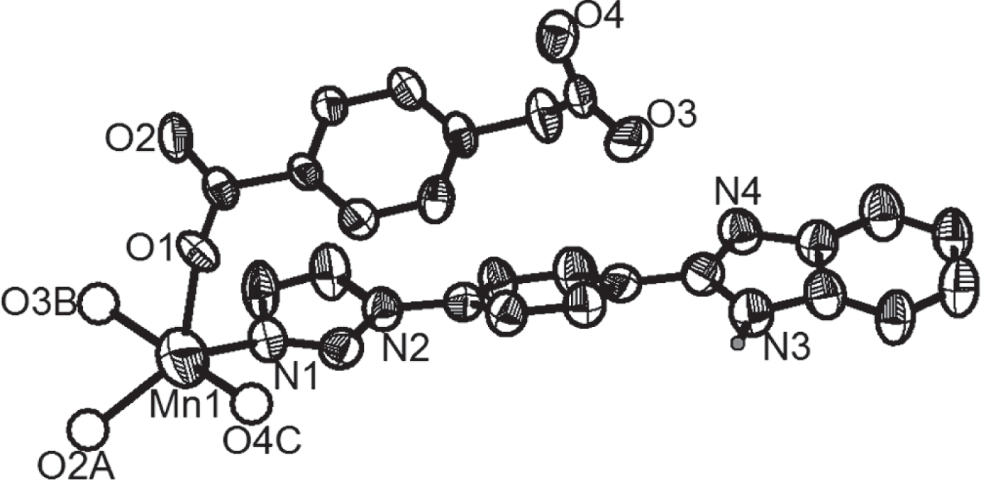

The asymmetric unit of the crystal structure is shown in the figure along with three further oxygen atoms from linking dicarboxylato ligands. Table 1 and 2 contain details on crystal structure and measurement conditions as well as a list of atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless block
Size:0.36 × 0.27 × 0.13 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:6.6 cm−1
Diffractometer, scan mode:Bruker CCD, φ and ω
2θmax, completeness:51.0°, 100%
N(hkl)measured, N(hkl)unique, Rint:13147, 3988, 0.048
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3030
N(param)refined:307
Programs:Bruker [1], SIR [4], SHELX [3], OLEX2 [2]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.60079(8)0.71814(5)0.99815(3)0.03904(19)
N10.5196(5)0.6261(4)0.92753(14)0.0501(10)
N20.4627(5)0.4587(3)0.87670(14)0.0473(10)
N40.2947(6)−0.0994(4)0.76946(14)0.0555(11)
N30.1763(5)−0.1306(4)0.84567(14)0.0564(11)
H30.1461−0.11510.87650.068*
O10.8310(4)0.6103(3)1.00813(11)0.0507(8)
O21.0480(5)0.6174(3)0.95566(12)0.0562(9)
O30.7364(5)−0.1410(4)0.95515(18)0.0947(15)
O41.0005(5)−0.0842(3)0.94657(13)0.0591(10)
C10.4472(6)0.5128(5)0.92352(17)0.0515(13)
H10.39020.47260.95020.062*
C20.5560(9)0.5447(5)0.8491(2)0.081(2)
H20.59040.53500.81550.098*
C30.4098(6)0.3313(4)0.86128(17)0.0448(11)
C40.3848(7)0.3050(5)0.81014(17)0.0625(14)
H40.39940.37010.78590.075*
C50.3383(7)0.1812(5)0.79589(19)0.0618(15)
H50.32060.16370.76160.074*
C60.3167(6)0.0811(4)0.83096(18)0.0457(11)
C70.3398(6)0.1105(5)0.88209(18)0.0520(13)
H70.32330.04620.90650.062*
C80.3872(6)0.2347(4)0.89674(18)0.0510(13)
H80.40390.25300.93100.061*
C90.2664(6)−0.0484(4)0.81478(18)0.0491(12)
C100.2186(6)−0.2219(5)0.77097(17)0.0526(12)
C110.2089(8)−0.3183(5)0.7342(2)0.0680(16)
H110.2599−0.30740.70270.082*
C120.1215(8)−0.4310(6)0.7457(2)0.0769(18)
H120.1133−0.49670.72140.092*
C130.0453(9)−0.4485(6)0.7929(2)0.085(2)
H13−0.0133−0.52530.79950.102*
C140.0555(8)−0.3540(5)0.8296(2)0.0746(18)
H140.0045−0.36530.86110.089*
C150.1432(6)−0.2422(5)0.81850(18)0.0562(14)
C160.9237(6)0.5599(4)0.97416(16)0.0402(11)
C170.8858(6)0.4238(4)0.95548(15)0.0349(10)
C180.9760(6)0.3738(4)0.91459(17)0.0437(11)
H181.05760.42490.89880.052*
C190.9454(6)0.2493(4)0.89726(19)0.0481(13)
H191.00420.21840.86910.058*
C200.8302(6)0.1698(4)0.92056(17)0.0407(11)
C210.7428(6)0.2178(4)0.96202(17)0.0477(12)
H210.66650.16420.97890.057*
C220.7676(6)0.3455(4)0.97895(16)0.0417(11)
H220.70460.37771.00600.050*
C230.7964(7)0.0331(4)0.90037(18)0.0557(14)
H23A0.67720.02480.89280.067*
H23B0.85810.02120.86890.067*
C240.8464(7)−0.0728(4)0.93719(17)0.0407(12)
C250.5884(9)0.6464(5)0.8798(2)0.0812(19)
H250.64890.72030.87030.097*

Source of materials

A mixture of Mn(OAc)2⋅4H2O (49.1 mg, 0.2 mmol), homoterephthalic acid (4-(carboxymethyl)benzoic acid, H2htpa, 18.2 mg, 0.1 mmol), 2-(4-imidazol-1-yl)-1H-benzimidazole (imb, 26.2 mg, 0.1 mmol) and H2O (7 mL) was placed in a 23 mL Teflon-lined autoclave at 393 K for 4 days, then cooled to room temperature. Colourless block crystals were obtained in ca. 75% yield. Elemental analysis calcd. (%) for C25H18N4O4Mn: C, 60.86; H, 3.68; N, 11.36. Found: C, 60.81; H, 3.74; N, 11.34. All chemicals for synthesis were of reagent grade and used as received without further purification.

Experimental details

Hydrogen atoms were refined as riding hydrogen atoms at their calculated positions. The Uiso of the H-atoms were constrained to 1.2 times the Ueq of their parent atoms.

Discussion

Coordination polymers based upon assembly of metal ions and multifunctional organic ligands are rapidly developing in chemical and material sciences and emerging as an important family of porous materials is due to their potential applications as functional materials but also their structural diversities [5], [6], [7], [8], [9]. Rigid multicarboxylate ligands have been employed in MOF chemistry for their strong coordination abilities and high thermal stabilities [10], [11], [12]. Flexible multicarboxylate ligands, expecially those with CH2 groups between the carboxylate and the aryl moiety, have been documented recently to rotate about the C—C bond to obtain attractive topologies and interpenetration structures [13, 14] . Whereas, semi-rigid aromatic multi-carboxylate ligands with rigid and flexible carboxylate groups have been rarely investigated [15, 16] , which may be attributed to the unpredictable structures or unfavourable crystallization conditions. Furthermore, the 2-(4-imidazol-1-yl)-1H-benzimidazole as a rigid N-donor ligand with four potential N coordination sites has rarely been concerned. Therefore, we select 4-carboxymethylbenzoic acid with the combination of rigid –COOH and flexible –CH2COOH carboxyl groups as the main ligand, and the nitrogen-rich 2-(4-imidazol-1-yl)-1H-benzimidazole as a N-donor linker, to construct the target compound.

The asymmetric unit contains one crystallographic Mn(II) ion, one htpa dianion and one imb molecule, as shown in Figure (A:−0.5 + x, 1.5 − y, 2 −z; B:x, 1 + y, z; C: −0.5 + x, 0.5 −y, 2 − z). The Mn(II) ion shows a five-coordinated environment in form of a distorted trigonal bipyramid [MnNO4], in which the central atom is coordinated by four oxygen atoms (O1, O2A, O3B, O4C) from four symmetry-related htpa dianions and, one N1 atom from one imb coligand. Whereas the two unflexible carboxy groups coordinate via O1 and O2A plus N1 in the equatorial plane, O3B and O4C lie in axial positions. Among them, the Mn—O bond lengths are in the range of 2.119(3) to 2.152(3) Å, and the Mn—N bond length is 2.181(4) Å, respectively. Mn(II) ions are connected by two carboxyl groups from two htpa anions adopting double-bridging coordination mode along a direction to expand into a metal-carboxylate chain with the Mn…Mn distance of 4.0227(5) Å. The adjacent metal-carboxylate chains are further connected by htpa dianions adopting double-bridging coordination mode with the shortest Mn…Mn separation of 10.2389(15) Å to form infinite two-dimensional metal-carboxylate layers. The neutral imb ligands are only used as suspension booms because only one nitrogen atom in the imb coligand is involved in the coordination. There exist intralayer H-bonding interactions in the compound via the participation of nitrogen atom from imb molecule and carboxylate O atom from htpa anion (N(3)—H(3)…O(4): d = 3.037(5) Å). The adjacent layers are stacked together in a –ABAB– motif by van der Waals interactions to form its entire three-dimensional supramolecular structure.

Acknowledgement

This work was supproted by the Foundation of Science and Technology of Henan Province (grant no. 162102210304).

References

Bruker AXS Inc., SAINT & Apex, Madison, Wisconsin, USA, 2001.Suche in Google Scholar

Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar

Burla, M. C.; Caliandro, R.; Carrozzini, B.; Cascarano, G. L.; Cuocci, C.; Giacovazzo, C.; Mallamo, M.; Mazzone, A.; Polidori, G.: Crystal structure determination and refinement via SIR2014. J. Appl. Cryst. 48 (2015) 306–309.10.1107/S1600576715001132Suche in Google Scholar

Li, H.; Eddaoudi, M.; O’Keeffe, M.; Yaghi, O. M.: Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 402 (1999) 276–279.10.1038/46248Suche in Google Scholar

Xuan, W. M.; Zhu, C. F.; Liu, Y.; Cui, Y.: Mesoporous metal-organic framework materials. Chem. Soc. Rev. 41 (2012) 1677–1695.10.1039/C1CS15196GSuche in Google Scholar

O’Keeffe, M.: Design of MOFs and intellectual content in reticular chemistry: a personal view. Chem. Soc. Rev. 38 (2009) 1215–1217.10.1039/b802802hSuche in Google Scholar

Eddaoudi, M.; Kim, J.; Wachter, J. B.; Chae, H. K.; O’Keeffe, M.; Yaghi, O. M.: Porous metal-organic polyhedra: 25 Å cuboctahedron constructed from 12 Cu2(CO2)4 paddle-wheel building blocks. J. Am. Chem. Soc. 123 (2001) 4368–4369.10.1021/ja0104352Suche in Google Scholar

Dybtsev, D. N.; Chun, H.; Kim, K.: Rigid and flexible: a highly porous metal-organic framework with unusual guest-dependent dynamic behavior. Angew. Chem. Int. Ed. 43 (2004) 5033–5036.10.1002/anie.200460712Suche in Google Scholar

Bourne, S. A.; Lu, J.; Mondal, A.; Moulton, B.; Zaworotko, M. J.: Self-assembly of nanometer-scale secondary building units into an undulating two-dimensional network with two types of hydrophobic cavity. Angew. Chem. Int. Ed. 40 (2001) 2111–2113.10.1002/1521-3773(20010601)40:11<2111::AID-ANIE2111>3.0.CO;2-FSuche in Google Scholar

Zou, R. Q.; Bu, X. H.; Zhang, R. H.: Novel eclipsed 2D cadmium(II) coordination polymers with open-channel structure constructed from terephthalate and 3-(2-pyridyl)pyrazole: crystal structures, emission properties, and inclusion of guest molecules. Inorg. Chem. 43 (2004) 5382–5386.10.1021/ic049625eSuche in Google Scholar

Ye, B. H.; Ding, B. B.; Weng, Y. Q.; Cheng, X. M.: Multidimensional networks constructed with isomeric benzenedicarboxylates and 2,2′-biimidazole based on mono-, bi-, and trinuclear units. Cryst. Growth Des. 5 (2005) 801–806.10.1021/cg049742kSuche in Google Scholar

Pan, L.; Adams, K. M.; Hernandez, H. E.; Wang, X. T.; Zheng, C.; Hattori, Y.; Kaneko, K.: Porous lanthanide-organic frameworks: synthesis, characterization, and unprecedented gas adsorption properties. J. Am. Chem. Soc. 125 (2003) 3062–3067.10.1021/ja028996wSuche in Google Scholar PubMed

Xin, L. Y.; Liu, G. Z.; Wang, L. Y.: New coordination polymers from 1D chain, 2D layer to 3D framework constructed from 1,2-phenylenediacetic acid and 1,3-Bis(4-pyridyl)propane flexible ligands. J. Solid State Chem. 184 (2011) 1387–1392.10.1016/j.jssc.2011.04.002Suche in Google Scholar

Tian, Z. F.; Duan, H. B.; Xuan. F.; Ren, X. M.: A novel heterostranded double-helical coordination polymer with chiral channels emitting blue fluorescence. Inorg. Chem. Commun. 12 (2009) 417–419.10.1016/j.inoche.2009.03.004Suche in Google Scholar

Liu, G. Z.; Li, X. D.; Li, X. L.; Wang, L. Y.: Structural and fluorescent regulation of Cd(II) coordination polymers with homoterephthalate by N-donor second ligands. CrystEngComm 15 (2013) 2428–2437.10.1039/c3ce26781dSuche in Google Scholar

Received: 2017-2-4
Accepted: 2017-6-16
Published Online: 2017-7-5
Published in Print: 2017-9-26
