Real-time semantic segmentation based on BiSeNetV2 for wild road

2.1 Real-time semantic segmentation

Methods such as high-resolution feature and complex network structures are usually used to improve segmentation accuracy. But deep convolutional neural networks with high-resolution feature or complex structures have the disadvantage of requiring large float operations, and their real-time performance is greatly challenged. Due to the limitation of hardware resources and the requirement for real-time performance, wild road segmentation models need to increase the inference speed while maintaining high segmentation accuracy. Therefore, it is crucial to improve the speed of semantic segmentation models on mobile devices.

DFANet [41] uses a lightweight backbone network to improve the prediction speed. The core idea of its sub-network aggregation is to optimize the front network with the back network. The goal of its sub-stage aggregation is to achieve the exchange of spatial and semantic information between different network layers to alleviate the problem of information loss due to increasing network depth. Faste segmentation convolutional neural network (Fast-SCNN) [42] uses deeper branches to obtain global context for low-resolution features and applies shallower networks to learn detailed information for high-resolution features to reduce the computational effort of the network. ShelfNet [43] improves inference speed by reducing the number of channels, but its multiple codec branch pairs extract detailed information on different levels of the backbone network, which may lead to duplicate feature extraction and thus structural redundancy problems. ICNet [44] uses low-resolution branches to obtain semantic information and medium and high-resolution branches to recover and refine the coarse prediction results, respectively. The three branches are cascaded to achieve progressive fusion. BiSeNetV2 [45] uses two independent branches of different depths to obtain low-level detailed information and high-level semantic information, respectively, thus achieving a balance between inference speeds. However, the independence of the two branches at the shallow level not only results in a lack of communication between the detailed and semantic information, but also may generate unnecessary computational effort because the deep semantic information usually depends on the shallow detailed information.

2.2 Real-time semantic segmentation for the wild road

There have been some segmentation networks, such as LSPANet [46] and WFDCNet [47], that take real time into account, but most of them are built and trained based on open datasets containing structured roads and simple unstructured roads. Although they achieve good results, the performance of these models may not be optimal on complex wild roads. In this study, we build an IDSIAFS dataset mainly containing a large number of wild road images and use it as a benchmark to train a network that is better adapted to the wild road environment.

3.1 Overview

The wild road real-time semantic segmentation model MICNet proposed in this study adopts an encoder–decoder framework and is an improvement based on BiSeNetV2 [45], which consists of four main components: Information Sharing Layer (ISL), TPSIL, DGM, and Aggregation Layer (AL) [45]. The ISL and the TPSIL form the encoder, and the decoder consists of the AL.

The structure of MICNet is shown in Figure 2. First, the original image is input into ISL (a) to obtain shallow spatial information. Second, the TPSIL (b) converts the shallow detail information into deeper semantic information. Finally, the AL (d) is used to selectively aggregate the spatial and semantic information to obtain the final inference results. In addition, a DGM (c) is added at the end of the ISL, and used two identical auxiliary loss modules in the TPSIL to improve the model training process.

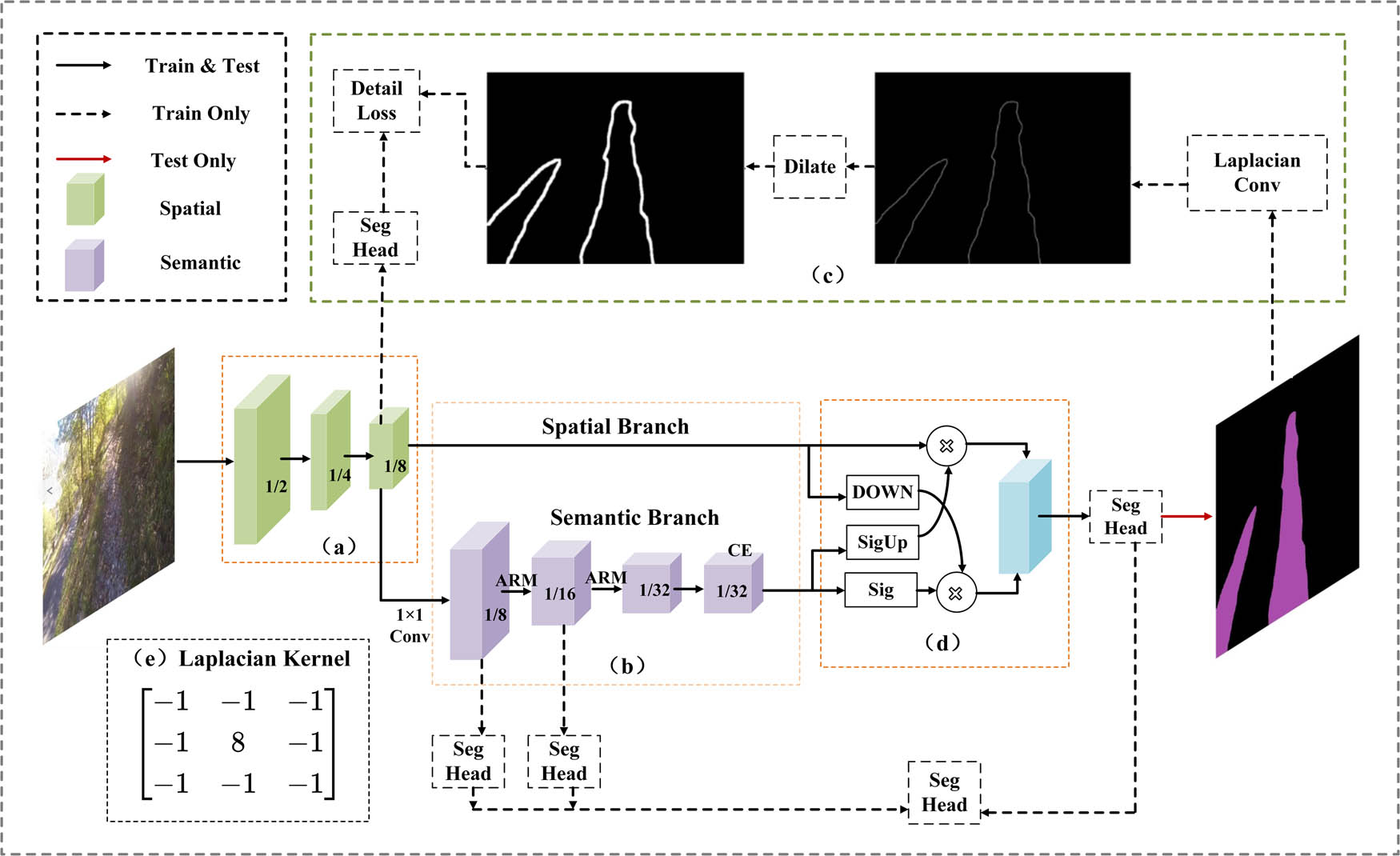

Figure 2

General overview of MICNet: (a) ISL, (b) TPSIL, (c) DGM, (d) AL – CE is the contextual embedding, and (e) Laplacian convolution kernel.

Compared with BiSeNetV2, the AL and CE modules are retained, and substantial changes are made to the overall network structure. The shallow spatial information and deep semantic information is incorporated, which improves the segmentation accuracy of wild roads without sacrificing low-level detail information. A MICM is also designed, which combines different scale receptive fields and multi-depth semantic information to improve accuracy while alleviating the waste of computational resources caused by the repeated computation of similar semantic information. The TPSIL includes both the CE and MICM modules.

3.2 ISL

The two branches of BiSeNetv2 have no information exchange in the shallow layer. Considering that the semantic information in the deep layer always comes from the spatial detail information in the shallow layer, we do not adopt its completely independent two-way backbone network structure but only use its detail branch. This is equivalent to leaving the extraction of semantic information at the shallow level in the semantic branch to the ISL, which enables the exchange of semantic and spatial information at the shallow level of the network and can reduce the computational overhead of the model. The first half of the ISL as the encoder part mainly consists of 3 × 3 standard convolution, batch normalization, and rectified linear unit (ReLu). We divide the ISL into three stages (S1, S2, and S3) by adjusting the number of output channels of the convolution kernel, the step size, and the number of repetitions. The details are illustrated in Table 1.

3.3 TPSIL

The TPSIL, as the second half of the encoder part, mainly consists of the spatial branch and the semantic branch, respectively. Specifically, the spatial branch does not perform any operation on the put shallow spatial information, and the semantic branch is responsible for converting the shallow spatial information into more advanced semantic information. In the semantic branch, we first use 1X1 convolution to convert the spatial information into shallow semantic information and compress the number of channels to reduce the computational effort. Subsequently, instead of using the GE [45], MICM and the Attention Refinement Module (ARM) in BiSeNetV1 [38] are used to iteratively extract the higher-level semantic information. Table 2 shows its detailed construction process. In order to reduce the complexity of the model structure, ARM is directly concatenated into semantic branches to make the model more focused on useful feature information, and it is found that this also yields better results. Finally, the semantic features are embedded with the contextual information containing the strongest semantics through global average pooling and residual concatenation in CE.

Compared with the GE module of BiSeNetV2, the core design idea of MICM is to emphasize more on the fusion of multi-scale receptive field and multi-depth semantics and to reduce the computational overhead of deep semantic information due to the excessive number of channels.

To reduce the computational effort of MICM, we first use a 3 × 3 convolution to decrease the feature map’s size rapidly. As shown in Figure 3, four paths are extended from different depths of the backbone, namely, Path1, Path2, Path3, and Path4. Except for the first two paths, the later paths have increasing perceptual field size as the backbone network deepens. Table 3 shows the perceptual field size of each path. The multi-scale perceptual field facilitates the model to learn the wild road features with different sizes, thus alleviating the problem of pixel-level classification errors due to the variation of road size. Moreover, as the path labeling increases, each path has more advanced semantic information due to its extension from different depths of the backbone. The fusion of multi-depth semantics by splicing all paths can alleviate the problem of shallow semantic information loss due to the deepening of the network within the module. In order to alleviate the problem of poor fusion performance due to possible excessive information differences in features of different depths, a 1 × 1 convolution at the end of each path except path4 is used to moderate the information differences. The shallow layer inside the module contains more semantic information, while the deep semantic information is often a generalization of the shallow semantic information, so assigning too many channels to the deeper network may result in a waste of computational resources. The deeper the network, the more detailed information is lost, and the deep network has too many channels without exchanging information with the shallow network, which may also cause the model to stick to learning useless detailed information that is not lost, thus affecting the training effect. In the channel number setting of MICM, the deeper the depth, the smaller the channel number, and the final output of MICM module is.

where X _out denotes the output of MICM; M denotes the number of channels; F denotes the fusion operation; and P ₁, P ₂, P _3, and P ₄ are the output feature maps of each path.

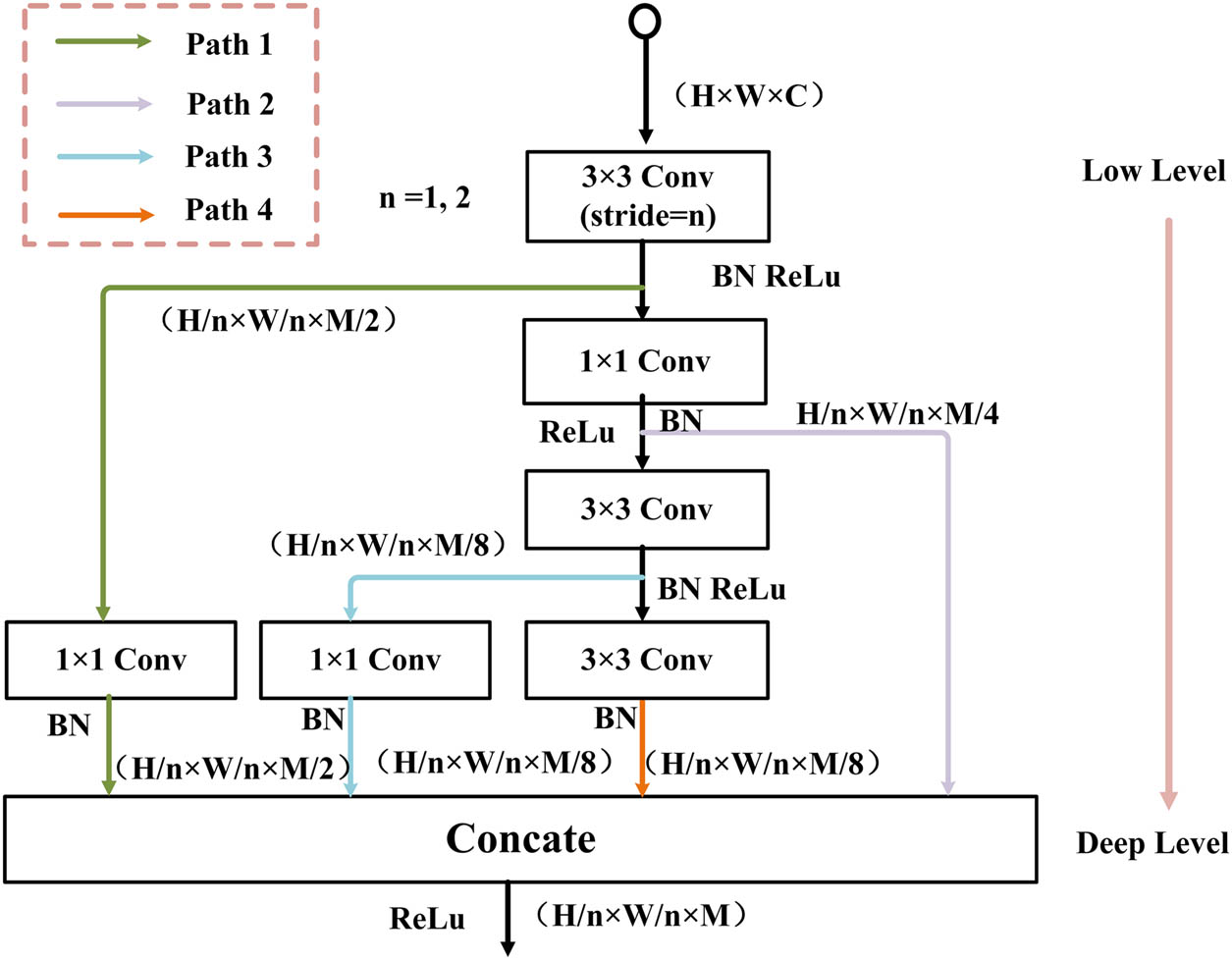

Figure 3

Description of the information splicing module.

3.4 DGM and auxiliary loss

The DGM is introduced to guide the shallow layer (Stage 3) to learn more detailed information, and its specific structure is shown in Figure 2(c). It mainly consists of a 2D Laplacian convolution kernel (e) as well as a maximum pooling layer. First, we perform a Laplacian convolution operation (stirde = 1) on the semantic segmentation truth map to obtain the detailed feature map. Subsequently, the detailed feature map is dilated using a maximum pooling layer with a kernel size of 5 to obtain enhanced detailed information. Finally, the detailed information is transformed into a binary detail ground truth with rich road boundary information by using a threshold of 0.1.

Although a dilation operation is used to enrich the boundary information, the number of pixels containing road boundary information is still much less than the number of pixels at the non-road boundary, which leads to the class imbalance problem. In the study by Deng et al. [48], dice loss can be used to calculate the similarity between two samples and is applicable to the case of class imbalance. However, using dice loss alone can have a detrimental effect on backpropagation, which leads to unstable network training. For this reason, a combination of binary cross-entropy and dice loss is used to optimize the detailed learning. The final detailed loss formula is as follows:

where P denotes the prediction result, g denotes the detailed ground-truth, L _dice denotes the dice loss, and L _bce denotes the binary cross-entropy loss.

In this study, the Segment Head (Seg Head, in Figure 4) is set at different positions of the DGM and the semantic branch for training assistance. The Seg Head is also used for the final prediction acquisition. It contains 3 × 3 convolutions, batch normalization, ReLU, and a standard 1 × 1 convolution. All Seg Heads used for detail bootstrapping and auxiliary loss in the inference phase do not consume computational resources, and these parts are only useful in the training phase. In our approach, the Semantic Segmentation Head’s C _m is set to 1024, which is used to obtain the segmentation results, and the other auxiliary prediction heads have their C _m set to 128.

Figure 4

Structure of the Segment Head: a is used to control the size of the split header output.

4.1 Benchmarks

To enhance the generalization ability of the model, it is necessary to have a wild road dataset that accounts for diverse factors such as climate changes and variations in lighting conditions throughout the day. In this study, we have used three benchmark datasets, namely, IDSIA, Cityscapes, and IDD, as the foundational datasets.

The IDSIA dataset [37] is used as the foundation for our wild road semantic segmentation dataset. Although the original IDSIA was collected from forest trails in the Swiss Alps and accounted for seasonal and lighting factors during the collection process, it was primarily created for image classification tasks as shown in Figure 5. Therefore, we manually re-tuned the annotation process of the dataset for segmentation tasks using the semi-automated annotation tool PaddleSeg [49], resulting in the creation of the IDSIAFS (IDSIA For Segmentation) dataset. The images of IDSIA were captured together by three cameras in three different directions, allowing them to be divided into three classes (middle, left 30°, and right 30°) and used to train the classification networks that control the flight direction of the unmanned aerial vehicle along the road. However, when considering semantic segmentation as a pixel-level classification task requiring higher input image resolution, the actual images captured by the IDSIA (which reach up to 1,280 × 720) are often blurry due to the quality of the cameras. Directly inputting such images into the semantic segmentation network may cause a waste of computational resources and introduce unnecessary noise to the network, ultimately degrading training effectiveness. Therefore, the input image resolution was adjusted to 640 × 480 to remove unnecessary interference information during model training. Additionally, only images captured by the middle camera were used, and those with excessive light intensity or blur were removed. The annotation process of the dataset involved categorizing objects in each image into two categories (road areas and non-road areas).

Figure 5

Original samples of IDSIAF.

To ensure that the IDSIAFS can also be used to train models for structured and normal unstructured roads, we do not exclude the images of non-extreme structured roads (asphalt, concrete, etc.) from the IDSIA, which account for about 30% of the entire dataset. Finally, the IDSIAFS is randomly divided into three parts: training, validation, and testing set. The number of images in the training set is 6,049, and the corresponding number in both the validation and testing sets is 981. Some manually annotated samples of IDSIAFS are shown in Figure 6.

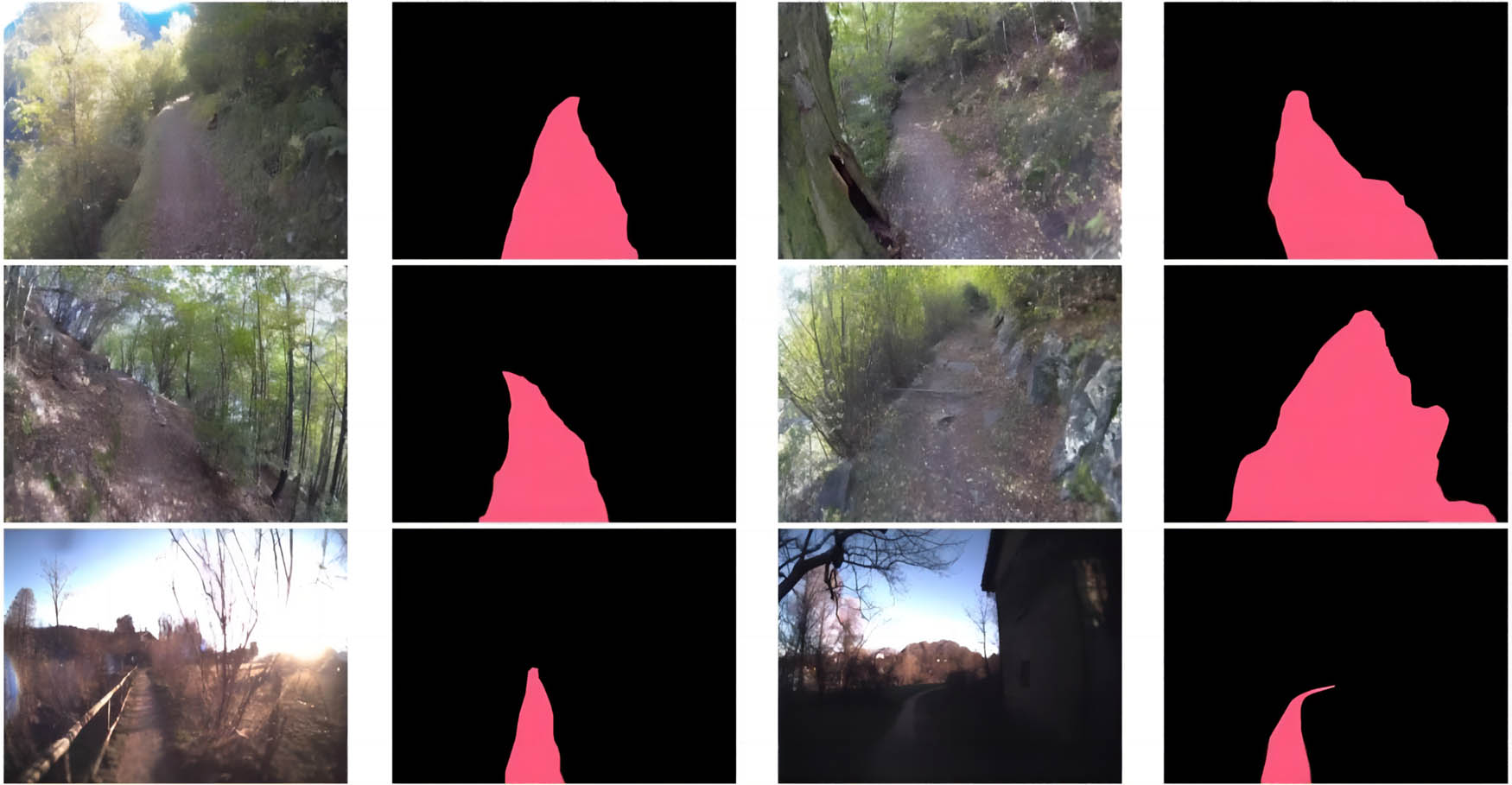

Figure 6

Manually annotated samples of IDSIAFS.

The Cityscapes dataset is a semantic parsing dataset for urban road scenes, which was captured from a car and comprises 2,975, 500, and 1,525 images in the training, validation, and testing sets, respectively. For the semantic segmentation task, annotations for 19 image classes are provided, but in this study, only the road class is used, with all other classes considered as non-road areas during training.

Compared with Cityscapes, IDD dataset contains more images of unstructured roads in urban and rural areas with less developed infrastructure. These roads often have blurred boundaries, but their pavement features are still relatively simple and obvious, and there are very few images of extreme unstructured roads. The IDD dataset has three classes for chosen, with higher class indicating a higher number of category labels. In this study, we use class 1, and all objects in the dataset are divided into seven classes. Six classes except the Drivable class are classified as off-road areas during training, while the Drivable class is classified as drivable areas. The dataset consists of 20,000 images and is divided into three sets. The number of images in the training, validation, and testing sets is 14,027, 2,036, and 4,038, respectively.

4.2 Implementation details

To ensure fairness, the same training code is used for different models on the same dataset. All models are initialized using “Kaiming Normal” [50] and trained from scratch. Stochastic gradient descent is employed for training with momentum of 0.9 and weight decay of 0.001. The batch size for IDSIAFS, IDD, and Cityscapes is set at 32, 24, and 16, respectively. A poly learning rate strategy is adopted, as shown in the following equation:

where power is 0.9 and the initial learning rate is 0.02. The iterations for training IDSIAFS, IDD, and Cityscapes are set at 40k, 60k, and 100k, respectively.

Additionally, a warm-up strategy is adopted during the first 1,000 iterations. Data augmentation techniques, such as color jittering, random horizontal flip, random crop, and random scaling, are utilized. The resolution of the random crop is set at 1,024 × 512 for both Cityscapes and IDD datasets, and 640 × 480 for IDSIAFS. The random scaling sizes include 0.5, 0.75, 1.0, 1.25, 1.5, and 1.75.

4.3 Ablation study

To better showcase the advantages of the ISL, TPSIL, and detail guidance module in the proposed MICNet model, this study conducts three different ablation experiments to prove the effectiveness of each layer or module. All ablation experiments for each module are trained on a self-built road dataset and the training sets of Cityscapes and IDD.

In Section 3.2, we have described how the ISL merges shallow semantic branches with spatial branches. To demonstrate its effectiveness, ablation experiments are carried out based on BiSeNetV2, and the results are shown in Table 4. When ISL is used on IDSIAFS, it achieves a 0.2% improvement in accuracy for wild roads while reducing the number of parameters and increasing the inference speed by 101 FPS. Additionally, we conduct experiments on both Cityscapes and IDD datasets to verify the effectiveness of the ISL on other datasets. The experiments show that the proposed method is effective on IDSIAFS. Furthermore, the accuracy also improves by 0.4 and 0.2% on Cityscapes and IDD datasets, respectively.

The IDD dataset has more unstructured roads but does not have extremely unstructured wild road images compared to IDSIAFS.

The ablation experiments of ISL have also been carried out based on the proposed MICNet, and the results are shown in Table 5. The segmentation accuracy of the proposed model is improved on both IDSIAFS and Cityscapes after using ISL. Although the same IoU results are obtained on the IDD dataset, the inference speed is improved by ISL, which also reflects the role of the ISL in facilitating information exchange and reducing computation in shallow networks.

To compare the effectiveness of our MICM to the GE module on the IDSIAFS dataset, we replace all MICMs in the proposed method with GE to perform comparative experiments. By comparing the results shown in the first row with the second row in Table 5, the inference accuracy decreases by 0.2%, the number of parameters increases by 0.4 M, and the inference speed decreases by 66.6 FPS after replacing MICM with GE. This indicates that the multi-scale sensory field fusion and the multi-depth semantic information splicing of MICM are beneficial for wild road segmentation. Meanwhile, reducing the number of channels of deep feature maps within the module does not significantly impact MICM but reduces the computational effort. The experimental results in the first and last rows of Table 6 demonstrate the effectiveness of ARM. ARM can achieve a 0.6% improvement in prediction accuracy with only a slight increase in computational overhead.

The DGM is involved in the computation during the training phase, to guide the shallow network to learn more detailed information. In order to determine the size of the dilated convolution kernel that makes our model optimal, ablation experiments of the DGM are performed on the validation set of IDSIAFS by varying the kernel size. According to the experimental results as shown in Table 7, we finally determined the kernel size to be 5. Furthermore, ablation experiments of the proposed model with and without the DGM are also performed. The experimental results in the first and third rows of Table 6 show that the DGM can improve the accuracy by 0.9% on the IDSIAFS dataset without increasing the computational resource overhead in the inference phase.

4.4 Compared with state-of-the-arts

As shown in Table 8, as MICNet is significantly improved on the basis of BiSeNetV2, its performance metrics have been improved. Specifically, the IoU accuracy of MICNet has increased by 0.9% on the validation set and 1.2% on the test set. In terms of parameter volume, MICNet has decreased the number of parameters by 0.6M. In terms of inference speed, MICNet has increased by 262 frames per second, i.e., an increase of 59.2% in speed. Compared with Fast-SCNN, BiSeNetV1, and STDC, the IoU accuracy of MICNet is 2.3, 0.7, and 0.7% higher on the validation set and 1.5, 0.8, and 1% higher on the test set, respectively. Although Fast-SCNN has the lowest number of parameters, too few parameters also lead to its worst performance among all networks. It is worth mentioning that BiSeNetV2 is an upgrade and improvement of BiSeNetV1, but its accuracy on wild roads in this study is lower than that of BiSeNetV1. This reflects that the improvement direction of the model is constrained by the dataset: a model that performs well on urban road data sets does not necessarily perform optimally on wild roads. To demonstrate the effectiveness of MICNet, the visual segmentation results of the proposed model and other benchmark models on IDSIAFS are illustrated. In Figure 7, it can be observed from the first row of images that even though the roads in the ground truth are not fully labeled due to the roads being obscured by tree branches during manual labeling, the model is still able to have predictions for the obscured roads by learning information from the whole dataset. It shows that MICM can prevent the model from sticking to useless details. The remaining three rows of images show that our model is more sensitive to edge detailed information of the distant wild roads, and the segmentation results fit the distant road boundaries better.

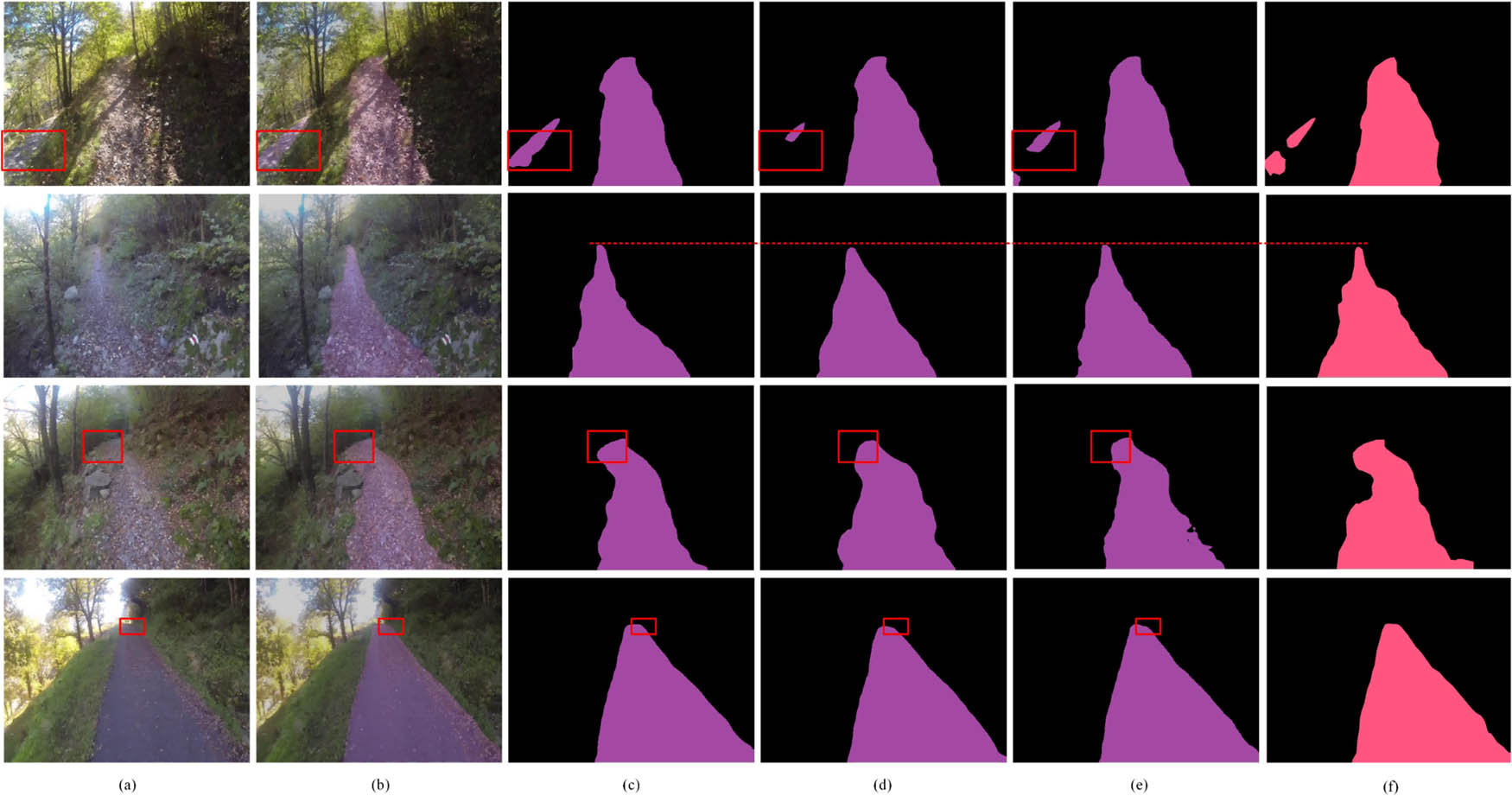

Figure 7

Visual segmentation results on IDSIAFS: (a) is the input image, (b) is the projection of the predicted output on the input image, (c) is the result of MICNet, (d) and (e) are the results of BiSeNetV2 and STDC, respectively, and (f) is the ground truth of the input image.

To evaluate the performance of the proposed model on structured roads, the experiments of our model and some other state-of-the-arts are carried out on Cityscapes and IDD. Table 9 shows that the IoU accuracy and calculation time consumption of MICNet in Cityscapes are optimal. Compared with BiSeNetV2, although the IoU is only increased by 0.2%, the FPS improvement rate reaches 50.8%. Compared with all networks, the lightweight STDC’s overall performance is medium. Although Fast-SCNN has the lowest number of parameters, it has the most insufficient segmentation accuracy compared with other models and even a lower inference speed than MICNet. This shows that pursuing low parameter quantities without considering the rational design of the model structure will lead to poor performance on key performance indicators.

On the IDD dataset, although MICNet is 0.3% worse than the BiSeNetV1 in terms of IoU, the inference speed is increased by 65.3%. The maximum difference in IoU accuracy for all models except Fast-SCNN is only 0.4%. This is because the IDD dataset is collected from Indian streets with more unstructured roads, but its pavement features are simpler and more uniform than Cityscapes and the wild road dataset in this study. The data are easy to distinguish, which leads to the fact that all models are almost optimal during the training process. Therefore, it is difficult to further improve the segmentation accuracy, even if the models are well designed. In general, the higher the resolution of the image input to the model, the more time-consuming its computation will be. However, comparing with Table 8, it can be observed that regardless of the resolution of the input images, the inference speed of Fast-SCNN is almost the same. This is because although the frequent use of depthwise separable convolution can reduce the number of parameters, its structural characteristics will occupy a large amount of memory bandwidth.

4.5 Deployment experiments

To further verify the practicality of IDSIAFS and MICNet, we deployed MICNet trained on IDSIAFS directly to the Jetson Xavier NX, then tested it on a wild road, and further converted the segmentation result into the directional angle that could guide the car to move along the center-line of the road. In order to ensure stable operation of the Nvidia. Jetson Xavier NX in outdoor environments, it was mounted on a modified robot, as shown in Figure 8.

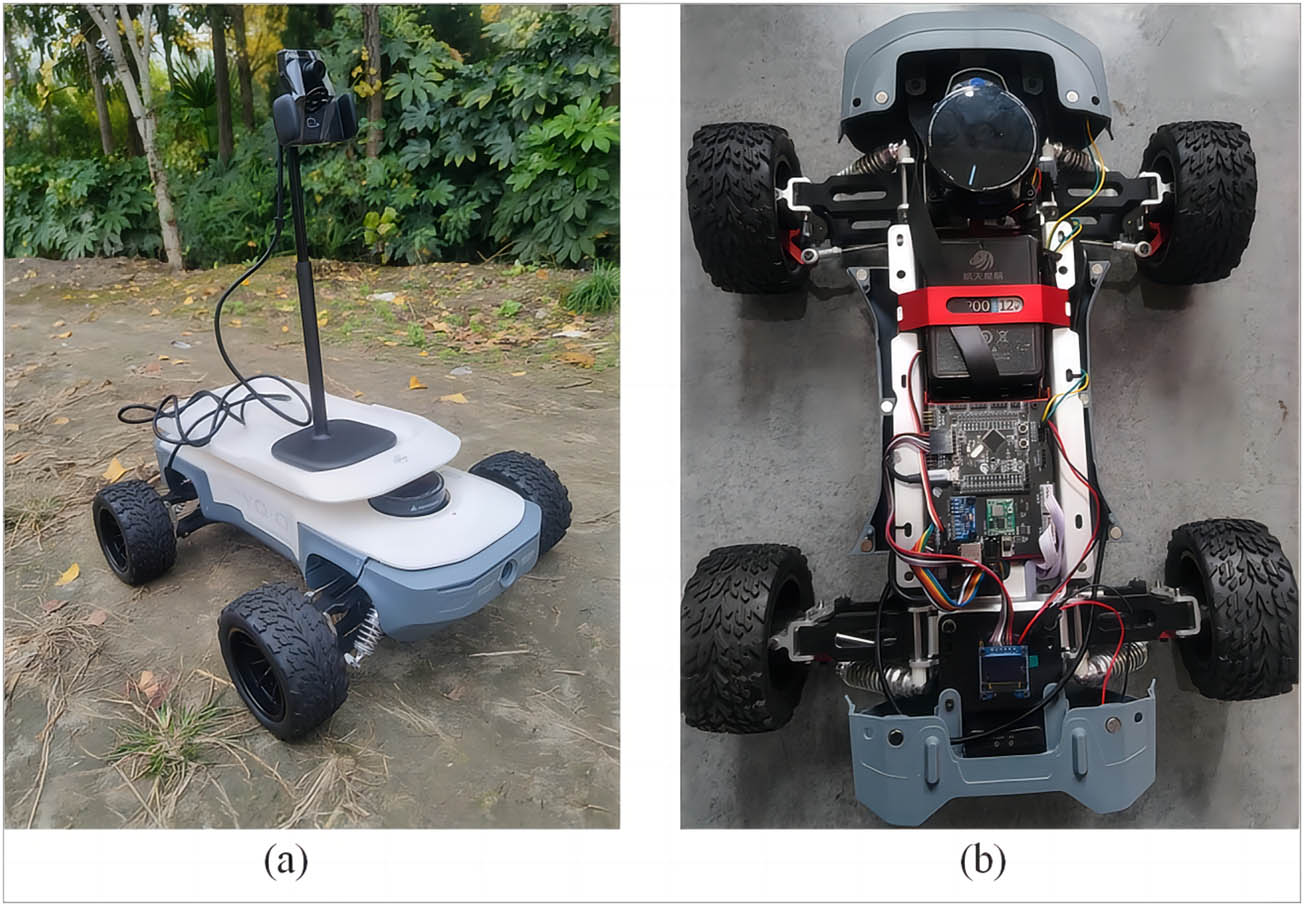

Figure 8

Outdoor testing robot: (a) modified robot and (b) Jetson Xavier NX-mounted module.

After acquiring the real-time image, the camera first uses the distortion correction method to correct the barrel distortion in the image, extracts the centerline of the road from the segmentation result obtained by predicting the corrected image, and selects the appropriate pixel points on the centerline as the target points for the car to move forward. Then, through perspective transformation, the pixel coordinates of the target point in the image are converted into coordinate points with high accuracy under the overhead view and finally converted into the directional angle required for the car to move forward. The reason for using perspective transformation is that because the number of pixel points occupied by objects close to the camera is much larger than that of objects far away from the camera view, there will be a significant error when the car’s driving direction angle is obtained directly from the pixel coordinates. Converting the pixel coordinates to the coordinates under the camera’s overhead view through perspective transformation can improve the accuracy of the directional angle calculation. The perspective transformation formula is as follows:

where H denotes the perspective transformation matrix, (x ″ , y ″ ) denotes the pixel coordinates, and (x″, y″) denotes the coordinates under the overhead view.

On the Jetson Xavier NX, it takes 0.04 s to calculate the directional angle for each picture frame, but it only takes 0.015 s for the model to predict each frame. This shows that the method in this study can meet the real-time requirements in the embedded system. Figure 9 shows the visualization of part of the calculation process of calculating the directional angle on the actual wild road. The segmentation results of the model on the actual wild road in Figure 9(b) demonstrate two aspects: the MICNet for wild road segmentation in this study has practical application ability, and the model trained based on the IDSIAFS also has good generalization ability in unfamiliar wild environments. In the third row of images, the model appears to be mis-segmented because the black shed in the lower left corner use dirt for fixation. However, in the later stage of extracting the road centerline, the method of taking the midpoint of the segment with the most consecutive pixels belonging to the road class as the road centerline point in a row can well compensate for the abnormal calculation of the deflection angle caused by this type of mis-segmentation. The robustness of the overall algorithm is further improved.

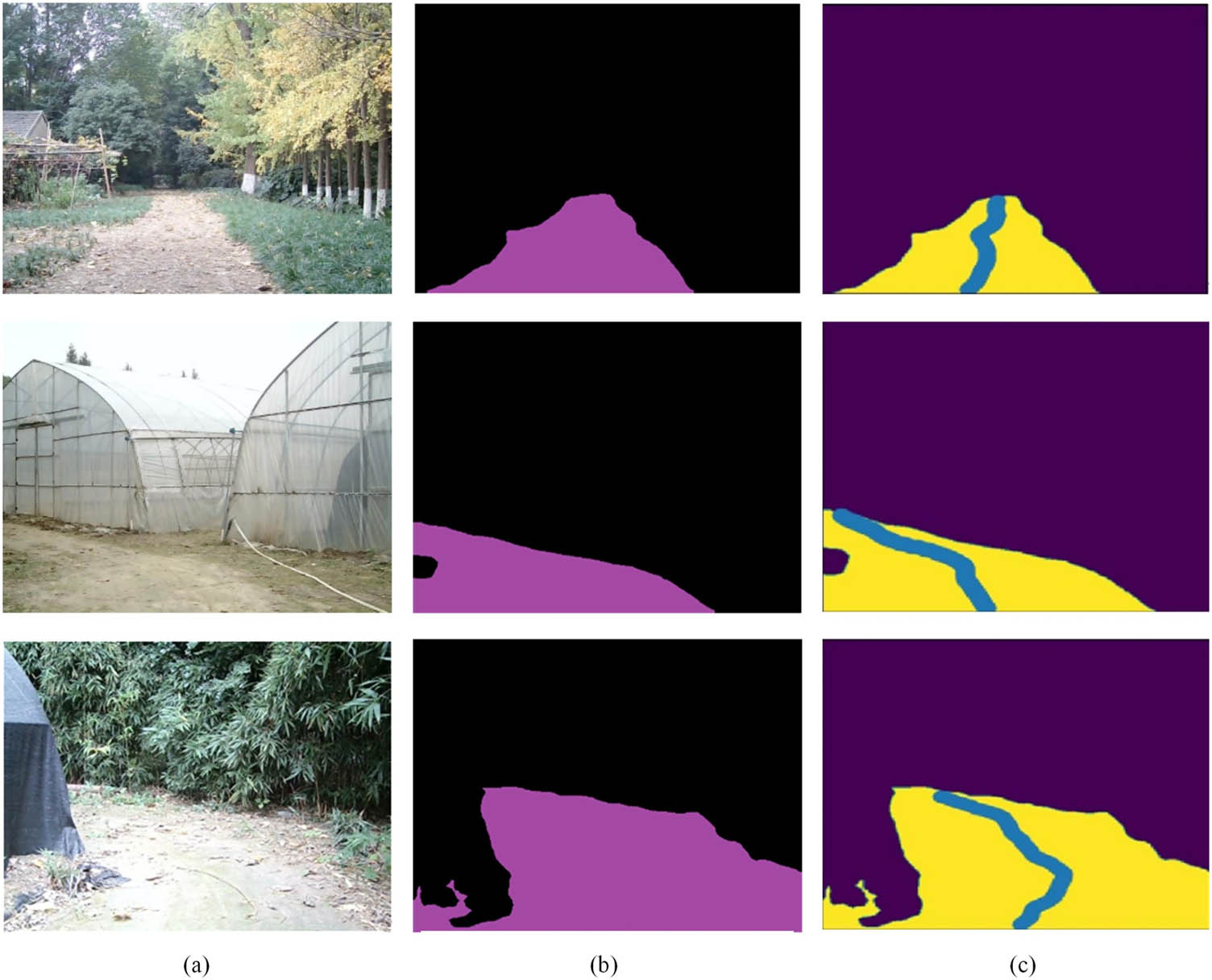

Figure 9

Visualization of the calculation results: (a) shows some examples of the results of the wild road image after camera distortion correction, (b) shows the wild road segmentation results, and (c) shows the road centerlines extracted from the segmented wild road.
