A speech-based convolutional neural network for human body posture classification

1 Introduction

Body posture analysis is useful for many applications, the most important of which being at-home health monitoring and assisted living. Tracking body postures in computer vision is a fundamental problem, taking into account the complexity of human postures, where there are thousands of human postures [1], and the lack of a publicly accessible dataset.

Through non-verbal communication, everyone possesses a wealth of knowledge, beliefs, and experience [2,3,4,5]. When you engage with people on a daily basis, three different types of non-verbal communication are used. The first deals with non-verbal communication; the second, with receiving them; and the third, with the intricate interaction between the first two. One, first communicates with people through sending (or encoding) non-verbal cues, sometimes consciously and sometimes not. In the former, your objective is for the other person to comprehend a certain message that you have sent to him through one or more non-verbal cue channels, such as your tone of voice, posture, and facial expression. Additionally, you could provide others with non-verbal cues without meaning to sent such a false message [6]; this kind of communication is not the focus of the research. However, there are times in which important information about your emotional state [7], attitudes [8], and intentions [9] leaks out of you non-verbally.

Researchers have used non-verbal actions to translate non-verbal communication in many applications in life [10], such as in health [11,12,13], where non-verbal communication was used in human physical therapy and health-care systems, in human–robot communication [14,15,16,17,18,19,20,21,22], to increase the intelligence of robots as understanding humans reactions and questions.

Virtual persons, also known as virtual characters with human-like bodily structures, have attracted a lot of researcher’s attention in recent years. We can employ non-verbal cues, which are widely used in face-to-face or human–robotics communication to clarify one’s intentions or the context of the words uttered, by incorporating these virtual individuals into a system [23,24,25].

Now that we have covered the non-verbal posture classification systems and their applications, it is time to talk about the verbal posture classification systems, which are human body posture classification systems (BPCS) that are based on speech as input information to classify body postures. The applications of such systems are not different from non-verbal systems since both are aiming at posture classification, but the difference between them is the input information. In non-verbal systems, the input is either image, video, or signals coming from sensors installed on the human body. Rather than verbal systems, where the input is speech and nothing else than speech.

Now, regardless of all the research on non-verbal human posture classification, there is a big gap in verbal human posture classification, which is the target of this work. Verbal human posture classification means translating speech to human body postures, as this article will define in detail; in other words, this work aims to identify the human body postures from the human speech at that same moment.

The limitation of the literature is in translating human verbal to human body postures [26], mentioning that some of the researchers have detected robot head actions and translated them to emotions, some translated body actions to emotions [27,28], but none have translated speech to body actions, which is the target of this work.

The main contributions of this article are:

Presenting a novel BPCS based on speech using artificial hydrocarbon networks (AHN), which in turn will classify six different body postures of the human being using their speech. These six postures are walking, walking upstairs, walking downstairs, sitting, laying, and running.

• Such systems are essential when the data source is limited to speech only.

• Extracting Mel-frequency cepstral coefficient (MFCC) features from human speech, and the correlation-based feature selection (CFS) algorithm was used to remove the most correlated features and improve the system time-consuming.

The first problem for the proposed work is noise; if the speech source contains high noise, results will be affected. The second problem is the implementation of such systems in environments where speech is absent, which can be for many reasons, such as speechless human beings.

The remaining sections of the article are as follows: Section 2 reviews the methodology of the proposed system, Section 3 discusses the results, Section 4 discusses the limitations of the proposed work, Section 5 explains the limitations of the proposed work, and Section 6 discusses the conclusion and future work.

2 Related works

There are many approaches to classifying human postures depending on the type of input to those systems, such as image or video based, sensor based, and speech based as the target of this system.

Many researchers have worked on image-based posture classification, such as in 2021 [29], built a model using ResNet. The model was trained using the hierarchically labeled dataset Yoga-82. A novice will be able to understand several classification levels connected to a specific yoga pose with the aid of the designed model. The proposed model significantly outperformed previous models produced for tracking people’s fitness levels, providing a major boost to yoga applications.

Gaikwad et al. [30] implemented an LSTM-based self-data procurement system that was followed by real-time body posture recognition. The accuracy of the posture classification is 93.75%. If the present frames are not correct, the results will be shown right away. Because they can see the accuracy of their performance in real time, users can rapidly fix their posture even if they perform their exercises incorrectly.

Madake et al. [31] proposed a viable method for identifying golf swings with computer vision techniques, which may have an impact on improving sports performance monitoring. To identify different swing types and postures, including the backswing, downswing, and follow through, videographic data of golf swings were used. Dense and sparse optical flow were employed by the system to determine the trajectory of the golf club. The histogram of oriented gradients is then used to extract the characteristics from these trajectories. With the help of morphological image frames and the scale-invariant feature transform, the golfer’s posture feature during a particular stroke is extracted. Several classification approaches are applied to the retrieved features once they have been normalized and concatenated. In random forest classification, the system obtains 84.4% accuracy when tested on the standard GolfDB dataset.

Zhang et al. [32] developed a novel method to identify depression using the skeletal data while assessing the scale. Human skeletal data were captured using Kinect V2, and participants were divided into two groups: one for depression and the other for control. Participants were evaluated using the Hamilton Rating Scale for Depression. They developed a Temporal Spatial Attention (Dep-TSA) for depression identification in order to improve the classification ability of temporal and spatial elements within skeletal data. A total of 202 participants met the criteria of the scale; these comprised the depression group, which consisted of 89 patients with depression, and the control group, which consisted of 113 socially recruited healthy persons. In comparison to other models, the proposed Dep-TSA model produced exceptional results, obtaining an accuracy of 72.13%.

Other researchers have proposed posture classification systems depending on sensor data input. In 2024, they created a rule-based model to categorize squatting and kneeling by including data from three AX3 accelerometers – which measure the acceleration of body segments – into the samples of fifteen healthy people. The sensors were affixed below the hip’s iliac crest, on the anterior and distal regions of the femur, and immediately below the head of the fibula. The postures were captured with a GoPro camera for validation, and special software was utilized to synchronize data from the accelerometers with the annotated video recordings. Totally 98% of the time, accuracy was attained when kneeling and 57% when squatting. Additionally, they discovered that when sensors were placed on just one side of the body, their model functioned a little bit less accurately.

Qiu et al. [33] provided two categories of automated fall detection methods that make use of camera visual data: (1) A self-supervised autoencoder that recognizes falls as an anomaly and separates them from normal behavior and (2) A supervised human posture-based fall activity recognition system. Two publicly accessible video datasets that include everyday living activities and simulated falls in an office setting are used to train and assess five models. We created two new datasets, one with more complicated backgrounds and scenarios and the other with recordings of actual falls in senior citizens, in order to test the models for fall detection in real-world scenarios. According to the experimental findings, autoencoder detectors may accurately anticipate falls based only on photos in which the background has been previously learnt. The stance-based method, on the other hand, better targets complicated scenes and backgrounds by using foreground body poses exclusively for AI learning.

Zeng et al. [34] introduced PyroSense, a passive infrared sensor (PIR sensor), that is widely available off-the-shelf (COTS) that allows for fine-grained 3D posture reconstruction. PyroSense reconstructs the appropriate human postures in real time by sensing airflow caused by movement and heat signals produced by the human body. By enhancing the COTS PIR sensor’s sensitivity to body movement, boosting spatial resolution without adding to the deployment overhead, and creating clever algorithms that can adjust to a variety of environmental conditions, PyroSense significantly improves upon the previous PIR-based sensing architecture. Using readily available hardware, they constructed a low-cost PyroSense prototype. The results of the trial show that PyroSense achieves 99.46% classification accuracy in 15 classes and less than 16 cm mean joint distance error for 14 body joints in posture reconstruction.

With all the state-of-the-art works related to body posture classification, none were based on speech in classifying body postures. Therefore, the work proposed in this article is considered novel and a new idea of body posture classification.

3 Materials and methods

The proposed work block diagram is shown in Figure 1, where all the main steps followed are shown clearly, and through this section, each step will be explained in detail.

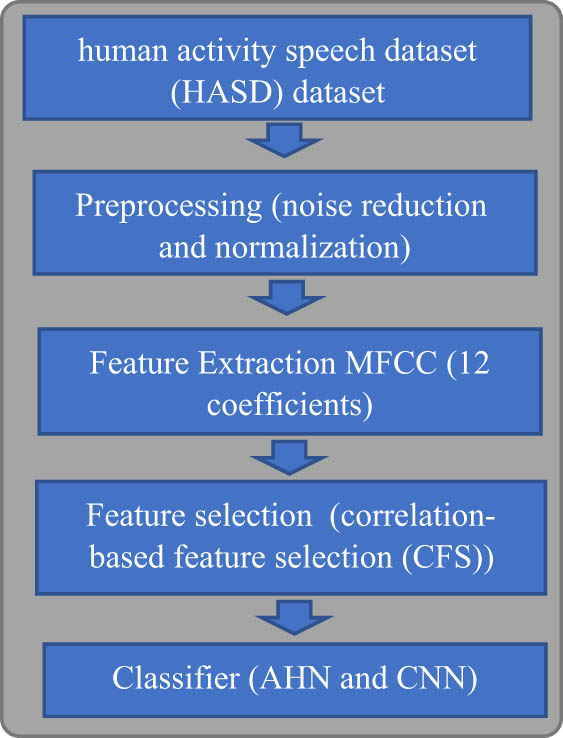

Figure 1

The block diagram of the proposed BPCS.

4 Results and discussion

The confusion matrices and the ROC line charts were used to measure the numerical and visual outcomes of the proposed system when it came to the CNN and AHN classifier. Only the AHN results will be presented and contrasted with the CNN results.

The ROC curve is a performance measurement diagnostic tool, which is translated by the area under the curve of each body position; the greater the area is, the higher the discriminative ability measure will be for that specific body position related specifically to that curve. Figure 2(a) displays the ROC curves of the training phase, Figure 2(b) displays the ROC curves of the validation phase (also known as the training record error values), and Figure 2(c) displays the ROC curves of the testing phase. Figure 2 displays the ROC curves for the classification processes on the HASD dataset. The power of the system’s discriminative ability is demonstrated by the fact that every curve in the ROC line chart displayed in Figure 2(a) and (c) is above the average gray line, which runs from the left down corner to the right up corner. The system only deviated from the average line during the validation phase when it was trying to distinguish between the walking position and other positions. This can be explained by the system’s inability to distinguish between the two positions. Anticipating the ROC curves in the testing phase, we find that the suggested BPSD system achieves 68.9% accuracy in recognizing all positions represented in the HASD dataset.

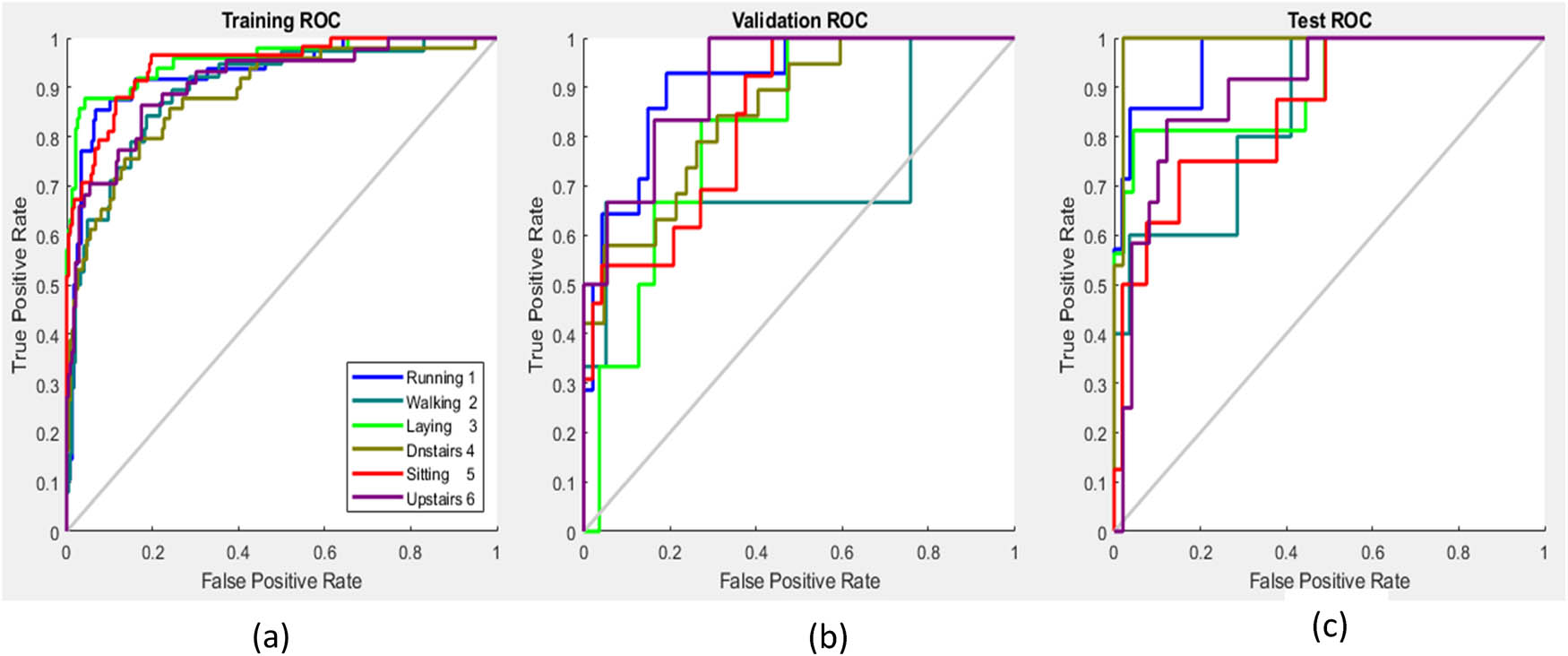

Figure 2

ROC curves performance measurement for the proposed BPCS: (a) for the training phase, (b) for the validation phase, and (c) for the testing phase.

The walking downstairs body position in Figure 2(c) is the closest ROC curve to the upper left corner, indicating that the BPSD system was more successful in differentiating this body position than the other positions. This can be explained by the bumps that result from a person falling down stairs and the voice-generated reflections that follow. Because of this, all of the testing phase’s ROC curves, as seen in Figure 2(c), are above the average line, demonstrating the BPSD system’s success in differentiating everybody's position with an accuracy level above 50%.

Now, we will discuss numerically the results gained through the confusion matrices shown in Figure (3). The numbers of the columns from 1 to 6 represent the positions (walking downstairs, sitting, walking upstairs, running, laying, and walking), respectively. The testing results of the proposed BPSD system proposed according to discriminating the six body positions, where (85.7, 60, 68.8, 76.9, 62.5, and 58.3%) for the (walking downstairs, sitting, walking upstairs, running, laying, and walking), respectively, shown in Figure 3(c). The average of discriminating all six body positions was 68.9% during the testing phase. As we can see, the highest discriminating accuracy was with the walking downstairs body position, and this was justified previously. The lowest accuracy was gained with the walking body position, with 58.3% accuracy. Walking downstairs achieved the highest accuracy, and this can be justified by the unique attitude of the human body, because when the body hits the ground, getting downstairs affects the voice from the reactions of the human body hitting the ground, not like running, generates less reaction in the human body. Three of the walking samples were classified as walking downstairs, and this depends on the nature of the human being walking, some human beings walk softly, and some hit the ground strong when they walk. Some of the results have no reasonable reasons, but only can be clarified to the bad performance of the subjects deployed in recording this dataset or to the failure of the classifiers used in this work, such as three samples of the walking upstairs were classified as laying down, two samples of the sitting records were classified as walking, two samples of the running were classified as sitting, and three samples of the walking were classified as walking downstairs.

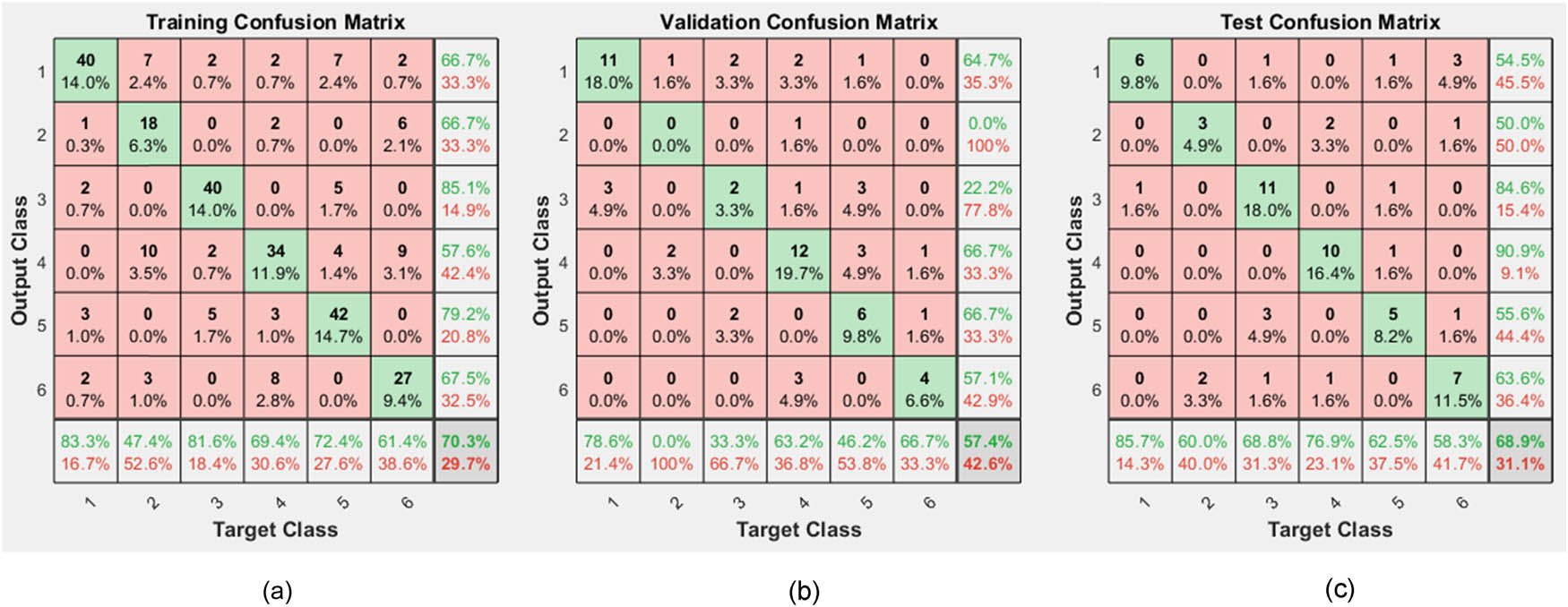

Figure 3

Confusion matrices of the proposed BPCS: (a) for the training phase, (b) for the validation phase, and (c) for the testing phase.

Through the confusion matrices, it is noticed that the random samples selected for the testing phase contained 7 walking downstairs recording samples, 5 sitting recording samples, 16 walking upstairs recording samples, 13 running recording samples, 8 laying recording samples, and 12 walking recording samples, which shows 61 recording samples used for the testing phase, which is 15% of the samples of the HASD dataset, and also shows that there was no balancing in choosing the samples according to the body positions, but this is caused from the random selection of the samples in the all three phase. In order to achieve balance in choosing the samples according to body position, the random selection has to be neglected, and this will affect the judgment of the proposed system.

Figure 4 shows the best validation performance of the proposed BPCS, during the training phase, which shows that the proposed system needed 17 epochs to learn how to discriminate the samples in the HASD dataset, which is considered a reasonable time.

Figure 4

The best validation performance of the proposed BPSD system.

In seconds, the system using the AHN needed 103 s to learn about the 34 human speeches, and needed less than one second to recognize the human positions, which is considered a real-time system. To be mentioned, the CNN needed less time, which was 56.66 s, but achieved less accuracy because the CNN operates faster on huge data.

The results are reasonable because of the following considerations: first, the final MSE is small, the test and validation lines are characteristically similar in wave behavior, and no significant overfitting has occurred between the validation and testing lines.

A comparison study was implemented to evaluate the performance of the proposed approach. Table 1 shows the results of verbal and non-verbal studies compared to the results of the proposed study. The results of the literature listed in Table 1 show that all literature research studies were implemented on robotics, and none was implemented on human beings, but not including [28], who worked on elder people only, rather than our project, which worked on different ages, and it is important to mention that dealing with the flexible body of the human being with different dimensions is much harder than dealing with robotics and its sharp body parts. The results show that the proposed system competes with the literature but needs to be enhanced, as mentioned in the limitation in the introduction. Table 1 shows that the highest accuracy achieved was 83.16% with ANOVA, but still, they only detected the head position only, rather than the whole body as implemented in this work. The highest accuracy that can be compared to our results is with the RBF network (RBFN) implanted by McColl and Nejat [28], which achieved 77.9% accuracy, but with elder people only, as mentioned before.

5 Limitation of the proposed work

The main limitation of the proposed work is the number of human body postures that can be classified using speech, which is very limited compared to the hundreds of postures that the human body can generate because many human postures affect speech in a similar way that no system can distinguish. The second limitation of this work, it does not propose a system to the real world, never the less, not using speech through phone calls, really does not reflect the real purpose of this work, but because of the limitation of resources and the legal authorization needed to use recorded phone calls, this work depended on a recorded dataset.

6 Conclusion

The highest accuracy obtained from the implemented experiments was 68.9%, indicating that the system was powerful in differentiating some body positions but partially failed in differentiating others. This can be demonstrated by using additional features or alternative classifiers.

Through experimentation, it was discovered that wave behavior of the (walking and walking downstairs recording samples), (walking upstairs and running samples), and (sitting and laying samples) shared some similarities as pairs. Because of these similarities in wave behavior, the proposed system was not good enough to distinguish some body positions. It is crucial to note that the reason for this resemblance in wave behavior is the same influence that the body’s posture has on the lungs and other parts of the body. Therefore, it might be very difficult to distinguish some body positions from speech, especially in a noisy environment.

The primary motivation for this work was to assess human activities in order to gauge the individual’s health and, second, for security reasons. Therefore, creating a realistic dataset will be more usable in real-world applications. The dataset created through this work included many samples; however, only the best-recorded samples were chosen.

It is recommended for future work to study other positions of the human body and use datasets recorded through languages other than English. The most important is to build a dataset that is gathered from a realistic environment that will bring this work to real life.

This work did not deal with any noise reduction, because the dataset deployed in this work was limited to noise, so adding a noise reduction method during the preprocessing phase of this work will bring this work more to reality.
