Crystal structure of tetrapropylammonium bicarbonate–1-(diaminomethylene)thiourea – water (2/2/1), C30H72N10O7S2

  • Lulu Zhang , Qianqian Han and Xin Zhu ORCID logo EMAIL logo
Published/Copyright: April 4, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 3

Abstract

C30H72N10O7S2, triclinic, P1̄ (no. 2), a = 8.75510(10) Å, b = 15.1170(2) Å, c = 16.8843(2) Å, α =  76.272 ( 1 ) ° , β =  78.397 ( 1 ) ° , γ =  88.277 ( 1 ) ° , V = 2126.09(5) Å3, Z = 2, R gt(F) = 0.0407, wR ref(F 2) = 0.1282, T = 296(2) K.

CCDC no.: 2247441

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Colorless block
Size: 0.26 × 0.24 × 0.12 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.18 mm−1
Diffractometer, scan mode: φ and ω
θ max, completeness: 25.0°, >99%
N(hkl)measured , N(hkl)unique, R int: 19,173, 7464, 0.018
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 5867
N(param)refined: 454
Programs: Bruker [1], SHELX [2,3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
S1 0.54199 (6) −0.19846 (3) 0.19276 (3) 0.06188 (16)
C1 0.54831 (19) −0.11339 (11) 0.10362 (10) 0.0458 (4)
N1 0.47763 (19) −0.03618 (10) 0.11265 (9) 0.0610 (4)
H1A 0.4746 0.0073 0.0697 0.073*
H1B 0.4350 −0.0298 0.1614 0.073*
O1 0.8247 (2) −0.34784 (10) −0.11645 (9) 0.0828 (5)
O1W 0.3863 (2) 0.88541 (13) 0.35088 (10) 0.0912 (5)
H1WA 0.341 (3) 0.9353 (15) 0.3311 (18) 0.137*
H1WB 0.432 (4) 0.8641 (19) 0.3107 (16) 0.137*
C2 0.69574 (19) −0.18183 (11) 0.00015 (11) 0.0479 (4)
S2 −0.11863 (11) 0.41500 (4) 0.40623 (4) 0.1043 (3)
N2 0.60970 (17) −0.11424 (9) 0.02440 (8) 0.0490 (3)
O2 0.91976 (19) −0.40157 (10) −0.00259 (10) 0.0818 (5)
C3 −0.0259 (2) 0.33659 (12) 0.35660 (11) 0.0569 (4)
N3 0.73681 (19) −0.17486 (10) −0.08130 (9) 0.0628 (4)
H3A 0.7935 −0.2159 −0.0998 0.075*
H3B 0.7067 −0.1293 −0.1156 0.075*
O3 0.93551 (17) −0.48140 (8) −0.09911 (8) 0.0660 (4)
H3 0.989 (3) −0.5175 (16) −0.0642 (14) 0.099*
C4 −0.1134 (2) 0.19808 (12) 0.45466 (10) 0.0509 (4)
N4 0.7456 (2) −0.25345 (10) 0.04963 (10) 0.0654 (4)
H4A 0.8021 −0.2930 0.0287 0.078*
H4B 0.7216 −0.2604 0.1027 0.078*
O4 0.14137 (19) 0.15667 (9) 0.26780 (8) 0.0720 (4)
H4 0.089 (3) 0.1770 (17) 0.3088 (14) 0.108*
C5 0.8903 (2) −0.40666 (12) −0.07089 (12) 0.0585 (5)
N5 0.0617 (2) 0.36858 (11) 0.28120 (10) 0.0708 (5)
H5A 0.1121 0.3316 0.2543 0.085*
H5B 0.0678 0.4262 0.2595 0.085*
O5 0.15811 (18) 0.03631 (9) 0.37020 (8) 0.0728 (4)
C6 0.1959 (2) 0.07336 (12) 0.29528 (12) 0.0581 (5)
N6 −0.02533 (17) 0.24580 (9) 0.38305 (8) 0.0518 (3)
O6 0.2823 (2) 0.04111 (11) 0.24221 (10) 0.0946 (6)
C7 0.5107 (2) 0.24778 (14) 0.25670 (12) 0.0639 (5)
H7A 0.4265 0.2907 0.2604 0.077*
H7B 0.4696 0.1937 0.2463 0.077*
N7 −0.2301 (2) 0.23033 (12) 0.50136 (9) 0.0672 (4)
H7C −0.2819 0.1951 0.5458 0.081*
H7D −0.2545 0.2866 0.4875 0.081*
C8 0.5611 (3) 0.22199 (17) 0.33973 (13) 0.0805 (6)
H8A 0.6437 0.1779 0.3374 0.097*
H8B 0.6020 0.2756 0.3511 0.097*
N8 −0.0785 (2) 0.11143 (10) 0.47743 (10) 0.0677 (4)
H8C −0.1316 0.0772 0.5220 0.081*
H8D −0.0026 0.0892 0.4477 0.081*
C9 0.4276 (4) 0.1824 (3) 0.40841 (16) 0.1242 (12)
H9A 0.4625 0.1667 0.4603 0.186*
H9B 0.3464 0.2264 0.4114 0.186*
H9C 0.3880 0.1288 0.3977 0.186*
N9 0.63831 (16) 0.28956 (10) 0.18284 (9) 0.0525 (4)
C10 0.7093 (2) 0.37362 (12) 0.19616 (12) 0.0576 (4)
H10A 0.7598 0.3553 0.2435 0.069*
H10B 0.7896 0.3981 0.1478 0.069*
N10 −0.04455 (15) 0.75384 (9) 0.31284 (8) 0.0474 (3)
C11 0.5979 (3) 0.44880 (15) 0.21093 (16) 0.0788 (6)
H11A 0.5399 0.4647 0.1664 0.095*
H11B 0.5240 0.4278 0.2629 0.095*
C12 0.6856 (3) 0.53132 (15) 0.21442 (18) 0.0917 (7)
H12A 0.6134 0.5786 0.2238 0.138*
H12B 0.7418 0.5157 0.2590 0.138*
H12C 0.7577 0.5525 0.1627 0.138*
C13 0.5642 (2) 0.31320 (14) 0.10672 (12) 0.0652 (5)
H13A 0.4740 0.3504 0.1183 0.078*
H13B 0.5271 0.2573 0.0977 0.078*
C14 0.6702 (3) 0.36336 (18) 0.02699 (13) 0.0820 (6)
H14A 0.7005 0.4221 0.0334 0.098*
H14B 0.7640 0.3287 0.0164 0.098*
C15 0.5905 (4) 0.3772 (2) −0.04558 (17) 0.1165 (10)
H15A 0.6600 0.4090 −0.0951 0.175*
H15B 0.5619 0.3191 −0.0526 0.175*
H15C 0.4985 0.4124 −0.0356 0.175*
C16 0.7699 (2) 0.22289 (12) 0.17130 (12) 0.0573 (4)
H16A 0.8494 0.2522 0.1242 0.069*
H16B 0.8165 0.2107 0.2202 0.069*
C17 0.7257 (3) 0.13335 (14) 0.15734 (16) 0.0774 (6)
H17A 0.6777 0.1443 0.1090 0.093*
H17B 0.6498 0.1017 0.2051 0.093*
C18 0.8659 (3) 0.07447 (16) 0.14427 (16) 0.0870 (7)
H18A 0.8343 0.0179 0.1355 0.131*
H18B 0.9404 0.1053 0.0965 0.131*
H18C 0.9125 0.0627 0.1925 0.131*
C19 −0.1834 (2) 0.68854 (12) 0.34653 (11) 0.0531 (4)
H19A −0.2740 0.7189 0.3285 0.064*
H19B −0.1635 0.6367 0.3216 0.064*
C20 −0.2228 (3) 0.65383 (14) 0.43936 (13) 0.0705 (5)
H20A −0.2242 0.7043 0.4658 0.085*
H20B −0.1436 0.6119 0.4573 0.085*
C21 −0.3801 (3) 0.60597 (18) 0.46553 (18) 0.0950 (8)
H21A −0.4039 0.5841 0.5249 0.142*
H21B −0.4585 0.6478 0.4484 0.142*
H21C −0.3781 0.5555 0.4399 0.142*
C22 −0.0699 (2) 0.83633 (12) 0.35043 (11) 0.0541 (4)
H22A −0.0632 0.8172 0.4087 0.065*
H22B 0.0143 0.8800 0.3230 0.065*
C23 −0.2225 (2) 0.88361 (13) 0.34452 (14) 0.0651 (5)
H23A −0.3081 0.8416 0.3738 0.078*
H23B −0.2315 0.9027 0.2866 0.078*
C24 −0.2327 (3) 0.96604 (15) 0.38187 (16) 0.0823 (6)
H24A −0.3305 0.9953 0.3776 0.123*
H24B −0.2252 0.9470 0.4394 0.123*
H24C −0.1488 1.0080 0.3523 0.123*
C25 −0.0293 (2) 0.78225 (13) 0.21897 (10) 0.0557 (4)
H25A −0.0163 0.7279 0.1974 0.067*
H25B −0.1262 0.8098 0.2070 0.067*
C26 0.1033 (2) 0.84809 (16) 0.17260 (12) 0.0727 (6)
H26A 0.2012 0.8224 0.1848 0.087*
H26B 0.0887 0.9046 0.1906 0.087*
C27 0.1087 (3) 0.8668 (2) 0.07964 (15) 0.1033 (9)
H27A 0.1931 0.9086 0.0505 0.155*
H27B 0.1243 0.8108 0.0619 0.155*
H27C 0.0121 0.8928 0.0677 0.155*
C28 0.1022 (2) 0.70833 (13) 0.33586 (12) 0.0581 (4)
H28A 0.1860 0.7536 0.3184 0.070*
H28B 0.0852 0.6883 0.3960 0.070*
C29 0.1557 (3) 0.62808 (16) 0.29953 (15) 0.0781 (6)
H29A 0.1926 0.6487 0.2399 0.094*
H29B 0.0690 0.5858 0.3093 0.094*
C30 0.2850 (3) 0.5810 (2) 0.3393 (2) 0.1150 (10)
H30A 0.3187 0.5299 0.3160 0.172*
H30B 0.3709 0.6228 0.3290 0.172*
H30C 0.2476 0.5601 0.3982 0.172*

1 Source of materials

Amidinothiourea and tetrapropylammonium hydroxide (25% aqueous solution), which are commercially available, were mixed in a molar ratio of 1:2. The mixture was dissolved in a minimum amount of ethanol and water, then the mixture was vigorously stirred for about 60 min. Subsequently the clean solution was set aside to allow it slow evaporation at room temperature. Colorless block crystals were obtained. It can be concluded that the bicarbonate anions are present in the crystal structure due to the absorption of CO2 of the air under basic conditions.

2 Experimental details

Crystal data, data collection and structure refinement details are summarized in Table 1.

3 Comment

Amidinothiourea is a derivative of thiourea, which can be utilized in the crystal engineering to explore supramolecular architecture [4,5]. It can be seen that amidinothiourea is a good hydrogen bond acceptor and donor due to it functional groups. Till now, the similar organic crystal structure of tetrabutylammonium sulfanilate – 1-(diaminomethylene)thiourea [6] has been reported.

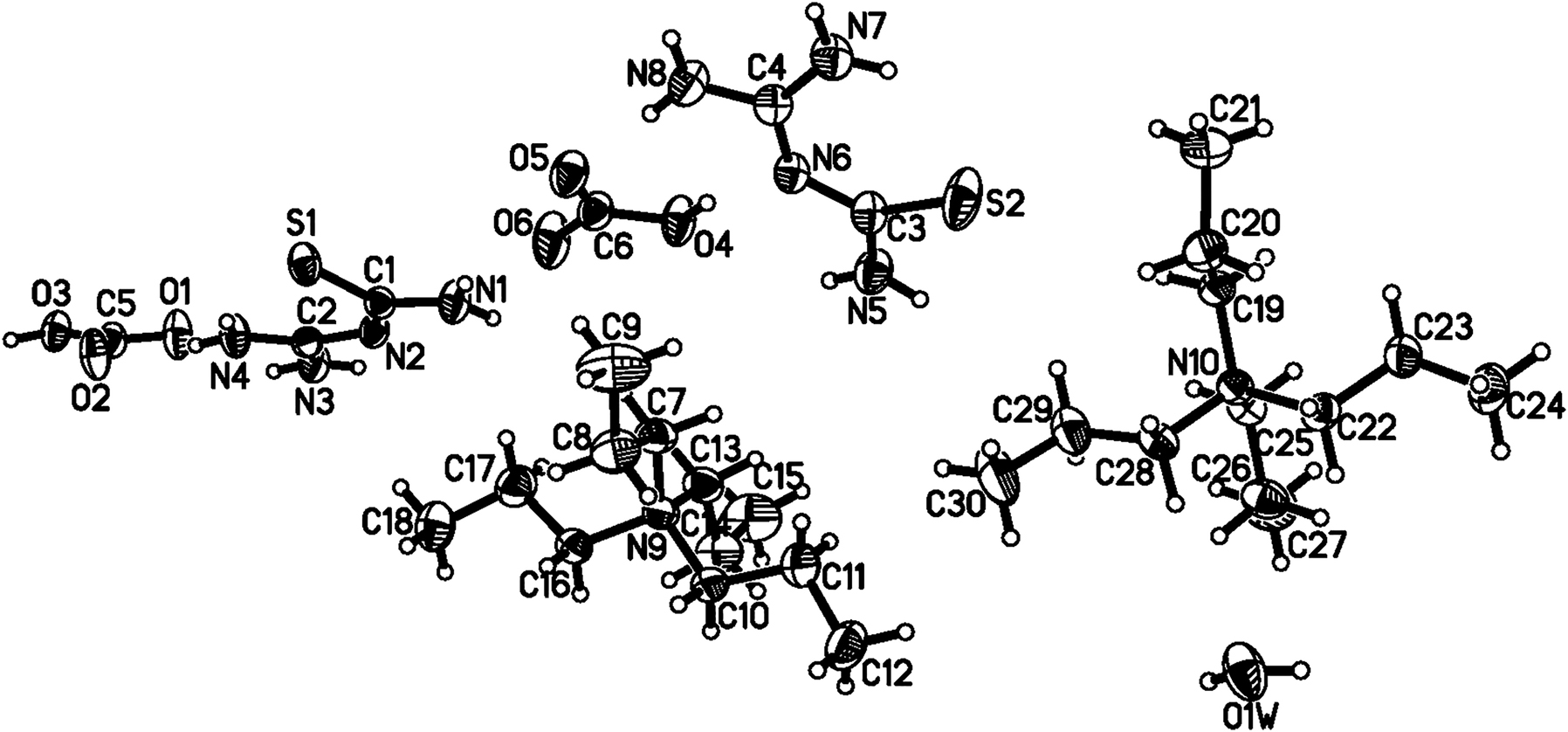

In the asymmetric unit of the title structure, there are two independent 1-(diaminomethylene)thiourea, two bicarbonate anions, two tetrapropylammonium cations and one water molecule. Two amidinothiourea molecules firstly interact with each other to form a dimer by a pair of N–H⋯N hydrogen bonds. At the same time, two bicarbonate anions also link with each other to generate the related dimer by O–H⋯O contacts. Then these two types of dimers utilize N–H⋯O hydrogen bonding to extend to form the hydrogen-bonded chains, and these neighboring chains are connected with each other by the linkage of water molecules by different N–H⋯O and O–H⋯S hydrogen bonds to finally generate a 2-dimensional hydrogen-bonded layer. Between the adjacent layers, tetrapropylammonium cations are contained to construct the final stable crystal structure.

Corresponding author: Xin Zhu, Pharmacy College, Henan University of Chinese Medicine, Zhengzhou, 450046, China, E-mail:

Acknowledgements

We gratefully acknowledge support by Henan University of Chinese Medicine.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Received financial support from Henan University of Chinese Medicine.

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. BRUKER. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, Wisconsin, USA, 2009.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Janczak, J. Supramolecular archtecture formed between amidinothiourea and 2-pyridinecarboxylic acid. J. Mol. Struct. 2021, 1242, 130736; https://doi.org/10.1016/j.molstruc.2021.130736.Search in Google Scholar

5. Janczak, J. Supramolecular architecture and SHG activity of organic crystals formed between the amidinothiourea and nicotinic acid. J. Mol. Struct. 2023, 1273, 134385; https://doi.org/10.1016/j.molstruc.2022.134385.Search in Google Scholar

6. Xu, D., Wang, B., Zhu, X. Crystal structure of tetrabutylammonium sulfanilate – 1-(diaminomethylene)thiourea (1/2). Z. Kristallogr. N. Cryst. Struct. 2022, 237, 59–60; https://doi.org/10.1515/ncrs-2021-0361.Search in Google Scholar
