Crystal structure of Eu2Pd3.37(1)Zn13.63(1)

  • Steffen Klenner , Theresa Block and Rainer Pöttgen ORCID logo EMAIL logo
Published/Copyright: March 21, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 3

Abstract

Eu2Pd3.37Zn13.63, trigonal, R 3 ‾ m (no. 166), a = 9.1693(7) Å, c = 13.2443(13) Å, V = 964.34(14) Å3, Z = 3, Rgt (F) = 0.0268, wR ref(F 2) = 0.0287, T = 293 K.

CCDC no.: 2247512

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

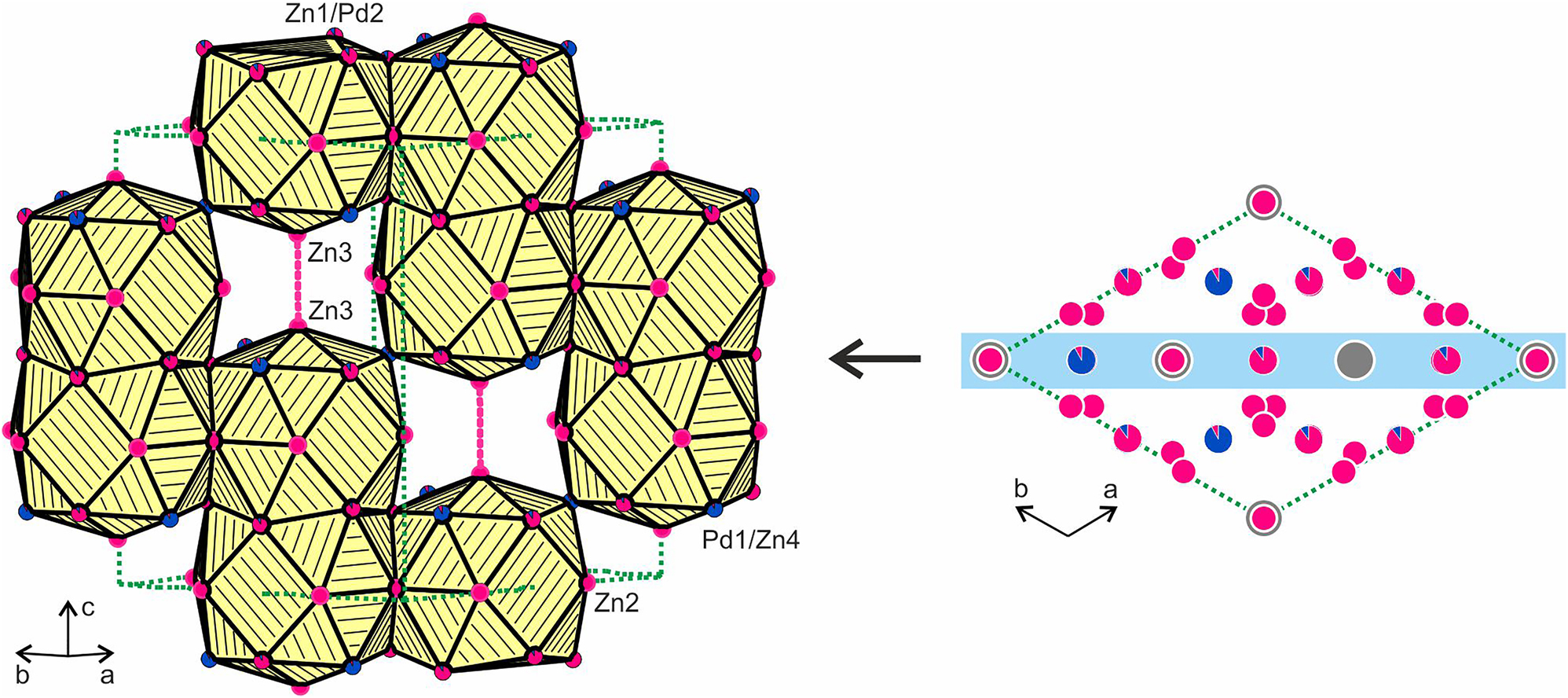

Projection of the Eu2Pd3.37Zn13.63 structure onto the xy plane (right). Europium, palladium and zinc atoms are drawn as medium grey, blue and magenta circles, respectively. Mixed occupied sites are indicated by segments. A cutout with one row of condensed Eu@(Pd/Zn)19 polyhedra is shown left.

Projection of the Eu2Pd3.37Zn13.63 structure onto the xy plane (right). Europium, palladium and zinc atoms are drawn as medium grey, blue and magenta circles, respectively. Mixed occupied sites are indicated by segments. A cutout with one row of condensed Eu@(Pd/Zn)19 polyhedra is shown left.

Table 1:

Data collection and handling.

Crystal: Grey block
Size: 0.030 × 0.040 × 0.075 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 39.0 mm−1
Diffractometer, scan mode: IPDS Stoe, ω scans
θ max, completeness: 33.3°, >99%
N(hkl)measured, N(hkl)unique, R int: 9175, 488, 0.037
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 417
N(param)refined: 26
Programs: X-Area [1], JANA2006 [2], SUPERFLIP [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x Y z U iso*/U eq
Eu1 0 0 0.34506(2) 0.01304(7)
Pd1a 0.5 0 0.5 0.01283(13)
Zn1b 0.5 0 0.5 0.01283(13)
Zn2c 0.50154(2) 0.49846(2) 0.15132(4) 0.01548(15)
Pd2d 0.50154(2) 0.49846(2) 0.15132(4) 0.01548(15)
Zn3 0.29377(5) 0 0 0.01484(12)
Zn4 0 0 0.10343(5) 0.01629(16)

  1. aOccupancy: 0.917(10), bOccupancy: 0.083(10), cOccupancy: 0.897(8), dOccupancy: 0.103(8).

Source of material

Crystals of the title compound Eu2Pd3.37Zn13.63 were obtained by induction melting of the elements (3:4:12 atomic ratio) in a sealed tantalum ampoule in a water-cooled sample chamber. Starting materials were europium ingots (American Elements, 99.99%), palladium sheets (Agosi, 99.99%) and zinc granules (99.9%, Merck). The sample was first heated to 1473 K, kept for 5 min and quenched. The ampoule was then sealed in an evacuated silica tube, heated to 1223 K with a heating rate of 100 K h−1. The sample was kept at 1223 K for 24 h followed by slow cooling (1 K h−1) to room temperature. Eu2Pd3.37Zn13.63 is light grey with metallic luster and stable in air.

Experimental details

The Eu2Pd3.37Zn13.63 crystals were selected from the mechanically fragmented sample of the nominal composition 3Eu:4Pd:12Zn. The crystal quality was first tested through Laue photographs (Buerger camera, image plate detection system). Single crystal X-ray diffraction was performed at room temperature on a Stoe IPDS–II diffractometer (graphite monochromatized MoKα radiation; oscillation mode). A numerical absorption correction was applied. The starting atomic parameters were deduced with the charge-flipping algorithm [3] implemented in Superflip [4] and the structure was refined on F 2 with the Jana2006 software package [2], with anisotropic displacement parameters for all atoms. Separate refinement of the occupancy parameters indicated small degrees of Pd/Zn mixing for the 9d and 18h sites, which were refined as least-squares variables in the final cycles. The Eu2Pd3.37Zn13.63 crystal is a reverse/obverse twin with a domain ratio of 0.971(4):0.029(4).

Comment

Eu2Pd3.37Zn13.63 crystallizes with the Th2Zn17 type structure [5], space group R 3 ‾ m and completes the series of RE 2Pd3−x Zn14+x compounds [6]. Comparison with the RE 2Pd3−x Zn14+x phases reveals two peculiarities: (i) the solid solution of the europium compound tends towards higher palladium content and (ii) the cell volume is larger than that of the lanthanum representative, indicating divalent europium. The Th2Zn17 type structure has four crystallographically independent zinc sites and allows for different coloring variants (Table 3). Typical binary examples are Ce2Fe17 [7], Zr2Be17 [8] or Ba2Mg17 [9]. Ternary ordered variants have been observed for Ce2Co15Al2 [7] and Gd2Co3Zn14 [6]. Eu2Pd3.37Zn13.63 is close to the latter ordering variant, however, the 9d and 18h sites still show small degrees of Pd/Zn and Zn/Pd mixing, respectively. Such small homogeneity ranges have been observed for most of the many ternary Th2Zn17 type representatives [10]. The europium atoms in the Eu2Pd3.37Zn13.63 structure have the coordination number 19 by palladium and zinc. These Eu@(Pd/Zn)19 polyhedra are condensed via common hexagon faces and these double units are stacked in ABC sequence (rhombohedral space group symmetry). The coordination polyhedron around europium is a slightly distorted hexa-capped hexagonal prisms with an additional Zn3 atom. This coordination reminds of the CaCu5 type [11], one of the basic binary intermetallic structure types. Indeed, the Th2Zn17 type derives from the CaCu5 structure [12] by an ordered replacement of 2/3 of the calcium atoms by europium and of 1/3 by a Zn32 dumb-bell while the remaining palladium and zinc atoms replace the copper atoms. The Zn32 dumb-bells are emphasized in the figure between adjacent Eu@(Pd/Zn)19 polyhedra. The Zn3–Zn3 distances of 274 pm are close to the Zn–Zn distances in hcp zinc (six times 266 and six times 291 pm) [13]. The Pd–Zn distances within the three-dimensional [Pd3.37Zn13.63] network of Eu2Pd3.37Zn13.63 range from 260 to 278 pm, which is slightly longer than the sum of the covalent radii [14] of 253 pm for Pd + Zn. This is similar to the series of dimorphic equiatomic REPdZn phases [15].

Table 3:

Examples of coloring variants for Th2Zn17 type representatives (space group R 3 ‾ m , Pearson code hR57 and Wyckoff sequence hfdc2).

Compound 6c 6c 9d 18f 18h Ref.
Th2Zn17 Th Zn Zn Zn Zn [5]
Ce2Fe17 Ce Fe Fe Fe Fe [7]
Zr2Be17 Zr Be Be Be Be [8]
Ba2Mg17 Ba Mg Mg Mg Mg [9]
Ce2Co15Al2 Ce Al Co Co Co [7]
Gd2Co3Zn14 Gd Zn Co Zn Zn [6]
Corresponding author: Rainer Pöttgen, Institut für Anorganische und Analytische Chemie, Universität Münster, Corrensstrasse 30, 48149 Münster, Germany, E-mail:

Acknowledgements

We thank Dipl.–Ing. J. Kösters for the intensity data collection.

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. X–Area. The Stoe Single Crystal Diffraction Software Package; STOE & Cie GmbH: Darmstadt, Germany.Search in Google Scholar

2. Petříček, V., Dušek, M., Palatinus, L. Crystallographic computing system Jana2006: general features. Z. Kristallogr. 2014, 229, 345–352.10.1515/zkri-2014-1737Search in Google Scholar

3. Palatinus, L. The charge-flipping algorithm in crystallography. Acta Crystallogr. 2013, B69, 1–16; https://doi.org/10.1107/s0108768112051361.Search in Google Scholar

4. Palatinus, L., Chapuis, G. Superflip – a computer program for the solution of crystal structures by charge flipping in arbitrary dimensions. J. Appl. Crystallogr. 2007, 40, 786–790; https://doi.org/10.1107/s0021889807029238.Search in Google Scholar

5. Makarov, E. S., Vinogradov, S. I. Crystal structure of Th2Zn17 and U2Zn17. Sov. Phys. Crystallogr. 1956, 1, 499–505.Search in Google Scholar

6. Gross, N., Block, G., Jeitschko, W. Ternary rare earth transition metal zinc compounds Ln2T3Zn14 (T = Fe, Co, Rh, Ni, Pd, Pt) with ordered Th2Zn17-type structure and structure refinement of the corresponding binary compound La2Zn17. Chem. Mater. 2002, 14, 2725–2731; https://doi.org/10.1021/cm021112n.Search in Google Scholar

7. Zarechnyuk, O. S., Krypyakevych, P. I. Crystal structures of ternary compounds in the systems cerium-transition metal-aluminum. Sov. Phys. Crystallogr. 1963, 7, 436–446.Search in Google Scholar

8. Zalkin, A., Bedford, R. G., Sands, D. E. Crystal structures of ZrBe5 and Zr2Be17. Acta Crystallogr. 1959, 12, 700; https://doi.org/10.1107/s0365110x59002055.Search in Google Scholar

9. Gladyshevskii, E. I., Krypyakevych, P. I., Teslyuk, M. Y., Zarechnyuk, O. S., Kuz’ma, Y. B. Crystal structures of some intermetallic compounds. Sov. Phys. Crystallogr. 1961, 6, 207–208.Search in Google Scholar

10. Villars, P., Cenzual, K. Pearson’s Crystal Data: Crystal Structure Database for Inorganic Compounds (release 2022/23); ASM International ®: Materials Park, Ohio (USA), 2022.Search in Google Scholar

11. Nowotny, H. Die Kristallstrukturen von Ni5Ce, Ni5La, Ni5Ca, Cu5La, Cu5Ca, Zn5La, Zn5Ca, Ni2Ce, MgCe, MgLa und MgSr. Z. Metallkd. 1942, 34, 247–252; https://doi.org/10.1515/ijmr-1942-341101.Search in Google Scholar

12. Hilleke, K. P., Fredrickson, R. T., Vinokur, A. I., Fredrickson, D. C. Substitution patterns understood through chemical pressure analysis: atom/dumbbell and Ru/Co ordering in derivatives of YCo5. Cryst. Growth Des. 2017, 17, 1610–1619; https://doi.org/10.1021/acs.cgd.6b01606.Search in Google Scholar

13. Donohue, J. The Structures of the Elements; Wiley: New York, 1974.Search in Google Scholar

14. Emsley, J. The Elements; Oxford University Press: Oxford, 1999.Search in Google Scholar

15. Mishra, T., Heymann, G., Huppertz, H., Pöttgen, R. Dimorphism in the REPdZn series. Intermetallics 2012, 20, 110–114; https://doi.org/10.1016/j.intermet.2011.08.012.Search in Google Scholar
Received: 2023-02-24
Accepted: 2023-03-09
Published Online: 2023-03-21
Published in Print: 2023-06-27
