The crystal structure of 2-bromo-1,3-phenylene bis(4-methylbenzenesulfonate), C20H17BrO6S2

  • Jue-Yuan Chen , Long-Sheng Zou , Ni Lai , Zi-Yi Yin , Lin Yuan ORCID logo EMAIL logo and Zhong-Yan Li EMAIL logo
Published/Copyright: March 6, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 3

Abstract

C20H17BrO6S2, triclinic, P 1 ‾ (no. 2), a = 8.173(2) Å, b = 8.256(2) Å, c = 16.514(5) Å, α = 89.947(3)°, β = 83.105(3)°, γ = 72.077(3)°, V = 1051.8(5) Å3, Z = 2, Rgt (F) = 0.0334, wRref (F 2) = 0.0889, T = 296(2) K.

CCDC no.: 2244691

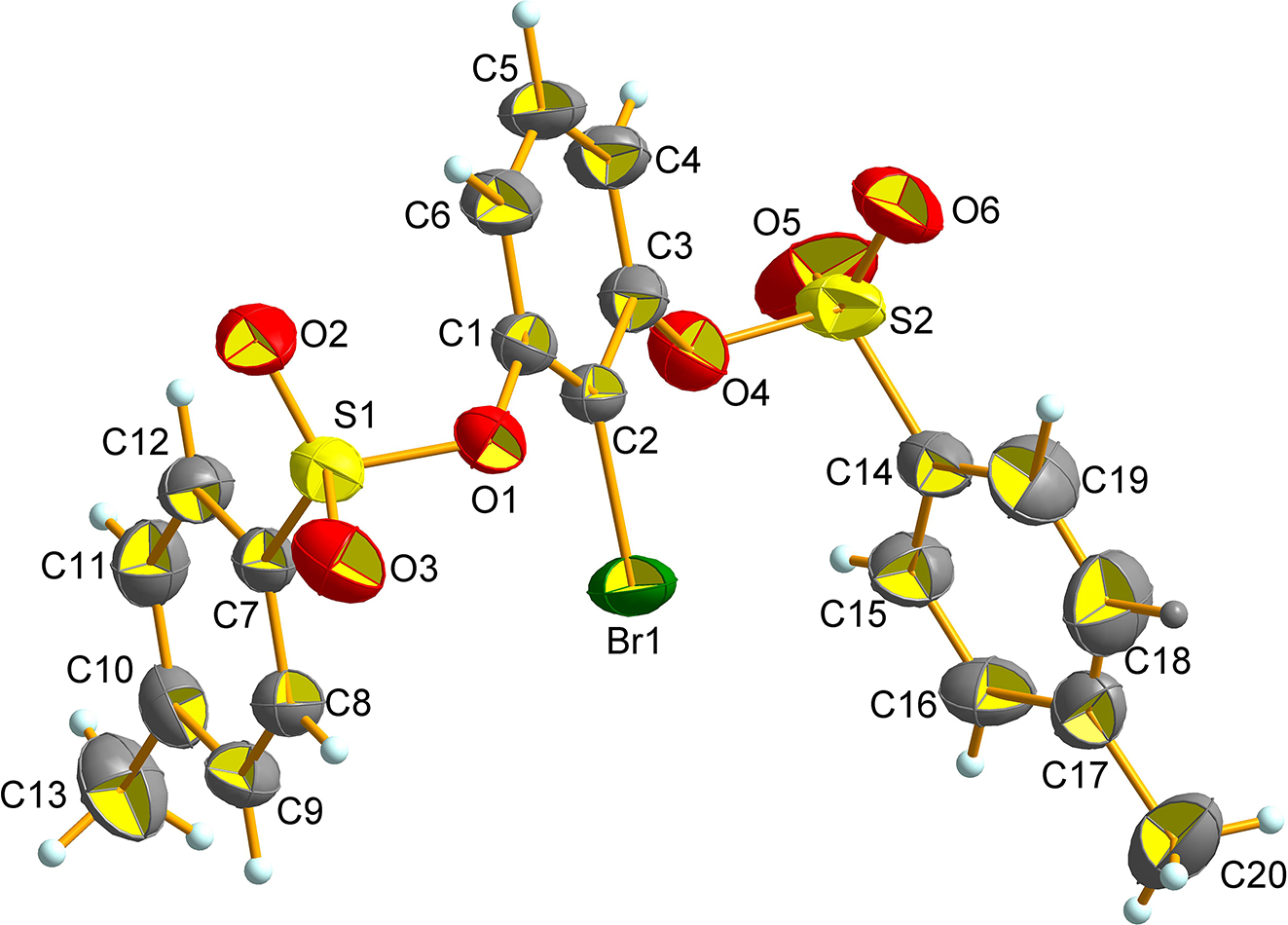

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Block
Size: 0.46 × 0.35 × 0.31 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 2.19 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 25.0°, >99%
N(hkl)measured, N(hkl)unique, R int: 10,043, 3690, 0.037
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 3105
N(param)refined: 265
Programs: Bruker [1], SHELX [2, 3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Br1 0.58469 (4) 0.41524 (4) 0.30305 (2) 0.06418 (16)
C1 0.8819 (3) 0.5111 (3) 0.32777 (15) 0.0419 (6)
C2 0.7880 (3) 0.4714 (3) 0.27009 (15) 0.0408 (6)
C3 0.8486 (4) 0.4736 (3) 0.18829 (16) 0.0453 (6)
C4 0.9986 (4) 0.5116 (4) 0.16383 (18) 0.0581 (8)
H4 1.036823 0.514470 0.108638 0.070*
C5 1.0921 (4) 0.5457 (4) 0.22257 (19) 0.0630 (8)
H5 1.195066 0.569513 0.206479 0.076*
C6 1.0352 (4) 0.5450 (4) 0.30442 (18) 0.0555 (7)
H6 1.099477 0.567051 0.343449 0.067*
C7 0.5654 (3) 0.7888 (3) 0.43539 (15) 0.0430 (6)
C8 0.4152 (4) 0.7517 (4) 0.46346 (17) 0.0504 (7)
H8 0.417639 0.666776 0.500784 0.060*
C9 0.2625 (4) 0.8410 (4) 0.43579 (19) 0.0561 (7)
H9 0.161559 0.815742 0.454598 0.067*
C10 0.2559 (4) 0.9677 (4) 0.38052 (19) 0.0579 (8)
C11 0.4076 (5) 1.0040 (4) 0.35355 (19) 0.0630 (8)
H11 0.404604 1.089871 0.316708 0.076*
C12 0.5628 (4) 0.9155 (4) 0.38025 (17) 0.0540 (7)
H12 0.663902 0.940519 0.361511 0.065*
C13 0.0861 (5) 1.0662 (5) 0.3514 (3) 0.0883 (12)
H13A 0.106327 1.143018 0.310536 0.132*
H13B 0.007953 1.129968 0.396621 0.132*
H13C 0.036120 0.988358 0.328566 0.132*
C14 0.6797 (4) 0.1736 (4) 0.08991 (16) 0.0505 (7)
C15 0.5093 (4) 0.2265 (4) 0.0773 (2) 0.0615 (8)
H15 0.461932 0.331302 0.054696 0.074*
C16 0.4090 (4) 0.1227 (5) 0.0984 (2) 0.0692 (9)
H16 0.292710 0.159441 0.090391 0.083*
C17 0.4752 (5) −0.0330 (4) 0.1307 (2) 0.0666 (9)
C18 0.6452 (6) −0.0803 (5) 0.1438 (3) 0.0945 (13)
H18 0.692034 −0.184010 0.167450 0.113*
C19 0.7492 (5) 0.0199 (5) 0.1234 (3) 0.0839 (11)
H19 0.865007 −0.016134 0.132131 0.101*
C20 0.3675 (7) −0.1490 (6) 0.1512 (3) 0.1011 (14)
H20A 0.406313 −0.245908 0.113677 0.152*
H20B 0.248119 −0.088736 0.147105 0.152*
H20C 0.379334 −0.186599 0.205809 0.152*
O1 0.8242 (2) 0.5010 (2) 0.41043 (10) 0.0475 (4)
O2 0.8814 (3) 0.7616 (3) 0.45482 (14) 0.0657 (6)
O3 0.7281 (3) 0.6049 (3) 0.54689 (11) 0.0651 (6)
O4 0.7436 (3) 0.4525 (3) 0.13082 (12) 0.0599 (5)
O5 0.7567 (4) 0.3889 (4) −0.01083 (13) 0.0994 (10)
O6 0.9835 (3) 0.2145 (4) 0.06552 (18) 0.0986 (10)
S1 0.75925 (9) 0.67132 (9) 0.46918 (4) 0.0485 (2)
S2 0.80853 (11) 0.30332 (12) 0.06104 (5) 0.0649 (3)

1 Source of material

To 2-bromobenzene-1,3-diol (2.35 g, 12.5 mmol) in THF (15 mL) was added 10% K2CO3 (6.50 g, 47.1 mmol) as an aqueous solution. After the resulting solution was cooled to 0 °C with an ice-water bath, a solution of Tosylchloride (TsCl) (4.82 g, 25.3 mmol) in THF (35 mL) was slowly added over 15 min at 0 °C. After the addition of TsCI, the ice-water-bath was removed and the reaction mixture was stirred for 2 h. To the mixture was then added EtOAc (100 mL). The two-phase mixture was separated. The organic layer was washed with H2O and dried (MgSO4). Removal of solvent under reduced pressure gave the crude aryl tosylate. The crude product was purified by column chromatography over silica gel with CH2Cl2 to afford the title compound (5.50 g, 89% yield). The product was dissolved by CH2Cl2 and the crystals of the title compound were obtained by slow evaporation within 1 day.

2 Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The U iso values of the methyl groups were set to 1.5 U eq (C) and the U iso values of all other hydrogen atoms were set to 1.2 U eq(C).

3 Comment

p-Toluenesulfonates have rich biological activities, such as monitoring the merging of lipids, studying membrane fusion during acrosome reaction, development of technology for linking photosensitizers to model monoclonal antibodies and so on [4], [5], [6], [7]. Meanwhile, p-toluenesulfonates are often used in organic synthesis [8].

Herein, a novel resorcinol p-toluenesulfonate compound was synthesized and characterized by single-crystal X-ray diffraction [1], [2], [3]. The crystal structure is composed of three structural units containing a central benzene ring connecting these moieties with each other by S–O bonds. The bond lengths of S(1)–O(1), S(1)–O(3), S(1)–O(2), S(2)–O(4), S(2)–O(6) and S(2)–O(6) are 1.6183(19), 1.421(2), 1.418(2), 1.606(2), 1.422(3) and 1.403(3) Å, respectively. The bond angles of O(1)–S(1)–C(7), O(3)–S(1)–C(7) and O(2)–S(1)–O(1) are 103.79(11), 110.82(13) and 108.55(11), indicating the S(1) atom is in the sp3 unequal hybridization state. Similarly, S(2) atom is also in the sp3 unequal hybridization [9].

Corresponding authors: Lin Yuan and Zhong-Yan Li, College of Chemistry and Bioengineering, Hunan University of Science and Engineering, Yongzhou, Hunan 425199, P. R. China, E-mail: , (Z. Y. Li)

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: Natural Science Foundation of Hunan Province of China (2021JJ30291), the Scientific Research Fund of Hunan Provincial Education Department (21A0518, 21C0691), National undergraduate training program for innovation and entrepreneurship (202210551005X, 202210551011X), Undergraduate Training Program for Innovation and Entrepreneurship of Hunan Province of China ([2022]174–4207, [2022]174–4213), Yongzhou Guiding Science and Technology Plan Project (2021).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. APEX3, SAINT–Plus, XPREP; Bruker AXS Inc.: Madison, Wisconsin, USA, 2016.Search in Google Scholar

2. Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Yachi, K., Sugiyama, Y., Sawada, Y., Iga, T., Ikeda, Y., Toda, G., Hanano, M. Characterization of Rose Bengal binding to sinusoidal and bile canalicular plasma membrane from rat liver. Biochim. Biophys. Acta 1989, 978, 1–7; https://doi.org/10.1016/0005-2736(89)90490-2.Search in Google Scholar PubMed

5. Spungin, B., Levinshal, T., Rubenstein, S., Breitbart, H. A cell free system reveals that capacitation is a prerequisite for membrane fusion during the acrosome reaction. FEBS Lett. 1992, 311, 155–160; https://doi.org/10.1016/0014-5793(92)81388-3.Search in Google Scholar PubMed

6. Jiang, F. N., Jiang, S., Liu, D., Richter, A., Levy, J. G. Development of technology for linking photosensitizers to a model monoclonal antibody. J. Immunol. Methods 1990, 134, 139–149; https://doi.org/10.1016/0022-1759(90)90122-c.Search in Google Scholar PubMed

7. Vembu, N., Nallu, M., Garrison, J., Youngs, W. J. Benzene 1,3,5-tris(p-toluenesulfonate): supramolecular aggregation through extensive C–H···O, C–H···π and π-π interactions. Acta Crystallogr. 2003, E59, o1019–o1021; https://doi.org/10.1107/s1600536803013291.Search in Google Scholar

8. Krupa, M., Chodyński, M., Ostaszewska, A., Cmoch, P., Dams, I. A novel convergent synthesis of the potent antiglaucoma agent Tafluprost. Molecules 2017, 22, 217–234; https://doi.org/10.3390/molecules22020217.Search in Google Scholar PubMed PubMed Central

9. Zukiewicz, B. J., Weck, C., Nauha, E., Gruber, T. Cyclic C–H···O motifs as general supramolecular synthon in aromatic sulfonester trimers. J. Mol. Struct. 2020, 1217, 128275; https://doi.org/10.1016/j.molstruc.2020.128275.Search in Google Scholar
