Home The crystal structure of ((E)-2,4-dichloro-6-(((2-hydroxy-5-nitrophenyl)imino)methyl)phenolato-κ 3 N,O,O′)tris(pyridine-κN)manganese(II), C28H21Cl2MnN5O4
Article Open Access

The crystal structure of ((E)-2,4-dichloro-6-(((2-hydroxy-5-nitrophenyl)imino)methyl)phenolato-κ 3 N,O,O′)tris(pyridine-κN)manganese(II), C28H21Cl2MnN5O4

  • Ting Li , Xiyuan Xiao , Yuxing Tan ORCID logo EMAIL logo and Weiwei Fu EMAIL logo
Published/Copyright: February 22, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 3

Abstract

C28H21Cl2MnN5O4, triclinic, P 1 ‾ (no. 2), a = 8.9699(9) Å, b = 9.1185(9) Å, c = 17.6902(17) Å, α = 103.776(1)°, β = 92.407(1)°, γ = 99.761(1)°, V = 1379.8(2) Å3, Z = 2, R gt (F) = 0.0388, wR ref (F 2) = 0.0920, T = 296 K.

CCDC no.: 960789

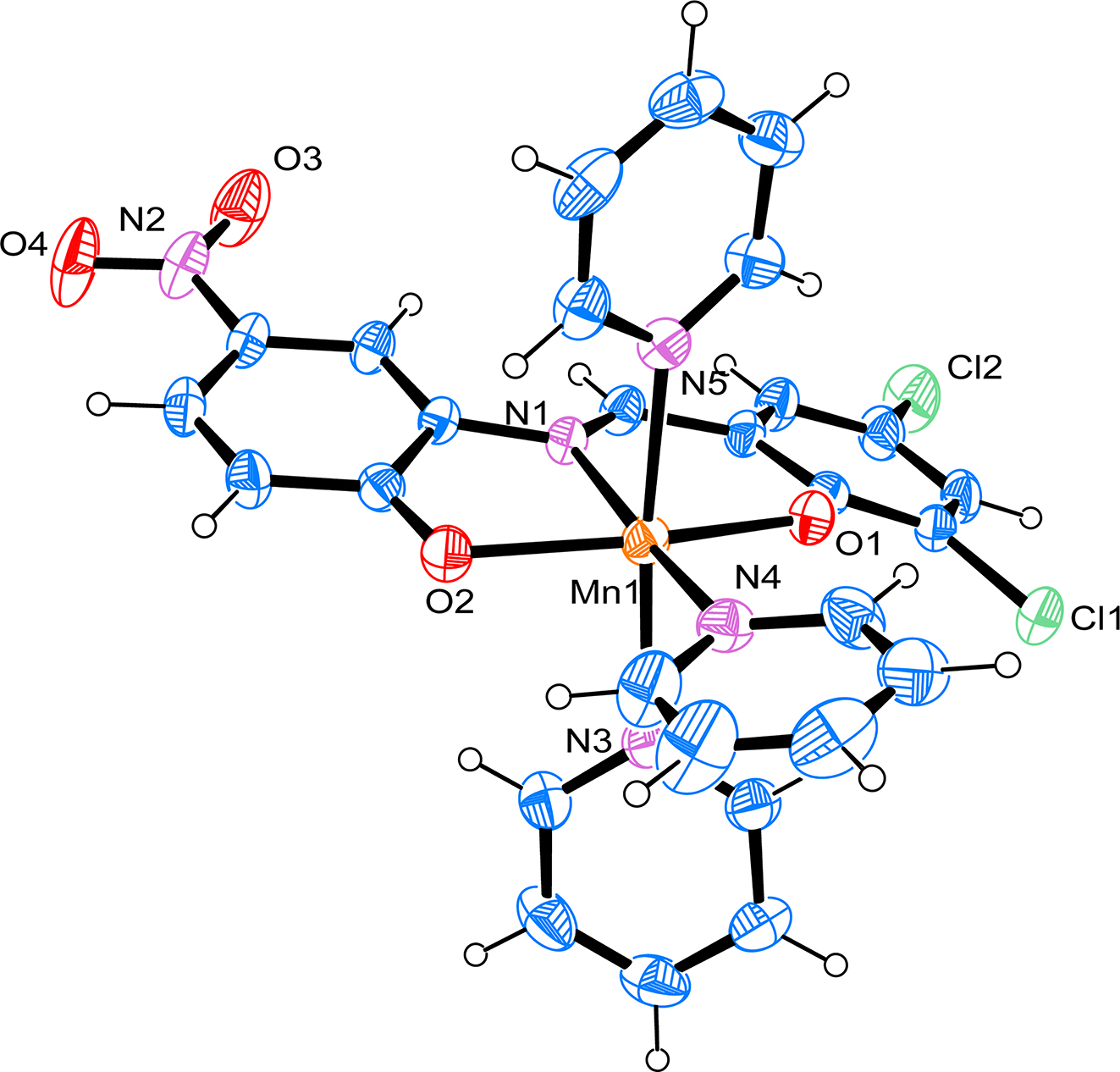

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Brown flake
Size: 0.27 × 0.14 × 0.01 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 0.72 mm−1
Diffractometer, scan mode: Bruker APEX-II, φ and ω
θ max, completeness: 26.0°, >99%
N(hkl)measured, N(hkl)unique, R int: 15,743, 5391, 0.031
Criterion for I obs, N(hkl)gt: I obs > 2σ(I obs), 3790
N(param)refined: 365
Programs: Bruker [1], SHELX [2, 3], WinGX/ORTEP [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
Mn1 0.90839 (4) 0.87736 (4) 0.73447 (2) 0.04584 (12)
N1 0.68590 (19) 0.7772 (2) 0.66603 (10) 0.0412 (4)
N2 0.4572 (3) 0.7383 (3) 0.40281 (13) 0.0716 (7)
N3 0.8574 (2) 1.0971 (2) 0.81646 (11) 0.0500 (5)
N4 1.1470 (2) 0.9578 (2) 0.79103 (12) 0.0532 (5)
N5 1.0065 (2) 0.6693 (2) 0.66425 (11) 0.0489 (5)
O1 0.81630 (17) 0.76083 (18) 0.81432 (9) 0.0506 (4)
O2 0.91534 (17) 0.98725 (18) 0.64094 (9) 0.0540 (4)
O3 0.3623 (2) 0.6295 (3) 0.40842 (12) 0.0988 (8)
O4 0.4579 (3) 0.7908 (3) 0.34544 (12) 0.1103 (9)
Cl1 0.77116 (9) 0.75227 (8) 0.97543 (4) 0.0719 (2)
Cl2 0.20213 (9) 0.47483 (10) 0.86056 (5) 0.0873 (3)
C1 0.6778 (3) 0.7057 (2) 0.82290 (13) 0.0432 (5)
C2 0.6348 (3) 0.6849 (3) 0.89663 (13) 0.0497 (6)
C3 0.4939 (3) 0.6135 (3) 0.90843 (15) 0.0567 (7)
H3 0.472700 0.599283 0.957475 0.068*
C4 0.3833 (3) 0.5628 (3) 0.84630 (15) 0.0590 (7)
C5 0.4145 (3) 0.5888 (3) 0.77504 (14) 0.0552 (6)
H5 0.338393 0.557111 0.734167 0.066*
C6 0.5579 (2) 0.6617 (3) 0.76202 (13) 0.0442 (5)
C7 0.5704 (3) 0.6991 (3) 0.68731 (14) 0.0477 (6)
C8 0.6812 (2) 0.8171 (2) 0.59318 (12) 0.0400 (5)
C9 0.5714 (2) 0.7535 (3) 0.53241 (13) 0.0465 (6)
H9 0.494926 0.673277 0.535989 0.056*
C10 0.5741 (3) 0.8080 (3) 0.46587 (13) 0.0495 (6)
C11 0.6870 (3) 0.9273 (3) 0.45943 (14) 0.0563 (6)
H11 0.685673 0.965778 0.415273 0.068*
C12 0.8005 (3) 0.9882 (3) 0.51821 (14) 0.0549 (6)
H12 0.876615 1.067304 0.512988 0.066*
C13 0.8052 (2) 0.9343 (3) 0.58671 (13) 0.0446 (5)
C14 1.2415 (3) 1.0678 (4) 0.77175 (18) 0.0797 (9)
H14 1.207061 1.113351 0.734259 0.096*
C15 1.3886 (4) 1.1183 (5) 0.8046 (2) 0.1070 (13)
H15 1.452276 1.195396 0.789057 0.128*
C16 1.4388 (3) 1.0542 (5) 0.8595 (2) 0.0925 (11)
H16 1.537923 1.086272 0.882320 0.111*
C17 1.3432 (4) 0.9423 (4) 0.8813 (2) 0.0846 (10)
H17 1.374964 0.897227 0.919590 0.102*
C18 1.1981 (3) 0.8973 (3) 0.84525 (18) 0.0710 (8)
H18 1.132752 0.820262 0.859927 0.085*
C19 0.9735 (3) 0.5308 (3) 0.67817 (15) 0.0577 (7)
H19 0.909543 0.518650 0.717141 0.069*
C20 1.0279 (3) 0.4049 (3) 0.63867 (17) 0.0685 (8)
H20 1.002307 0.310469 0.650777 0.082*
C21 1.1207 (3) 0.4225 (4) 0.58112 (17) 0.0724 (8)
H21 1.159375 0.339393 0.553063 0.087*
C22 1.1565 (3) 0.5624 (4) 0.56493 (16) 0.0700 (8)
H22 1.219036 0.576226 0.525624 0.084*
C23 1.0980 (3) 0.6828 (3) 0.60804 (15) 0.0607 (7)
H23 1.123673 0.778551 0.597334 0.073*
C24 0.8110 (3) 1.2089 (3) 0.79109 (16) 0.0590 (7)
H24 0.794089 1.196707 0.737534 0.071*
C25 0.7872 (4) 1.3413 (3) 0.8404 (2) 0.0794 (9)
H25 0.753541 1.416764 0.820533 0.095*
C26 0.8133 (3) 1.3619 (3) 0.9192 (2) 0.0779 (9)
H26 0.798658 1.451798 0.953604 0.093*
C27 0.8610 (3) 1.2486 (3) 0.94643 (16) 0.0684 (8)
H27 0.880018 1.259567 0.999762 0.082*
C28 0.8803 (3) 1.1180 (3) 0.89351 (16) 0.0622 (7)
H28 0.911076 1.039909 0.912312 0.075*
H7 0.477 (3) 0.666 (3) 0.6537 (14) 0.065 (7)*

Source of material

All chemicals were purchased from commercial sources and used as received. A mixture of 2-amino-4-nitrophenol (10 mmol), 3,5-dichloro-2-hydroxybenzaldehyde (10 mmol) and CH3OH (50 mL) was added in a round-bottomed flask (100 mL), and refluxed with agitating for 4.0 h. The solution was cooled, and then the insoluble matter is removed by filtration. The ligand 2,4-dichloro-6-(((2-hydroxy-5-nitrophenyl)imino)methyl)phenol was obtained. 1 mmol 2,4-dichloro-6-(((2-hydroxy-5-nitrophenyl)imino)methyl)phenol and 1 mmol manganous acetate were added in CH3OH (50 mL) and refluxed with agitating for 2 h. Then, most of the methanol was evaporated, followed by adding pyridine dropwise until it just dissolved. The reaction solution continued to reflux for 2 h, then it was filtered. Finally, the title crystal was precipitated by controlling solvent volatilization.

Experimental details

All H-atoms bonded to C atoms were placed geometrically and refined using a riding model with common isotropic displacement factors U iso(H) = 1.2 or 1.5 U eq(parent C-atom).

Comment

There is a growing interest in the design and synthesis of novel Schiff base complexes due to their peculiar properties [5], [6], [7]. A variety of related compounds have been synthesized and investigated, in this aspect. The tridentate Schiff-base and its analogues are of special concern as they form stable coordination environments and controllable structures [8–12]. As a part of our current research on the exploration of the regulating effect of Schiff base ligands in transition metal complexes, we report a new Mn(II) complex.

Single-crystal structure analysis revealed that the title compound crystallized in the triclinic space group P 1 ‾ . The ORTEP diagram is presented in the figure. Bond lengths and angles are all in the expected ranges and similar to the isomorphous structure [13]. The ligand of the title molecule exhibits an E configuration. The bond length of C7=N1 is 1.278(3) Å, which is similar to those reported in the literature [14]. Mn1 is six-coordinated in form of a distorted octahedral geometry and it is surrounded by two oxygen atoms (O1 and O2) and one nitrogen atom (N1) from the chelating ligand, three nitrogen atoms (N3, N4, and N5) from three different pyridines. The axis position was occupied by two nitrogen atoms (N3 and N5) from two pyridines, respectively. The angle of N3–Mn1–N5 is 168.96(6)°. The four atoms (O1, O2, N1, and N4) were placed in equatorial sites, and the sum of the angles [O1–Mn1–N1 = 83.81(6)°, O2–Mn1–N1 = 76.46(6)°, O2–Mn1–N4 = 101.61(7)°, O1–Mn1–N4 = 99.00(7)°] is 360.88°, which shows that the four atoms are planar, but the bond lengths [Mn1–O1 = 2.0789(16) Å, Mn1–O2 = 2.1266(16) Å, Mn1–N1 = 2.2215(17) Å, Mn1–N4 = 2.2488(19) Å] are unequal, and the coordination mode is similar to that of a previously reported complex [15, 16].

Weak intermolecular and weak intermolecular hydrogen bonding exists in the crystal structure of the title compound. The carbon atom C24 provides one intramolecular hydrogen bond to O2 (C24⋯O2 = 3.211(3) Å). The carbon atom C15 provides one intermolecular hydrogen bond to O4′ of another molecule (C15⋯O4′ = 3.255(4) Å; ′ = −x + 2, −y + 2, −z + 1). The carbon atom C22 provides one intermolecular hydrogen bond to O3″ of another molecule (C22⋯O3″ = 3.508(4) Å; ″ = x + 1, y, z).

Corresponding authors: Yuxing Tan and Weiwei Fu, School of Chemistry and Materials Science, Key Laboratory of Functional Metal-Organic Compounds of Hunan Province, Key Laboratory of Metal Organic New Materials of College of Hunan Province, Hengyang Normal University, Hengyang, Hunan 421008, China, E-mail: ,

Funding source: Hunan College students Innovation

Award Identifier / Grant number: NYD202212

Funding source: Entrepreneurship Training Program

Award Identifier / Grant number: NYD202125

Funding source: Hunan Provincial Education Department of China

Award Identifier / Grant number: 20K016

  1. Author contribution: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by the Hunan College students Innovation and Entrepreneurship Training Program (Nos. NYD202212, NYD202125), the Innovation Platform Open Fund Project of Hunan Provincial Education Department of China (No. 20K016).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

[1] Bruker. SAINT, APEX2 and SADABS; Bruker AXS Inc.: Madison, WI, USA, 2012.Search in Google Scholar

[2] Sheldrick, G. M. SHELXTL – integrated space-group and crystal-structure determination. Acta Crystallogr. 2015, A71, 3–8.10.1107/S2053273314026370Search in Google Scholar PubMed PubMed Central

[3] Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

[4] Farrugia, L. J. WinGX and ORTEP for Windows: an update. J. Appl. Cryst. 2012, 45, 849–854; https://doi.org/10.1107/s0021889812029111.Search in Google Scholar

[5] de Toledo, T. A., da Costa, R. C., da Silva, L. E., Teixeira, A. M. R., Lima, V. N., Sena, D. M., Coutinho, H. D. M., Freire, P. T. C., Pizani, P. S. Thermal and biological properties of the Schiff base N,N′-bis(salicylidene)-1,2-phenylenediamine, a potential adjuvant to antibiotic therapy. J. Mol. Struct. 2016, 1115, 105–108; https://doi.org/10.1016/j.molstruc.2016.02.063.Search in Google Scholar

[6] Rigamonti, L., Zardi, P., Carlino, S., Demartin, F., Castellano, C., Pigani, L., Ponti, A., Ferretti, A. M., Pasini, A. Selective formation, reactivity, redox and magnetic properties of MnIII and FeIII dinuclear complexes with shortened Salen-type Schiff base ligands. Int. J. Mol. Sci. 2020, 21, 7882; https://doi.org/10.3390/ijms21217882.Search in Google Scholar PubMed PubMed Central

[7] Alizadeh, V., Mahmoudi, G., Vinokurova, M. A., Pokazeev, K. M., Alekseeva, K. A., Miroslaw, B., Khandar, A. A., Frontera, A., Safin, D. A. Spodium bonds and metal-halogen⋯halogen-metal interactions in propagation of monomeric units to dimeric or polymeric architectures. J. Mol. Struct. 2022, 1252, 132144; https://doi.org/10.1016/j.molstruc.2021.132144.Search in Google Scholar

[8] Dey, M., Rao, C. P., Saarenketo, P. K., Rissanen, K., Kolehmainen, E., Guionneau, P. Mn(IV) and Co(III)-complexes of –OH-rich ligands possessing O2N, O3N and O4N cores: syntheses, characterization and crystal structures. Polyhedron 2003, 22, 3515–3521; https://doi.org/10.1016/j.poly.2003.09.015.Search in Google Scholar

[9] Asada, H., Hayashi, K., Negoro, S., Fujiwara, M., Matsushita, T. Preparation and structures of trinuclear manganese(II) complexes with N-2-pyridiylmethylidene-2-hydroxy-5-substituted-phenylamine. Inorg. Chem. Commun. 2003, 6, 193–196; https://doi.org/10.1016/s1387-7003(02)00718-9.Search in Google Scholar

[10] Pradeep, C. P., Htwe, T., Zacharias, P. S., Das, S. K. First structurally characterized optically active mononuclear Mn(IV) complex: synthesis, crystal structure and properties of [MnIVL2] {H2L = S-(-)-2-[(2-hydroxy-1-phenylethylimino)methyl]phenol}. New J. Chem. 2004, 28, 735–739; https://doi.org/10.1039/b315658c.Search in Google Scholar

[11] Cuihong, Z., Xiaohu, W., Liguo, Y., Zhenzhen, H., Xin, L., Zongcheng, M. Crystal structure of bis(5-methoxy-2-(((2-oxidoethyl)imino)methyl)phenolate-κ3O,N,O′)manganes(IV), C20H22N2O6Mn. Z. Kristallogr. N. Cryst. Struct. 2019, 234, 503–504; https://doi.org/10.1515/ncrs-2018-0495.Search in Google Scholar

[12] Weng, G., Pan, S., Zhou, B., Wen, G., Huang, S. Two novel Ni(II) complexes with two different Schiff bases: inhibiting glioma cells growth. Biomed. Res. 2017, 28, 2526–2529.Search in Google Scholar

[13] Asada, H., Ozeki, M., Fujiwara, M., Matsushita, T. Structures of four types of novel high-valent manganese complexes obtained by the reactions of KMnO4 with tridentate Schiff base ligands. Polyhedron 2002, 21, 1139–1148; https://doi.org/10.1016/s0277-5387(02)00936-1.Search in Google Scholar

[14] Li, T., Qiu, K., Tan, Y., Jiang, W. The crystal structure of ((E)-2,4-dibromo-6-(((5-(nitro)-2-oxidophenyl)imino)methyl)phenolato-κ3N,O,O′)tris(pyridine-κN) manganese(II), C28H21Br2MnN5O4. Z. Kristallogr. N. Cryst. Struct. 2023, 238, 27–29; https://doi.org/10.1515/ncrs-2022-0425.Search in Google Scholar

[15] Modak, R., Sikdar, Y., Bhattacharya, P., Kinyon, J. S., Dalal, N., Bindra, J. K., Goswami, S. Search for structurally resembled Mn/Ca cubane core of the oxygen evolving complex of photosystem II yielded MnIV, MnIII 3MnII and Mn2III2CaII2 entities: Structure and magnetism. Eur. J. Inorg. Chem. 2022, 2022, e202200058.10.1002/ejic.202200058Search in Google Scholar

[16] Pradeep, C. P., Zacharias, P. S., Das, S. K. Synthesis, structural characterization and properties of an optically active mononuclear Mn(IV) complex. Polyhedron 2005, 24, 1410–1416; https://doi.org/10.1016/j.poly.2005.03.090.Search in Google Scholar
Received: 2023-01-07
Accepted: 2023-02-06
Published Online: 2023-02-22
Published in Print: 2023-06-27

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
