Crystal structure of cyclo-(bis(µ2-3,3′-(1H-imidazole-3-ium-1,3-diyl)dipropionato-κ4 O,O′:O″,O″′)-dinitrato-κ2 O,O′-tetraoxido-diuranium(VI) C18H22N6O18U2

  • Yuning Meng ORCID logo EMAIL logo and Bin Cai
Published/Copyright: February 20, 2023
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 238 Issue 3

Abstract

C18H22N6O18U2, monoclinic, P2/c (no. 13), a = 10.894(2) Å, b = 7.9674(16) Å, c = 16.787(3) Å, β = 100.823(2)°, V = 1399.1(5) Å3, Z = 2, R gt (F) = 0.0307, wR ref (F 2) = 0.0728, T = 296(2) K.

CCDC no.: 2240088

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal: Yellow block
Size: 0.26 × 0.15 × 0.10 mm
Wavelength: Mo Kα radiation (0.71073 Å)
μ: 11.7 mm−1
Diffractometer, scan mode: φ and ω
θ max, completeness: 27.6°, >99%
N(hkl)measured, N(hkl)unique, R int: 11,452, 3210, 0.058
Criterion for I obs, N(hkl)gt: I obs > 2 σ(I obs), 2720
N(param)refined: 199
Programs: Bruker [1], Olex2 [2], SHELX [3, 4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

Atom x y z U iso*/U eq
C1 0.2197 (6) 0.4682 (7) 0.5647 (3) 0.0223 (12)
C2 0.1764 (6) 0.3108 (7) 0.5177 (4) 0.0247 (13)
H2A 0.086651 0.322607 0.488050 0.030*
H2B 0.183559 0.219785 0.557120 0.030*
C3 0.2486 (6) 0.2619 (7) 0.4560 (4) 0.0224 (12)
H3A 0.336458 0.235255 0.485461 0.027*
H3B 0.209918 0.162653 0.425779 0.027*
C4 0.1401 (6) 0.4813 (8) 0.3475 (4) 0.0292 (14)
H4 0.055158 0.451616 0.340595 0.035*
C5 0.1820 (5) 0.6100 (8) 0.3114 (4) 0.0286 (14)
H5 0.131547 0.686150 0.274417 0.034*
C6 0.3486 (5) 0.4804 (7) 0.3909 (3) 0.0204 (12)
H6 0.432420 0.451372 0.418460 0.024*
C7 0.4015 (6) 0.7356 (7) 0.3217 (4) 0.0239 (13)
H7A 0.376975 0.760435 0.262756 0.029*
H7B 0.487400 0.689812 0.336351 0.029*
C8 0.4012 (6) 0.8980 (7) 0.3701 (4) 0.0256 (13)
H8A 0.323121 0.959372 0.344868 0.031*
H8B 0.401939 0.870476 0.426466 0.031*
C9 0.5129 (5) 1.0072 (7) 0.3720 (3) 0.0200 (12)
N1 0.2461 (4) 0.4009 (6) 0.3971 (3) 0.0187 (10)
N2 0.3135 (4) 0.6094 (6) 0.3387 (3) 0.0210 (10)
N3 0.0530 (5) 0.9775 (7) 0.6632 (3) 0.0309 (12)
O1 0.1982 (4) 0.8687 (5) 0.5245 (2) 0.0297 (10)
O2 0.3371 (5) 0.7329 (6) 0.7293 (3) 0.0361 (11)
O3 0.1426 (4) 0.5431 (5) 0.5969 (3) 0.0297 (10)
O4 0.3275 (4) 0.5315 (5) 0.5701 (2) 0.0252 (9)
O5 0.5208 (4) 1.1527 (5) 0.4018 (2) 0.0242 (9)
O6 0.6014 (4) 0.9485 (5) 0.3450 (3) 0.0301 (10)
O7 0.1627 (4) 1.0465 (5) 0.6748 (3) 0.0303 (10)
O8 0.0515 (4) 0.8213 (5) 0.6481 (3) 0.0340 (11)
O9 −0.0420 (5) 1.0548 (6) 0.6644 (3) 0.0451 (13)
U1 0.26867 (2) 0.79818 (3) 0.62644 (2) 0.01911 (8)

1 Source of materials

The zwitterionic ligand 3-(1-(2-carboxyethyl)-1H-imidazol-3-ium-3-yl)- propanoate (HL) was synthesized according to the literature [5]. A mixture of 0.504 g uranyl nitrate hexahydrate (1 mmol), 0.212 g (1 mmol) and 2 mL H2O was added to a 25 mL Teflon-lined stainless steel autoclave at 373 K for 72 h. A large number of yellow needle crystals were obtained, washed with distilled water, and dried in air. Yield: 46% (based on HL).

2 Experimental details

The structure was solved by Direct Methods with the SHELXS-2018 program. All H-atoms from C and N atoms were positioned with idealized geometry (U iso(H) = 1.2U eq(C)) using a riding model with C—H = 0.930, 0.969, and 0.970 Å.

3 Comment

The uranyl complexes based on zwitterionic ligands with 1,3-disubstituted imidazolium cations, such as 3-(carboxylatomethyl)-1H-imidazol-3-ium-1-yl)acetate, have been reported as one- and two-dimensional structures [6, 7]. Besides this, two zero-dimensional uranyl complexes based on 1-methyl-1H-imidazol-3-ium-3-yl)acetate have although been reported elsewhere [8, 9]. Herein we report the title uranyl complex based on 3-(1-(2-carboxyethyl)-1H-imidazol-3-ium-3-yl)-propanoate with longer aliphatic chain substituents.

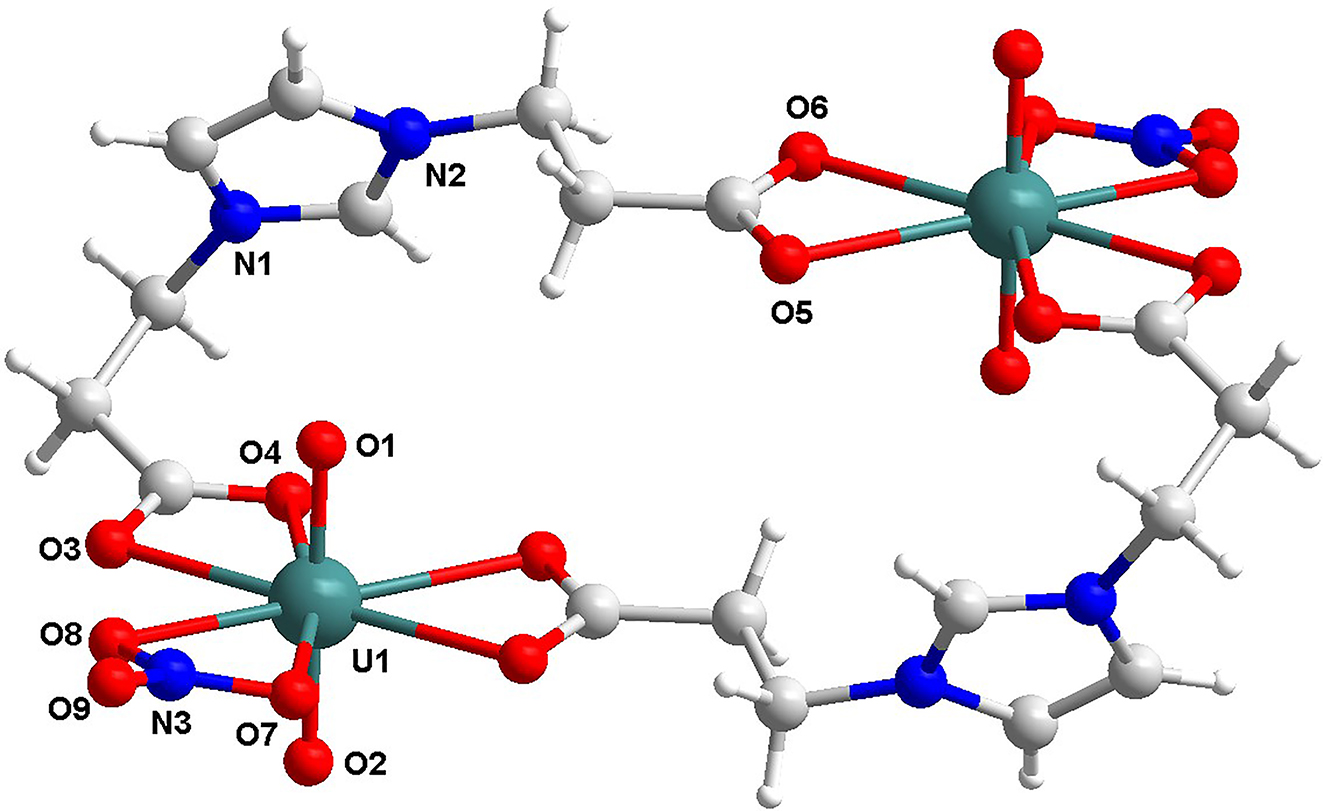

The title uranyl complex crystallizes in the monoclinic space group P2/c (no. 13), consisting of two uranyl cations, two completely deprotonated zwitterionic ligands, and two nitrate anions, resulting in a cyclic struture (see the figure). Both crystallographically dependent uranylatoms are surrouded by two oxygen atoms from two zwitterionic ligands, two oxygen atoms from one nitrate and two oxygen atoms from themselves, generating an 8-coordinated polyhedron. All of the bond lengths are comparable with the reported similar results [6–9].

Corresponding author: Yuning Meng, College of Materials and Chemical Engineering, Henan University of Urban Construction, Pingdingshan 467036, Henan, P. R. China, E-mail:

Funding source: National Key Research and Development Program of China

Award Identifier / Grant number: 2020YFC1909001

  1. Author contributions: All the authors have accepted responsibility for the entire content of this submitted manuscript and approved submission.

  2. Research funding: This work was supported by National Key Research and Development Program of China (2020YFC1909001).

  3. Conflict of interest statement: The authors declare no conflicts of interest regarding this article.

References

1. Bruker. SAINT v8.34A. Bruker AXS Inc: Bruker AXS Inc: Madison, Wisconsin, USA, 2013.Search in Google Scholar

2. Bourhis, L. J., Dolomanov, O. V., Gildea, R. J., Howard, J. A. K., Puschmann, H. The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment–OLEX2 dissected. Acta Crystallogr. 2015, A71, 59–75; https://doi.org/10.1107/s2053273314022207.Search in Google Scholar

3. Sheldrick, G. M. Crystal structure refinement with SHELXL. Acta Crystallogr. 2015, C71, 3–8; https://doi.org/10.1107/s2053229614024218.Search in Google Scholar

4. Sheldrick, G. Using phases to determine the space group. Acta Crystallogr. 2018, A74, a353; https://doi.org/10.1107/s0108767318096472.Search in Google Scholar

5. Cai, B. Exploiting a new europium(III) coordination polymer based on a zwitterionic ligand as a fluorescent probe for uranyl cations. J. Chem. Res. 2021, 1, 130–135; https://doi.org/10.1177/1747519820932266.Search in Google Scholar

6. Martin, N. P., Falaise, C., Volkringer, C., Henry, N., Farger, P., Falk, C., Delahaye, E., Rabu, P., Loiseau, T. Hydrothermal crystallization of uranyl coordination polymers involving an imidazolium dicarboxylate ligand: effect of pH on the nuclearity of uranyl-centered subunits. Inorg. Chem. 2016, 555, 8697–8705; https://doi.org/10.1021/acs.inorgchem.6b01232.Search in Google Scholar PubMed

7. Payne, M. K., Laird, R. C., Schnell, M. A., Mackin, S. R., Forbes, T. Z. Use of zwitterionic ligands in uranyl hybrid materials: explorations on the structural features that control water ordering and mobility. Cryst. Growth Des. 2017, 17, 6498–6509; https://doi.org/10.1021/acs.cgd.7b01183.Search in Google Scholar

8. Smith, P. A., Spano, T. L., Burns, P. C. Synthesis and structural characterization of a series of uranyl-betaine coordination complexes. Z. Kristallogr. Cryst. Mater. 2018, 233, 507–514; https://doi.org/10.1515/zkri-2017-2139.Search in Google Scholar

9. Nockemann, P., Van Deun, R., Thijs, B., Huys, D., Vanecht, E., Van Hecke, K., Van Meervelt, L., Binnemans, K. Uranyl complexes of carboxyl-functionalized ionic liquids. Inorg. Chem. 2010, 49, 3351–3360; https://doi.org/10.1021/ic902406h.Search in Google Scholar PubMed

Received: 2023-01-21
Accepted: 2023-02-06
Published Online: 2023-02-20
Published in Print: 2023-06-27

© 2023 the author(s), published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 International License.
