Crystal structure of (1,4,8,11-tetraazacyclotetradecane)palladium(II) tetracyanoplatinate(II), C14H24N8PdPt

  • Kwang Ha EMAIL logo
Veröffentlicht/Copyright: 1. August 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C14H24N8PdPt, monoclinic, P21/c (no. 14), a = 9.0747(3) Å, b = 8.3376(3) Å, c = 14.4578(6) Å, β = 123.8260(10)°, V = 908.73(6) Å3, Z = 2, Rgt(F) = 0.0115, wRref(F2) = 0.0235, T = 223 K.

CCDC no.: 1940058

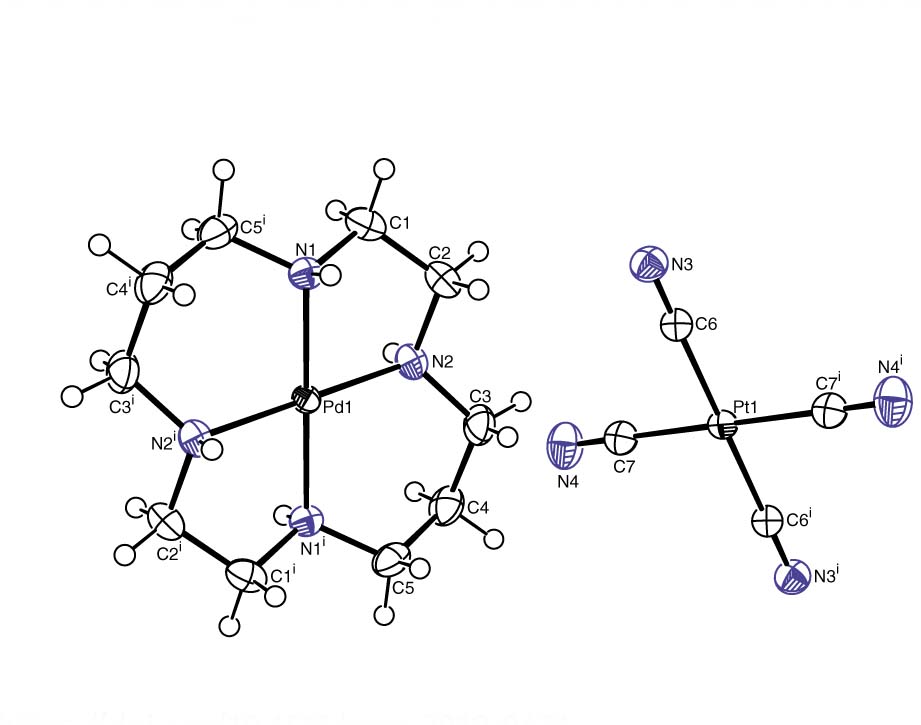

The asymmetric unit of the title crystal structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.14 × 0.10 × 0.07 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:8.69 mm−1
Diffractometer, scan mode:PHOTON 100 CMOS, φ and ω
θmax, completeness:26.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:27411, 1802, 0.037
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1402
N(param)refined:121
Programs:Bruker [1], SHELX [2], ORTEP-III [3], PLATON [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Pd10.50000.50000.50000.01966(5)
N10.6713(3)0.3347(2)0.61287(16)0.0255(4)
H10.613(3)0.286(3)0.635(2)0.033(7)*
N20.4614(3)0.3363(2)0.38349(16)0.0274(4)
H20.521(3)0.369(3)0.3619(19)0.027(7)*
C10.7069(3)0.2148(3)0.5517(2)0.0332(6)
H1A0.75350.11580.59520.040*
H1B0.79520.25670.53900.040*
C20.5351(3)0.1811(3)0.4418(2)0.0334(6)
H2A0.55650.10990.39650.040*
H2B0.45110.12860.45430.040*
C30.2788(3)0.3213(3)0.28359(19)0.0364(6)
H3A0.20230.27690.30530.044*
H3B0.27850.24600.23140.044*
C40.2036(3)0.4807(3)0.22556(19)0.0370(6)
H4A0.09350.46040.15300.044*
H4B0.28790.53000.21200.044*
C50.1646(3)0.5991(3)0.2888(2)0.0339(6)
H5A0.09270.68720.23910.041*
H5B0.09550.54550.31310.041*
Pt10.00000.00000.00000.02245(5)
N30.3336(3)−0.1092(2)0.22936(17)0.0350(5)
N40.2139(3)0.2958(3)−0.00079(19)0.0480(6)
C60.2092(3)−0.0686(3)0.14660(19)0.0259(5)
C70.1366(3)0.1879(3)0.00002(19)0.0301(5)

Source of material

To a solution of (1,4,8,11-tetraazacyclotetradecane)palladium(II) dichloride (0.228 g, 0.604 mmol) in H2O (20 mL) was added K2Pt(CN)4 (0.228 g; 0.604 mmol) and stirred for 1 h at room temperature. The formed precipitate was separated by filtration, washed with H2O and MeOH, and dried at 50 °C, to give a white powder (0.2117 g). Crystals suitable for X-ray diffraction analysis were obtained by slow evaporation from a dimethyl sulfoxide (DMSO) solution at 90 °C.

Experimental details

Hydrogen atoms on C atoms were positioned geometrically and allowed to ride on their parent atoms with d(C—H) = 0.98 Å and Uiso(H) = 1.2Ueq(C) with the help of the SHELXL program (AFIX 23 option) [2]. Hydrogen atoms bonded to N atoms were located from Fourier difference maps and refined isotropically; d(N—H) = 0.81(2) and 0.86(2) Å. The highest peak (0.26 e Å−3) and the deepest hole (−0.39 e Å−3) in the difference Fourier map are located 0.97 Å and 0.96 Å from the atoms Pt1 and Pd1, respectively.

Comment

The crystal structures of the related heterometallic complexes [Ag(cyclam)M1(CN)4]n (cyclam = 1,4,8,11-tetraazacyclotetradecane; M1 = Pd, Pt) [5] and [Cu(cyclam)M2(CN)4]n (M2 = Ni, Pd, Pt) [6] have been determined previously. The structures are formed by one-dimensional cyanido-bridged chains.

The title compound consists of a cationic Pd(II) complex [Pd(cyclam)]2+ and an anionic Pt(II) complex [Pt(CN)4]2−, and is isostructural with the previously reported analogous cyanido-Pd complex [Pd(cyclam)][Pd(CN)4] [7]. Pd(II) and Pt(II) ions are four-coordinated in a slightly distorted square-planar environment and are located on an inversion center, respectively, and thus the asymmetric unit contains one half of the compound. In the cationic complex, the Pd(II) ion is coordinated by four N atoms from the tetradentate cyclam ligand, whereas in the anionic complex, the Pt(II) ion is coordinated by four C atoms from four CN− ligands. The Pd—N and Pt—C bond lengths are almost equal with d(Pd—N) = 2.0381(18)–2.0408(19) Å and d(Pt—C) = 1.986(2)–1.998(2) Å), respectively. In the crystal structure, the cationic and anionic complexes are linked by intermolecular N—H⋯N3(cyanido) hydrogen bonds with d(N⋯N) = 2.975(3)–3.116(4) Å, forming a three-dimensional network [4].

In the reported heterometallic complexes, the metal ions (Ag, Cu) are coordinated by different bridging cyanido ligands in axial positions with d(Ag—N) = 2.567(9) Å in Pd complex and 2.529(9) Å in Pt complex [5], and d(Cu—N) = 2.518(2) Å in Pd complex and 2.549(3) Å in Pt complex [6], respectively. In the title compound, on the contrary, such a cyanido-bridging is not observed: the distance between the Pd1 and N4(cyanido) atoms is relatively long with 3.576(3) Å [4].

Funding source: Basic Science Research Program through the National Research Foundation of Korea (NRF)

Award Identifier / Grant number: 2018R1D1A1B07050550

Funding statement: This research was supported by Basic Science Research Program through the National Research Foundation of Korea (NRF) funded by the Ministry of Education (grant number: 2018R1D1A1B07050550). The author thanks the KBSI, Seoul Center, for the X-ray data collection.

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar

3. Farrugia, L. J.: ORTEP-3 for Windows − a version of ORTEP-III with a graphical user interface (GUI). J. Appl. Crystallogr. 30 (1997) 565.10.1107/S0021889897003117Suche in Google Scholar

4. Spek, A. L.: Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 36 (2003) 7–13.10.1107/S0021889802022112Suche in Google Scholar

5. Munakata, M.; Zhong, J. C.; Ino, I.; Kuroda-Sowa, T.; Maekawa, M.; Suenaga, Y.; Oiji, N.: 1-D cyano-bridged heterometallic complexes consisting of 1,4,8,11-tetraazacyclotetradecanesilver(II) and tetracyanopalladium(II) or tetracyanoplatinum(II). Inorg. Chim. Acta 317 (2001) 268–275.10.1016/S0020-1693(01)00366-8Suche in Google Scholar

6. Černák, J.; Kuchár, J.; Stolárová, M.; Kajňaková, M.; Vavra, M.; Potočň—’ak, I.; Falvello, L. R.; Tomás, M.: Preparation, spectroscopic and magnetic characterization of Cu(cyclam)M(CN)4 complexes exhibiting one-dimensional crystal structures (cyclam = 1,4,8,11-tetraazacyclotetradecane, M = Ni, Pd, Pt). Transition Met. Chem. 35 (2010) 737–744.10.1007/s11243-010-9387-5Suche in Google Scholar

7. Ha, K.: Crystal structure of (1,4,8,11-tetraazacyclotetradecane)palladium(II) tetracyanopalladate(II), C14H24N8Pd2. Z. Kristallogr. NCS 232 (2017) 139–140.10.1515/ncrs-2016-0193Suche in Google Scholar

Received: 2019-06-18
Accepted: 2019-07-12
Published Online: 2019-08-01
Published in Print: 2019-11-26

©2019 Kwang Ha, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
