Crystal structure of (acetic acid-κ1O)-bis(μ2-2-chlorobenzoato-κ2O:O′)-(2-chlorobenzoato-κ1O)-(μ2-hydroxy-κ2O:O)-bis(1,10-phenanthroline-κ2N,N′)dimanganese(II) — methanol (1/1), C48H37Cl3Mn2N4O10

  • Feng Li EMAIL logo
Veröffentlicht/Copyright: 9. September 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C48H37Cl3Mn2N4O10, monoclinic, P21/n (no. 14), a = 12.759(3) Å, b = 19.347(5) Å, c = 18.945(5) Å, β = 97.321(5)°, V = 4638(2) Å3, Z = 4, Rgt(F) = 0.0432, wRref(F2) = 0.1196, T = 298(2) K.

CCDC no.: 1946274

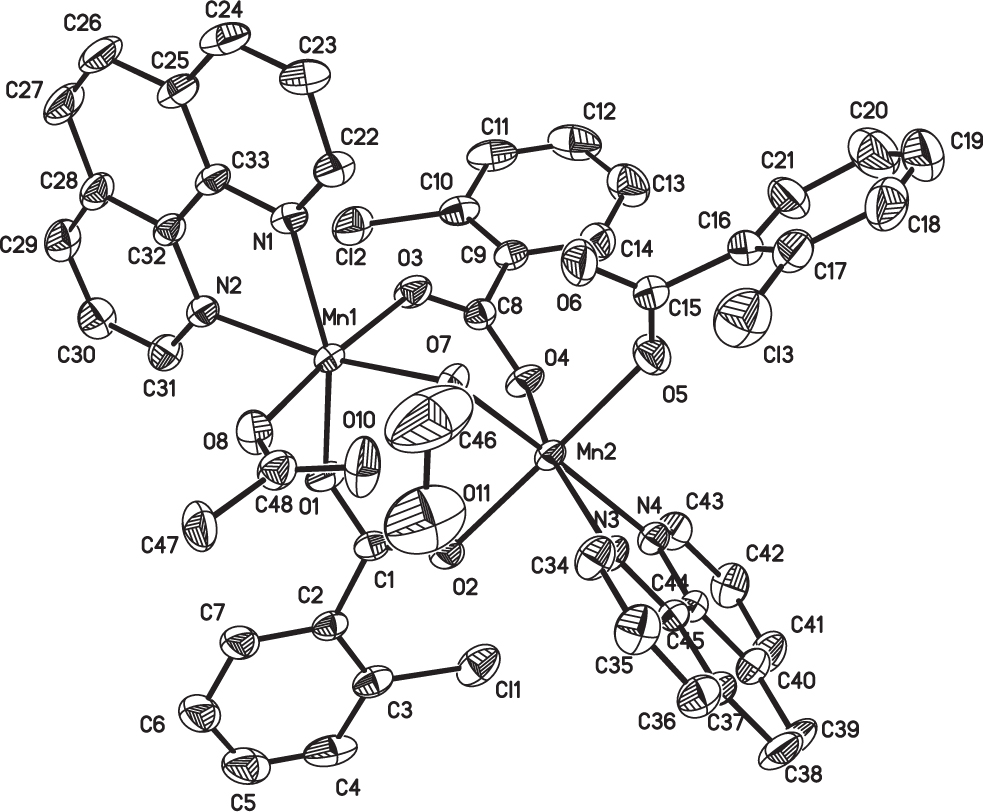

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.21 × 0.16 × 0.12 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.78 mm−1
Diffractometer, scan mode:Bruker SMART APEX II,
θmax, completeness:25.0°, >99%
N(hkl)measured, N(hkl)unique, Rint:23632, 8210, 0.034
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 5947
N(param)refined:611
Programs:Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Mn10.20523(4)0.47264(2)0.85165(2)0.03575(13)
Mn20.15541(4)0.58569(2)0.70399(2)0.03679(14)
Cl1−0.19920(9)0.59268(6)0.70077(5)0.0739(3)
Cl20.17301(8)0.63362(7)1.02616(5)0.0742(3)
Cl30.50473(12)0.56410(7)0.57292(7)0.0980(4)
O10.03956(17)0.48265(13)0.82697(11)0.0504(6)
O20.01812(17)0.52257(13)0.71572(11)0.0481(6)
O30.22588(19)0.57774(12)0.88646(12)0.0508(6)
O40.14383(19)0.64231(12)0.79929(11)0.0497(6)
O50.29981(19)0.64012(13)0.68949(14)0.0606(7)
O60.4279(2)0.56666(16)0.72816(17)0.0828(10)
O70.25973(19)0.50089(12)0.74945(11)0.0442(5)
O80.1931(2)0.36978(12)0.80336(12)0.0551(6)
C470.1926(4)0.26812(19)0.7269(2)0.0684(11)
H47A0.2146260.2401250.7679770.103*
H47B0.2324800.2555740.6891580.103*
H47C0.1187620.2608130.7117850.103*
O100.2501(3)0.37935(14)0.69913(13)0.0778(9)
H100.2583980.4195820.7122850.117*
O110.3327(4)0.3285(3)0.5837(2)0.1364(16)
H110.2978630.3281900.6171490.205*
N10.3692(2)0.44502(14)0.90795(13)0.0412(6)
N20.1826(2)0.43450(13)0.96183(13)0.0392(6)
N30.1520(2)0.54944(14)0.58823(12)0.0399(6)
N40.0558(2)0.66161(14)0.63632(13)0.0394(6)
C480.2120(3)0.34512(19)0.74594(19)0.0516(9)
C1−0.0146(2)0.49522(17)0.76819(16)0.0388(7)
C2−0.1285(2)0.47158(18)0.76208(15)0.0418(8)
C3−0.2142(3)0.5099(2)0.73229(17)0.0520(9)
C4−0.3177(3)0.4843(3)0.7290(2)0.0762(14)
H4−0.3749830.5112180.7102900.091*
C5−0.3328(4)0.4194(3)0.7537(2)0.0848(15)
H5−0.4008870.4015010.7503490.102*
C6−0.2492(4)0.3802(3)0.7834(2)0.0797(14)
H6−0.2610870.3360780.8001490.096*
C7−0.1487(3)0.4055(2)0.78855(18)0.0612(11)
H7−0.0927640.3788130.8098180.073*
C80.1919(2)0.63410(17)0.86053(16)0.0388(7)
C90.2159(2)0.69787(17)0.90450(16)0.0402(7)
C100.2162(3)0.70156(19)0.97802(17)0.0480(9)
C110.2487(3)0.7609(3)1.0157(2)0.0675(12)
H11A0.2486240.7623181.0647640.081*
C120.2809(4)0.8171(3)0.9807(3)0.0838(15)
H120.3045960.8564031.0060900.101*
C130.2785(4)0.8159(2)0.9079(3)0.0815(14)
H130.2986480.8546210.8839120.098*
C140.2458(3)0.7562(2)0.8707(2)0.0614(10)
H140.2439500.7556880.8214300.074*
C150.3935(3)0.6197(2)0.69641(18)0.0496(9)
C160.4705(3)0.6644(2)0.6642(2)0.0537(9)
C170.5255(3)0.6442(2)0.6105(2)0.0640(11)
C180.5977(4)0.6892(3)0.5832(3)0.0869(16)
H180.6340820.6756990.5459620.104*
C190.6123(4)0.7536(3)0.6135(3)0.0956(17)
H190.6604020.7835330.5965050.115*
C200.5596(4)0.7750(3)0.6668(4)0.0966(17)
H200.5720370.8189360.6859630.116*
C210.4879(3)0.7325(2)0.6930(3)0.0847(15)
H210.4507950.7477430.7292760.102*
C220.4602(3)0.45006(19)0.88202(18)0.0502(9)
H220.4593760.4657900.8355650.060*
C230.5575(3)0.4331(2)0.9205(2)0.0598(10)
H230.6199060.4372940.9002590.072*
C240.5584(3)0.4102(2)0.9886(2)0.0626(11)
H240.6221290.3985761.0153960.075*
C250.4645(3)0.40406(19)1.01817(18)0.0528(9)
C260.4603(4)0.3831(2)1.0907(2)0.0700(12)
H260.5224600.3715841.1193620.084*
C270.3686(4)0.3800(2)1.1174(2)0.0728(12)
H270.3682830.3661271.1643880.087*
C280.2709(3)0.39737(19)1.07581(17)0.0531(9)
C290.1729(4)0.3956(2)1.10126(18)0.0615(11)
H290.1687130.3822201.1479820.074*
C300.0844(3)0.4131(2)1.05837(19)0.0596(10)
H300.0191920.4126881.0753860.072*
C310.0920(3)0.43165(18)0.98848(18)0.0489(8)
H310.0302660.4426260.9589870.059*
C320.2720(3)0.41780(16)1.00472(16)0.0404(8)
C330.3708(3)0.42204(16)0.97572(16)0.0400(8)
C340.2038(3)0.49763(19)0.56379(18)0.0532(9)
H340.2502380.4725930.5959360.064*
C350.1927(3)0.4782(2)0.49233(19)0.0622(11)
H350.2309690.4412140.4775340.075*
C360.1259(3)0.5139(2)0.44517(18)0.0594(10)
H360.1160530.5007700.3975670.071*
C370.0713(3)0.57081(19)0.46773(16)0.0481(9)
C380.0015(3)0.6122(2)0.42109(19)0.0678(11)
H38−0.0107710.6008340.3730480.081*
C39−0.0467(3)0.6668(2)0.4446(2)0.0698(12)
H39−0.0914150.6931700.4126420.084*
C40−0.0313(3)0.68603(19)0.51813(18)0.0513(9)
C41−0.0786(3)0.7437(2)0.5455(2)0.0650(11)
H41−0.1248840.7709470.5154760.078*
C42−0.0572(3)0.7601(2)0.6155(2)0.0632(11)
H42−0.0869340.7989800.6338990.076*
C430.0105(3)0.71701(19)0.65903(19)0.0532(9)
H430.0245650.7280680.7070820.064*
C440.0361(2)0.64609(16)0.56594(16)0.0377(7)
C450.0875(2)0.58722(16)0.54072(15)0.0381(7)
C460.4403(5)0.3285(5)0.6096(4)0.168(4)
H46A0.4638800.3752070.6184230.251*
H46B0.4795040.3077670.5750970.251*
H46C0.4515070.3025890.6531290.251*
H7A0.3194(14)0.514(2)0.746(2)0.072(14)*

Source of material

2-Chlorobenzoic acid (312 mg, 2 mmol) and manganese(II) acetate (490 mg, 2 mmol), 1,10-phenanthroline (360 mg, 2 mmol) and 20 mL methanol were mixed and stirred for ca. 2 h. After the solution was cooled to room temperature, the solid was filtered off. The mixture solution was filtered and the filtration was distilled. The product was recrystallized in hexane/dichloromethane as the radio of 1:1. The colorless block-shaped crystals were obtained by evaporation in air. Yield: 78% (base on Mn element), and elemental analysis: calc. for C48H37Cl3Mn2N4O10: C 55.22, H 3.38, N 5.37; found: C 55.31, H 3.24, N 5.15 (PERKIN ELMER MODEL 2400 SERIES II).

Experimental details

Hydrogen atoms were assigned with common isotropic displacement factors Uiso(H) = 1.2 times Ueq (C-aryl) and 1.5 times Ueq (C, methyl) and (O, hydroxyl). All the H atoms were refined as riding on their parent atom.

Comment

During the last decades, carboxylate complexes have received much attention because of their interesting property in the field of biology and materials, especially many varieties of Mn complexes with the multi-carboxylic ligand and the co-ligand with N atoms are known [3], [4], [5], [6].

The crystal structure shows two carboxylic ligands and one oxygen atom bridge two Mn atoms and two phen ligands chelate two Mn atoms, respectively. Acetic acid and a 2-chlorobenzoic acid group coordinate to one Mn atom, respectively. Both Mn atoms show six-coordinated octahedron geometry. For Mn1, the angle of O3-Mn1-O8 is 172.33(19)°, showing the geometry is distorted. Meanwhile, for Mn2, the angle of O2-Mn2-O5 is 174.69(10)°. The bond lengths of Mn—O are 2.115(2) Å – 2.216(2) Å and the bond lengths of Mn—N are from 2.236(3) Å to 2.298(3) Å. The bridged O atom is almost in the middle of two Mn atoms for the O7-Mn1 is 2.208(2) Å and O7-Mn2 is 2.216(2) Å.

Funding source: Financial support from the teaching reform project of lvliang University

Award Identifier / Grant number: JXXGG201924

Funding statement: Financial support from the teaching reform project of lvliang University (No. JXXGG201924) is gratefully acknowledged.

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2004).Suche in Google Scholar

2. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

3. Ma, C. B.; Wang, W. G.; Zhang, X. F.; Chen, C. N.; Liu, Q. T.; Zhu, H. P.; Liao, D. Z.; Li, L. C.: Molecular, one– and two–dimensional systems built from manganese(II) and phthalate/diimine ligands: syntheses, crystal structures and magnetic properties. Eur. J. Inorg. Chem. 2004 (2004) 3522–3532.10.1002/ejic.200400166Suche in Google Scholar

4. Mukhopadhyay, S.; Gandhi, B. A.; Kirk, M. L.; Armstrong, W. H.: A new class of oxo-bridged high-valent hexamanganese clusters supported by sterically hindered carboxylate ligands. Inorg. Chem. 42 (2003) 8171–8180.10.1021/ic034641hSuche in Google Scholar PubMed

5. Ma, C. B.; Chen, C. N.; Liu, Q. T.; Chen, F.; Liao, D. Z.; Li, L. C.; Sun, L. C.: Synthesis, structure and magnetic properties of a series of novel isophthalate–bridged manganese(II) polymers with double–layer or double-chain structures. Eur. J. Inorg. Chem. 2004 (2004) 3316–3325.10.1002/ejic.200400095Suche in Google Scholar

6. Xiao, H. P.; Hu, M. L.; Yuan, J. X.: Bis(4-bromo-isophthalato)-bis[bis(1,10-phenanthroline)-manganese(II)] tetrahydrate. Acta Crystallogr. E61 (2005) m443–m445.10.1107/S1600536805003004Suche in Google Scholar

Received: 2019-05-20
Accepted: 2019-08-09
Published Online: 2019-09-09
Published in Print: 2019-11-26

©2019 Feng Li, published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
