Crystal structure of 3-fluoro-3-methyl-1-((2-nitrophenyl)sulfonyl)-5,5-diphenylpiperidine, C24H23FN2O4S

  • Zedong Cai , Xie Huang und Wei He EMAIL logo
Veröffentlicht/Copyright: 14. Juni 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C24H23FN2O4S, orthorhombic, Pbca (no. 19), a = 14.3646(18) Å, b = 15.5927(19) Å, c = 19.645(3) Å, V = 4400.1(10) Å3, Z = 8, Rgt(F) = 0.0349, wRref(F2) = 0.0982, T = 296(2) K.

CCDC no.: 1889127

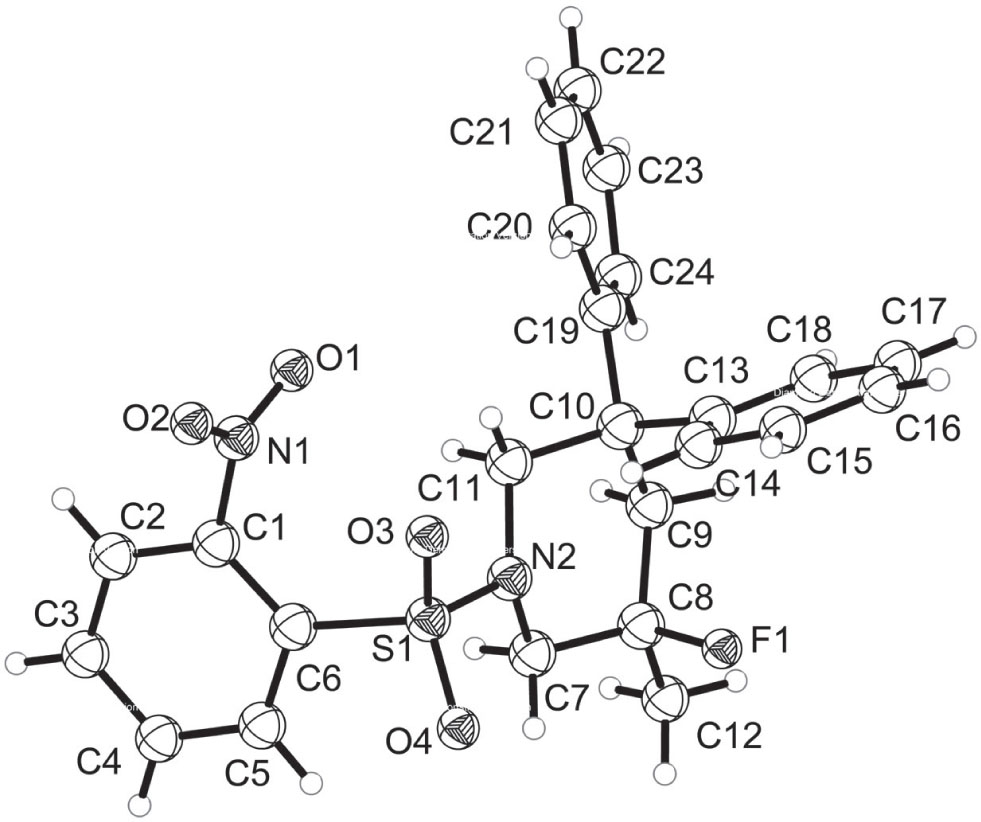

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Block
Size:0.34 × 0.25 × 0.14 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.19 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:25.1°, >99%
N(hkl)measured, N(hkl)unique, Rint:20955, 3916, 0.025
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 3324
N(param)refined:290
Programs:SHELX [1], Bruker [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
S10.64923(3)0.23860(3)0.53719(2)0.04382(14)
F10.56183(7)0.19174(7)0.34211(6)0.0596(3)
N10.84621(11)0.22597(10)0.61493(8)0.0564(4)
N20.67534(10)0.22113(8)0.45801(7)0.0436(3)
O10.88241(11)0.18576(9)0.56947(8)0.0724(4)
O20.84328(15)0.20273(11)0.67345(8)0.1040(7)
O30.67228(9)0.16309(7)0.57439(6)0.0547(3)
O40.55706(8)0.27155(8)0.53861(7)0.0596(3)
C10.80758(12)0.31134(10)0.59977(8)0.0440(4)
C20.85969(13)0.37999(13)0.62181(9)0.0574(5)
H20.91700.37100.64260.069*
C30.82649(14)0.46174(12)0.61289(10)0.0610(5)
H30.86160.50850.62720.073*
C40.74157(13)0.47428(11)0.58296(10)0.0560(5)
H40.71860.52970.57780.067*
C50.68984(12)0.40578(10)0.56049(8)0.0461(4)
H50.63230.41540.54010.055*
C60.72223(11)0.32248(9)0.56777(8)0.0390(3)
C70.65041(13)0.28694(11)0.40770(9)0.0505(4)
H7A0.69830.33070.40640.061*
H7B0.59230.31400.42070.061*
C80.64032(12)0.24653(11)0.33812(9)0.0483(4)
C90.72395(12)0.19219(10)0.31941(8)0.0455(4)
H9A0.77630.23000.31070.055*
H9B0.71030.16200.27740.055*
C100.75306(11)0.12599(10)0.37353(7)0.0390(3)
C110.76125(11)0.17418(10)0.44172(8)0.0414(4)
H11A0.77440.13340.47780.050*
H11B0.81280.21420.43930.050*
C120.61871(16)0.31316(14)0.28417(11)0.0692(6)
H12A0.61060.28540.24100.104*
H12B0.66920.35330.28130.104*
H12C0.56260.34300.29610.104*
C130.68651(11)0.04841(10)0.37521(8)0.0396(3)
C140.63639(12)0.02348(11)0.43217(9)0.0506(4)
H140.63880.05680.47140.061*
C150.58293(14)−0.05027(12)0.43152(11)0.0616(5)
H150.5501−0.06590.47040.074*
C160.57754(14)−0.10070(12)0.37467(11)0.0607(5)
H160.5414−0.15020.37460.073*
C170.62658(13)−0.07693(12)0.31754(10)0.0571(5)
H170.6235−0.11040.27840.068*
C180.68040(12)−0.00358(11)0.31804(8)0.0487(4)
H180.71340.01140.27910.058*
C190.85073(10)0.08953(10)0.35946(8)0.0399(3)
C200.88818(11)0.03089(10)0.40516(9)0.0464(4)
H200.85440.01630.44390.056*
C210.97393(12)−0.00622(11)0.39462(9)0.0496(4)
H210.9980−0.04430.42650.060*
C221.02365(12)0.01291(13)0.33722(9)0.0568(5)
H221.0807−0.01330.32910.068*
C230.98860(14)0.07077(15)0.29204(10)0.0712(6)
H231.02240.08440.25310.085*
C240.90320(13)0.10971(14)0.30321(9)0.0610(5)
H240.88110.15000.27220.073*

Source of material

The mixture solution of (diacetoxyiodo)benzene and fluoroboric acid in CH2Cl2 was stirred at room temperature for 10 min and N-(4-methyl-2,2-diphenylpent-4-en-1-yl)-2-nitrobenzenesulfonamide was added to continue the reaction for 10 min. The mixture was purified by flash column chromatography (petroleum ether/ethyl acetate = 20/1) to afford the title compound.

Experimental details

The Uiso values of the hydrogen atoms of methyl groups were set to 1.5 Ueq(C). Besides, the Uiso values of phenyl, methylene hydrogen atoms were set to 1.2 Ueq(C).

Comment

Fluorine-containing compounds are important building blocks for the synthesis of bioactive molecules [3], [4], [5]. The title structure can easily be deproted of sulfonyl protection [6], and then it could be transformed into a range of compounds containing a piperidine ring and a fluorine atom [7], [8], [9], [10], [11], [12]. These compounds have a wide range of biomedical activities.

The title structure contains a chair-type piperidine ring similar to the literature [13]. The angle between the fluorine atom and the methyl group attached to the C8 carbon atom on the piperidine ring is 106.79(15)°. The dihedral angles between the plane 1 of phenyl (C1, C2, C3, C4, C5 and C6) and the plane 2 of sulfonyl group (O3, S1 and O4), the plane 3 of nitryl (O1, N1 and O2) are 55.0(1)°, 75.2(1)°, respectively. Besides, the dihedral angle between the plane 2 and plane 3 is 52.8(1)°. The dihedral angle between two phenyl rings directly connected the piperidine ring is 83.534(55)°.

Acknowledgements

This work is supported by Shaanxi Province Key Research and Development Program (S2019-YF-ZDCXL-ZDLSF-0138).

References

1. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

2. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

3. Asahina, Y.; Takei, M.; Kimura, T.; Fukuda, Y.: Synthesis and antibacterial activity of novel pyrido[1,2,3-de][1,4]benzoxazine- 6-carboxylic acid derivatives carrying the 3-cyclopropylaminomethyl-4-substituted-1-pyrrolidinyl group as a C-10 substituent. J. Med. Chem. 51 (2008) 3238–3249.10.1021/jm701428bSuche in Google Scholar PubMed

4. Tsai, T.; Yeh, T.; Chen, X.; Hsu, T.; Jao, Y.; Huang, C.; Song, J.; Huang, Y.; Chien, C.; Chiu, J.; Yen, S.; Tang, H.; Chao, Y.; Jiaang, W.: Substituted 4-carboxymethylpyroglutamic acid diamides as potent and selective inhibitors of fibroblast activation protein. J. Med. Chem. 53 (2010) 6572–6583.10.1021/jm1002556Suche in Google Scholar PubMed

5. Sharma, M.; Gupta, M.; Singh, D.; Kumar, M.; Kaur, P.: Synthesis, evaluation and molecular docking of prolyl-fluoropyrrolidine derivatives as dipeptidyl peptidase IV inhibitors. Chem. Biol. Drug Des. 82 (2013) 156–166.10.1111/cbdd.12142Suche in Google Scholar PubMed

6. Tamaddon, F.; Nasiri, A.; Farokhi, S.: CsF-Celite as an efficient heterogeneous catalyst for sulfonylation and desulfonylation of heteroatoms. Catal. Commun. 12 (2011) 1477–1482.10.1016/j.catcom.2011.04.005Suche in Google Scholar

7. Böhm, H.; Banner, D.; Bendels, S.; Kansy, M.; Kuhn, B.; Müller, K.; Obst-Sander, U.; Stahl, M.: Fluorine in medicinal chemistry. ChemBioChem 5 (2004) 637–643.10.1002/cbic.200301023Suche in Google Scholar PubMed

8. Hagmann, W. K.: The many roles for fluorine in medicinal chemistry. J. Med. Chem. 51 (2008) 4359–4369.10.1021/jm800219fSuche in Google Scholar PubMed

9. Muller, K.; Faeh, C.; Diederich, F.: Fluorine in pharmaceuticals: looking beyond intuition. Science 317 (2007) 1881–1886.10.1126/science.1131943Suche in Google Scholar PubMed

10. Schweizer, E.; Hoffmann-Röder, A.; Schärer, K.; Olsen, J. A.; Fäh, C.; Seiler, P.; Obst-Sander, U.; Wagner, B.; Kansy, M.; Diederich, F.: A fluorine scan at the catalytic center of thrombin: C-F, C-OH, and C-OMe bioisosterism and fluorine effects on pKa and logD values. ChemMedChem 1 (2006) 611–621.10.1002/cmdc.200600015Suche in Google Scholar PubMed

11. Martino, R.; Gilard, V.; Desmoulin, F.; Malet-Martino, M.: Interest of fluorine-19 nuclear magnetic resonance spectroscopy in the detection, identification and quantification of metabolites of anticancer and antifungal fluoropyrimidine drugs in human biofluids. Chemotherapy 52 (2006) 215–219.10.1159/000094744Suche in Google Scholar PubMed

12. Sun, S.; Adejare, A.: Fluorinated molecules as drugs and imaging agents in the CNS. Curr. Top. Med. Chem. 6 (2006) 1457–1464.10.2174/156802606777951046Suche in Google Scholar PubMed

13. Prasad, S. B. B.; Naveen, S.; Anandakumar, C. S.; Vinaya, K.; Gowda, N. S. L.; Sridhar, M. A.; Prasad, J. S.; Rangappa, K. S.: Synthesis and crystal structure of 1-(2-nitro-benzenesulfonyl)-piperidin-4-yl-diphenyl-methanol. Mol. Cryst. Liq. Cryst. 482 (2008) 145–154.10.1080/15421400801914988Suche in Google Scholar
