Crystal structure of poly[(μ2-2-(1H-1,2,4-triazol-1-yl)benzoato-κ4O:O′:N:N′)silver(I)] monohydrate, C9H8AgO3N3

  • Kai-Hui Li EMAIL logo und Peng Zhang
Veröffentlicht/Copyright: 2. August 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C9H8AgO3N3, monoclinic, P21/n (no. 14), a = 6.5358(3) Å, b = 6.0583(4) Å, c = 24.9951(11) Å, β = 92.040(4)°, V = 989.08(8) Å3, Z = 4, Rgt(F) = 0.0297, wRref(F2) = 0.0552, T = 288.74(10) K.

CCDC no.: 1935401

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.32 × 0.24 × 0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.03 mm−1
Diffractometer, scan mode:SuperNova, ω
θmax, completeness:25.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:5442, 1806, 0.032
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1582
N(param)refined:148
Programs:CrysAlisPRO [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag10.60056(3)0.20502(5)0.46975(2)0.03152(12)
O10.3103(3)0.7755(4)0.43572(9)0.0283(6)
O20.6309(3)0.8557(4)0.41562(10)0.0361(6)
N10.1964(4)0.3556(4)0.40232(10)0.0203(6)
N20.2703(4)0.2966(4)0.45192(10)0.0220(6)
N3−0.0734(4)0.2911(4)0.44876(11)0.0242(7)
C10.3264(4)0.4104(5)0.35913(12)0.0212(7)
C20.4516(4)0.5952(5)0.36082(12)0.0202(7)
C30.5654(5)0.6344(6)0.31565(13)0.0292(8)
H30.65200.75610.31530.035*
C40.5534(5)0.4978(6)0.27136(13)0.0348(9)
H40.62910.53040.24160.042*
C50.4306(5)0.3147(6)0.27120(14)0.0377(10)
H50.42320.22210.24150.045*
C60.3178(5)0.2689(6)0.31557(14)0.0319(9)
H60.23620.14320.31620.038*
C70.4643(5)0.7539(5)0.40774(13)0.0238(8)
C8−0.0072(4)0.3512(5)0.40176(13)0.0244(8)
H8−0.09140.38590.37220.029*
C90.1023(5)0.2585(5)0.47843(14)0.0235(8)
H90.10420.21370.51400.028*
O30.9916(4)0.8653(5)0.36021(10)0.0426(7)
H3A1.08830.84830.38350.064*
H3B0.87740.85910.37540.064*

Source of material

The title compound was prepared by hydrothermal method. A mixture of AgNO3 (0.034 g, 0.2 mmol), 2-(1,2,4-triazol-2)benzenecarboxylic acid (0.019 g, 0.1 mmol), and H2O (15 mL) was sealed in a 25 mL Teflon-lined stainless steel vessel and heated at 160 °C for 3 days. The reaction mixture was slowly cooled to room temperature at a rate of 5 °C/h, and the colorless block crystals were collected, washed with water, and dried in air.

Experimental details

The hydrogen atoms were assigned with common isotropic displacement factors Uiso(H) = 1.2 times Ueq(C, aromatic ring), and Uiso(H) = 1.5 times Ueq(O, water). The final refinement by using geometrical restraints, with C—H = 0.93 Å (aromatic ring), and O—H = 0.85 Å (water).

Comment

Coordination polymers (CPs) have attracted wide attention owing to their intriguing structures and their promising properties such as gas adsorption, magnetism, luminescence, and so on [4], [5], [6]. Benzoic and N-containing heterocyclic compounds are the most widely used building ligands in the syntheses of CPs for their rich coordinate sites and diverse coordinate modes [7], [8], [9]. Bifunctional ligands with benzoic and N-containing heterocyclic fragments present both functionallities in one ligand [10], [11], [12].

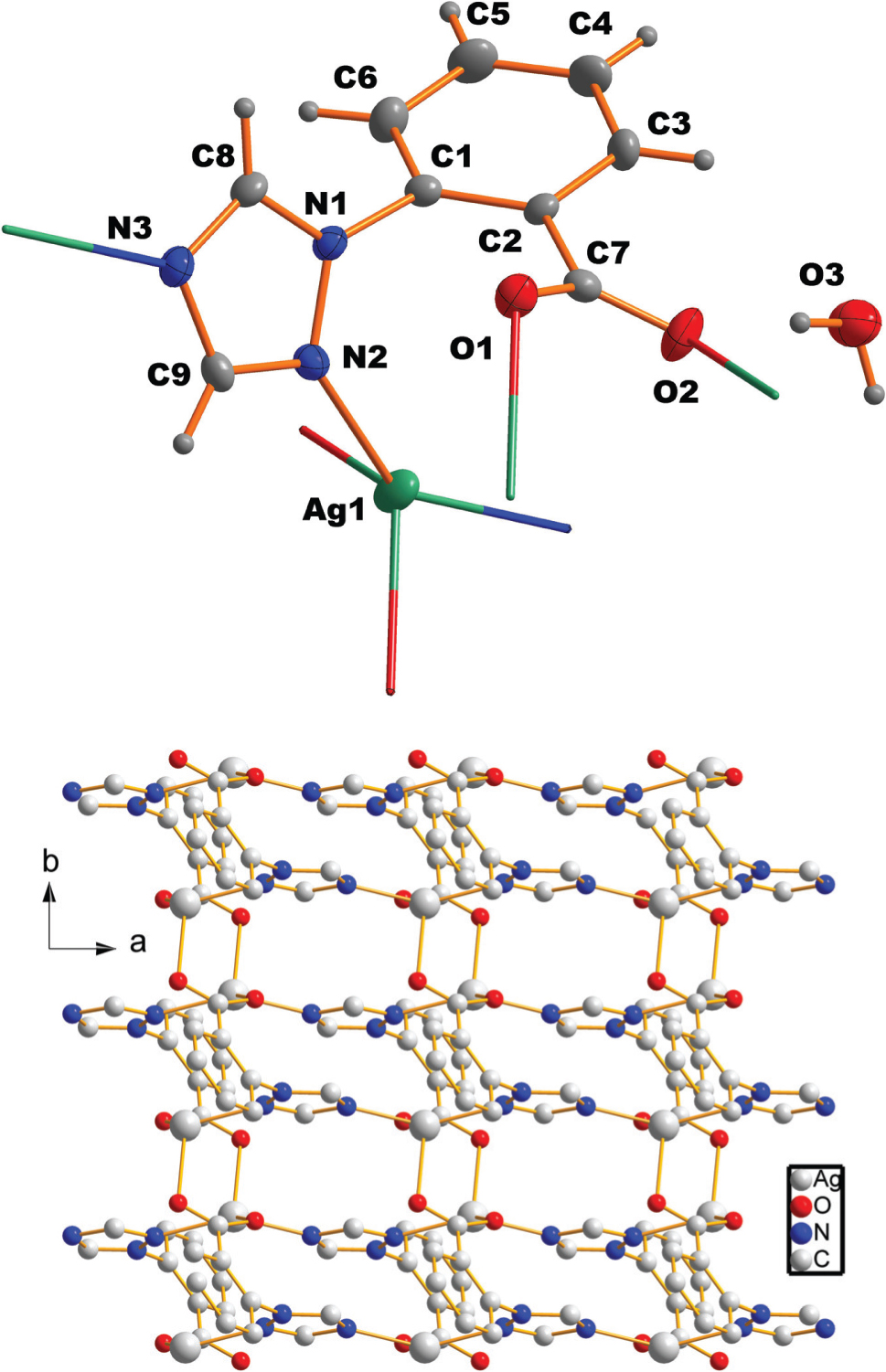

The asymmetric unit of the title compound consists of one crystallographically independent Ag(I) ions, one 2-(1,2,4-triazol-2)benzenecarboxyl ligand, and one coordinated water molecule (Figure, upper part). The Ag(I) center is four-coordinated with distorted tetrahedral geometry. The geometry is completed by two nitrogen atoms and two oxygen atoms from four different ligands. The Ag—N bond lengths are 2.257(2) and 2.273(2) Å, and the Ag—O bond lengths are 2.416(2) and 2.523(2) Å, respectively. The 2-(1,2,4-triazol-2)benzenecarboxylato ligand is deprotonated. The carboxyl group connect with two Ag(I) ions, the triazole also coordinate with two Ag(I) ions. By this mode, the organic ligands connect adjacent Ag(I) ions, give a 2D framework, as shown in the lower part of the figure.

References

1. Agilent Technologies. CrysAlisPRO Software system, version 1.171.38.41r, Agilent Technologies UK Ltd, Oxford, UK (2015).Suche in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

4. Janiak, C.: Engineering coordination polymers towards applications. Dalton. Trans. 14 (2003) 2781–2804.10.1039/b305705bSuche in Google Scholar

5. Miao, S. B.; Li, Z. H.; Xu, C. Y.; Ji, B. M.: A new 3-fold interpenetrating 3D Zn(II) metal-organic framework: synthesis, structures and luminescent property. Chin. J. Struct. Chem. 35 (2016) 1960–1966.Suche in Google Scholar

6. Kurmoo, M.: Magnetic metal-organic frameworks. Chem. Soc. Rev. 38 (2009) 1353–1379.10.1039/b804757jSuche in Google Scholar PubMed

7. Wang, Z. Q.; Zheng, C. J.; Wang, W. Z.; Xu, C.; Ji, B. M.; Zhang, X. H.: Synthesis, structure, and photophysical properties of two four-coordinate CuI-NHC complexes with efficient delayed fluorescence. Inorg. Chem. 55 (2016) 2157–2164.10.1021/acs.inorgchem.5b02546Suche in Google Scholar PubMed

8. Xue, L. P.: A dinuclear Cd(II) cluster-based coordination polymer: synthesis, structure and luminescence property. Chin. J. Struct. Chem. 37 (2018) 119–124.Suche in Google Scholar

9. Loukopoulos, E.; Abdul-Sada, A.; Viseux, E. M. E.; Lykakis, I. N.; Kostakis, G. E.: Structural diversity and catalytic properties in a family of Ag(I)-benzotriazole based coordination compounds. Cryst. Growth Des. 18 (2018) 5638–5651.10.1021/acs.cgd.8b00960Suche in Google Scholar

10. Miao, S. B.; Wang, Y. F.; Deng, D. S.; Xu, C. Y.; Li, Z. H.; Ji, B. M.: Two Co(II) coordination polymers based on 3,5-di(4H-1,2,4-triazole-4-yl)benzoic acid ligand: syntheses, structures and magnetic property. Chin. J. Struct. Chem. 37 (2018) 1102–1108.Suche in Google Scholar

11. Zhang, F.; Hou, L.; Zhang, W. Y.; Yan, Y. T.; Wu, Y. L.; Yang, R. F.; Cao, F.; Wang, Y. Y.: Two metal-organic frameworks based on a flexible benzimidazole carboxylic acid ligand: selective gas sorption and luminescence. Dalton Trans. 46 (2017) 15118–15123.10.1039/C7DT03363JSuche in Google Scholar

12. Wang, X. L.; Zhang, R.; Wang, X.; Lin, H. Y.; Liu, G. C.; Zhang, H. X.: Metal ion-tuned coordination polymers based on different isopolymolybdates grafted by in-situ ligand. Polyhedron 135 (2017) 180–188.10.1016/j.poly.2017.06.033Suche in Google Scholar

Received: 2019-04-28
Accepted: 2019-06-20
Published Online: 2019-08-02
Published in Print: 2019-11-26

©2019 Kai-Hui Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
