The crystal structure of 4-(pyren-1-yl)butyl-3-nitrobenzoate, C27H21NO4

  • Claudio Barrientos , Patricia Barahona , Juan Luis Guevara , J. Arturo Squella und Silvana Moris EMAIL logo
Veröffentlicht/Copyright: 30. Juli 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C27H21NO4, triclinic, P1̄ (no. 2), a = 8.1182(5) Å, b = 9.0097(5) Å, c = 14.8013(10) Å, α = 72.603(2)°, β = 82.642(2)°, γ = 79.351(3)°, V = 1012.23(11) Å3, Z = 2, Rgt(F) = 0.0367, wRref(F2) = 0.1018, T = 150 K.

CCDC no.: 1939008

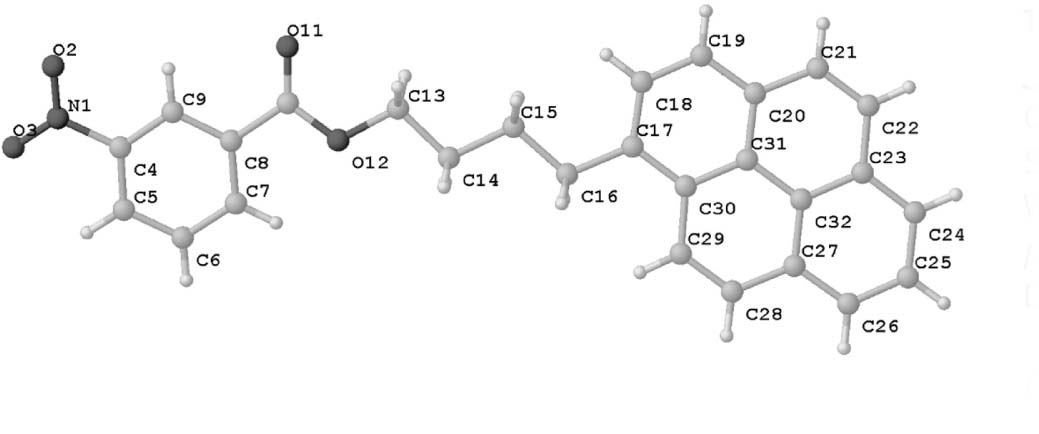

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Yellow prism
Size:0.27 × 0.20 × 0.06 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.09 mm−1
Diffractometer, scan mode:D8 VENTURE Bruker AXS, φ and ω-scans
θmax, completeness:25.0°, 98%
N(hkl)measured, N(hkl)unique, Rint:12408, 3506, 0.040
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2839
N(param)refined:290
Programs:Bruker [1], Olex2 [2], [3], SHELX [4]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N10.83076(16)1.05762(16)1.10376(9)0.0276(3)
O20.83378(19)0.94104(14)1.17275(8)0.0487(4)
O30.87714(16)1.17906(15)1.10301(9)0.0418(3)
C40.76527(17)1.05205(17)1.01665(10)0.0201(3)
C50.73526(18)1.19088(18)0.94528(10)0.0239(3)
H50.7569761.2870120.9519030.029*
C60.6724(2)1.18593(18)0.86357(10)0.0271(4)
H60.6514121.2796200.8130720.032*
C70.64024(18)1.04541(18)0.85522(10)0.0229(3)
H70.5971851.0432990.7989570.028*
C80.67034(17)0.90695(16)0.92848(9)0.0182(3)
C90.73446(17)0.90967(17)1.01052(10)0.0197(3)
H90.7565390.8161831.0610350.024*
C100.63480(17)0.75398(17)0.92159(10)0.0197(3)
O110.68100(14)0.62745(12)0.97618(7)0.0278(3)
O120.54542(12)0.77620(11)0.84744(7)0.0218(3)
C130.51779(19)0.63498(16)0.82677(10)0.0214(3)
H13A0.4445790.5758540.8785180.026*
H13B0.6262250.5658170.8210590.026*
C140.43487(18)0.68615(16)0.73441(10)0.0196(3)
H14A0.5018620.7565000.6850470.023*
H14B0.3213850.7457130.7428290.023*
C150.42071(17)0.54349(16)0.70245(9)0.0178(3)
H15A0.3562120.4724860.7529770.021*
H15B0.5347780.4851770.6937670.021*
C160.33510(17)0.58713(16)0.61015(10)0.0175(3)
H16A0.2221740.6472950.6191180.021*
H16B0.4005980.6578900.5600920.021*
C170.31535(17)0.45035(16)0.57506(9)0.0166(3)
C180.36880(18)0.29499(16)0.62612(10)0.0209(3)
H180.4194980.2755060.6837940.025*
C190.35055(18)0.16809(17)0.59569(10)0.0224(3)
H190.3879730.0640640.6328390.027*
C200.27789(17)0.19133(16)0.51116(10)0.0190(3)
C210.25653(19)0.06299(17)0.47681(11)0.0253(4)
H210.292841−0.0420900.5128070.030*
C220.18653(19)0.08849(17)0.39514(11)0.0256(4)
H220.1748140.0010100.3745110.031*
C230.12894(17)0.24460(17)0.33820(10)0.0205(3)
C240.05671(18)0.27348(18)0.25267(11)0.0239(3)
H240.0456130.1873160.2306020.029*
C250.00081(18)0.42595(19)0.19930(10)0.0248(4)
H25−0.0467380.4432230.1409270.030*
C260.01424(17)0.55305(18)0.23101(10)0.0224(3)
H26−0.0259680.6567940.1945130.027*
C270.08643(16)0.53044(16)0.31627(9)0.0177(3)
C280.10190(17)0.65857(16)0.35174(10)0.0191(3)
H280.0598930.7631550.3173140.023*
C290.17526(17)0.63347(16)0.43342(10)0.0174(3)
H290.1847830.7214000.4541940.021*
C300.23921(16)0.47778(16)0.48970(9)0.0155(3)
C310.22156(16)0.34829(16)0.45726(9)0.0163(3)
C320.14586(16)0.37479(16)0.37053(9)0.0168(3)

Source of material

As proposed by Moscoso et al. [5], an equimolar quantity of 3,5-dinitrobenzoic chloride and 4-(pyren-1-yl)butanol is added in a flask with dry THF. The reaction was carried out for 24 h at room temperature forming an insoluble yellow precipitate, which was washed with a saturated solution of NaHCO3, and finally washed with hot ethanol. 1.08 g of product was obtained with a 52.4% yield. 1H NMR (Bruker WM300, 300 MHz, DMSO-d6, δ (ppm)): 8.63–7.95 (m, 12 H, Ar—H), 7.77 (q, J = 7.9 Hz, 1 H, Ar—H); 4.43 (t, 2 H, CH2—OR), 3.44 (c, 2 H, CH2-Piren), 2.1–1.8 (m, 4 H, 2xCH2), 13C-NMR (DMSO-d6, δ (ppm)): 164.44; 148.29; 137.06; 135.55; 131.70; 131.34; 131.10; 130.85; 129.75; 128.54; 128.12; 127.98; 127.91; 127.67; 126.96; 126.60; 125.40; 125.24; 124.70; 124.59; 123.90; 65.83; 32.60; 31.17; 28.44. Crystals of 4-(pyren-1-yl)butyl-3-nitrobenzoate were prepared by dissolving the polycrystalline material in boiling chloroform (0.5 ml) and then hot methanol was added dropwise (0.5 ml). The mixture was allowed to crystallize for a week until the appearance of yellow plates.

Experimental details

Using Olex2 [2], the structure was solved, with the olex2.solve [3] using Charge Flipping and refined with the ShelXL [4] refinement package. H atoms were finally included in their calculated positions and treated as riding on their parent atom with constrained thermal parameters, the constraint distances of C—H ranging from 0.95 Å to 1.00 Å. Due to the data collection strategy we only obtained a completeness of 98%.

Comment

Nitro compounds are of interest due to the electrochemical properties they possess. This electrochemistry behavior was studied by many scientist [6], [7], [8]. The nitro compounds can be used as a mediator in NADH oxidation process due to oxidation mechanism, via two electrons and two protons [9], [10], [11]. The nitro compounds mediators can be used as a electrochemistry biosensor, using nanomaterials such as multiwalled carbon nanotubes under physisorption. The inclusion of pyrene rings major interaction with multiwalled carbon nanotubes as we previously reported [5]. The N—O bond lengths in the nitro group range from 1.226(17) to 1.2182(16) Å. The angle between O3—N1—O2 is 123.91(13)°, O12—C10—O11 is 124.91°, C13—O12—C10 is 116.38(12)°, O2—N1—C4 is 118.36(13)°, O3—N1—C4 is 117.72(13)°, C9—C4—N1 is 118.96(13)° and C5—C4—N1 is 117.99(13)°. These angles and distances are similar to those reported for 1,2-dimethyl-3,4-dinitrobenzene, C8H8N2O4 [12]. In the crystal structure of the title compound, coplanarity of the nitro group with the pyrene group is observed.

Acknowledgements

The authors thank FONDECYT Grant No. 1170054 and Thierry Roisnel for the DRX collection data.

References

1. Bruker Analytical X-ray Instruments Inc., Madison, WI, USA (2000).Suche in Google Scholar

2. Bourhis, L. J.; Dolomanov, O. V.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: The anatomy of a comprehensive constrained, restrained refinement program for the modern computing environment – Olex2 dissected. Acta Crystallogr. A71 (2015) 59–75.10.1107/S2053273314022207Suche in Google Scholar

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

4. Sheldrick, G. M.: SHELXL97. Program for the Refinement of Crystal Structures. University of Göttingen, Stuttgart, Germany (1997).Suche in Google Scholar

5. Moscoso, R.; Barrientos, C.; Moris, S.; Squella, J. A.: Electrocatalytic oxidation of NADH in a new nanostructured interface with an entrapped butylpyrene nitroaromatic derivative. J. Electroanal. Chem. 837 (2019) 48–54.10.1016/j.jelechem.2019.02.013Suche in Google Scholar

6. Bard, A. J.; Lund, H.: Encyclopedia of electrochemistry of the elements. Vol. 13, M. Dekker, New York (1979).Suche in Google Scholar

7. Grimshaw, J.: Electrochemical reactions and mechanisms in organic chemistry. Elsevier, Amsterdam (2000) p. 371–396.10.1016/B978-044472007-8/50011-2Suche in Google Scholar

8. Lund, H.: Cathodic reduction of nitro and related compounds in organic electrochemistry. (Eds. Lund, H.; Hammerich, O., M. Dekker), p. 783–794, New York 2001.10.1002/chin.200133289Suche in Google Scholar

9. Gorton, L.; Domínguez, E.: Encylopedia of electrochemistry, bioelectrochemistry, vol. 9. (Eds. Bard, A. J.; Stratmann, M.), Wiley-VCH, New York (2002).Suche in Google Scholar

10. Persson, B.; Gorton, L.; Johansson, G.; Torstensson, A.: A biofuel anode based on glucose dehydrogenase, nicotinamide adenine dinucleotide and a modified electrode. Enzyme Microb. Technol. 7 (1985) 549–552.10.1016/0141-0229(85)90097-3Suche in Google Scholar

11. Popescu, I. C.; Domínguez, E.; Narvaez, A.; Pavlov, V.; Katakis, I.: Electrocatalytic oxidation of NADH at graphite electrodes modified with osmium phenanthrolinedione. J. Electroanal. Chem. 464 (1999) 208–214.10.1016/S0022-0728(99)00021-2Suche in Google Scholar

12. Fanfan, S.; Shaomin, X.; Jianlong, W.: The crystal structure of 1,2-dimethyl-3,4-dinitrobenzene, C8H8N2O4. Z. Kristallogr. NCS 234 (2019) 215–216.10.1515/ncrs-2018-0248Suche in Google Scholar

Received: 2019-05-14
Accepted: 2019-07-08
Published Online: 2019-07-30
Published in Print: 2019-11-26

©2019 Claudio Barrientos et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
