Crystal structure of 4-methoxyphenyl-3-phenylpropiolate, C16H12O3

  • Jun Pan , Guo-Kai Jia , Fang Liu , Xiao-Ming Chen und Xing-Yu Zhang EMAIL logo
Veröffentlicht/Copyright: 9. September 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C16H12O3, orthorhombic, Pbca (no. 19), a = 3.9935(16) Å, b = 16.629(7) Å, c = 19.406(8) Å, V = 1288.7(9) Å3, Z = 4, Rgt(F) = 0.0387, wRref(F2) = 0.1084, T = 296(2) K.

CCDC no.: 1935386

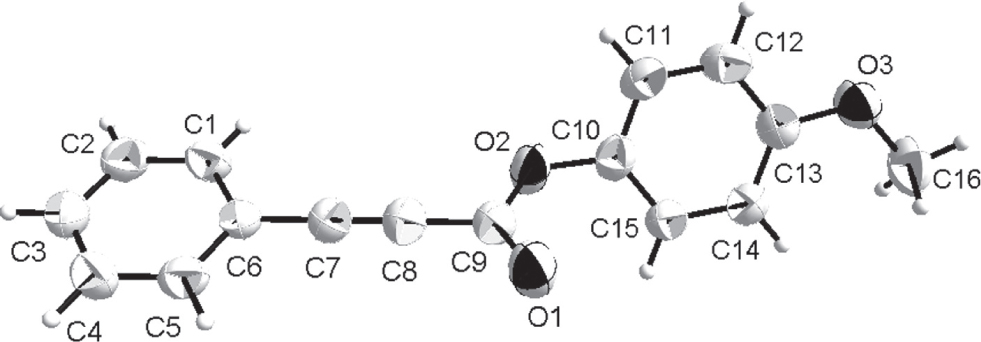

Figure 1: The structure of the title compound showing 40% probability displacement ellipsoids and the atom-numbering scheme.
Figure 1:

The structure of the title compound showing 40% probability displacement ellipsoids and the atom-numbering scheme.

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.32 × 0.28 × 0.24 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.09 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:27.5°, >99%
N(hkl)measured, N(hkl)unique, Rint:14445, 2930, 0.046
Criterion for Iobs, N(hkl)gt:I > 2s(I), 2342
N(param)refined:173
Programs:Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
O10.0581(5)0.45567(9)0.71069(8)0.0831(6)
O20.3362(5)0.47637(9)0.61209(7)0.0693(5)
O30.3527(4)0.80804(9)0.61734(8)0.0717(5)
C10.2742(6)0.16495(12)0.54743(10)0.0564(5)
H10.3642330.2005260.5154310.068*
C20.2484(6)0.08498(13)0.53169(11)0.0654(6)
H20.3219960.0663730.4891060.078*
C30.1146(7)0.03219(14)0.57838(12)0.0695(7)
H30.094768−0.0219680.5671500.083*
C40.0102(6)0.05892(13)0.64145(12)0.0681(6)
H4−0.0752340.0226720.6734340.082*
C50.0310(5)0.13927(13)0.65771(10)0.0585(5)
H5−0.0459320.1574530.7001780.070*
C60.1665(5)0.19318(11)0.61096(9)0.0492(4)
C70.1872(6)0.27691(12)0.62753(10)0.0569(5)
C80.1999(6)0.34677(12)0.64120(11)0.0641(6)
C90.1870(6)0.43072(12)0.65996(10)0.0582(5)
C100.3325(6)0.56091(12)0.61879(10)0.0546(5)
C110.2015(6)0.60363(14)0.56481(10)0.0600(5)
H60.1074680.5768650.5274530.072*
C120.2098(6)0.68617(13)0.56611(10)0.0609(5)
H70.1189520.7154200.5297940.073*
C130.3528(5)0.72575(12)0.62125(10)0.0521(5)
C140.4847(6)0.68230(12)0.67511(10)0.0549(5)
H80.5802320.7088970.7123970.066*
C150.4755(6)0.59918(12)0.67399(10)0.0555(5)
H90.5652330.5696100.7102360.067*
C160.5085(7)0.85106(13)0.67193(14)0.0819(7)
H100.4999090.9076620.6623370.123*
H110.7377650.8343780.6760020.123*
H120.3929820.8402010.7143000.123*

Source of material

A 25 mL Schlenk tube was charged with phenylpropiolic acid (1.0 mmol), p-methoxyphenol (1.2 mmol), dimethylaminopyridine (0.5 eq), dicyclohexylcarbodiimide (1.5 eq) in 10 mL of dichloromethane step by step. The reaction mixture was stirred at room temperature for 24 h. Upon the reaction completion (monitored by TLC), the reaction mixture was filtered, quenched with 5 mL of water, extracted with EtOAc (5 mL), washed with brine. The combined organic layers were dried over anhydrous Na2SO4, filtered, concentrated in vacuo and the residue was purified by chromatography on silica gel, using Hexane/EtOAc (10:1) as the eluent, give the 4-methoxyphenyl 3-phenylpropiolate as a colorless solid. The solid was dissolved in ethylene acetate and crystals of the title compound were obtained by slow evaporation within a week.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

In recent decades, thousands of alkynyl-containing active ingredients have been isolated from traditional medicinal plants or other active organisms [3], [4]. These alkynyl-containing active ingredients exhibit abundant biological activities, such as anti-tumor [5], anti-inflammatory [6], antibacterial, anti-viral, etc [7], [8]. Acetylenic acid ester compounds as reactants in organic synthesis, in the core skeleton structure of conjugated structures has an important position [9]. Therefore, it is important to find a highly efficient and simple synthetic protokol of conjugated olefin derivatives for the supplement of active compounds [10].

There is one molecule in the asymmetric unit of the title structure (see the figure). The single crystal structure verifies that all bond lengths are in normal ranges and in accord with parameters reported in the literature [11], [12].

Funding source: Hunan University of Science and Engineering

Award Identifier / Grant number: XNZW16C07

Funding source: The plant of Yongzhou Science and Technology innovation guidance program

Award Identifier / Grant number: 2018ZD16

Funding source: Research Programs of Hunan University of Science and Engineering

Award Identifier / Grant number: 17XKY015

Funding statement: The work was supported by the opening project of key laboratory of comprehensive utilization of advantage plants resources in Hunan south, Hunan University of Science and Engineering (XNZW16C07), The plant of Yongzhou Science and Technology innovation guidance program (2018ZD16), Research Programs of Hunan University of Science and Engineering (17XKY015).

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

2. Sheldrick, G. M.: SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar

3. Aline, B.; Annie, L.; Arnaud, H.: Alkynylation of chiral aldehydes: alkoxy-, amino-, and thio-substituted aldehydes. Chem. Rev. 106 (2006) 2355–2403.10.1021/cr0509915Suche in Google Scholar

4. Alanko, J.; Kurahashi, Y.; Yoshimoto, T.: Panaxynol, apolyacetylene compound isolated from oriental medicines, inhibits mammalianlipoxygenases. Biochem. Pharmacol. 48 (1994) 1979–1981.10.1016/0006-2952(94)90598-3Suche in Google Scholar

5. Metzger, B. T.; Barnes, D. M.; Reed, J. D.: Purple Carrot (Daucus carota L.) polyacetylenes decrease lipopolysaccharide-induced expression of inflammatory proteins in macrophage and endothelial cells. J. Agric. Food Chem. 56 (2008) 3554–3560.10.1021/jf073494tSuche in Google Scholar PubMed

6. Resch, M.; Heilmann, J.; Steigel, A.: Further phenols and polyacetylenes from the rhizomes of Atractylodes lancea and their anti-inflammatory activity. Planta Med. 67 (2001) 437–439.10.1055/s-2001-15817Suche in Google Scholar PubMed

7. Yang, M. C.; Kwon, H. C.; Kim, Y.-J.; Lee, K. R.; Yang, H. O.: Oploxynes A and B, polyacetylenes from the stems of Oplopanax elatus. J. Nat. Prod. 73 (2010) 801–805.10.1021/np900628jSuche in Google Scholar PubMed

8. Hong, S. S.; Lee, J. H.; Jeong, W.; Kim, N.; Jin, H. Z.; Hwang, B. Y.; Lee, H.-J.; Lee, S.-J.; Jang, D. S.; Lee, D.: Acetylenic acid analogues from the edible mushroom Chanterelle (Cantharellus cibarius) and their effects on the gene expression of peroxisome proliferator-activated receptor-gamma target genes. Bioorg. Med. Chem. Lett. 22 (2012) 2347–2349.10.1016/j.bmcl.2012.01.070Suche in Google Scholar PubMed

9. Zhang, S. L.; Deng, Z. Q.: Synthesis of quinolines and naphthyridines via catalytic retro-aldol reaction of β–hydroxyketones with ortho-aminobenzaldehydes or nicotinaldehydes. Org. Biomol. Chem. 14 (2016) 8966–8970.10.1039/C6OB01452FSuche in Google Scholar PubMed

10. Chen, X. M.; Zhang, X. Y.; He, F. L.; Pan, J.; Jia, G.-K.: Crystal structure of (2E,4Z)-dimethyl-4-((phenylamino)methylene)pent-2-enedioate, C14H15O4N. Z. Kristallogr. NCS 234 (2019) 87–89.10.1515/ncrs-2018-0194Suche in Google Scholar

11. D’Souza, D. M.; Kiel, A.; Herten, D.-P.; Rominger, F.; Muller, T. J. J.: Synthesis, structure and emission properties of spirocyclic benzofuranones and dihydroindolones: a domino insertion–coupling–isomerization–diels–alder approach to rigid fluorophores. Chem. Eur. J. 14 (2008) 529–547.10.1002/chem.200700759Suche in Google Scholar PubMed

12. Lellek, V.; Hansen, H.-J.: Unexpected thermal transformation of aryl 3-arylprop-2-ynoates: formation of 3-(diarylmethylidene)-2,3-dihydrofuran-2-ones. Helv. Chim. Acta 84 (2001) 3548–3580.10.1002/1522-2675(20011219)84:12<3548::AID-HLCA3548>3.0.CO;2-2Suche in Google Scholar

Received: 2019-04-17
Accepted: 2019-06-20
Published Online: 2019-09-09
Published in Print: 2019-11-26

©2019 Jun Pan et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
