Crystal structure of 4,4′-(hydrazonomethylene)diphenol dihydrate, C13H16N2O4

  • Xia Li und Shangjun Liu EMAIL logo
Veröffentlicht/Copyright: 23. August 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C13H16N2O4, monoclinic, P21/c (no. 14), a = 13.312(2) Å, b = 8.8222(13) Å, c = 12.4784(18) Å, β = 115.350(2)°, V = 1324.4(3) Å3, Z = 4, Rgt(F) = 0.0372, wRref(F2) = 0.0739, T = 293 K.

CCDC no.: 1935384

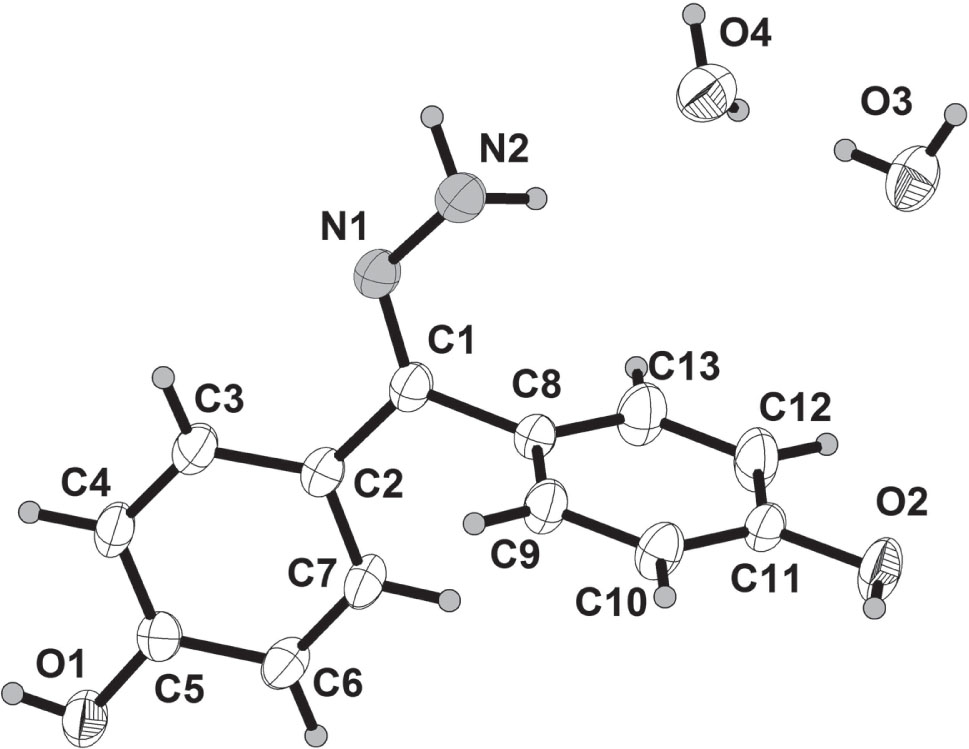

The asymmetric unit of the molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.25 × 0.22 × 0.20 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.10 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:26.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:8255, 2699, 0.025
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2159
N(param)refined:192
Programs:Bruker [1], SHELX [2]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
C10.70338(12)0.60136(16)0.51437(11)0.0303(3)
C20.60446(12)0.69725(16)0.45168(11)0.0305(3)
C30.57264(13)0.74779(19)0.33567(12)0.0403(4)
H30.61530.72140.29590.048*
C40.47923(13)0.83595(19)0.27891(13)0.0405(4)
H40.45950.86820.20150.049*
C50.41472(12)0.87661(16)0.33652(12)0.0309(3)
C60.44638(12)0.83136(18)0.45264(12)0.0351(3)
H60.40470.86060.49280.042*
C70.53972(12)0.74292(18)0.50870(12)0.0347(3)
H70.56000.71300.58670.042*
C80.75334(12)0.59600(16)0.64717(11)0.0294(3)
C90.82007(13)0.71342(17)0.71250(12)0.0353(3)
H90.83200.79640.67340.042*
C100.86951(13)0.70967(18)0.83523(12)0.0370(4)
H100.91520.78890.87800.044*
C110.85087(12)0.58826(17)0.89389(12)0.0330(3)
C120.78317(15)0.47190(18)0.83024(13)0.0466(4)
H120.76950.39060.86950.056*
C130.73523(15)0.47574(18)0.70737(13)0.0459(4)
H130.69010.39590.66480.055*
N10.74422(10)0.52826(14)0.45293(10)0.0333(3)
N20.84453(11)0.44787(16)0.51673(12)0.0403(3)
H2A0.8399(14)0.388(2)0.5705(15)0.048*
H2B0.8603(14)0.3901(19)0.4644(15)0.048*
O10.32020(8)0.96100(13)0.28416(9)0.0408(3)
H10.30910.98090.21580.061*
O20.89659(10)0.57959(13)1.01517(8)0.0466(3)
H20.93600.65391.04370.070*
O30.98293(10)0.17271(15)0.89021(9)0.0481(3)
H3A0.9483(14)0.169(2)0.8149(8)0.072*
H3B1.0296(13)0.1002(18)0.9099(15)0.072*
O40.84997(10)0.14319(14)0.64954(10)0.0486(3)
H4A0.7974(12)0.102(2)0.6605(17)0.073*
H4B0.8688(15)0.0780(18)0.6112(16)0.073*

Source of material

All of starting materials are commercially available. The title compound was synthesized via bis(4-hydroxyphenyl)methanone with excess hydrazine hydrate in ethanol solution containing a few drops glacial acetic acid under refluxing. The solvent was removed to give the white product. Colourless crystals suitable for single X-ray diffraction study were obtained by recrystallization from anhydrous ethanol.

Experimental details

Hydrogen atoms were placed in calculated positions and were included in the refinement using the riding model approximation, with Uiso = 1.2Ueq(C). Nitrogen-bound and oxygen-bound H atoms were refined subject to distance restraints with Uiso = 1.2Ueq(N) and Uiso = 1.5Ueq(O), respectively.

Comment

Owing to their multiple coordination chemistry properties and biological activities, pharmaceutical properties, Schiff bases have received considerable attention [3], [4], [5], [6], [7], [8], [9], [10]. In order to search for new Schiff bases with higher biological activities, the title compound was synthesized and its crystal structure is reported here.

The asymmetric unit of the title compound consists of one formula unit (cf. the figure). In the crystal structure of title compound, the short distance d(N1—C1) = 1.2869(18) Å has a value of a typical C=N double bond. The C=N bond length is similar to the previous reported structure, (bis(4-methoxyphenyl)methylene)hydrazine of 1.2912(16) Å [11]. The two phenyl rings are almost vertical to each other with the dihedral angle of 89.19°. While in (bis(4-methoxyphenyl)methylene)hydrazine, this dihedral angle is 80.57°. The molecules are packed in the crystal structure via abundant classical O—H⋯O, O—H⋯N and N—H⋯O hydrogen bonds.

Acknowledgements

This work was financially supported by Nanyang Institute of Technology.

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA, 2008.Suche in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

3. Shi, X.-M.; Li, S.-J.; Xiao, L.-N.; Cai, B.; Peng, P.: The crystal structure of (E)-4-(1-(2-aminophenylimino)ethyl)benzene-1,3-diol, C14H14N2O2. Z. Kristallogr. NCS 234 (2019) 531–532.10.1515/ncrs-2018-0540Suche in Google Scholar

4. Liu, C.: Crystal structure of (E)-2-((4-chlorophenyl)(phenyl) methylene)hydrazinecarbothioamide, C14H12ClN3S. Z. Kristallogr. NCS 234 (2019) 517–518.10.1515/ncrs-2018-0515Suche in Google Scholar

5. Zhong, Q.: Crystal structure of (E)-2-((adamantan-1-ylimino)methyl) -5-methoxyphenol, C18H23NO2. Z. Kristallogr. NCS 234 (2019) 313–314.10.1515/ncrs-2018-0366Suche in Google Scholar

6. Shokohi-Pour, Z.; Chiniforoshan, H.; Sabzalian, M. R.; Esmaeili, S. A.; Momtazi-borojeni, A. A.: Cobalt(II) complex with novel unsymmetrical tetradentate Schiff base (ON) ligand: in vitro cytotoxicity studies of complex, interaction with DNA/protein, molecular docking studies, and antibacterial activity. J. Biomol. Struct. Dyn. 36 (2018) 532–549.10.1080/07391102.2017.1287006Suche in Google Scholar PubMed

7. Pu, X.: The crystal structure of (E)-4-chloro-2-(((5-methylpyridin-2-yl)imino)methyl)phenol, C13H11ClN2O. Z. Kristallogr. NCS 233 (2018) 253–254.10.1515/ncrs-2017-0254Suche in Google Scholar

8. Başak, K. K.: The crystal structure of (E)-4-(3-ethoxy-2-hydroxybenzylideneamino)-benzoic acid, C16H15NO4. Z. Kristallogr. NCS 233 (2018) 157–158.10.1515/ncrs-2017-0276Suche in Google Scholar

9. Majumder, S.; Pasayat, S.; Panda, A. K.; Dash, S. P.; Roy, S.; Biswas, A.; Varma, M. E.; Joshi, B. N.; Garribba, E.; Kausar, C.; Patra, S. K.; Kaminsky, W.; Crochet, A.; Dinda, R.: Monomeric and dimeric oxidomolybdenum(V and VI) complexes, cytotoxicity, and DNA interaction studies: molybdenum assisted C=N bond cleavage of salophen ligands. Inorg. Chem. 56 (2017) 11190–11210.10.1021/acs.inorgchem.7b01578Suche in Google Scholar PubMed

10. Singh, A.; Sharma, M. L.; Singh, J.: First synthesis of antitubercular natural product 2-hydroxy-5-(4-hydroxybenzyl)benzaldehyde (Forkienin). J. Chem. Res. 3 (2008) 148–149.10.1002/chin.200837202Suche in Google Scholar

11. Davis, P. J.; Harris, L.; Karim, A.; Thompson, A. L.; Gilpin, M.; Moloney, M. G.; Pound, M. J.; Thompson, C.: Substituted diaryldiazomethanes and diazofluorenes: structure, reactivity and stability. Tetrahedron Lett. 52 (2011) 1553–1556.10.1016/j.tetlet.2011.01.116Suche in Google Scholar

Received: 2019-04-16
Accepted: 2019-06-20
Published Online: 2019-08-23
Published in Print: 2019-11-26

©2019 Xia Li et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
