Crystal structure of 3-methyl-2-phenyl-1,8-naphthyridine, C15H12N2

  • Yuan Wen , Xin-Sheng Xiao und Guo-Kai Jia EMAIL logo
Veröffentlicht/Copyright: 7. August 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C15H12N2, monoclinic, P21/c (no. 14), a = 7.323(4) Å, b = 6.975(3) Å, c = 22.411(11) Å, β = 93.195(5)°, V = 1143.0(10) Å3, Z = 4, Rgt(F) = 0.0457, wRref(F2) = 0.1324, T = 296(2) K.

CCDC no.: 1940917

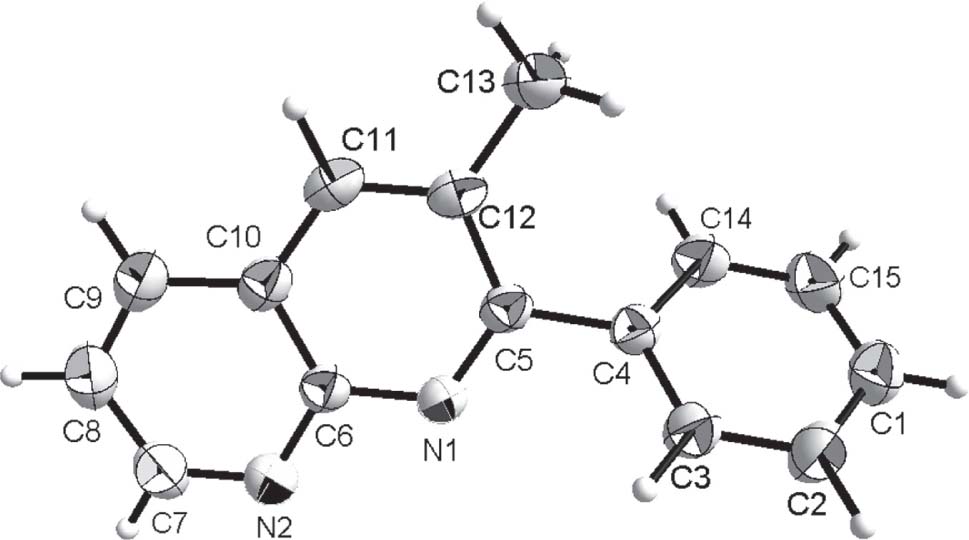

The molecular structure is shown in the figure. Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Source of material

Under N2 atmosphere, t-BuOK (50 mol%), Xantphos (3 mol%), Ru3(CO)12 (1 mol%), (2-aminopyridin-3-yl)methanol (0.5 mmol), and propiophenone (0.5 mmol) were introduced in a Schlenk tube (25 mL), successively. Then, the Schlenk tube was closed and the resulting mixture was stirred in t-amyl alcohol (1.0 mL) at 383 K for 5 h. When the reaction was completed (monitored by TLC), the mixture was cooled to room temperature, the reaction mixture was concentrated by removing the solvent under vacuum, and the residue was purified by preparative TLC on silica, eluting with petroleum ether (333–363 K): ethyl acetate (4:1, v/v) to give 3-methyl-2-phenyl-1,8-naphthyridine as a colourless blocks.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.28 × 0.24 × 0.22 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.08 mm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω
θmax, completeness:27.4°, >99%
N(hkl)measured, N(hkl)unique, Rint:12343, 2569, 0.042
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2075
N(param)refined:155
Programs:Bruker [1], SHELX [2], Olex2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
N10.81060(13)0.60304(13)0.09694(4)0.0393(3)
N20.68573(15)0.78064(15)0.01798(5)0.0480(3)
C11.0526(2)0.4692(2)0.30428(6)0.0540(4)
H11.0946560.4753510.3441650.065*
C21.11924(19)0.5951(2)0.26334(6)0.0529(4)
H21.2057050.6865730.2756850.063*
C31.05791(18)0.58562(18)0.20409(5)0.0446(3)
H31.1011890.6730680.1769170.054*
C40.93197(16)0.44665(16)0.18451(5)0.0379(3)
C50.87055(15)0.43850(16)0.12004(5)0.0361(3)
C60.75318(15)0.60854(16)0.03818(5)0.0376(3)
C70.62649(19)0.7893(2)−0.03841(6)0.0522(3)
H70.5786240.905328−0.0524470.063*
C80.63013(19)0.6363(2)−0.07897(6)0.0537(4)
H80.5875500.652134−0.1185390.064*
C90.69723(18)0.4646(2)−0.05923(5)0.0489(3)
H90.7010370.360759−0.0851750.059*
C100.76095(15)0.44558(17)0.00099(5)0.0395(3)
C110.82862(16)0.27386(18)0.02707(5)0.0421(3)
H110.8361390.1647190.0034960.050*
C120.88319(15)0.26472(16)0.08613(5)0.0392(3)
C130.95794(19)0.08056(18)0.11286(6)0.0521(4)
H13A0.8628600.0144560.1323230.078*
H13B1.0566420.1089150.1414920.078*
H13C1.0019400.0010260.0817850.078*
C140.86522(18)0.32221(19)0.22652(6)0.0484(3)
H140.7799380.2292460.2144390.058*
C150.9243(2)0.3350(2)0.28623(6)0.0549(4)
H150.8768600.2525740.3140640.066*

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Comment

Nitrogen-containing heterocycles are of great importance in the pharmaceutical and agrochemical industries. Functionalized, nitrogen-containing heterocycles constitute a widespread structural motif in biologically active compounds [4], [5]. In particular, 1,8-naphthyridines are common structural motifs in important compounds. Consequently, the selective construction of such compounds is of significant importance. As part of our continuous research interest in construction of N-heterocycles by hydrogen transfer strategy [6], [7], [8], we report here a one-pot facile synthesis of 3-methyl-2-phenyl-1,8-naphthyridine. The crystal structure of 3-methyl-2-phenyl-1,8-naphthyridine has not been reported until now. Herein the crystal structure of the title compound is described to enrich the related crystal structures of 3-methyl-2-phenyl-1,8-naphthyridine.

As in our previous study [9], [10], the compound, built up by the C15H12N2 molecules, has been synthesized. The single crystal structure verifies that all bond lengths are in normal ranges. As expected, the naphthyridinyl moiety and the phenyl group are not coplanar (cf. the figure).

Funding source: Hunan university of science and engineering

Award Identifier / Grant number: XNZW17C04

Award Identifier / Grant number: XNZW17C05

Funding source: The Planned Science and Technology Project of Hunan YongZhou, China

Award Identifier / Grant number: 2018ZD15

Funding statement: This work was supported by the construct program of applied characteristic discipline in Hunan University of Science and Engineering; the opening project of key laboratory of comprehensive utilization of advantage plants resources in Hunan south, Hunan university of science and engineering (No. XNZW17C04, XNZW17C05). The Planned Science and Technology Project of Hunan YongZhou, China (NO. 2018ZD15).

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2009).Suche in Google Scholar

2. Sheldrick, G. M.: SHELXT-integrated space-group and crystal-structure determination. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis program. J. Appl. Crystallogr. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

4. Ohfune, Y.; Shinada, T.: Enantio- and diastereoselective construction of α,α-disubstituted α-amino acids for the synthesis of biologically active compounds. Eur. J. Org. Chem. 2005 (2005) 5127–5143.10.1002/ejoc.200500434Suche in Google Scholar

5. Chen, X.; Zhao, H.; Chen, C.; Jiang, F.; Zhang, M.: Hydrogen-transfer-mediated α-functionalization of 1,8-naphthyridines by a strategy overcoming the over-hydrogenation barrier. Angew. Chem. Int. Ed. 56 (2017) 14232–14236.10.1002/anie.201707702Suche in Google Scholar PubMed

6. Chen, X.; Zhao, H.; Chen, C.; Jiang, H.; Min Zhang, M.: Iridium-catalyzed dehydrogenative α-functionalization of (hetero)aryl-fused cyclic secondary amines with indoles. Org. Lett. 20 (2018) 1171–1174.10.1021/acs.orglett.8b00096Suche in Google Scholar PubMed

7. Chen, X.; Li, Y. B.; Chen, L.; Zhu, Z.; Li, B.; Huang, Y.; Zhang, M.: Synthesis of N-biheteroarenes via acceptorless dehydrogenative coupling of benzocyclic amines with indole derivatives. J. Org. Chem. 84 (2019) 3559–3565.10.1021/acs.joc.9b00200Suche in Google Scholar PubMed

8. Chen, X.; Zhao, H.; Chen, C.; Jiang, F.; Zhang, M.: Transfer hydrogenative para-selective aminoalkylation of aniline derivatives with N-heteroarenes via ruthenium/acid dual catalysis. Chem. Commun. 54 (2018) 9087–9090.10.1039/C8CC04233KSuche in Google Scholar PubMed

9. Li, Y.; Yang, Z.; Wang, Z.; Zhu, Z.; Chen, X.: Synthesis, crystal structure and antitumor activities of 1,2,3,4-tetrahydroquinoline-2,4-diyl (bisdiphenylphosphine oxide) derivatives. Chin. J. Struct. Chem. 38 (2019) 713–718.Suche in Google Scholar

10. Li, Y. B.; Chen, L.; Zhu, Z. Z.; Huang, Y. B.; Chen, X. W.: Crystal structure of 2-(4-chlorophenyl)-3-phenyl-1,8-naphthyridine, C20H13N2Cl. Z. Kristallogr. NCS 234 (2019) 179–180.10.1515/ncrs-2018-0275Suche in Google Scholar

Received: 2019-05-22
Accepted: 2019-07-16
Published Online: 2019-08-07
Published in Print: 2019-11-26

©2019 Yuan Wen et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
