Crystal structure of poly[aqua(μ2-2-amino-1,4-benzenedisulfonato-κ3N,O:O′)-(μ4-hexamethylenetetramino-κ4N:N′:N′′:N′′′)disilver(I)] monohydrate, C12H21Ag2N5O8S2

  • Jin-Ke Jiang , Xi-Xi Li , Hui Jiang und Xian-Wu Dong EMAIL logo
Veröffentlicht/Copyright: 23. August 2019
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 234 Heft 6

Abstract

C12H21Ag2N5O8S2, triclinic, P1 (no. 1), a = 6.3703(5) Å, b = 6.4191(5) Å, c = 12.3215(7) Å, α = 87.841(5)°, β = 75.119(6)°, γ = 87.489(6)°, V = 486.30(6) Å3, Z = 1, Rgt(F) = 0.0444, wRref(F2) = 0.1289, T = 293(2) K.

CCDC no.: 1917972

Table 1 contains crystallographic data and Table 2 contains the list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colourless block
Size:0.22 × 0.18 × 0.17 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.28 mm−1
Diffractometer, scan mode:XtaLAB Pro, ω
θmax, completeness:29.6°, 99%
N(hkl)measured, N(hkl)unique, Rint:8645, 4225, 0.034
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4086
N(param)refined:264
Programs:CrysAlisPRO [1], SHELX [2], [3], WinGX/ORTEP [4], Diamond [5]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Ag1−0.27294(19)0.3049(2)0.86189(11)0.0780(5)
Ag20.41721(5)0.90532(5)0.48080(4)0.03119(18)
S11.1803(4)0.8797(4)0.01869(19)0.0328(4)
S20.5245(4)1.4294(3)0.37901(19)0.0323(4)
O11.0799(18)0.6872(13)0.0125(9)0.064(3)
O21.3782(18)0.861(3)0.0535(11)0.088(5)
O31.197(2)0.9941(15)−0.0859(7)0.062(2)
O40.477(2)1.3096(14)0.4840(7)0.064(3)
O50.3420(18)1.4765(17)0.3336(11)0.068(3)
O60.6467(14)1.6109(12)0.3882(7)0.0444(17)
O1W−0.3388(16)0.4605(15)1.0203(7)0.052(2)
H1B−0.3842390.3726461.0768570.078*
H1A−0.4486100.5505321.0270520.078*
O2W0.273(3)0.4047(15)0.8417(9)0.078(4)
H2B0.2217270.2558570.8522420.117*
H2A0.1551270.4595470.8813920.117*
N10.4260(13)1.0167(13)0.2922(7)0.0332(15)
H40.3285401.1201980.2917350.040*
H30.3970800.9116180.2538350.040*
N2−0.1901(13)0.6595(13)0.7236(7)0.0329(16)
N3−0.2074(13)1.0369(15)0.7443(7)0.0347(17)
N40.0613(11)0.8789(11)0.5878(6)0.0271(14)
N50.6764(11)0.8845(10)0.5922(6)0.0249(13)
C11.0641(16)1.2138(15)0.1549(8)0.0333(17)
H11.2056571.2553090.1243570.040*
C20.9944(16)1.0305(14)0.1219(7)0.0306(17)
C30.7848(15)0.9654(13)0.1664(7)0.0287(16)
H20.7425950.8409260.1434980.034*
C40.6361(15)1.0843(14)0.2452(7)0.0286(16)
C50.7073(15)1.2700(13)0.2799(7)0.0275(16)
C60.9203(16)1.3346(14)0.2340(8)0.0334(18)
H50.9650091.4582070.2564730.040*
C70.0329(14)0.6752(14)0.6505(7)0.0292(16)
H100.0621640.5628760.5975160.035*
H110.1365700.6598950.6960110.035*
C80.6564(14)0.6833(15)0.6539(8)0.0318(17)
H60.6825440.5712260.6008970.038*
H70.5095940.6727560.7010940.038*
C9−0.2261(14)0.8264(19)0.8021(8)0.037(2)
H13−0.1207080.8113880.8466340.044*
H12−0.3698250.8161640.8527460.044*
C100.6371(14)1.0551(15)0.6730(8)0.0323(17)
H90.6524671.1883960.6324760.039*
H80.4897271.0499560.7201960.039*
C110.0186(14)1.0477(15)0.6696(8)0.0316(17)
H140.0360291.1816890.6298980.038*
H150.1227491.0350820.7149460.038*
C12−0.0998(13)0.8978(13)0.5207(8)0.0274(15)
H17−0.0718570.7874890.4666050.033*
H16−0.0846871.0303290.4794150.033*

Source of material

The AgNO3 (0.085 g, 0.5 mmol) and 2-amino-1, 4-benzenedisulfonic acid (0.063 g, 0.25 mmol) in 20 mL H2O/DMF (1:1, v/v ) reacted for 30 minutes. The hexamethylenetetramine (0.204 g, 1.5 mmol) was added. The filtrate was maintained at room temperature in a dark room to produce colourless crystals after several weeks.

Experimental details

The data were collected via CrysAlisPRO 1.171.39.7e at 293 K [1], the structure was solved by SHELXT [2] program within WinGX [4] and refined by SHELXL [3]. The graphics were accomplished using Diamond [5].

Comment

For a long period of time, the increasingly extensive applications of metal organic compounds are hardly unknown in the field of chemistry [6].

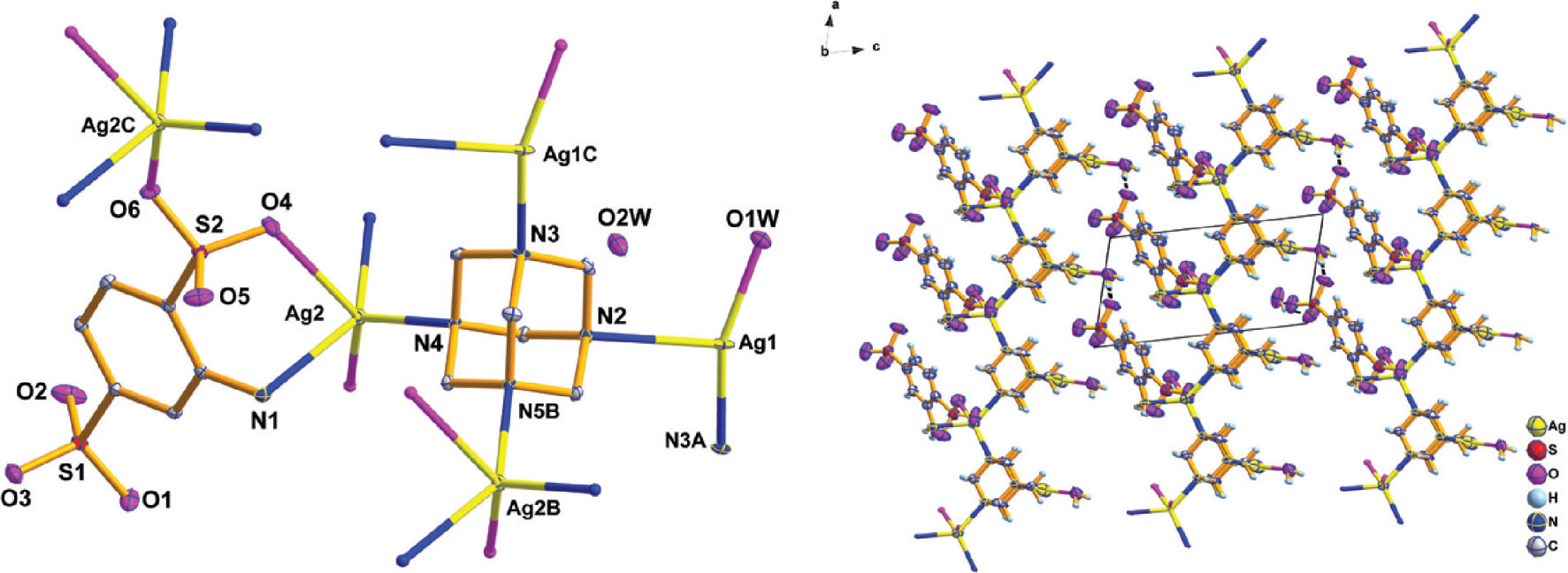

In the paper, an interesting coordination polymer is described which contains different silver atoms in different coordination environment. As is depicted in the left part of the figure, the Ag1 is three-coordinated by two nitrogen atoms from two hexamethylenetetramine ligands and one oxygen atom from water. The Ag2 is five-coordinated by three nitrogen atoms from two hexamethylenetetramine ligands, the 2-amino-1,4-benzenedisulfonato ligand and two oxygen atoms from sulfonato groups of different 2-amino-1, 4-benzenedisulfonato ligands [7]. The bond distances of Ag—N range from 2.3213(2) to 2.3995(2) Å and the Ag—O range from 2.1610(1) to 2.6422(2) Å within the normal range of the literatures which have reported [8] and there is one free water molecule. Above all, the weak interactions such as NH⋯O, OH⋯O play an extremely important role in making it become three-dimensional supermolecule structure [9]. And O1W⋯H1B could not produce interaction after calculating (cf. right part of the figure). (symmetry codes used in the figure: A = x, −1 + y, z; B = −1 + x, y, z; C = x, 1 + y, z)

Acknowledgements

This work was supported by the Jilin Agricultural Science and Technology University Students Science and Technology Innovation and Entrepreneurship Training Program Project (no. 2018025).

References

1. Rigaku Corporation: CrysAlisPRO. Rigaku Corporation, Yarnton, Oxfordshire, England (2015).Suche in Google Scholar

2. Sheldrick, G. M.: SHELXT – integrated space-group and crystal-structure determination. Acta Crystallogr. A71 (2015) 3–8.10.1107/S2053273314026370Suche in Google Scholar PubMed PubMed Central

3. Sheldrick, G. M.: Crystal structure refinement with SHELXL. Acta Crystallogr. C71 (2015) 3–8.10.1107/S2053229614024218Suche in Google Scholar PubMed PubMed Central

4. Farrugia, L. J.: WinGX and ORTEP for Windows: an update. J. Appl. Crystallogr. 45 (2012) 849–854.10.1107/S0021889812029111Suche in Google Scholar

5. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Ver. 3.2., Crystal Impact, Bonn, Germany (2012).Suche in Google Scholar

6. Zhang, X.-L.; Tang, G.-M.; Wang, Y.-T.: Tunable luminescent behaviors of Ag-containing metal coordination polymers with N-heterocyclic and sulfonate group. Polyhedron 147 (2018) 26–35.10.1016/j.poly.2018.03.006Suche in Google Scholar

7. Gudenschwager, M.; Wickleder, M. S.: CCDC 1046516: Experimental Crystal Structure Determination, 2015, DOI: 10.5517/cc143zlt.10.5517/cc143zltSuche in Google Scholar

8. Ling, T.; Dong, T.: The crystal structure of poly[(μ5-2,5-dicarboxybenzoato-κ4O:O:O′:O′′, O′′′)silver(I)], C9H5AgO6. Z. Kristallogr. NCS 234 (2019) 489–491.Suche in Google Scholar

9. Wu, H.; Dong, X.-W.; Liu, H.-Y.; Ma, J.-F.; Liu, Y.-Y.; Liu, Y.-Y.; Yang, J.: Construction of a series of inorganic–organic hybrid coordination polymers based on hexamethylenetetramine and sulfonate ligands. Inorg. Chim. Acta 373 (2011) 19–26.10.1016/j.ica.2011.03.041Suche in Google Scholar

Received: 2019-05-27
Accepted: 2019-08-09
Published Online: 2019-08-23
Published in Print: 2019-11-26
