Abstract

C14H14CdN6O6, monoclinic, P21/c (no. 14), a = 11.2983(5) Å, b = 9.2539(4) Å, c = 17.0604(7) Å, β = 105.398(1)°, Z = 4, V = 1719.69(13) Å3, Rgt(F) = 0.0321, wRref(F2) = 0.1060, T = 193(2) K.

CCDC no.: 1907940

Tables 1 and 2 contain details on crystal structure and measurement conditions and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Colorless block
Size:0.19 × 0.18 × 0.13 mm
Wavelength:Ga Kα radiation (1.34139 Å)
μ:7.09 mm−1
Diffractometer, scan mode:Bruker D8 Venture, φ and ω-scans
θmax, completeness:53.9°, >98%
N(hkl)measured, N(hkl)unique, Rint:13166, 3109, 0.062
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2989
N(param)refined:244
Programs:Bruker programs [1], SHELX [2], OLEX2 [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomxyzUiso*/Ueq
Cd10.52764(2)0.38396(2)0.30756(2)0.03019(14)
O10.8422(2)0.4108(3)0.22148(15)0.0548(6)
O20.7733(2)0.2711(3)0.29949(16)0.0651(7)
O30.66637(16)0.4534(2)0.24203(12)0.0430(4)
O40.50244(19)0.1582(2)0.23162(12)0.0381(4)
O50.40642(19)0.3261(2)0.15234(12)0.0451(5)
O60.3991(2)0.1034(2)0.11000(15)0.0424(6)
N10.6817(2)0.0746(3)0.49965(14)0.0337(5)
N20.58974(19)0.2501(2)0.41944(13)0.0345(5)
N30.7624(2)0.3769(2)0.25472(15)0.0358(6)
N40.4345(2)0.1971(2)0.16328(13)0.0311(4)
N50.3328(2)0.4021(2)0.31408(16)0.0338(5)
N60.16172(19)0.4862(2)0.33563(13)0.0339(5)
C11.0928(2)0.0670(3)0.55878(16)0.0366(6)
H11.15590.11330.59900.044*
C20.9797(3)0.0383(3)0.57385(16)0.0384(6)
H20.96630.06410.62470.046*
C30.8869(2)−0.0275(3)0.51526(15)0.0333(5)
C40.7624(2)−0.0500(3)0.52929(16)0.0375(6)
H4A0.7249−0.13850.50070.045*
H4B0.7712−0.06350.58810.045*
C50.6727(3)0.1464(3)0.43015(18)0.0402(6)
H50.72010.12530.39320.048*
C60.5985(3)0.1348(3)0.5354(2)0.0386(7)
H60.58290.10620.58520.046*
C70.5428(2)0.2428(3)0.48597(15)0.0391(6)
H70.48080.30430.49560.047*
C80.2771(2)0.5164(3)0.33535(16)0.0373(6)
H80.31470.60820.34870.045*
C90.2457(3)0.2948(3)0.29974(17)0.0379(6)
H90.25810.19910.28330.046*
C100.1405(3)0.3446(3)0.31235(18)0.0401(6)
H100.06630.29220.30630.048*
C110.0749(3)0.5872(3)0.3567(2)0.0426(6)
H11A0.00120.59560.31010.051*
H11B0.11340.68390.36690.051*
C120.0361(2)0.5397(3)0.43093(17)0.0357(6)
C130.1223(2)0.4932(3)0.50065(16)0.0398(6)
H130.20660.48890.50140.048*
C140.0863(2)0.4532(3)0.56892(17)0.0394(6)
H140.14580.42060.61600.047*

Source of materials

All solvents and other reagents were of analytical grade. The method of synthesizing the title compound has been improved [4]. A mixture of cadmium nitrate, 1,4-bis(1H-imidazol-1-yl)methyl)benzene and water was introduced into a 25 mL Teflon reactor autoclave and heated to 130 °C for 3 days. After cooling down to room temperature, colourless block crystals suitable for single crystal X-ray crystallographic analysis were obtained. Elemental analysis-Anal. calcd. for C14H14CdN6O6: C, 35.42%; H, 2.97%; N, 17.70%; Found: C, 35.26%; H, 2.85%; N, 17.59%.

Experimental details

Hydrogen atoms were placed in their geometrically idealized positions and constrained to ride on their parent atoms.

Discussion

Flexible ligands have variety of configurations that can be used to construct MOFs with different topologies [5], [6], [7]. The imidazole groups have a strong coordination ability, so ((1H-imidazol-1-yl)methyl)benzene can be used as a good connector to construct MOFs [8], [9], [10], [11]. In this work, we used ((1H-imidazol-1-yl)methyl)benzene (L1) as the ligands, assembling with Cd(NO3)2 to obtain a perfect 3D framework.

Before us, Li et al. [12] used the same ligand (L1) with Cd(NO3)2 obtaining a different structure. The structure obtained by Li et al. is a 2D framework, in which the Cd(II) atom is six-coordinated, and the nitrate ions participates in coordination as a counter anion only. The complex we reported is different, forming a three-dimensional (3D) 2-fold interpenetrating structure, in which the Cd(II) atom is seven-coordinated, and the nitrate ions not only acts as a counter anion, but also participates in structural construction as a bridging group.

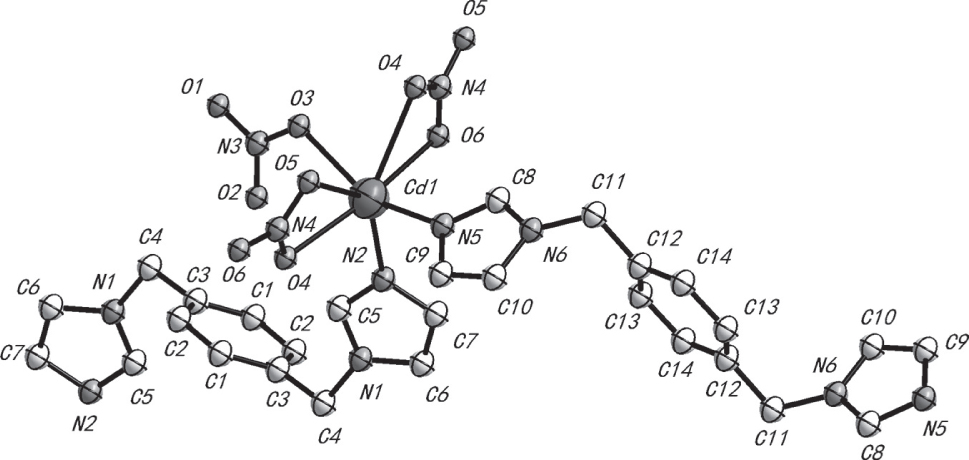

In detail the title crystal structure shows that the title complex consists of one Cd(II) atom, one L1 ligand and two nitrate anions. The Cd(II) atom is seven-coordinated with two nitrogen atoms (N2 and N5) from two L1 ligands and five oxygen atoms (O3, O4, O4#, O5 and O6) from two nitrate ions.

In the framework, Cd(II) is bridged by nitrate anions, forming a one-dimensional chain. Adjacent one-dimensional chains are connected by L1 to form a two-dimensional network structure. The two-dimensional network layer is further connected by L1 to form a three-dimensional framework. Due to the large pores in the three-dimensional structure, the adjacent three-dimensional structures form one stable double-penetrating three-dimensional framework [13].

References

1. Bruker. APEX2, SAINT and SADABS. Bruker AXS Inc., Madison, WI, USA (2012).Suche in Google Scholar

2. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

3. Dolomanov, O. V.; Bourhis, L. J.; Gildea, R. J.; Howard, J. A. K.; Puschmann, H.: OLEX2: a complete structure solution, refinement and analysis programm. J. Appl. Cryst. 42 (2009) 339–341.10.1107/S0021889808042726Suche in Google Scholar

4. Sun, Y. X.; Xu, L.; Zhao, T. H.; Liu, S. H.; Liu, G. H.; Dong, X. Y.: Synthesis and crystal structure of a 3D supramolecular copper(II) complex with 1-(3-phenyl) ethanone oxime. Synth. React. Inorg. Metal Org. Nano Met. Chem. 43 (2013) 995–100.10.1080/15533174.2012.753614Suche in Google Scholar

5. Song, X. Q.; Liu, P. P.; Liu, Y. A.; Zhou, J. J.; Wang, X. L.: Two dodecanuclear heterometallic [Zn6Ln6] clusters constructed by a multidentate salicylamide salen-like ligand: synthesis, structure, luminescence and magnetic properties. Dalton Trans. 45 (2016) 8154.10.1039/C6DT00212ASuche in Google Scholar

6. Dong, W. K.; Ma, J. C.; Dong, Y. J.; Zhu, L. C.; Zhang, Y.: Di-and tetranuclear heterometallic 3d-4f cobalt(II)-lanthanide(III) complexes derived from a hexadentate bisoxime: Syntheses, structures and magnetic properties. Polyhedron. 115 (2016) 228–235.10.1016/j.poly.2016.05.017Suche in Google Scholar

7. Zhang, H.; Xu, Y. L.; Wu, H. L.; Aderinto, S. O.; Fan, X. Y.: Mono-, bi- and multi-nuclear silver complexes constructed from bis(benzimidazole)-2-oxapropane ligands and methacrylate: syntheses, crystal structures, DNA-binding properties and antioxidant activities. RSC Adv. 6 (2016) 83697–83708.10.1039/C6RA09733BSuche in Google Scholar

8. Sun, Y. X.; Lu, R. E.; Li, X. R.; Zhao, Y. Y.; Li, C. Y.: A Schiff base ligand containing oxime group and its Cu(II) complex: Syntheses and supramolecular structures. Chinese J. Inorg. Chem. 31 (2015) 1055–1062.Suche in Google Scholar

9. Dong, W. K.; Ma, J. C.; Zhu, L. C.; Sun, Y. X.; Akogun, S. F.; Zhang, Y.: A series of heteromultinuclear zinc(II)-lanthanide(III) complexes based on 3-MeOsalamo: syntheses, structural characterizations, and luminescent properties. Cryst. Growth Des. 16 (2016) 6903–6914.10.1021/acs.cgd.6b01067Suche in Google Scholar

10. Zheng, S. S.; Dong, W. K.; Zhang, Y.; Chen, L.; Ding, Y. J.: Four salamo-type 3d-4f hetero-bimetallic [ZnIILnIII] complexes: syntheses, crystal structures, and luminescent and magnetic properties. New J. Chem. 41 (2017) 4966–4973.10.1039/C6NJ04090JSuche in Google Scholar

11. Zhao, L.; Wang, F.; An, Q. Q.; Zhao, J. X.: Crystal structure of (E)-1-(4-(((E)-3,5-dichloro-2-hydroxybenzylidene)amino)phenyl)ethan-1-one O-ethyl oxime, C17H16Cl2N2O2. Z. Kristallogr. NCS 231 (2016) 1045–1046.10.1515/ncrs-2016-0044Suche in Google Scholar

12. Li, F. A.; Yang, W. C.; Hu, X. M.: Crystal structure of bisnitrate-bis(1-(4-((1H-imidazol-1yl)methyl)-benzyl)-1H-imidazole)cadmium(II), [Cd(NO3)2(C14H14N4)2]n. Z. Kristallogr. NCS 226 (2011) 587–588.10.1524/ncrs.2011.0263Suche in Google Scholar

13. Dong, X. Y.; Ma, J. C.; Zhu, L. C.; Dong, W. K.; Zhang, Y.: Four 3d-4f heteromultinuclear zinc(II)-lanthanide(III) complexes constructed from a distinct hexadentate N2O2-type ligand: syntheses, structures and luminescence properties. J. Coord. Chem. 70 (2017) 103–115.10.1080/00958972.2016.1262537Suche in Google Scholar

Received: 2019-04-30
Accepted: 2019-06-04
Published Online: 2019-06-19
Published in Print: 2019-11-26

©2019 Bin Xu et al., published by De Gruyter, Berlin/Boston

This work is licensed under the Creative Commons Attribution 4.0 Public License.
