Crystal structure of N′-(2-hydroxybenzylidene)-3,4-dimethyl-1H-pyrrole-2-carbohydrazide, C14H15N3O2

  • Wen-Tao Qiao , Hai-Yan Li EMAIL logo und Yuan Wang
Veröffentlicht/Copyright: 13. Februar 2016
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 231 Heft 2

Abstract

C14H15N3O2, monoclnic, P21/c (no. 14), a = 8.2642(4) Å, b = 6.0481(3) Å, c = 25.6897(11) Å, β = 95.319(3)°, V = 1278.51(10) Å3, Z = 4, Rgt(F) = 0.0584, wRref(F2) = 0.1931, T = 296 K.

CCDC no.:: 1446808

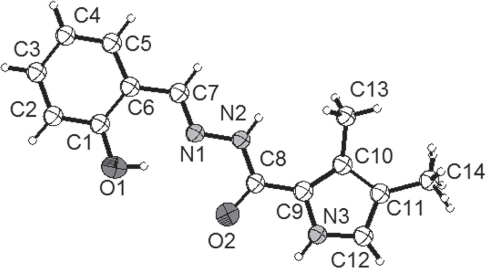

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

The title compound was synthesized by condensation of equimolar of 3,4-dimethyl-1H-pyrrole-2-carbohydrazide [1] and salicylaldehyde in ethanol solution under refluxing. The crystal suitble for single X-ray diffraction was obtained by evaporating the corresponding reaction solutions at room temperature.

Table 1

Data collection and handling.

Crystal:Colorless, block, size 0.10×0.12×0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.92 cm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω scans
2θmax:55.84°
N(hkl)measured, N(hkl)unique:11424, 3048
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1508
N(param)refined:176
Programs:SHELX [4]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2)4e0.37180.45650.10330.064
H(3)4e0.37510.8733−0.03490.063
H(7)4e0.51820.38660.18390.061
H(5)4e0.65380.34320.27190.075
H(12)4e0.22450.6981−0.10700.066
H(2A)4e0.89041.03210.26750.078
H(3A)4e0.94330.80780.33900.092
H(13A)4e0.27780.16860.04400.094
H(13B)4e0.10080.16690.01610.094
H(13C)4e0.14320.31770.06510.094
H(4)4e0.82200.46380.34200.090
H(14A)*4e0.04610.1719−0.06450.098
H(14B)*4e0.13370.2358−0.11390.098
H(14C)*4e−0.02330.3629−0.10130.098
H(1)4e0.6380.8970.16190.098
H(14D)*4e0.1290.152−0.08340.011
H(14E)*4e0.0610.339−0.1270.031
H(14F)*4e−0.0490.285−0.0760.038
*disordered methyl group, occupancy factor: 0.5
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
N(2)4e0.4233(2)0.5798(3)0.10235(6)0.055(1)0.056(1)0.047(1)−0.0043(8)−0.0031(8)0.0048(9)
O(2)4e0.4804(2)0.8916(3)0.06004(5)0.0688(9)0.057(1)0.0575(9)−0.0044(8)−0.0023(7)0.0036(8)
C(9)4e0.3212(2)0.6268(4)0.01203(7)0.046(1)0.052(1)0.043(1)0.008(1)0.0013(9)0.000(1)
N(3)4e0.3251(2)0.7494(3)−0.03270(6)0.0524(9)0.054(1)0.0519(9)0.0012(8)0.0022(7)0.0007(9)
O(1)4e0.7054(2)0.9665(3)0.18554(6)0.089(1)0.054(1)0.064(1)−0.0094(8)0.0009(8)0.0087(8)
N(1)4e0.5199(2)0.6561(3)0.14436(6)0.055(1)0.054(1)0.0427(9)0.0047(9)0.0003(8)0.0002(9)
C(7)4e0.5582(2)0.5302(3)0.18335(7)0.052(1)0.048(1)0.053(1)0.000(1)0.005(1)0.001(1)
C(8)4e0.4123(2)0.7094(4)0.05852(7)0.044(1)0.052(1)0.051(1)0.009(1)0.0054(9)0.000(1)
C(1)4e0.7354(2)0.8252(4)0.22626(7)0.056(1)0.052(1)0.050(1)0.003(1)0.0063(9)0.004(1)
C(11)4e0.1764(2)0.4551(4)−0.05459(8)0.045(1)0.055(1)0.056(1)0.009(1)0.0007(9)−0.010(1)
C(6)4e0.6649(2)0.6137(3)0.22684(7)0.048(1)0.048(1)0.044(1)0.004(1)0.0039(9)0.003(1)
C(10)4e0.2273(2)0.4409(3)−0.00058(7)0.046(1)0.049(1)0.051(1)0.012(1)0.0037(9)−0.003(1)
C(5)4e0.7003(2)0.4830(4)0.27087(8)0.067(1)0.062(2)0.056(1)0.001(1)−0.003(1)0.012(1)
C(12)4e0.2390(2)0.6471(4)−0.07269(7)0.054(1)0.066(2)0.044(1)0.007(1)−0.0018(9)−0.005(1)
C(2)4e0.8410(2)0.8941(4)0.26830(8)0.064(1)0.060(2)0.070(2)−0.008(1)−0.001(1)−0.011(1)
C(3)4e0.8729(3)0.7597(5)0.31098(9)0.071(2)0.094(2)0.062(2)0.004(2)−0.013(1)−0.012(2)
C(13)4e0.1834(2)0.2571(4)0.03429(8)0.066(1)0.051(2)0.071(1)0.004(1)0.005(1)0.001(1)
C(4)4e0.8015(3)0.5534(5)0.31275(9)0.082(2)0.083(2)0.056(1)0.006(2)−0.009(1)0.016(1)
C(14)4e0.0741(3)0.2919(4)−0.08641(9)0.067(2)0.059(2)0.067(2)0.009(1)−0.005(1)−0.012(1)

Experimental details

All the H atoms were located in the difference electron density map. The H atoms were situated into the idealized positions with the carrier atom-H distances = 0.93 Å for aryl, 0.97 for methylene, 0.96 Å for the methyl and 0.86 Å for the secondary amine hydrogens. The Uiso values were constrained to be 1.5Ueq of the carrier atom for the methyl H atoms and 1.2Ueq for the remaining H atoms. The hydrogen atoms of the methyl group at C14 are disordered.

Discussion

In our previous papers, we have reported a number of Schiff-bases bearing pyrrole units [1–3]. Particularly, the zinc(II), copper(II), nickel(II) complexes of Schiff-base ligand derived from 3,4-dimethyl-1H-pyrrole-2-carbohydrazide and 1-phenyl-3-methyl-4-benzoyl-2-pyrazolin-5-one [1] have certain antioxdative activity. Herein, the title compound was synthesized by condensation of 3,4-dimethyl-1H-pyrrole-2-carbohydrazide and salicylaldehyde in this work.

In the title compound (Figure), the imine C=N double bond has an E configuration. The dihedral angle between pyrrole (N3/C9—C12, r.m.s. deviation 0.0014 Å) and hydroxyphenyl moiety (C1—C6, r.m.s. deviation 0.0078 Å) in the hydrazone molecule is 13.07 (3)°. In the crystal, the molecules are linked into a centrosymmetric dimer by two intermolecular N—H⋯O hydrogen bonds, forming a R22(10) ring motif. An intramolecular O—H⋯N hydrogen bond is also present.

Corresponding author: Hai-Yan Li, Department of Physics and Chemistry, Henan Polytechnic University, Jiaozuo, 454000, P. R. China, e-mail:

Acknowledgements:

The authors are grateful for financial support from the Education Department of Henan Province (12B150011). The authors thank the responsible editor for supplying the figure.

References

1. Wang, Q.; Wang, Y.; Yang, Z.-Y.: Synthesis, characterization and antioxdative activity of 4-{[3,4-dimethyl-pyrrole-2-carbonyl)hydrazono](phenyl)methyl}-3-methyl-1-πhenylpyrazol-5-ol and its zinc(II), copper(II), nickel(II) complexes. Chem. Pharm. Bull. 56 (2008) 1018–1021.10.1248/cpb.56.1018Suche in Google Scholar PubMed

2. Wang, Y.; Wu, W.-N.; Zhao, R.-Q.; Wang, Q.-F.; Qin, B.-F.: Crystal structure of ethyl 5-[(3,4-dimethyl-1H-pyrrole-2-carboxylimino)-methyl]-3,4-dimethyl-1H-pyrrole- 2-carboxylate monohydrate, C17H22N4O3 · H2O. Z. Kristallogr. NCS 224 (2009) 625–626.10.1524/ncrs.2009.0275Suche in Google Scholar

3. Wang, Y.; Yang, Z.-Y.; Chen, Z.-N.: Synthesis, characterization and DNA binding properties of four Zn(II) complexes with bis(pyrrol-2-yl-methyleneamine) ligands. Bioorg. Med. Chem. Lett. 18 (2008) 298–303.10.1016/j.bmcl.2007.10.085Suche in Google Scholar PubMed

4. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A 64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Received: 2015-6-24
Accepted: 2016-1-12
Published Online: 2016-2-13
Published in Print: 2016-6-1

©2016 Wen-Tao Qiao et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
