Crystal structure of poly[(μ2-biphenyl-2,2′-dicarboxylato-κ4O,O′:O′′,O′′′)(μ2-4,4′-bipyridine-κ2N:N′)copper(II)], C24H16CuN2O4

  • En-Xiang Liang EMAIL logo , Bin-Hong He , Yi-Xue Xu , Jian-Min Yi and Shao Ren
Published/Copyright: March 16, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

CuC24H16N2O4, monoclinic, C2/c (no. 15), a = 20.262(7) Å, b = 9.530(3) Å, c = 11.444(3) Å, β = 117.095(5)°, V = 1967.2(11) Å3, Z = 4, Rgt(F) = 0.0271, wRref(F2) = 0.0998, T = 293 K.

CCDC no.:: 1453443

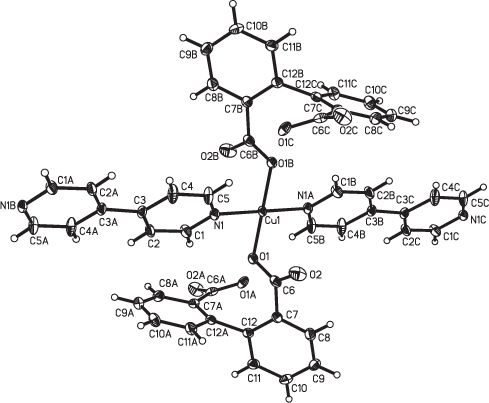

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Blue, block, size 0.10×0.12×0.25 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:11.46 cm−1
Diffractometer, scan mode:CCD area detector, φ and ω scans
2θmax:50.08°
N(hkl)measured, N(hkl)unique:5413, 1752
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1592
N(param)refined:142
Programs:SHELX [7]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1)8f1.12360.81310.16570.046
H(2)8f1.23070.71820.17690.048
H(4)8f1.17100.8593−0.18680.048
H(5)8f1.06860.9583−0.18450.045
H(8)8f0.80040.6995−0.01050.040
H(9)8f0.75510.56320.10300.045
H(10)8f0.83680.44650.29070.045
H(11)8f0.96280.46960.36490.040
Table 3

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Cu(1)4a1.01.00.00.0194(2)0.0268(3)0.0281(3)0.0076(1)0.0159(2)0.0077(1)
C(1)8f1.1336(1)0.8242(2)0.0947(2)0.038(1)0.045(1)0.048(1)0.018(1)0.033(1)0.022(1)
C(2)8f1.1983(1)0.7660(2)0.1016(2)0.029(1)0.043(1)0.056(1)0.018(1)0.027(1)0.026(1)
C(3)8f1.21491(9)0.7785(2)−0.0025(2)0.0192(9)0.0261(9)0.038(1)0.0025(7)0.0151(8)−0.0055(8)
C(4)8f1.1634(1)0.8503(3)−0.1129(2)0.026(1)0.071(2)0.026(1)0.015(1)0.0131(8)−0.0039(9)
C(5)8f1.1013(1)0.9080(2)−0.1113(2)0.023(1)0.062(1)0.026(1)0.0149(9)0.0097(8)0.0011(9)
C(6)8f0.9328(1)0.7798(2)0.0389(2)0.035(1)0.0247(9)0.033(1)0.0098(8)0.0211(9)0.0030(8)
C(7)8f0.9093(1)0.6758(2)0.1118(2)0.028(1)0.0236(9)0.0266(9)0.0024(8)0.0132(8)−0.0015(7)
C(8)8f0.8334(1)0.6557(2)0.0667(2)0.030(1)0.033(1)0.033(1)0.0038(8)0.0091(9)0.0004(8)
C(9)8f0.8060(1)0.5725(2)0.1334(2)0.028(1)0.034(1)0.048(1)−0.0054(9)0.0163(9)−0.0052(9)
C(10)8f0.8547(2)0.5033(2)0.2454(3)0.039(2)0.034(1)0.043(2)−0.0119(8)0.022(1)0.0008(8)
C(11)8f0.9303(2)0.5184(2)0.2904(2)0.034(1)0.030(1)0.029(1)−0.0041(8)0.010(1)0.0042(8)
C(12)8f0.9589(1)0.6057(2)0.2260(2)0.028(1)0.0202(9)0.027(1)−0.0019(7)0.0115(8)−0.0042(7)
N(1)8f1.08545(9)0.8955(2)−0.0101(2)0.0227(8)0.0303(9)0.0390(9)0.0073(7)0.0195(7)0.0051(7)
O(1)8f0.99232(7)0.8504(1)0.1069(1)0.0258(7)0.0360(7)0.0406(8)0.0078(6)0.0210(6)0.0155(6)
O(2)8f0.8930(1)0.8008(2)−0.0799(2)0.071(1)0.0483(9)0.0246(8)−0.0028(9)0.0181(8)0.0040(7)

Source of material

A mixture of Cu(CH3COO)2.H2O (0.1 mmol), biphenyl-2,2′-dicarboxylic acid (0.2 mmol), 4,4′-bipyridine (0.2 mmol), Et3N (0.1 mL), CH3OH (2 mL) and H2O (3 mL) was sealed in a 10 mL Teflon-lined stainless-steel reactor, heated to 373 K for 72 h, and then slowly cooled to room temperature. Blue block crystals suitable for X-ray diffraction analysis were collected by filtration.

Experimental details

All H atoms were placed in idealized positions, refined with distance restraints of C—H = 0.93 Å and refined as riding atoms with Uiso(H) = 1.2 Ueq(C).

Discussion

In recent years, the design and construction of has been investigated not only because metal-organic frameworks of their interesting structures, but also owing to their potential applications in many fields such as gas storage and separation, catalysis, magnetism, sensor, luminescence, and so on [1–6].

In order to search for new metal complex, the title complex was synthesised and its crystal structure determined. In the title complex, the CuII ion situated on a centre of inversion showing a square coordination geometry. The CuII ion is coordinated by two N atoms from two 4,4′-bipyridine ligands and two O atoms from two biphenyl-2,2′-dicarboxylato ligands. The biphenyl-2,2′-dicarboxyliato and 4,4′-bipyridine ligands bridge the metal atoms, forming a 3D network.

Corresponding author: En-Xiang Liang, College of Chemistry and Chemical Engineering, Hunan Institute of Science and Technology, 414006, Yueyang, Hunan, People's Republic of China, e-mail:

Acknowledgements:

This work was supported by the National Science Foundation of China (NSFC) (2014002, 2015051, 21471053) and the Planned Science and Technology Project of Hunan Province (2014SK3007).

References

1. Li, H.; Eddaoudi, M.; O'Keeffe, M.; Yaghi, O. M.: Design and synthesis of an exceptionally stable and highly porous metal-organic framework. Nature 402 (1999) 276–279.10.1038/46248Search in Google Scholar

2. Li, J. R.; Sculley, J.; Zhou, H. C.: Metal-organic frameworks for separations. Chem. Rev. 112 (2012) 869–932.10.1021/cr200190sSearch in Google Scholar PubMed

3. Kreno, L. E.; Leong, K.; Farha, O. K.; Allendorf, M. R.; Van Duyne, R. P.; Hupp, J. T.: Metal-organic framework materials as chemical sensors. Chem. Rev. 112 (2012) 1105–1125.10.1021/cr200324tSearch in Google Scholar PubMed

4. Cu, Y.; Yue, Y.; Qian, G.; Chen, B.: Luminescent functional metal-organic frameworks. Chem. Rev. 112 (2012) 1126–1162.10.1021/cr200101dSearch in Google Scholar PubMed

5. Aresta, M.; Dibenedetto, A.; Angelini, A.: Catalysis for the valorization of exhaust carbon: from CO2 to chemicals, materials, and fuels. Technological use of CO2. Chem. Rev. 114 (2014) 1709–1742.10.1021/cr4002758Search in Google Scholar PubMed

6. Luan, Y.; Qi, Y.; Gao, H.; Andriamitantsoa, R. S.; Zheng, N.; Wang, G.: A general post-synthetic modification approach of amino-tagged metal-organic frameworks to access efficient catalysts for the Knoevenagel condensation reaction. J. Mater. Chem. A3 (2015) 17320–17331.10.1039/C5TA00816FSearch in Google Scholar

7. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2016-9-18
Accepted: 2016-2-15
Published Online: 2016-3-16
Published in Print: 2016-6-1

©2016 En-Xiang Liang et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
