Crystal structure of prop-2-en-1-yl 2-oxo-2H-1-benzopyran-3-carboxylate, C13H10O4

  • Karel Škoch , Ivana Císařová und Petr Štěpnička EMAIL logo
Veröffentlicht/Copyright: 13. Februar 2016
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 231 Heft 2

Abstract

C13H10O4, monoclinic, P21/n (no. 14), a = 9.3751(2) Å, b = 17.3340(3) Å, c = 13.3828(2) Å, β = 98.460(1)°, V = 2151.15(7) Å3, Z = 8, Rgt(F) = 0.0381, wRref(F2) = 0.1065, T = 150(2) K.

CCDC no.:: 1448007

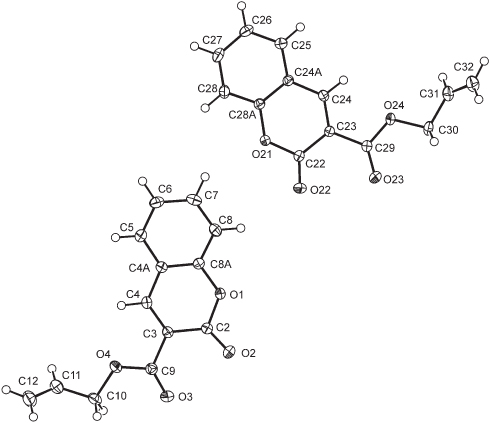

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless prism, size 0.26×0.44×0.57 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:1.06 cm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω scans
2θmax:55°
N(hkl)measured, N(hkl)unique:20004, 4940
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 4116
N(param)refined:307
Programs:SHELX [2], PLATON [3], Bruker programs [12]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(4)4e0.38130.71640.89280.024
H(5)4e0.64220.67360.90490.029
H(6)4e0.80800.57450.89920.031
H(7)4e0.72710.44690.87960.030
H(8)4e0.48200.41730.86340.027
H(10A)4e0.01750.85330.92730.031
H(10B)4e0.00410.83830.80760.031
H(11)4e0.23530.90660.81230.034
H(12A)4e0.11780.98010.96570.044
H(12B)4e0.24561.01330.90520.044
H(24)4e0.86790.09440.83800.021
H(25)4e1.12710.13770.83800.026
H(26)4e1.29570.23730.85280.029
H(27)4e1.22350.36310.88400.029
H(28)4e0.98350.39120.89750.027
H(30A)4e0.4904−0.03610.79290.030
H(30B)4e0.5230−0.03770.91430.030
H(31)4e0.7218−0.10470.79420.031
H(32A)4e0.6230−0.16090.96660.041
H(32B)4e0.7426−0.20180.90510.041
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
O(1)4e0.27224(8)0.51074(5)0.86534(6)0.0183(4)0.0149(4)0.0310(4)−0.0011(3)0.0038(3)−0.0029(3)
O(2)4e0.04658(9)0.53976(5)0.87586(7)0.0196(4)0.0235(5)0.0498(6)−0.0046(4)0.0082(4)−0.0012(4)
O(3)4e−0.02882(9)0.69897(5)0.85453(7)0.0180(4)0.0256(5)0.0414(5)0.0021(4)0.0031(4)−0.0006(4)
O(4)4e0.16390(9)0.77693(5)0.88955(7)0.0215(4)0.0167(4)0.0423(5)0.0032(3)−0.0003(4)−0.0017(4)
C(2)4e0.1656(1)0.56485(7)0.87380(9)0.0180(5)0.0179(6)0.0237(6)0.0003(4)0.0040(4)−0.0016(4)
C(3)4e0.2115(1)0.64585(6)0.87909(8)0.0185(5)0.0159(5)0.0193(5)0.0005(4)0.0027(4)−0.0011(4)
C(4)4e0.3530(1)0.66373(7)0.88700(9)0.0204(6)0.0156(5)0.0230(6)−0.0016(4)0.0031(4)−0.0010(4)
C(4A)4e0.4613(1)0.60573(6)0.88685(8)0.0179(5)0.0176(5)0.0206(5)0.0010(4)0.0024(4)0.0001(4)
C(5)4e0.6096(1)0.62182(7)0.89628(9)0.0198(6)0.0216(6)0.0315(6)−0.0026(5)0.0025(5)0.0002(5)
C(6)4e0.7079(1)0.56337(8)0.8932(1)0.0166(5)0.0313(7)0.0300(6)0.0016(5)0.0031(5)0.0012(5)
C(7)4e0.6589(1)0.48726(7)0.88120(9)0.0237(6)0.0272(6)0.0235(6)0.0095(5)0.0041(5)−0.0011(5)
C(8)4e0.5140(1)0.46924(7)0.87161(9)0.0261(6)0.0190(6)0.0217(6)0.0023(5)0.0037(5)−0.0031(4)
C(8A)4e0.4163(1)0.52917(7)0.87425(8)0.0170(5)0.0189(5)0.0176(5)−0.0002(4)0.0023(4)0.0000(4)
C(9)4e0.0994(1)0.70767(7)0.87287(8)0.0196(5)0.0198(6)0.0196(5)0.0003(4)0.0032(4)−0.0005(4)
C(10)4e0.0728(1)0.84463(7)0.8707(1)0.0244(6)0.0204(6)0.0317(7)0.0067(5)0.0012(5)0.0012(5)
C(11)4e0.1722(1)0.91068(7)0.8615(1)0.0295(7)0.0224(6)0.0316(7)0.0035(5)0.0033(5)0.0048(5)
C(12)4e0.1792(2)0.97383(8)0.9158(1)0.0389(8)0.0232(7)0.0446(8)0.0023(6)−0.0009(6)0.0017(6)
O(21)4e0.77138(8)0.29801(4)0.88073(6)0.0161(4)0.0143(4)0.0338(5)−0.0002(3)0.0054(3)−0.0010(3)
O(22)4e0.54545(9)0.26721(5)0.88584(8)0.0170(4)0.0228(4)0.0551(6)0.0024(3)0.0074(4)−0.0066(4)
O(23)4e0.46878(9)0.10879(5)0.86341(8)0.0188(4)0.0234(5)0.0535(6)−0.0035(4)0.0125(4)−0.0025(4)
O(24)4e0.65796(9)0.03197(5)0.85072(7)0.0187(4)0.0143(4)0.0408(5)−0.0036(3)0.0037(4)−0.0004(3)
C(22)4e0.6632(1)0.24314(7)0.87635(9)0.0163(5)0.0165(5)0.0257(6)−0.0015(4)0.0026(4)−0.0014(4)
C(23)4e0.7052(1)0.16309(6)0.86072(8)0.0154(5)0.0152(5)0.0201(5)−0.0013(4)0.0019(4)0.0005(4)
C(24)4e0.8430(1)0.14636(6)0.85026(8)0.0186(5)0.0143(5)0.0197(5)0.0005(4)0.0023(4)0.0000(4)
C(24A)4e0.9525(1)0.20439(6)0.85700(8)0.0153(5)0.0168(5)0.0176(5)−0.0008(4)0.0012(4)0.0011(4)
C(25)4e1.0977(1)0.18895(7)0.84951(9)0.0174(5)0.0219(6)0.0252(6)0.0011(5)0.0032(4)0.0010(5)
C(26)4e1.1978(1)0.24776(7)0.85877(9)0.0147(5)0.0310(7)0.0266(6)−0.0021(5)0.0020(4)0.0032(5)
C(27)4e1.1540(1)0.32284(7)0.87697(9)0.0211(6)0.0255(6)0.0253(6)−0.0086(5)0.0003(5)0.0027(5)
C(28)4e1.0121(1)0.33999(7)0.88497(9)0.0236(6)0.0171(5)0.0268(6)−0.0034(5)0.0020(5)0.0004(5)
C(28A)4e0.9127(1)0.28013(7)0.87409(8)0.0155(5)0.0175(5)0.0193(5)−0.0004(4)0.0015(4)0.0013(4)
C(29)4e0.5948(1)0.10060(6)0.85796(9)0.0181(5)0.0159(5)0.0239(6)−0.0014(4)0.0037(4)−0.0002(4)
C(30)4e0.5678(1)−0.03611(7)0.8518(1)0.0234(6)0.0172(6)0.0350(7)−0.0078(5)0.0028(5)0.0013(5)
C(31)4e0.6651(1)−0.10313(7)0.8474(1)0.0304(7)0.0187(6)0.0291(6)−0.0048(5)0.0037(5)−0.0040(5)
C(32)4e0.6781(2)−0.16064(8)0.9124(1)0.0369(8)0.0225(6)0.0423(8)−0.0011(6)0.0043(6)0.0032(6)

Source of material

The compound was prepared according to the literature [1] and crystallized from hot ethyl acetate–hexane (1:10), affording colorless prisms.

Experimental details

The structure was solved by direct methods (SHELXS-97 [2]) and refined by full-matrix least-squares based on F2 (SHELXL-97 [2]). All hydrogen atoms were included in their theoretical positions (AFIX 43, 23 and 93 for the aromatic, methylene and terminal =CH2 H atoms, respectively) and further refined as riding atoms (SHELXL-97 [2]) with the Uiso values set to 1.2Ueq of their bonding carbon atoms. The structural drawing and all numerical parameters cited below were obtained from the PLATON program [3].

Discussion

The title compound was previously utilized as a substrate for decarboxylative allylation leading to 3-allylcoumarins [4] and for the preparation of 4-allyl coumarin derivatives via conjugate addition of tetraallytin [1]. It crystallizes with two crystallographically independent molecules in the asymmetric unit. Interatomic distances and angles determined for the title compound compare well with those reported for similar coumarin-3-carboxylate esters such as methyl 2-oxo-2H-chromene-3-carboxylate [5], ethyl 2-oxo-2H-chromene-3-carboxylate [6] and, mainly, (E)-3-phenylprop-2-ene-1-yl 2-oxo-2H-chromene-3-carboxylate [7]. Atoms constituting the 2H-1-benzopyrane moiety are coplanar within 0.064(1) Å and 0.033(1) Å for molecules 1 and 2, respectively. The directly bonded atoms O2/O22 and C9/C29 depart from the mean ring plane by 0.199(1)/0.016(1) Å and −0.137(1)/0.110(1) Å, respectively, which is in turn manifested in the torsion angles O2–C2–C3–C9 and O22–C22–C23–C29 being only −8.9(2)° and −1.7(2)°. The lactone and the 3-carboxyl carbonyl groups are mutually syn in both structurally independent molecules [cf. the torsion angles C2–C3–C9–O3 = −7.3(2)° for molecule 1, and C22–C23–C29–O23 = 3.2(2)° for molecule 2].

The individual molecules associate by means of soft C—H⋯O interactions, namely via hydrogen bonds C6–H6⋯O2i with C6⋯O2i = 3.2436(15) Å, and C26–H26⋯O22ii with C26⋯O22i = 3.2435(14) Å (i = 1 + x, y, z). Also detected can be an pair of C28–H28⋯O2i and C27–H27⋯O1i interactions (C28⋯O2i = 3.4816(15) Å and C27⋯O2i = 3.4512(15) Å). Albeit relatively long (i.e., weak), these interactions operate in supportive manner (pairs) and their stabilization influence is therefore combined. It is noteworthy that an inspection of the supramolecular structures of coumarin-3-carboxylate esters mentioned above and similar compounds (e.g.; 4-halophenyl 2-oxo-2H-chromene-3-carboxylates, where 4-halophenyl is 4-chlorophenyl [8], 4-bromophenyl [9]; menthyl 2-oxo-2H-chromene-3-carboxylate [10], and 4-(octyloxy)phenyl 2-oxo-2H-chromene-3-carboxylate [11]) revealed a whole palette of weak C–H⋯O hydrogen bond interaction that preferrentially involve the exocyclic carbonyl moiety. An interaction similar to the pairing via hydrogen bonds toward the coumarine oxygens could be so far detected only in the structure of the 4-(octyloxy)phenyl ester [11].

In addition to the hydrogen bond interactions, one molecule in the structure of the title compound associates by means of offset π⋯π stacking interactions of the benzene ring [C4A, C5, C6, C7, C8, C8A] with its inversion-related image with the centroid–centroid distance of 3.8188(7) Å.

Corresponding author: Petr Štěpnička, Department of Inorganic Chemistry, Faculty of Science, Charles University in Prague, Hlavova 2030, CZ-12840 Prague, Czech Republic, e-mail:

Acknowledgements:

This work was supported by the Grant Agency of Charles University in Prague (project no. 108213).

References

1. Kuang, Y.; Liu, X.; Chang, L.; Wang, M.; Lin, L.; Feng, X.: Catalytic asymmetric conjugate allylation of coumarins. Org. Lett. 13 (2011) 3814–3817.10.1021/ol201312ySuche in Google Scholar PubMed

2. Sheldrick, G.M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

3. Spek, A. L.: Single-crystal structure validation with the program PLATON. J. Appl. Crystallogr. 36 (2003) 7–13.10.1107/S0021889802022112Suche in Google Scholar

4. Jana, R.; Trivedi, R.; Tunge, J. A.: Mild decarboxylative allylation of coumarins. Org. Lett. 11 (2009) 3434–3436.10.1021/ol901288rSuche in Google Scholar PubMed PubMed Central

5. Saeed, A.; Ibrar, A.; Arshad, M.; Bolte, M.: Methyl 2-oxo-2H-chromene-3-carboxylate. Acta Crystallogr. E68 (2012) o3024.10.1107/S1600536812040044Suche in Google Scholar PubMed PubMed Central

6. García-Báez, E. V.; Martínez-Martínez, F. J.; Höpfl, H.; Padilla-Martínez, I. I.: π-Stacking interactions and C–H⋯X (X = O, Aryl) hydrogen bonding as directing features of the supramolecular self-association in 3-carboxy and 3-amido coumarin derivatives. Cryst. Growth Des. 3 (2003) 35–45.10.1021/cg0255826Suche in Google Scholar

7. Xu, C.-L.; Yang, N.; Yang, G.-Y.; Fan, S.-F.; Niu, C.-Y.: Cinnamyl 2-oxo-2H-chromene-3-carboxylate. Acta Crystallogr. E65 (2009) o2991.10.1107/S1600536809045644Suche in Google Scholar PubMed PubMed Central

8. Guo, X.-Q.; Yan, J.; Gan, Y.; Song, Q.; Gou, X.-J.: 4-Chlorophenyl 2-oxo-2H-chromene-3-carboxylate. Acta Crystallogr. E68 (2012) o574.10.1107/S1600536812003376Suche in Google Scholar PubMed PubMed Central

9. Devarajegowda, H. C.; Suchetan, P. A.; Srinivasa, H. T.; Sreenivasa, S.; Palakshamurthy, B. S.: Crystal structure of 4-bromophenyl-2-oxo-2H-chromene-3-carboxylate. Acta Crystallogr. E71 (2015) o326–o327.10.1107/S2056989015006738Suche in Google Scholar PubMed PubMed Central

10. Xu, C.-L.; Liu, S.-Y.; Chen, G.; Yang, G.-Y., Zhao, M.-Q.: Menthyl 2-oxo-2H-chromene-3-carboxylate. Acta Crystallogr. E65 (2009) o2431.10.1107/S1600536809035995Suche in Google Scholar PubMed PubMed Central

11. Palakshamurthy, B. S.; Sreenivasa, A.; Srinivasa, H. T.; Roopashree, K. R.; Devarajegowda, H. C.: 4-(Octyloxy)phenyl 2-oxo-2H-chromene-3-carboxylate. Acta Crystallogr. E69 (2013) o212.10.1107/S1600536813000214Suche in Google Scholar PubMed PubMed Central

12. Bruker: SADABS, version 2012/1; APEX2, version 2012.12.03; SAINT, version 8.23B. Bruker AXS Inc., Madison, Wisconsin, USA, 2012.Suche in Google Scholar

Received: 2015-9-8
Accepted: 2016-1-18
Published Online: 2016-2-13
Published in Print: 2016-6-1
