Crystal structure of [2,2′-((((ethane-1,2-diylbis(oxy-κ2O,O′))bis(2,1-phenylene))bis(azanylylidene-κ2N,N′))bis(methanylylidene))diphenolato-κ2O′′,O′′′]zinc(II), C28H22N2O4Zn

  • Qiang Xu , Guo Qiang Li , Jiang Ping Meng and Jia Hong He EMAIL logo
Published/Copyright: March 16, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C28H22N2O4Zn, tetragonal, P41212 (no. 92), a = 10.986(5) Å, b = 10.986(5) Å, c = 18.187(8) Å, V = 2195(2) Å3, Z = 4, Rgt(F) = 0.0440, wRref(F2) = 0.0942, T = 293 K.

CCDC no.:: 1445772

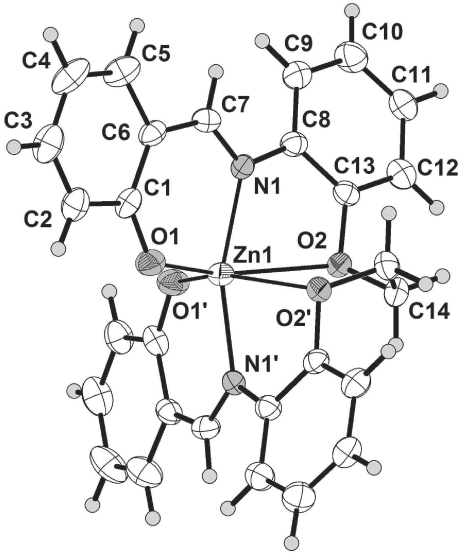

The crystal structure is shown in the figure (′ = 1−x, 1−y, 0.5−z). Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1:

Data collection and handling.

Crystal:Red, block, size 0.18×0.21×0.26 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:11.60 cm−1
Diffractometer, scan mode:Bruker APEX-II, φ and ω scans
2θmax:51.96°
N(hkl)measured, N(hkl)unique:11931, 2169
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1750
N(param)refined:160
Programs:SHELX [3]
Table 2:

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2)8b0.65470.59550.42070.057
H(3)8b0.74350.77980.42710.068
H(4)8b0.87480.84510.33640.080
H(5)8b0.92460.71840.24280.068
H(7)8b0.91090.54200.17790.045
H(9)8b0.93180.48500.07230.057
H(10)8b1.01120.3803−0.02550.063
H(11)8b1.01030.1737−0.02740.053
H(12)8b0.91500.06610.06490.050
H(14A)8b0.92160.02120.19020.053
H(14B)8b0.80940.00900.24330.053
Table 3:

Fractional coordinates and atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Zn(1)4a0.69425(5)0.30575(5)0.192460.0326(2)0.0326(2)0.0445(4)−0.0046(4)0.0021(2)0.0021(2)
C(1)8b0.7344(4)0.5356(4)0.3271(2)0.049(3)0.031(3)0.040(2)0.005(2)−0.008(2)0.002(2)
C(2)8b0.7093(5)0.6182(4)0.3842(2)0.060(3)0.040(3)0.044(3)0.008(3)−0.002(3)−0.005(2)
C(3)8b0.7614(5)0.7287(5)0.3878(3)0.074(4)0.045(3)0.050(3)0.009(3)−0.016(3)−0.009(2)
C(4)8b0.8411(6)0.7675(5)0.3341(3)0.102(5)0.030(3)0.068(3)−0.009(3)−0.016(3)−0.003(3)
C(5)8b0.8696(5)0.6922(5)0.2783(3)0.073(3)0.041(3)0.057(3)−0.013(3)−0.007(2)0.001(3)
C(6)8b0.8186(4)0.5748(4)0.2723(2)0.037(3)0.029(2)0.044(2)−0.005(2)−0.009(2)0.003(2)
C(7)8b0.8567(4)0.5041(4)0.2098(2)0.034(3)0.038(3)0.040(2)−0.007(2)0.001(2)0.002(2)
C(8)8b0.8726(4)0.3393(4)0.1291(2)0.034(2)0.037(3)0.035(2)−0.002(2)−0.001(2)0.005(2)
C(9)8b0.9277(5)0.4004(5)0.0715(3)0.051(3)0.042(3)0.050(3)0.002(2)0.008(2)0.005(2)
C(10)8b0.9762(5)0.3377(5)0.0133(3)0.056(3)0.063(4)0.039(3)0.002(3)0.008(2)0.006(2)
C(11)8b0.9739(4)0.2149(5)0.0115(2)0.037(2)0.055(3)0.040(3)0.003(2)−0.001(2)−0.005(2)
C(12)8b0.9182(4)0.1507(5)0.0666(2)0.035(3)0.049(3)0.040(3)−0.003(2)−0.005(2)−0.009(2)
C(13)8b0.8669(4)0.2133(4)0.1246(2)0.027(2)0.040(3)0.035(2)−0.002(2)−0.002(2)0.001(2)
C(14)8b0.8651(5)0.0664(4)0.2207(3)0.047(3)0.034(3)0.053(3)0.009(2)0.007(2)0.003(2)
N(1)8b0.8252(3)0.3952(3)0.1925(2)0.032(2)0.027(2)0.039(2)0.001(2)−0.000(2)0.002(2)
O(1)8b0.6790(3)0.4327(3)0.3254(2)0.052(2)0.036(2)0.057(2)−0.006(2)0.014(2)−0.005(2)
O(2)8b0.7996(3)0.1508(2)0.1773(2)0.034(2)0.029(2)0.047(2)0.000(2)0.001(2)0.002(1)

Source of material

1,2-Bis(2-(2-oxidobenzylidene)aminophenoxy)ethane (H2L) was synthesized following a reported synthetic protocol [1, 2], and the other reagents were obtained commercially and used directly without further purification. The title compound was prepared by a layering method. A buffer layer of methanol (3 mL) was carefully layered over the CH2Cl2 solution (3 mL) of the protonated ligand (H2L) (45.3 mg, 0.1 mmol). Then a solution of Zn(CH3COO)2 · 2H2O (21.9 mg, 0.1 mmol) in 3 mL methanol was layered over the buffer layer. The resulting mixture was placed in a dark environment. Red block crystals were obtained after five days, in a yield of 58% (based on Zn).

Experimental details

The structure was solved by direct methods [3]. All hydrogen atoms were placed in the calculated positions.

Discussion

The condensation of an amine with an aldehyde or ketone, forming what is called a Schiff base, is one of the oldest reactions in chemistry [4]. Up to now, Schiff bases ligands have been attracted considerable attention of chemists due to the convenience in synthesis, favourable coordination ability and widely applications of its multifunctional complexes including biological [5], analytical [6] and industrial [7] processes. As part of our work, we report a Zn(II) complex of a Schiff base ligand based on N,O-bifunctional coordination group. The Zn(II) is six-coordinated with N2O4 binding set in a slightly distorted octahedral geometry. The axial positions are occupied by two N atoms with Zn—N bond lengths of 2.032(4) Å, and the N1—Zn1—N1′ bond angle is 161.72(19)°. The equatorial plane is defined by four oxygen atoms with Zn—O distance of 1.963(3) Å, 2.446(3) Å, and the bond angles around the Zn(II) atom are vary from 68.51(14)° to 155.83(13)°.

Corresponding author: Jia Hong He, Chongqing Key Laboratory of Environmental Materials and Remediation, Technologies, Chongqing University of Arts and Sciences, Chongqing, 402160, P. R. China, e-mail:

Acknowledgements:

I acknowledge support for the publication fee by the Chongqing Education Commission (KJ1401114), Chongqing University of Arts and Sciences (Z2015CH02), Chongqing University of Arts and Sciences (XSKY2015023) and Chongqing University of Arts and Sciences (XSKY2014031). The authors thank the responsible editor for supplying the figure.

References

1. Zhang, Q. L.; Zhang, Y. Q.; Zhu, B. X.: Crystal structure of Ag(I) Schiff base complex. Chinese. J. Inorg. Chem. 27 (2011) 2191–2194.Search in Google Scholar

2. Zhang, Q. L.; Zhang, Y. Q.; Zhu, B. X.: Synthesis and crystal structure of Co(II) and Zn(II) complexes with one-dimensional chain structure. Chinese. J. Inorg. Chem. 27 (2011) 923–927.Search in Google Scholar

3. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

4. Schiff, H.: The syntheses and characterization of Schiff base. Ann. Chem. Suppl. 3 (1864) 343–349.Search in Google Scholar

5. Baosic, R.; Radojevic, A.; Radulovic, M.; Miletic, S.: Relationships between structure, retention and biological activity of some Schiff base ligands and their complexes. Biomed. Chromatogr. 22 (2008) 379–386.10.1002/bmc.943Search in Google Scholar PubMed

6. Dadamos, T. R. L.: Electrochemical sensor for sulfite determination based on a nanostructured copper-salen film modified electrode. Electrochim. Acta 54 (2009) 4552–4558.10.1016/j.electacta.2009.03.045Search in Google Scholar

7. Yang, T. L.: Synthesis and novel fluorescence phenomenon of terbium complex with a new Schiff base ligand derived from condensation of triaminotriethylamine and 3-indolemethanal. Spectrochim. Acta A67 (2007) 568–571.10.1016/j.saa.2006.06.044Search in Google Scholar PubMed

Received: 2016-1-28
Accepted: 2016-2-16
Published Online: 2016-3-16
Published in Print: 2016-6-1

©2016 Qiang Xu et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
