Crystal structure of (E)-4-chloro-N′-(4-(diethylamino)benzylidene)benzohydrazide, C18H20ClN3O

  • Xue-Yue Jiang EMAIL logo , Lan-Lan Chen , Sen-Sen Hu , He-Yu Liu , Hua-Jie Xu and Chong-Fu Song
Published/Copyright: February 26, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C18H20ClN3O, monoclinic, P21/c (no. 14), a = 10.0099(3) Å, b = 16.2337(6) Å, c = 21.0714(7) Å, β = 91.324(3)°, V = 3423.1(2) Å3, Z = 8, Rgt(F) = 0.0381, wRref(F2) = 0.1065, T = 291(2) K.

CCDC no.:: 782825

Table 1

Data collection and handling.

Crystal:yellow, block, size 0.36×0.40×0.40 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:2.31 cm−1
Diffractometer, scan mode:Bruker APEX-II CCD, ω scans
2θmax:50.05°
N(hkl)measured, N(hkl)unique:19165, 6033
N(param)refined:422
Programs:SADABS [7], Bruker programs [8], SHELX [9]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(1)4e0.97510.38610.45560.063
H(3)4e0.47180.37810.48350.064
H(4)4e1.05840.40050.66330.069
H(8)4e1.03550.41150.35930.064
H(13)4e0.68480.47790.17610.074
H(2)4e0.84150.19310.65650.076
H(24)4e0.12320.24800.54540.067
H(27)4e0.56200.46910.42430.063
H(14)4e0.72300.42740.27550.067
H(25)4e0.15390.13790.61210.072
H(33)4e0.67890.56790.35900.071
H(1A)4e0.75750.23060.55770.070
H(11)4e1.07610.52300.16080.076
H(10)4e1.11230.46880.25920.071
H(5)4e0.97780.43580.56310.062
H(22)4e0.51660.28560.54390.084
H(32)4e0.68670.66330.28030.081
H(29)4e0.28450.54900.33410.078
H(21)4e0.54740.17570.61140.094
H(30)4e0.29070.64220.25390.090
H(35A)4e0.38580.79610.15090.118
H(35B)4e0.29650.74530.19700.118
H(15A)4e1.03990.55120.06740.111
H(15B)4e0.93400.58230.01690.111
H(17A)4e0.65030.55200.10070.116
H(17B)4e0.70960.59630.04140.116
H(36A)4e0.27060.69580.09510.198
H(36B)4e0.42440.67820.09240.198
H(36C)4e0.33510.62740.13850.198
H(18A)4e0.60220.47730.01040.214
H(18B)4e0.75490.4699−0.00340.214
H(18C)4e0.69580.42560.05580.214
H(16A)4e1.05370.69080.05690.179
H(16B)4e0.90350.69970.07530.179
H(16C)4e1.00940.66860.12570.179
H(33A)*4e0.59960.74370.13090.112
H(33B)*4e0.67920.69240.18240.112
H(34A)*4e0.76280.82490.17860.149
H(34B)*4e0.62140.86040.19380.149
H(34C)*4e0.70090.80910.24520.149
H(33C)*4e0.64870.79010.24940.112
H(33D)*4e0.56990.83900.19510.112
H(34D)*4e0.76570.77970.15290.149
H(34E)*4e0.71610.69240.17390.149
H(34F)*4e0.63820.74080.12030.149

*Disordered, occupancy factor: 0.5.

Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Cl(2)4e0.37897(7)0.05824(4)0.66415(4)0.0813(5)0.0801(5)0.1187(6)0.0101(4)0.0197(4)0.0373(5)
Cl(1)4e1.01685(8)0.26786(5)0.74373(3)0.1152(6)0.1046(5)0.0649(4)−0.0090(4)−0.0154(4)0.0243(4)
O(1)4e0.6823(1)0.3496(1)0.47325(7)0.0383(9)0.090(1)0.068(1)−0.0046(8)0.0008(7)0.0085(9)
O(2)4e0.1720(1)0.3650(1)0.47507(8)0.0394(9)0.108(1)0.083(1)0.0014(8)0.0013(8)0.030(1)
N(1)4e0.8921(2)0.3832(1)0.44432(8)0.039(1)0.065(1)0.054(1)−0.0017(8)−0.0009(8)0.008(1)
N(5)4e0.3737(2)0.4508(1)0.42424(8)0.050(1)0.061(1)0.052(1)−0.0013(9)0.0048(9)0.009(1)
N(4)4e0.3926(2)0.3895(1)0.46942(8)0.042(1)0.064(1)0.055(1)−0.0046(9)−0.0007(8)0.009(1)
N(2)4e0.8527(2)0.4049(1)0.38326(8)0.048(1)0.060(1)0.047(1)0.0033(9)−0.0006(9)0.005(1)
C(6)4e0.8590(2)0.3367(1)0.5499(1)0.040(1)0.047(1)0.053(1)−0.000(1)0.006(1)0.004(1)
C(9)4e0.9219(2)0.4443(1)0.2799(1)0.053(1)0.047(1)0.052(1)0.005(1)0.007(1)0.002(1)
C(4)4e0.9982(2)0.3663(1)0.6417(1)0.061(1)0.055(2)0.057(2)−0.006(1)−0.002(1)−0.004(1)
C(7)4e0.8019(2)0.3577(1)0.4862(1)0.043(1)0.048(1)0.055(1)−0.001(1)0.003(1)0.001(1)
C(23)4e0.3162(2)0.2781(1)0.5358(1)0.040(1)0.056(1)0.049(1)−0.001(1)0.007(1)−0.001(1)
C(8)4e0.9476(2)0.4184(1)0.3450(1)0.049(1)0.052(1)0.059(2)0.006(1)0.004(1)−0.005(1)
C(28)4e0.4811(2)0.5466(1)0.3561(1)0.049(1)0.047(1)0.052(1)0.001(1)0.005(1)0.001(1)
C(3)4e0.9561(2)0.2940(1)0.6688(1)0.062(1)0.060(2)0.052(1)0.001(1)0.003(1)0.009(1)
C(13)4e0.7714(2)0.4781(1)0.1930(1)0.055(1)0.072(2)0.058(2)−0.000(1)−0.002(1)0.003(1)
C(2)4e0.8678(2)0.2423(1)0.6379(1)0.062(2)0.058(1)0.070(2)−0.011(1)0.006(1)0.020(2)
N(3)4e0.8512(2)0.5443(1)0.0980(1)0.073(2)0.108(2)0.065(1)−0.015(1)−0.003(1)0.028(1)
C(24)4e0.2095(2)0.2330(2)0.5580(1)0.041(1)0.065(2)0.062(2)−0.005(1)0.004(1)0.001(1)
C(26)4e0.4810(2)0.4848(1)0.4055(1)0.050(1)0.053(1)0.056(1)0.000(1)0.000(1)0.000(1)
C(14)4e0.7947(2)0.4471(1)0.2527(1)0.054(1)0.057(1)0.057(2)−0.003(1)0.007(1)0.001(1)
C(19)4e0.2273(2)0.1671(1)0.5977(1)0.049(1)0.060(2)0.071(2)−0.009(1)0.014(1)0.003(1)
C(27)4e0.5999(2)0.5830(1)0.3380(1)0.053(1)0.062(2)0.062(2)−0.001(1)−0.003(1)0.008(1)
C(1)4e0.8188(2)0.2646(1)0.5787(1)0.051(1)0.057(1)0.067(2)−0.012(1)−0.001(1)0.006(1)
C(20)4e0.3541(2)0.1445(1)0.6160(1)0.057(2)0.058(1)0.066(2)0.004(1)0.014(1)0.009(1)
C(11)4e1.0037(2)0.5044(1)0.1837(1)0.055(2)0.075(2)0.060(2)0.001(1)0.013(1)0.007(1)
C(31)4e0.4901(2)0.6645(2)0.2571(1)0.071(2)0.062(2)0.075(2)0.002(1)0.003(1)0.020(2)
N(6)4e0.4928(2)0.7221(2)0.2095(1)0.090(1)0.127(2)0.116(2)−0.012(1)−0.008(1)0.064(2)
C(25)4e0.2869(2)0.3480(1)0.4912(1)0.043(1)0.067(2)0.048(1)−0.004(1)0.003(1)0.001(1)
C(10)4e1.0252(2)0.4722(1)0.2430(1)0.052(1)0.067(2)0.060(2)0.007(1)0.004(1)0.002(1)
C(5)4e0.9496(2)0.3873(1)0.5820(1)0.056(1)0.046(1)0.053(1)−0.005(1)0.007(1)0.004(1)
C(12)4e0.8747(2)0.5100(1)0.1566(1)0.062(2)0.061(2)0.059(2)0.002(1)0.005(1)0.004(1)
C(22)4e0.4430(2)0.2557(2)0.5570(1)0.042(1)0.081(2)0.088(2)−0.003(1)0.012(1)0.023(2)
C(32)4e0.6050(2)0.6402(2)0.2905(1)0.058(2)0.070(2)0.075(2)−0.009(1)0.004(1)0.017(2)
C(29)4e0.3662(2)0.5714(2)0.3231(1)0.046(1)0.076(2)0.073(2)0.003(1)0.008(1)0.012(2)
C(21)4e0.4617(2)0.1897(2)0.5971(1)0.046(1)0.090(2)0.100(2)0.007(1)0.008(1)0.034(2)
C(30)4e0.3698(2)0.6278(2)0.2751(1)0.058(2)0.089(2)0.078(2)0.014(1)0.001(1)0.028(2)
C(35)4e0.3738(3)0.7424(2)0.1702(1)0.0956(9)0.098(1)0.100(1)0.0078(9)−0.0007(8)0.0322(8)
C(15)4e0.9585(3)0.5830(2)0.0617(1)0.100(2)0.111(3)0.066(2)0.003(2)−0.003(2)0.026(2)
C(17)4e0.7167(3)0.5477(2)0.0680(1)0.096(2)0.117(3)0.077(2)−0.004(2)−0.004(2)0.029(2)
C(36)4e0.3488(3)0.6805(2)0.1196(2)0.137(2)0.128(2)0.131(2)−0.006(2)−0.013(1)0.009(1)
C(18)4e0.6901(4)0.4737(2)0.0293(2)0.122(3)0.149(3)0.156(4)−0.024(2)−0.019(3)−0.014(3)
C(16)4e0.9834(3)0.6678(2)0.0816(2)0.134(3)0.122(3)0.102(3)−0.021(2)−0.009(2)0.016(2)
C(33)*4e0.6183(4)0.7383(4)0.1761(3)0.094(1)0.094(1)0.091(1)−0.0005(9)0.0016(9)0.0042(9)
C(34)*4e0.6814(6)0.8149(3)0.2006(3)0.096(2)0.102(2)0.100(2)−0.009(1)−0.006(2)0.008(2)
C(33A)*4e0.6025(6)0.7853(4)0.2085(3)0.094(1)0.094(1)0.091(1)−0.0005(9)0.0016(9)0.0042(9)
C(34A)*4e0.6884(6)0.7460(4)0.1595(3)0.096(2)0.102(2)0.100(2)−0.009(1)−0.006(2)0.008(2)

*Disordered, occupancy factor: 0.5.

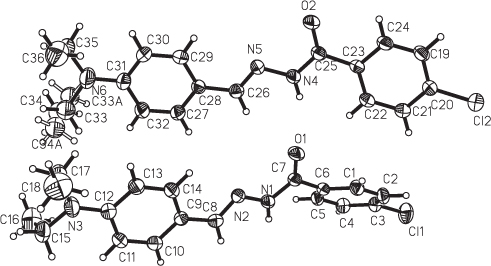

The crystal structure is shown in the figure, Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Source of material

All reagents and solvents were used as obtained commercially and without further purification. 4-Diethylaminobenzaldehyde (0.177 g, 1 mmol) and 4-chlorobenzohydrazide (0.170 g, 1 mmol) were stirred in ethanol (20 mL). The mixture was refluxed for 3 h to give a clear yellow solution, then cooled to room temperature, and the resulting yellow compound was filtered, washed three with ethanol. Yellow block-shaped crystals of the title compound were obtained by slow evaporation of an ethanol solution in air after 10 days.

Experimental details

One ethyl group is disordered over two sites in a 0.5:0.5 ratio. All H-atoms were placed in calculated positions and treated as riding: C—H = 0.93 or 0.97 Å, N—H = 0.86 Å with Uiso(H) = 1.2 Ueq(parent C, N-atom) and 1.5 Ueq(C35).

Discussion

Schiff base compounds have been of great interest for many years. They play an important role in the development of coordination chemistry related to catalytic [1], pharmacological [2], antitumor activity [3] and as fluorescent sensors [4]. As an extension of work on the structural characterization of Schiff base compounds [5, 6], we here report the crystal structure of the Schiff base compound (E)-4-chloro-N′-(4-(diethylamino)benzylidene). The asymmetric unit of the title compound consists of two crystallographically independent molecules (Figure). In both independent molecules, the C = N bond adopt E configurations. The central moiety in both molcules is not exactly planar with torsion angles C7—N1—N2—C8 and C25—N4—N5—C26 of 172.0(4)° and 178.3(4)°, respectively. The dihedral angles between the benzene rings mean planes is 45.1(1)° and 169.0(1)°, respectively.

Corresponding author: Xue-Yue Jiang, Department of chemical and materials engineering, Fuyang Normal College, Fuyang, Anhui 236041, China, e-mail:

Acknowledgements:

This project is supported by the Innovation Training Program for the College students (Grant No: AH201310371008, 201310371018), Educational Commission of Anhui Province of China (2014KJ016), and Anhui Provincial Key Laboratory for Degradation & Monitoring of Pollution of the Environment (No. 2012HJJC03) and the Natural Science Foundation of Fuyang Normal College (2014FSKJ06, 2015FSKJ02ZD).

References

1. Boghaei, D. M.; Bezaatpour, A.; Behzad, M.: Synthesis, characterization and catalytic activity of novel monomeric and polymeric vanadyl Schiff base complexes. J. Mol. Catal. A245 (2006) 12–16.10.1016/j.molcata.2005.09.022Search in Google Scholar

2. Silva, Y. K. C.; Augusto, C. V.; Barbosa, M. L. C.; Melo, G. M. A.; Queiroz, A. C.; Dias, T. L. M. F.; Bispo-Junior, W.; Barreiro, E. J.; Lima, L. M.; Alexandre-Moreira, M. S.: Synthesis and pharmacological evaluation of pyrazine N-acylhydrazone derivatives designed as novel analgesic and anti-inflammatory drug candida. Bioorg. Med. Chem. 18 (2010) 5007–5015.10.1016/j.bmc.2010.06.002Search in Google Scholar

3. Yang, Z. Y.; Yang, R. D.; Li, F. S.; Yu, K. B.: Crystal structure and antitumor activity of some rare earth metal complexes with Schiff base. Polyhedron. 19 (2000) 2599–2604.10.1016/S0277-5387(00)00562-3Search in Google Scholar

4. Zhao, Y. G.; Zhang, B. G.; Duan, C. Y.; Lin, Z. H.; Meng, Q. J.: A highly selective fluorescent sensor for fluoride through ESPT signaling transduction. New J. Chem. 30 (2006) 1207–1213.10.1039/b605087eSearch in Google Scholar

5. Xu, H. J.; Du, N. N.; Jiang, X. Y.; Sheng, L. Q.; Tian, Y. P.: (E)-2-Hydroxynaphthalene-1-carbaldehyde semicarbazone. Acta Crystallogr. E65 (2009) o1047.10.1107/S160053680901174XSearch in Google Scholar PubMed PubMed Central

6. Mao, F. L.; Dai, C. H.: (E)-N-(3-Hydroxybenzylidene)-3-nitrobenzohydrazide. Acta Crystallogr. E67 (2011) o7.10.1107/S1600536810049482Search in Google Scholar PubMed PubMed Central

7. Sheldrick, G. M.: SADABS. University of Göttingen, Germany 1996.Search in Google Scholar

8. Bruker. SMART and SAINT. Bruker AXS Inc., Madison, Wisconsin, USA. 2007.Search in Google Scholar

9. Sheldrick, G. M.: A short history of SHELXTL. Acta Cryst. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-8-19
Accepted: 2016-2-2
Published Online: 2016-2-26
Published in Print: 2016-6-1
