Crystal structure of (Z)-2-((2-bromo-1-phenylvinyl)oxy)benzonitrile, C15H10BrNO

  • Da-Bin Shi EMAIL logo , Chao Meng und Yong-Zheng Chen
Veröffentlicht/Copyright: 13. Februar 2016
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 231 Heft 2

Abstract

C15H10BrNO, monoclinic, P21/n, a = 12.567(3) Å, b = 8.7170(17) Å, c = 12.773(3) Å, β = 111.41(3)°, V = 1302.7(4) Å3, Z = 4, Rgt(F) = 0.0510, wRref(F2) = 0.1265, T = 293 K.

CCDC no.:: 987586

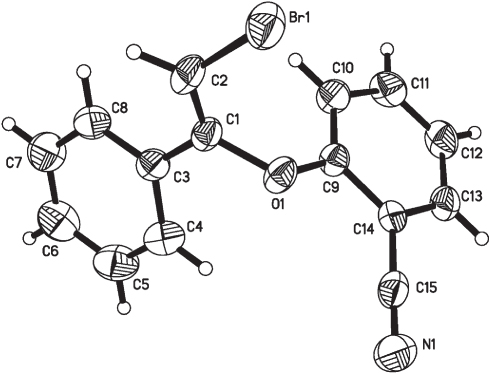

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.30×0.40×0.50 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:31.41 cm−1
Diffractometer, scan mode:Rigaku Mercury CCD diffractometer, ω scan
2θmax:54.96°
N(hkl)measured, N(hkl)unique:12357, 2985
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1583
N(param)refined:163
Programs:SHELX [8]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(2)4e0.61780.94870.10420.078
H(13)4e0.65650.97760.69130.077
H(8)4e0.79021.05570.15490.083
H(12)4e0.65291.23970.66330.086
H(10)4e0.65001.17300.35230.074
H(11)4e0.65051.33440.49610.084
H(4)4e0.84920.80220.43230.088
H(7)4e0.98161.05780.18730.102
H(5)4e1.04100.80800.46390.109
H(6)4e1.10770.93190.34050.110
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Br(1)4e0.43878(4)0.92018(7)0.13576(4)0.0711(4)0.1052(5)0.0578(4)−0.0050(3)0.0259(3)−0.0026(2)
C(1)4e0.6748(4)0.9170(4)0.2646(3)0.072(3)0.043(2)0.046(2)−0.004(2)0.029(2)−0.003(2)
O(1)4e0.6433(3)0.8712(3)0.3539(2)0.086(2)0.045(2)0.047(2)−0.010(1)0.032(1)−0.007(1)
C(2)4e0.5950(4)0.9315(5)0.1647(3)0.082(4)0.075(3)0.041(2)−0.004(2)0.027(2)0.001(2)
C(3)4e0.7980(4)0.9274(4)0.2880(3)0.071(3)0.039(2)0.055(2)−0.003(2)0.024(2)−0.004(2)
C(14)4e0.6537(4)0.9172(4)0.5388(3)0.043(2)0.053(2)0.052(2)0.002(2)0.021(2)−0.002(2)
C(9)4e0.6505(3)0.9782(4)0.4352(3)0.054(3)0.047(2)0.046(2)−0.005(2)0.021(2)−0.006(2)
C(13)4e0.6546(4)1.0164(5)0.6228(3)0.070(3)0.076(3)0.051(2)0.010(3)0.029(2)−0.002(2)
C(8)4e0.8404(5)1.0042(5)0.2171(4)0.079(4)0.055(3)0.076(3)0.001(3)0.032(2)0.008(2)
C(15)4e0.6567(4)0.7545(6)0.5547(3)0.059(3)0.076(4)0.048(2)0.000(2)0.025(2)0.000(2)
C(12)4e0.6529(4)1.1730(6)0.6064(4)0.084(4)0.075(3)0.060(3)0.006(3)0.030(2)−0.023(2)
C(10)4e0.6505(4)1.1326(5)0.4199(3)0.074(3)0.053(3)0.061(3)−0.002(2)0.027(2)−0.003(2)
C(11)4e0.6512(4)1.2288(5)0.5067(4)0.083(4)0.044(3)0.084(3)−0.003(2)0.031(3)−0.013(2)
C(4)4e0.8753(5)0.8534(5)0.3825(4)0.076(4)0.066(3)0.070(3)−0.003(3)0.015(3)0.005(2)
N(1)4e0.6611(4)0.6247(5)0.5716(3)0.101(4)0.070(3)0.077(3)0.006(3)0.036(2)0.011(2)
C(7)4e0.9548(5)1.0060(6)0.2365(5)0.078(4)0.084(4)0.103(4)−0.007(3)0.043(3)0.007(3)
C(5)4e0.9897(5)0.8569(7)0.4010(5)0.079(4)0.089(4)0.081(4)0.006(3)0.002(3)0.003(3)
C(6)4e1.0300(5)0.9319(6)0.3278(6)0.065(4)0.089(4)0.115(5)−0.006(3)0.026(3)−0.009(3)

Source of material

A mixture of 1-(2-bromoethynyl)benzene (0.905 g, 5 mmol), K2CO3 (1.38 g, 10 mmol) 2-hydroxybenzonitrile (0.595 g, 5 mmol) and 20 mL acetonitrile in a 50 mL dry flask affiliated with a water separator was refluxed and stirred for 6 h. Acetonitrile was removed by water separator and the residue was washed with water, filtered, dried, and crystallized three times from ethanol yielding title compound as colorless solid [7]. The crystal suitable for X-ray analysis was obtained by slow evaporation of ethanol at room temperature over a period of ten days, yield: 0.56 g (96.2%). Elemental analysis:–found: C, 59.97%; H, 3.32%; N, 4.65%; calculated for C15H10BrNO: C, 60.02%; H, 3.36%; N, 4.67%.

Experimental details

All hydrogen atoms were identified in difference Fourier syntheses. The structure was solved by direct methods [8] and refined on F2 by full-matrix least-squares technique using the SHELX-97 program package [9]. The hydrogen atoms were placed in geometrically idealized positions and refined using a riding model.

Discussion

In recent years, bromoalkynes have emerged as versatile and useful building blocks in a variety of synthetic transformations, which can be generally designed as a dual functionalized molecules and different reaction intermediates to synthesize all kinds of new compounds with other organic molecules [1–4]. Bond lengths and bond angles within the molecular system are in agreement with the values reported [5, 6]. The title compound contains two aromatic rings which are linked by a C-O moiety, which generates a conjugated system. The dihedral angle between the planes of two rings is 84.6°. Due to the conjugation of these aromatic rings, the bond lengths of C9–O1 (1.374 Å) and C1–O1 (1.395 Å) are shorter than that of typical C–O bond length (1.45 Å). The bond angle (C1–O1–C9) and (C1–C3–C4) are 117.6(3)° and 119.7(4)°, respectively. Classical hydrogen bonds are not found in the crystal structures. It is evident that there is a face-to-face π–π stacking interaction. The centroid-centroid distance between two adjacent benzonitrile moieties is 3.88 Å.

Corresponding author: Da-Bin Shi, School of Pharmaceutical Sciences, Zunyi Medical College, Zunyi 563000, People's Republic of China, e-mail:

Acknowledgements:

We are grateful for financial support from National Natural Science Foundation of China (grant no. 21362047) and Science and Technology Foundation of Guizhou Province (grant no. QKHSYZ-2013–3061, QKHJZ-2014–2175 and QKHRCTD-2014–4002).

References

1. Tummatorn, J.; Poonsilp, P.; Nimnual, P.; Janprasit, J.; Thongsornkleeb, C.; Ruchirawat, S.: Regioselective synthesis of 3-bromoquinoline derivatives and diastereoselective synthesis of tetrahydroquinolines via acid-promoted rearrangement of arylmethyl azides. J. Org. Chem. 80 (2015) 4516–4525.10.1021/acs.joc.5b00375Suche in Google Scholar PubMed

2. Zheng, J.; Huang, L.; Li, Z.; Wu, W.; Li, J.; Jiang, H.: Synthesis of 3-bromosubstituted pyrroles via palladium-catalyzed intermolecular oxidative cyclization of bromoalkynes with N-allylamines. Chem. Commun. 51 (2015) 5894–5897.10.1039/C4CC10322JSuche in Google Scholar

3. Li, Y.; Liu, X.; Jiang, H.; Feng, Z.: Expedient synthesis of functionalized conjugated enynes: palladium-catalyzed bromoalkynylation of alkynes. Angew. Chem. Int. Edit. 49 (2010) 3338–3341.10.1002/anie.201000003Suche in Google Scholar PubMed

4. Huang, H.; Zhu, X.; He, G.; Liu, Q.; Fan, J.; Zhu, H.: Controlled synthesis of 1,3,5-oxadiazin-2-ones and oxazolones through regioselective iodocyclization of ynamides. Org. Lett. 17 (2015) 2510–2513.10.1021/acs.orglett.5b01045Suche in Google Scholar PubMed

5. Garudachari, B.; IslorI, A. M.; Satyanarayan, M. N.; Gerber, T.; Hosten E.; Betz, R.: Crystal structure of ethyl 6-methyl-4-oxo-1,4-dihydroquinoline-3-carboxylate, C13H13NO3. Z. Kristallogr. NCS 228 (2013) 301–302.10.1524/ncrs.2013.0102Suche in Google Scholar

6. Xu, Y.; Shi, D.: Synthesis, crystal structure and antifungal activities of 3-methyl-1-(4-methylphenyl)-4-(N-4-trifluoromethylphenyl)-aminomethyl-5-(4-methoxyphenylthio)-1H-pyrazole. Chin. J. Struct. Chem. 33 (2014) 37–42.Suche in Google Scholar

7. Wang, S. H.; Li, P. H.; Yu, L.; Wang, L.: Sequential and one-pot reactions of phenols with bromoalkynes for the synthesis of (Z)-2-bromovinyl phenyl ethers and benzo[b]furans, Org. Lett. 13 (2011) 5968–5971.10.1021/ol202383zSuche in Google Scholar PubMed

8. Sheldrick, G. M.: SHELXS-97. Program for the solution of crystal structures. University of Göttingen, Germany 1997.Suche in Google Scholar

9. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Received: 2015-8-12
Accepted: 2016-1-20
Published Online: 2016-2-13
Published in Print: 2016-6-1

©2016 Da-Bin Shi et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
