Crystal structure of 2,6-bis(3-methylpyridinyl)hexahydro-4,8-ethenopyrrolo-[3,4-f]isoindole-1,3,5,7(2H,6H)-tetrone, C24H20N4O4

  • Zhi-Min Liu EMAIL logo
Published/Copyright: February 13, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C24H20N4O4, orthorhombic, Pna21 (no. 33), a = 23.942(3) Å, b = 12.366(3) Å, c = 6.823(4) Å, V = 2020.1(9) Å3, Z = 4, Rgt(F) = 0.0457, wRref(F2) = 0.0963, T = 153 K.

CCDC no.:: 1415279

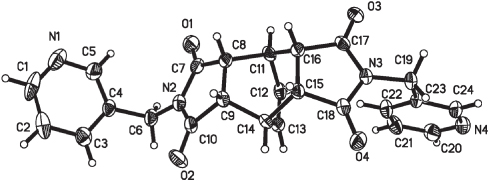

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colourless, block, size 0.10×0.10×0.15 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:0.98 cm−1
Diffractometer, scan mode:multiwire proportional, φ and ω scans
2θmax:55.74°
N(hkl)measured, N(hkl)unique:10942, 4287
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 2395
N(param)refined:289
Programs:BRUKER SHELXTL [6]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(16A)4a0.55650.5863−0.07850.044
H(11A)4a0.54180.6680−0.39780.051
H(15A)4a0.54620.68620.18830.046
H(14A)4a0.53110.87890.14430.049
H(8A)4a0.62640.7030−0.21370.046
H(22A)4a0.38790.7416−0.22200.061
H(13A)4a0.47440.9252−0.12570.050
H(12)4a0.47650.8136−0.40060.052
H(21A)4a0.32000.8353−0.39150.04(1)
H(5A)4a0.72300.9351−0.62190.077
H(6A)4a0.62641.0980−0.37170.066
H(6B)4a0.63191.0254−0.55920.066
H(19A)4a0.36700.58820.18980.064
H(19B)4a0.37500.50850.01360.064
H(24A)4a0.26760.57680.04450.064
H(3A)4a0.71011.1661−0.22180.071
H(9A)4a0.62070.80130.05080.046
H(20A)4a0.22750.7945−0.33900.071
H(1A)4a0.85801.0595−0.40740.099
H(2A)4a0.80821.1739−0.21180.100
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
N(3)4a0.4353(1)0.6206(3)0.0302(6)0.032(2)0.043(2)0.047(2)−0.008(2)0.002(2)−0.003(2)
O(3)4a0.4572(1)0.5160(2)−0.2394(6)0.060(2)0.054(2)0.070(3)−0.018(2)0.006(2)−0.024(2)
O(4)4a0.4366(1)0.7428(2)0.2854(5)0.060(2)0.073(2)0.051(2)−0.012(2)0.018(2)−0.015(2)
O(1)4a0.6239(2)0.8156(3)−0.5653(5)0.074(2)0.075(2)0.041(2)−0.013(2)0.012(2)−0.002(2)
C(16)4a0.5268(2)0.6397(3)−0.0989(6)0.036(2)0.036(2)0.038(3)0.002(2)−0.004(2)0.000(2)
C(7)4a0.6170(2)0.8367(4)−0.3938(8)0.036(2)0.054(3)0.045(3)−0.001(2)0.006(3)0.002(3)
N(2)4a0.6244(2)0.9386(3)−0.3105(6)0.040(2)0.042(2)0.043(3)−0.004(2)0.004(2)0.006(2)
C(4)4a0.7062(2)1.0456(4)−0.4175(8)0.042(2)0.046(3)0.053(3)−0.003(2)0.006(3)0.015(3)
C(10)4a0.6143(2)0.9408(4)−0.1121(8)0.041(3)0.051(3)0.049(4)−0.008(2)0.007(3)0.001(3)
O(2)4a0.6187(2)1.0210(3)−0.0124(6)0.101(3)0.053(2)0.064(3)−0.030(2)0.012(2)−0.014(2)
C(11)4a0.5408(2)0.7107(3)−0.2768(7)0.042(2)0.040(2)0.045(3)−0.007(2)−0.005(2)−0.006(2)
C(17)4a0.4705(2)0.5826(3)−0.1123(8)0.044(3)0.033(2)0.056(3)−0.003(2)−0.005(3)0.000(3)
C(18)4a0.4603(2)0.6968(3)0.1487(7)0.047(3)0.041(2)0.047(3)−0.007(2)0.003(3)0.003(2)
N(4)4a0.2382(2)0.6820(3)−0.1418(7)0.043(2)0.066(3)0.075(3)−0.006(2)0.000(3)−0.015(3)
C(23)4a0.3355(2)0.6491(3)−0.0677(7)0.034(2)0.043(2)0.051(3)−0.006(2)0.002(2)−0.005(2)
C(15)4a0.5209(2)0.7116(3)0.0851(7)0.035(2)0.041(2)0.039(3)−0.004(2)−0.004(2)0.003(2)
C(14)4a0.5348(2)0.8308(3)0.0309(7)0.044(2)0.034(2)0.044(3)−0.007(2)0.002(2)−0.006(2)
C(8)4a0.5987(2)0.7604(3)−0.2315(7)0.033(2)0.039(2)0.043(3)0.003(2)−0.004(3)0.003(2)
C(22)4a0.3503(2)0.7264(4)−0.2004(8)0.037(2)0.061(3)0.054(3)−0.014(2)−0.007(3)0.001(3)
C(13)4a0.4973(2)0.8646(3)−0.1337(7)0.033(2)0.037(2)0.054(3)−0.001(2)0.004(2)0.006(3)
C(12)4a0.4990(2)0.8023(3)−0.2913(8)0.032(2)0.052(3)0.046(3)−0.009(2)−0.009(2)0.011(3)
C(21)4a0.3101(2)0.7819(4)−0.3020(9)0.055(3)0.056(3)0.071(4)−0.014(2)−0.010(3)0.006(3)
C(5)4a0.7402(2)0.9830(4)−0.5359(9)0.055(3)0.064(3)0.074(4)−0.002(3)0.020(3)0.006(3)
C(6)4a0.6437(2)1.0332(3)−0.4240(8)0.045(3)0.048(3)0.070(4)−0.002(2)0.008(3)0.017(3)
C(19)4a0.3773(2)0.5838(3)0.0526(8)0.043(2)0.051(3)0.068(4)−0.014(2)0.008(3)0.000(3)
C(24)4a0.2784(2)0.6297(4)−0.0446(8)0.044(3)0.056(3)0.060(4)−0.008(2)0.000(3)−0.004(3)
C(3)4a0.7315(2)1.1197(4)−0.2986(8)0.068(3)0.063(3)0.046(3)−0.016(3)0.004(3)0.011(3)
C(9)4a0.5953(2)0.8297(3)−0.0493(7)0.034(2)0.041(2)0.040(3)−0.007(2)−0.007(2)0.004(2)
C(20)4a0.2546(2)0.7570(4)−0.2690(9)0.048(3)0.063(3)0.066(4)−0.003(2)−0.006(3)−0.004(3)
C(1)4a0.8192(2)1.0568(6)−0.413(1)0.037(3)0.126(6)0.083(5)−0.006(4)0.002(4)0.053(5)
N(1)4a0.7960(2)0.9865(4)−0.5354(9)0.060(3)0.096(4)0.083(4)0.013(3)0.025(3)0.024(3)
C(2)4a0.7900(3)1.1252(5)−0.294(1)0.068(4)0.101(5)0.082(5)−0.042(4)−0.007(4)0.032(4)

Source of material

A solution of 3-(aminomethyl)-pyridine and bicyclo[2.2.2]oct-7-ene-2,3,5,6-tetracarboxylic acid dianhydride in N,N-dimethylformamide was refluxed for 3 h, and then the crude product was isolated by filtration and recrystallized from methanol to yield the colourless title compound. Finally, the title compound was dissolved in a small amount of CHCl3 at ambient temperature for a month to yield a colourless crystalline product.

Experimental details

All hydrogen atoms were placed geometrically on calculated positions using a riding model with the help of the SHELXL program (AFIX 43 option for aromatic H atoms, AFIX 13 for tertiary and AFIX 23 for secondary H atoms).

Discussion

In recent years, bipyridyl derivatives were used as bridging ligands in various coordination polymers (CPs) which aroused considerable interests not only owing to their intriguing structures but also for their potential applications such as porosity [1], catalysts [2], nonlinear optics [3]. The title compound have been used for the synthesis of some metal complexes [4, 5]. In the title crystal structure one molecule is present in the asymmetric unit. The backbone of the structure is essentially in a conformation. The bond angles of C4–C6–N2 and C23–C19–N3 are 112.1(4)° and 113.6(4)° respectively, which is in accord to similar metal compounds.

Corresponding author: Zhi-Min Liu, School of Chemistry and Chemical Engineering, Shanxi University, Taiyuan 030006, P. R. China, e-mail:

References

1. Jiang, J. J.; Liu, Y. R.; Yang, R.; Pan, M.; Cao, R.; Su, C. Y.: The interplay of coordinative and hydrogen-bonding in directing the [M(4,4′-bpy)2(H2O)2] square-grid networks: formation of 3D porous framework [Cd(4,4′-bpy)2(H2O)2](ClO4)2(4,4′-bpy)(CH3OH)2. CrystEngComm 10 (2008) 1147–1153.10.1039/b719970hSearch in Google Scholar

2. Li, W.; Xie, J. H.; Yuan, M. L.; Zhou, Q. L.: Ruthenium complexes of tetradentate bipyridine ligands: highly efficient catalysts for the hydrogenation of carboxylic esters and lactones. Green Chem. 16 (2014) 4081–4085.10.1039/C4GC00835ASearch in Google Scholar

3. Kuppler, R. J.; Timmons, D. J.; Fang, Q.-R.; Li, J.-R.; Makala, T. A.; Young, M. D.; Yuan, D.; Zhao, D.; Zhuang, W.; Zhou, H.-C.: Potential applications of metal-organic frameworks. Coord. Chem. Rev. 253 (2009) 3042–3066.10.1016/j.ccr.2009.05.019Search in Google Scholar

4. Liu, Z. M.; Liu,Y.; Zheng, S. R.; Yu, Z. Q.; Pan, M.; Su, C. Y.: Assembly of trigonal and tetragonal prismatic cages from octahedral metal ions and a flexible molecular clip. Inorg. Chem. 46 (2007) 5814–5816.10.1021/ic062270+Search in Google Scholar PubMed

5. Yu, Z. Q.; Pan, M.; Jiang, J. J.; Liu, Z. M.; Su, C. Y.: Anion modulated structural diversification in the assembly of Cd(II) complexes based on a balance-like dipodal ligand. Cryst. Growth Des. 12 (2012) 2389–2396.10.1021/cg300051wSearch in Google Scholar

6. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Search in Google Scholar PubMed

Received: 2015-8-17
Accepted: 2016-1-18
Published Online: 2016-2-13
Published in Print: 2016-6-1

©2016 Zhi-Min Liu, published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
