Crystal structure of tris(N-nitroso-N-oxyanilino-κ2O, O′) oxidoniobium(V), C18H15N6O7Nb

  • Alebel N. Belay EMAIL logo , Renier Koen , Johan A. Venter and Ruben M. Drost
Published/Copyright: February 12, 2016
Download Article (PDF)
Become an author with De Gruyter Brill
Submit Manuscript Author Information
Zeitschrift für Kristallographie - New Crystal Structures
From the journal Zeitschrift für Kristallographie - New Crystal Structures Volume 231 Issue 2

Abstract

C18H15N6O7Nb, monoclinic, P21/c (no. 14), a = 13.070(4) Å, b = 10.165(3) Å, c = 15.109(4) Å, β = 92.198(10)°, V = 2005.9(14) Å3, Z = 4, Rgt(F) = 0.0318, wRref(F2) = 0.088, T = 100 K.

CCDC no.:: 1447423

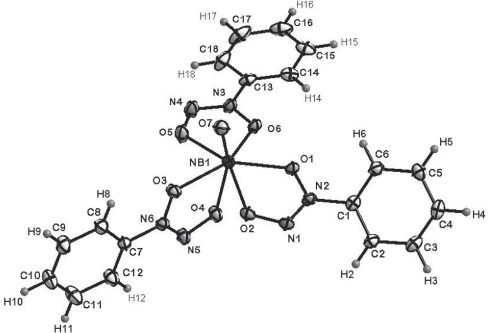

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Red, cuboid, size 0.327×0.362×0.769 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:6.56 cm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω scans
2θmax:56°
N(hkl)measured, N(hkl)unique:35221, 4825
N(param)refined:289
Programs:SHELX [32], Bruker software [33], Diamond [34], WinGX [35]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(18)4e0.44150.42300.94880.037
H(9)4e0.84840.03461.43610.032
H(4)4e0.9605−0.18360.55230.031
H(14)4e0.62180.28590.75870.026
H(10)4e0.7542−0.13891.49040.032
H(5)4e0.90830.03010.57950.031
H(15)4e0.52140.39690.65230.032
H(8)4e0.84140.08221.28550.027
H(11)4e0.6523−0.26311.39430.037
H(12)4e0.6423−0.21501.24410.031
H(3)4e0.9763−0.33190.66750.031
H(16)4e0.38340.52030.69400.039
H(2)4e0.9445−0.26820.81120.028
H(17)4e0.34380.53410.84090.044
H(6)4e0.86690.09270.72140.026
Table 3

Atomic displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Nb(1)4e0.78031(2)0.12322(2)0.99989(2)0.0189(1)0.0157(1)0.0142(1)0.00090(7)0.00005(7)0.00035(7)
O(7)4e0.8698(1)0.2430(2)1.0215(1)0.0283(9)0.0206(8)0.0249(9)−0.0019(7)−0.0024(7)0.0021(7)
O(4)4e0.6733(1)−0.0415(2)1.0261(1)0.0242(8)0.0256(8)0.0160(7)−0.0044(7)−0.0018(6)0.0001(6)
O(6)4e0.6817(1)0.2076(2)0.9029(1)0.0202(8)0.0197(8)0.0181(8)0.0086(6)0.0012(6)−0.0016(6)
O(5)4e0.6596(1)0.2335(2)1.0598(1)0.034(1)0.034(1)0.0188(8)0.0145(8)0.0029(7)−0.0003(7)
O(1)4e0.8147(1)0.0608(2)0.8733(1)0.0234(8)0.0189(8)0.0167(7)0.0101(6)0.0001(6)0.0005(6)
O(3)4e0.7909(1)0.0721(2)1.1336(1)0.0243(8)0.0189(8)0.0179(8)−0.0060(6)−0.0015(6)0.0018(6)
O(2)4e0.8842(1)−0.0419(2)1.0066(1)0.0248(8)0.0226(8)0.0191(8)0.0055(7)−0.0008(6)0.0025(6)
N(5)4e0.6725(2)−0.0894(2)1.1056(1)0.023(1)0.025(1)0.0169(9)−0.0045(8)0.0001(7)−0.0011(8)
N(6)4e0.7345(1)−0.0285(2)1.1594(1)0.0181(9)0.0163(9)0.0177(9)−0.0011(7)0.0010(7)0.0009(7)
N(1)4e0.9161(2)−0.0965(2)0.9354(1)0.023(1)0.0198(9)0.020(1)0.0044(8)−0.0009(8)0.0016(8)
N(2)4e0.8786(1)−0.0407(2)0.8663(1)0.0164(9)0.0156(8)0.0197(9)0.0039(7)0.0003(7)−0.0004(7)
N(3)4e0.6060(2)0.2828(2)0.9294(1)0.021(1)0.0188(9)0.0206(9)0.0063(7)0.0020(7)−0.0029(7)
C(1)4e0.9024(2)−0.0818(2)0.7787(2)0.014(1)0.019(1)0.020(1)−0.0001(8)−0.0007(8)−0.0034(9)
C(7)4e0.7410(2)−0.0614(2)1.2518(1)0.019(1)0.021(1)0.016(1)0.0023(8)0.0019(8)0.0010(8)
C(18)4e0.4579(2)0.4188(3)0.8896(2)0.026(1)0.031(1)0.035(1)0.011(1)−0.004(1)−0.011(1)
C(13)4e0.5415(2)0.3468(2)0.8629(2)0.018(1)0.016(1)0.029(1)0.0037(8)−0.0035(9)−0.0007(9)
C(9)4e0.8074(2)−0.0157(3)1.3975(2)0.027(1)0.031(1)0.021(1)−0.005(1)−0.0042(9)−0.002(1)
C(4)4e0.9459(2)−0.1577(3)0.6095(2)0.023(1)0.033(1)0.021(1)0.002(1)0.0021(9)−0.008(1)
N(4)4e0.5923(2)0.2975(2)1.0116(1)0.031(1)0.031(1)0.024(1)0.0117(9)0.0035(9)−0.0027(9)
C(14)4e0.5662(2)0.3362(2)0.7750(2)0.017(1)0.019(1)0.029(1)−0.0007(8)−0.0009(9)0.0030(9)
C(10)4e0.7509(2)−0.1194(3)1.4302(2)0.027(1)0.037(1)0.017(1)−0.004(1)0.0011(9)0.004(1)
C(5)4e0.9139(2)−0.0301(2)0.6258(2)0.032(1)0.028(1)0.018(1)0.002(1)−0.0031(9)0.001(1)
C(15)4e0.5060(2)0.4023(2)0.7117(2)0.023(1)0.025(1)0.032(1)−0.0066(9)−0.004(1)0.006(1)
C(8)4e0.8031(2)0.0134(2)1.3076(2)0.025(1)0.023(1)0.021(1)−0.0030(9)0.0004(9)0.0019(9)
C(11)4e0.6899(2)−0.1934(3)1.3726(2)0.032(1)0.037(2)0.023(1)−0.010(1)−0.001(1)0.009(1)
C(12)4e0.6838(2)−0.1653(3)1.2827(2)0.029(1)0.028(1)0.020(1)−0.007(1)−0.0020(9)0.002(1)
C(3)4e0.9558(2)−0.2461(2)0.6787(2)0.027(1)0.022(1)0.030(1)0.0059(9)0.004(1)−0.006(1)
C(16)4e0.4233(2)0.4760(2)0.7366(2)0.031(1)0.021(1)0.043(2)0.000(1)−0.017(1)0.002(1)
C(2)4e0.9358(2)−0.2093(2)0.7645(2)0.026(1)0.018(1)0.026(1)0.0046(9)0.0034(9)0.0009(9)
C(17)4e0.3997(2)0.4841(3)0.8248(2)0.027(1)0.030(1)0.052(2)0.014(1)−0.012(1)−0.014(1)
C(6)4e0.8904(2)0.0081(2)0.7105(2)0.025(1)0.018(1)0.022(1)0.0033(9)−0.0034(9)−0.0014(9)

Source of material

Under atmospheric conditions, NbCl5 (0.27 g, 1 mmol) was dissolved in acetonitrile (10 mL), and treated with tetraethylammonium chloride (0.165 g, 1 mmol). The mixture was refluxed overnight at 90–100 °C and the solvent was removed under vacuum. The yellow Et4N[NbCl6] was obtained. Dry Et4N[NbCl6] (0.16 g, 0.56 mmol) was dissolved in absolute methanol (10 mL), and treated with cupferron (0.2604 g, 1.68 mmol) at room temperature. The resulting mixture was stirred for 4 h, and then the volatile material was removed in vacuo. The resulting residue was washed with diethyl ether (2 × 10 mL), giving a grey solid and the solution was left to stand at 255 K for a few days after which red crystals were obtained. The tetraethylammonium ion was not incorporated in the title compound. IR(KBr): vNbO 924.11 cm−1. 1H NMR (300 MHz, CD3OD): δppm = 6.54 (d, Ph-2H), 6.08 (m, Ph-13H). 13C NMR (300 MHz, CD3OD): δppm = 131.20, 130.86, 130.79, 130.20, 130.06, 128.02, 127.12, 126.95, 118.08, 51.85, (Yield 0.165 g, 83.7%).

Experimental details

The H atoms were placed in geometrically idealized positions and constrained to ride on their parent atoms, with C—H = 0.98 Å and Uiso(H) = 1.2Ueq(C), respectively. The highest peak (2.37 e. Å−3) is located 1.07 Å from O4 and the deepest hole (−0.65 e. Å−3) is situated 0.69 Å from Nb1.

Discussion

The ammonium salt of N-nitroso-N-phenylhydroxylamine, is a well-known analytical reagent (cupferron) and it was very popular especially for analytical separations [1, 2]. The chelate-forming derivatives of this ligand is known to form stable complexes with various metals, but only few of them have been structurally characterized [3–12]. Also some cupferrates were investigated in our group [13–18]. This study forms part of ongoing research to investigate the mechanism of the reactions of O,O′- and N,O-bidentate ligands with transition metals used in nuclear industry, such as Hf, Zr, Nb, Ta [19–26]. In the title structure the Nb atom is heptacoordinated by six oxygen atoms, of three bidentate cupferron ligands and an oxido group. The cupferrate ligand forms a five- membered ring with a small bite angle (see the figure). The Nb—O distances are between 1.7107 (5) and 2.2267 (7) Å, and the O—Nb—O angles vary between 68.36(2)° and 158.51(2)°. All the bond distances and angles are similar to other relevant niobium(V) structures [27, 28].

Corresponding author: Alebel N. Belay, Department of Chemistry, University of the Free State, Nelson Mandela Drive, Bloemfontein 9300, South Africa, e-mail:

Acknowledgements:

Financial assistance from the faculty of Natural and Agricultural science, Department of Chemistry, University of the Free State is gratefully acknowledged. Thanks are also due to Prof. Andreas Rooodt (head of the lab, Inorganic group), his financial support and helpful discussion.

References

1. Brown, J.: The use of cupferron (phenylnitroso-hydroxyl-amine ammonium) in: i. the quantitative separation of zirconium, titanium, iron, manganese and aluminum. ii. the analysis of zircon and baddeleyite. J. Am. Chem. Soc. 39 (1917) 2358–2366.10.1021/ja02256a013Search in Google Scholar

2. Buscarons, F.; Canela, J.: Analytical uses of some n-nitroso-n-alkyl (or -n-cyclo-alkyl)hydroxylamines: Part II. solvent extraction of metal hexahydrocupferrates. Anal. Chim. Acta 70 (1974) 113–120.10.1016/S0003-2670(01)82916-0Search in Google Scholar

3. Ahmed, M.; Edwards, A. J.; Jones, C. J.; McCIeverty, J. A.; Rothin, A. S.; Tate, J. P.: Metal complexes of N-aryl-N-nitrosohydroxylamines: cleavage of N—N bonds to give metal nitrosyl species and organonitrogen compounds, and the crystal structure of [RhCl2ONN(C6H4Me-p)O (H2O)(PPh3)]. 0.5Me2CO. J. Chem. Soc. Dalton Trans. (1988) 257–263.10.1039/DT9880000257Search in Google Scholar

4. Basson, S. S.; Leipoldt, J. G.; Purcell, W.; Venter, J. A.: Structure of carbonyl(N-hydroxy-N-nitrosobenzenaminato-O,O′)(4-methyl-2,6,7-trioxa-1-phosphabicyclo[2.2.2]octane) rhodium(I). Acta Crystallogr. C48 (1992) 171–173.10.1107/S0108270191008223Search in Google Scholar

5. Bolboaca, M.; Cinta, S.; Venter, M.; Deak, A.; Haiduc, I.; Cozar, O.; Iliescu, T.; Rosch, P.; Kiefer, W.: Vibrational behavior of transition metal cupferronato complexes: Raman studies on cobalt(II) cupferronato derivatives. Spectrosc. Lett. 33 (2000) 857–862.10.1080/00387010009350162Search in Google Scholar

6. Kovalchukova, O.; Bostanabad, A. S.; Sergienko, V.; Polyakova, I.; Zyuzin, I.; Strashnova, S.: Synthesis, characterization, spectroscopic and crystallographic investigation of metal complexes of N-benzyl-N-nitrosohydroxylamine. Open J. Inorg. Chem. 3 (2013) 1–6.10.4236/ojic.2013.31001Search in Google Scholar

7. Najafi, E.; Amini, M. M.; Ng, S. W.: Bis(μ-N-nitroso-N-phenylhydroxylaminato)- κ3O, O′;O′;κ3O′;O,O′-bis[(N-nitroso-N-phenylhydroxylaminato-κ2O,O′)lead(II)]. Acta Crystallogr. E67, (2011) m377.10.1107/S1600536811006775Search in Google Scholar

8. Okabe, N.; Tamaki, K.: Dimethanolbis(N-nitroso-N-phenylhydroxylaminato-O,O′)nickel(II). Acta Crystallogr. C51 (1995) 2004–2005.10.1107/S0108270195005816Search in Google Scholar

9. Parkanyi, L.; Kalman, A.; Deak, A.; Venter, M.; Haiduc, I.: A new inorganic (carbon-free) chelate ring: SnO2N2. Eight-coordinated tin(IV) in Sn(O2N2Ph)4 and a self-assembled 20-membered macrocycle in [Me3Sn(O2N2Ph)]4. Inorg. Chem. Commun. 2 (1999) 265–268.10.1016/S1387-7003(99)00062-3Search in Google Scholar

10. Pavel, I.; Cinta, S.; Venter, M.; Deak, A.; Haiduc, I.; Rosch, P.; Cozar, O.; Kiefer, W.: Vibrational behavior of transition metal cupferronato complexes. Raman and SERS studies on nickel(II) cupferronato complexes. Vib. Spectrosc. 23 (2000) 71–76.10.1016/S0924-2031(99)00086-7Search in Google Scholar

11. Tamaki, K.; Okabe, N.: Diaquabis[N-(1-naphthyl)-N-nitrosohydroxylaminato-O,O′] cobalt(II). Acta Crystallogr. C54 (1998) 195–197.10.1107/S0108270197013620Search in Google Scholar

12. Van der Helm, D.; Merritt, L. L.; Degeilh, R.; MacGillavry, C. H.: The crystal structure of iron cupferron Fe(O2N2C6H5)3. Acta Crystallogr. 18 (1965) 355–362.10.1107/S0365110X65000816Search in Google Scholar

13. Basson, S. S.; Leipoldt, J. G.; Roodt, A.; Venter, J. A.: Crystal structure of carbonyl (N-hydroxy-N-nitrosobenzenaminato-O,O′) triphenylphosphinerhodium(I). Inorg. Chim. Acta 118 (1986) L45.10.1016/S0020-1693(00)81365-1Search in Google Scholar

14. Basson, S. S.; Leipoldt, J. G.; Roodt, A.; Venter, J. A.: Mechanism for the oxidative addition of iodomethane to carbonyl(N-hydroxy-N-nitrosobenzenaminato-O,O′)- triarylphosphinerhodium(I) complexes and crystal structure of [Rh(cupf)(CO)(CH3)(I)(PPh3)]. Inorg. Chim. Acta 128 (1987) 31.10.1002/chin.198731295Search in Google Scholar

15. Basson, S. S.; Leipoldt, J. G.; Purcell, W.; Venter, J. A.: Structure of carbonyl(N-hydroxy-N-nitrosobenzenaminato-O,O′)(4-methyl-2,6,7-trioxa-1-phosphabicyclo[2.2.2]octane) rhodium(I). Crystallogr. C48 (1992) 171.10.1107/S0108270191008223Search in Google Scholar

16. Venter, J. A.; Purcell, W.; Visser, H. G.: Di-μ-iodido-bis[acetyl(4-methyl-2,6,7-trioxa-1-phosphabicyclo[2.2.2]octane)(N-nitroso-N-oxidoaniline-κ2O,O′)rhodium(III)]. Acta Crystallogr. E65 (2009) m1528–m1529.10.1107/S1600536809043050Search in Google Scholar PubMed PubMed Central

17. Venter, J. A.; Purcell, W.; Visser, H. G.; Muller, T. J.: Carbonyl (N-nitroso-N-oxido-1-naphtylamine-κ2O,O′)(triphenylphosphine-κP)rhodium(I) acetone solvate. Acta Crystallogr. E65 (2009) m1578.10.1107/S1600536809047321Search in Google Scholar PubMed PubMed Central

18. Pretorius, C.; Venter, J. A.; Roodt, A.: Crystal structure of 2,2,6,6-tetramethyldihydropyran-4-onium bis(N-nitroso-N-phenylhydroxylaminato-κ2O,O′)dioxide vanadium(V), C21H27N4O8V. Zeitschrift für Kristallographie. NCS 229 (2014) 437–439.10.1515/ncrs-2014-0194Search in Google Scholar

19. Viljoen, J. A.; Roodt, A.; Muller, A. J.: Tetrakis(1,1,1-tri-fluoroacetylacetonato-κ2O,O′)hafnium(IV) toluene disolvate. Acta Cryst. E 64 (2008) m838–m839.10.1107/S1600536808015237Search in Google Scholar PubMed PubMed Central

20. Viljoen, J. A.; Visser, H. G.; Roodt, A.; Steyn, M.: Tetrakis(quinolin-8-olato-κ2N,O)hafnium(IV) toluene disolvate. Acta Crystallogr. E65 (2009) m1514–m1515.10.1107/S1600536809043244Search in Google Scholar PubMed PubMed Central

21. Viljoen, J. A.; Visser, H. G.; Roodt, A.; Steyn, M.: Di-μ-hydroxido-bis[tris(1,1,1,5,5,5-hexa-fluoro-acetyl-acetonato-κ2O,O′) hafnium(IV)] acetone solvate. Acta Crystallogr. E65 (2009) m1367–m1368.10.1107/S1600536809041658Search in Google Scholar PubMed PubMed Central

22. Viljoen, J. A.; Visser, H. G.; Roodt, A.: Tetrakis(8-quinolinolato -κ2N,O)hafnium(IV) dimethylformamide solvate monohydrate. Acta Crystallogr. E66 (2010) m603–m604.10.1107/S1600536810014960Search in Google Scholar

23. Steyn, M.; Roodt, A.; Steyl, G.: Tetrakis(1,1,1-trifluoro-acetyl-acetonato-κO,O′)zirconium(IV) toluene solvate. Acta Cryst. E64 (2008) m827.10.1107/S1600536808014499Search in Google Scholar

24. Herbst, L.; Koen, R.; Roodt, A.; Visser, H. G.: (Acetyl acetonato-κO,O′)chlorido-trimethanolatoniobium(V). Acta Cryst. (2010) m801–m802.10.1107/S1600536810021719Search in Google Scholar

25. Herbst, L.; Visser, H. G.; Roodt, A.; Muller, T. J.: cyclo-tetra-μ-oxido-tetrakis[(acetylacetonato-κ2O,O′)bis(ethanolato-κO) niobium(V)]. Acta Crystallogr. E67 (2011) m1669–m1670.10.1107/S1600536811044138Search in Google Scholar

26. Herbst, L.; Visser, H. G.; Roodt, A.: Crystal structure of (benzoylacetonato- κ2O,O′)dichloridodimethoxidotantalum(V), C12H15Cl2TaO4. Z. Kristallogr. NCS 228 (2013) 397–398.10.1524/ncrs.2013.0200Search in Google Scholar

27. Sokolov, M.; Imoto, H.; Saito, T.; Fedorov, V. J.: Substitution of bridging S2 ligands in the [Nb2(μ-S2)2]4+ core: a simple route to [Nb2(Se2)2]4+, [Nb2(S)(Te2)]4+ and [Nb2(S)2]4+. J. Chem. Soc. Dalton Trans. (1999) 85–90.10.1039/a806627bSearch in Google Scholar

28. Antinolo, A.; Carrillo-Hermosilla, F.; Fernandez-Baeza, J.; Otero, A.; Palomares, E.; Rodriguez, A. M.; Sanchez-Barba, L. F.: Studies on the reactivity of alkoxo-niobium(V) compounds towards O,O- or S,S-enolate ligands. Synthesis and structural characterisation of (alkoxo)(beta-diketonato)- and (alkoxo)[dialkyl(aryl)dithiocarbamato] complexes of niobium(V). J. Organomet. Chem. 603 (2000) 194–202.10.1016/S0022-328X(00)00168-6Search in Google Scholar

29. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–12.10.1107/S0108767307043930Search in Google Scholar PubMed

30. Bruker. SAINT-Plus (Version 7.12), APEX2 and SADABS (Version 2004/1). Bruker AXS Inc., Madison, Wiscon sin, USA, 2004.Search in Google Scholar

31. Brandenburg, K.: DIAMOND. Visual Crystal Structure Information System. Version 3.0c Crystal Impact, Bonn, Germany, 2005.Search in Google Scholar

32. Farrugia, L. J.: WinGX suite for small molecule single crystal crystallography. J. Appl. Crystallogr. 32 (1999) 837–838.10.1107/S0021889899006020Search in Google Scholar

Received: 2015-7-31
Accepted: 2016-1-14
Published Online: 2016-2-12
Published in Print: 2016-6-1
