Crystal structure of 2-(4-bromophenyl)-1,3-dimethyl-2,3-dihydro-1H-perimidine, C19H17BrN2

  • Lin Yuan , Zhong-Yan Li , Min Zhang und Xian-You Yuan EMAIL logo
Veröffentlicht/Copyright: 25. Februar 2016
Artikel downloaden (PDF)
Veröffentlichen auch Sie bei De Gruyter Brill
Manuskript einreichen Informationen für Autor*innen
Zeitschrift für Kristallographie - New Crystal Structures
Aus der Zeitschrift Zeitschrift für Kristallographie - New Crystal Structures Band 231 Heft 2

Abstract

C19H17BrN2, orthorhombic, Pnma, a = 11.506(5) Å, b = 12.176(5) Å, c = 11.327(5) Å, V = 1586.8(11) Å3, Z = 4, Rgt(F) = 0.0409, wRref(F2) = 0.1051, T = 296(2) K.

CCDC no.:: 1440018

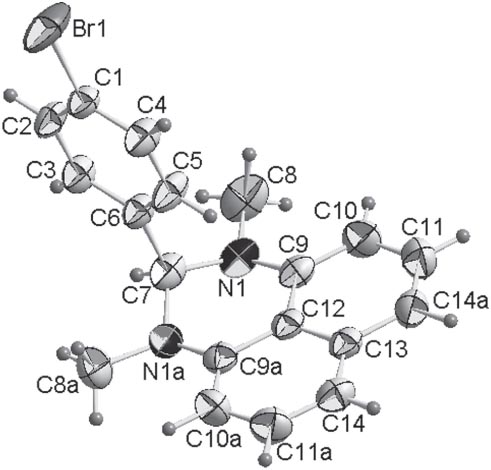

The crystal structure is shown in the figure. Tables 1–3 contain details of the measurement method and a list of the atoms including atomic coordinates and displacement parameters.

Table 1

Data collection and handling.

Crystal:Colorless, block, size 0.20×0.35×0.40 mm
Wavelength:Mo Kα radiation (0.71073 Å)
μ:25.88 cm−1
Diffractometer, scan mode:Bruker APEX-II CCD, φ and ω scans
2θmax:54.88°
N(hkl)measured, N(hkl)unique:50048, 1894
Criterion for Iobs, N(hkl)gt:Iobs > 2 σ(Iobs), 1559
N(param)refined:117
Programs:SHELX [12]
Table 2

Fractional atomic coordinates and isotropic or equivalent isotropic displacement parameters (Å2).

AtomSitexyzUiso
H(14)8d0.05740.35271.06920.063
H(7)4c0.54330.25000.74530.058
H(5)4c0.47070.25001.05490.064
H(4)4c0.60480.25001.20610.060
H(8A)8d0.51850.02210.86330.110
H(8B)8d0.54960.06510.73670.110
H(8C)8d0.4350−0.00190.75700.110
H(11)8d0.1426−0.01271.01530.075
H(10)8d0.3119−0.01500.90470.070
H(3)4c0.72770.25000.81880.055
H(2)4c0.86270.25000.96950.057
Table 3

Fractional coordinates and displacement parameters (Å2).

AtomSitexyzU11U22U33U12U13U23
Br(1)4c0.85259(4)0.251.22694(4)0.0396(2)0.1697(6)0.0491(3)0−0.0111(2)0
C(14)8d0.1252(2)0.3514(2)1.0246(2)0.044(1)0.060(2)0.054(1)0.007(1)0.001(1)−0.002(1)
C(13)8d0.1743(3)0.250.9909(3)0.036(2)0.051(2)0.038(2)0−0.008(1)0
C(12)8d0.2769(3)0.250.9220(3)0.035(2)0.050(2)0.034(2)0−0.010(1)0
C(9)8d0.3282(2)0.1484(2)0.8879(2)0.040(1)0.055(1)0.038(1)0.002(1)−0.0079(9)−0.007(1)
N(1)8d0.4251(2)0.1523(2)0.8150(2)0.045(1)0.064(1)0.044(1)0.004(1)−0.0016(9)−0.014(1)
C(7)4c0.4977(3)0.250.8184(3)0.041(2)0.074(2)0.029(1)00.002(1)0
C(1)4c0.7452(3)0.251.1012(3)0.034(2)0.052(2)0.039(2)0−0.006(1)0
C(5)4c0.5497(3)0.251.0373(3)0.032(2)0.095(3)0.033(2)00.005(1)0
C(4)4c0.6294(3)0.251.1278(3)0.039(2)0.080(3)0.031(2)00.003(1)0
C(8)8d0.4874(3)0.0508(3)0.7910(3)0.064(2)0.084(2)0.072(2)0.011(2)0.007(2)−0.030(2)
C(11)8d0.1761(3)0.0535(2)0.9922(3)0.060(2)0.050(2)0.077(2)−0.011(1)0.002(2)0.003(1)
C(10)8d0.2779(2)0.0518(2)0.9247(3)0.059(2)0.044(1)0.072(2)0.003(1)−0.004(1)−0.009(1)
C(3)4c0.7025(3)0.250.8968(3)0.041(2)0.063(2)0.033(2)00.009(1)0
C(6)4c0.5849(3)0.250.9202(3)0.034(2)0.059(2)0.032(2)00.002(1)0
C(2)4c0.7836(3)0.250.9864(3)0.027(2)0.066(2)0.049(2)00.006(1)0

Source of material

Preparation of 2-(4-bromophenyl)-1H-perimidine: 4-Bromobenzaldehyde (1.85 g, 0.01 mol) was added to a solution of 1,8-naphthalenediamine (1.86 g, 0.01 mol) and sodium pyrosulfite (1.9 g, 0.01 mol) in 150 mL ethanol, followed by 50 mL water. The mixture was refluxed with stirring and monitored by TLC, giving a white precipitate. After cooling, the white solid was filtered and washed with ethanol and dried under vacuum to give the desired product (2.58 g, 80%). The product was used in the next reaction without purification. Preparation of 2-(4-bromophenyl)-1-methyl-1H-perimidine: Iodomethane (3.02 g, 0.021 mol) was added dropwise over a period of 10 min to a solution of 2-(4-bromophenyl)-1H-perimidine (3.23 g, 0.01 mol) in 10 mL of dimethylformamide at 373 K. The mixture was heated for 12 h, giving a yellow precipitate, which was filtered and suspended in 120 mL of water. Aqueous ammonium hydroxide was added slowly with vigorous stirring till the solution was slightly basic. During the course of addition, a yellow-green solid appeared. The solid was filtered, washed with water, and dried under vacuum to give the desired product (2.02 g, 60%). The product was used in the next reaction without purification. Preparation of 2-(4-bromophenyl)-1,3-dimethyl-1H-perimidin-3-ium iodide: Iodomethane (3.02 g, 0.021 mol) was added to a solution of 2-(4-bromophenyl)-1-methyl-1H-perimidine (3.37 g, 0.01 mol) in dimethylformamide (15 mL) at 373 K. The mixture was heated for 12 h, giving a yellow precipitate, which was filtered and dried under vacuum (3.59 g, 75%), and used in the next reaction without purification. Preparation of 2-(4-bromophenyl)-1,3-dimethyl-2,3-dihydro-1H-perimidine: Sodium borohydride (0.57 g, 0.015 mol) was added batch-wise to a solution of 2-(4-bromophenyl)-1,3-dimethyl-1H-perimidin-3-ium iodide (4.79 g, 0.01 mol) in methanol (25 mL) under a nitrogen atmosphere. The mixture was stirred at room temperature for 30 min, giving a white precipitate, which was filtered, washed with water and dried under vacuum (2.29 g, 65%). Light yellow prisms of the product were obtained upon recrystallization from anhydrous ethanol; m.p. 491.3 K.

Experimental details

The methyl groups were idealized and refined using rigid groups allowed to rotate about the N—C bond (AFIX 137 option of the SHELXL-2013 program [12]). The Uiso values of the hydrogen atoms of methyl groups were set to 1.5 Ueq(C) and the Uiso values of all other hydrogen atons were set to 1.2 Ueq(C).

Discussion

Multi-nuclear N-heterocyclic compounds like perimidines are of wide interest because they exhibit a diverse range of biological activities [1]. There are several preparative methods for the synthesis of perimidine derivatives [2–6]. The most commonly method for the preparation of perimidines is the condensation reaction of 1,8-diaminonaphthalene with a carbonyl group. Because of the continuing interest in this field, investigation into simple methods for the synthesis of perimidines is important. Herein, a novel compound 2-(4-bromophenyl)-1,3-dimethyl-2,3-dihydro-1H-perimidine was synthesized [7–11] and characterized by single-crystal X-ray diffraction. The title molecule shows a crystallographicall imposed mirror symmetry (see the figure). Consequently there is one half of a molecule in the asymmetric unit. All bond lengths and angles are in the expected ranges.

Corresponding author: Xian-You Yuan, Key Laboratory of Comprehensive Utilization, of Advantage Plants Resources in Hunan South, Hunan University of Science and Engineering, Yongzhou Hunan 425199, P. R. China, e-mail:

Acknowledgements:

This work was financially Supported by the Opening Project of Key Laboratory of Comprehensive Utilization of Advantage Plants Resources in Hunan South (XNZW15C05), the Science and Technolog Planning Project of Hunan Province (2015GK3037), the Scientific Research Fund of Hunan Provincial Education Department (14A058, 13A030).

References

1. Bu, X.; Deady, L. W.; Finlay, G. J.; Baguley, B. C.; Denny, W. A.: Synthesis and cytotoxic activity of 7-oxo-7H-dibenz[f,ij]isoquinoline and 7-oxo-7H-benzo[e]perimidine derivatives. J. Med. Chem. 44 (2001) 2004–2014.10.1021/jm010041lSuche in Google Scholar

2. Vanden, E.J. J.; Delfosse, F.; Mayence, A.; Haverbeke, Y. V.: Old reagents, new results-aromatization of Hantzsch 1,4-dihydropyridines with manganese-dioxide and 2,3-dichloro-5,6-dicyano-1,4-benzoquinone. Tetrahedron 51 (1995) 5813–5818.10.1016/0040-4020(95)00318-3Suche in Google Scholar

3. Hendrickson, J. B.; Hussoin, M. S.: Seeking the ideal dehydrating reagent. J. Org. Chem. 52 (1987) 4137–4139.10.1021/jo00227a041Suche in Google Scholar

4. Deady, L. W.; Rodemann, T. J.: Synthesis of perimidine and fused perimidine derivatives from reaction of 1,8-naphthalenediamine with an iminoisocoumarin. Heterocycl. Chem. 35 (1998) 1417–1419.10.1002/jhet.5570350633Suche in Google Scholar

5. Mueller-Westerhoff, U. T.; Vance, B.; Dong. I. Y.: The synthesis of dithiolene dyes with strong near-IR absorption. Tetrahedron 47 (1991) 909–932.10.1016/S0040-4020(01)80932-7Suche in Google Scholar

6. Starshikov, M.; Pozharskii, F. T.: Synthesis of 2-(5-halogeno-2-furyl)-2,3- dihydroperimidines. Chem. Heterocycl. Compd. 9 (1973) 922–924.10.1007/BF00471584Suche in Google Scholar

7. Przemyslaw, M.; Anu, C.; Christopher, R. M.; Rudiger, W.; Sonja, L.; Arnold, L. R.; Glenn, P. A. Y.: Optical properties of spiroconjugated charge-transfer dyes. J. Am. Chem. Soc. 118 (1996) 1471–1481.10.1021/ja9533003Suche in Google Scholar

8. Starshikov, N. M.; Pozharskii, A. F.: Heterocyclic analogs of pleiadiene. Chem. Heterocycl. Compd. 10 (1978) 1413–1417.10.1007/BF00469962Suche in Google Scholar

9. Sokolov, V. I.; Pozharskii, A. F.; Kashparov, I. S.; Ivanov, A. G.: Heterocyclic analogs of pleiadiene. Chem. Heterocycl. Compd. 4 (1974) 558–561.10.1007/BF00945648Suche in Google Scholar

10. Wong, K. T.; Chien, Y. Y.; Wang, R. T.; Wang, C. F.; Lin, Y. T.; Chiang, H. H.; Hsieh, P. Y.; Wu, C.C.; Chou, C. H.; Su, Y. O.; Peng, S. M.: Ter(9,9-diarylfluorene)s: Highly efficient blue emitter with promising electrochemical and thermal stability. J. Am. Chem. Soc. 23 (2002) 2874–2875.10.1021/ja0269587Suche in Google Scholar PubMed

11. Clark, K. L.; Halay, E. D.; Lai, E.; Burley, S. K.: Co-crystal structure of the HNF-3/fork head DNA-recognition motif resembles histone H5. Nature 364 (1993) 412–420.10.1038/364412a0Suche in Google Scholar PubMed

12. Sheldrick, G. M.: A short history of SHELX. Acta Crystallogr. A64 (2008) 112–122.10.1107/S0108767307043930Suche in Google Scholar PubMed

Received: 2015-12-14
Accepted: 2016-2-4
Published Online: 2016-2-25
Published in Print: 2016-6-1

©2016 Lin Yuan et al., published by De Gruyter.

This work is licensed under the Creative Commons Attribution-NonCommercial-NoDerivatives 3.0 License.
